Specifications
Equipped With
GENERAL SPECIFICATIONS:
AGE APPROXIMATELY 2003
SERIAL# 31760
TABLE SIZE 36" X 14"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXIS 710 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 0 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 20 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:

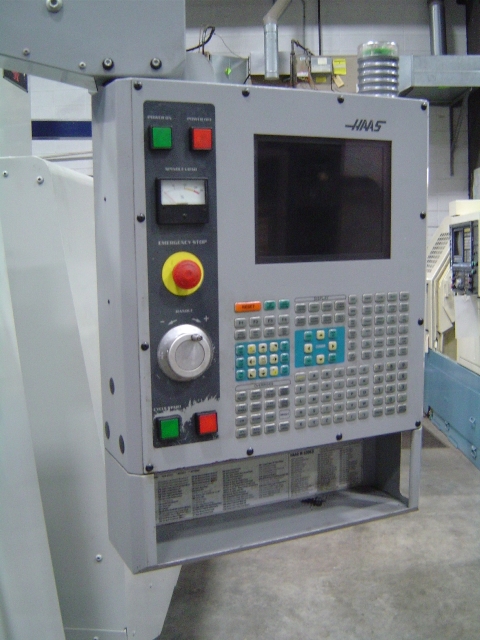

HAAS 32-BIT CNC CONTROL WITH 12" CRT, REMOTE PULSE GENERATOR
RS-232C PORT INTERFACE FOR DNC OPERATION, FLOPPY DISK DRIVE
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING), 1MB MEMORY

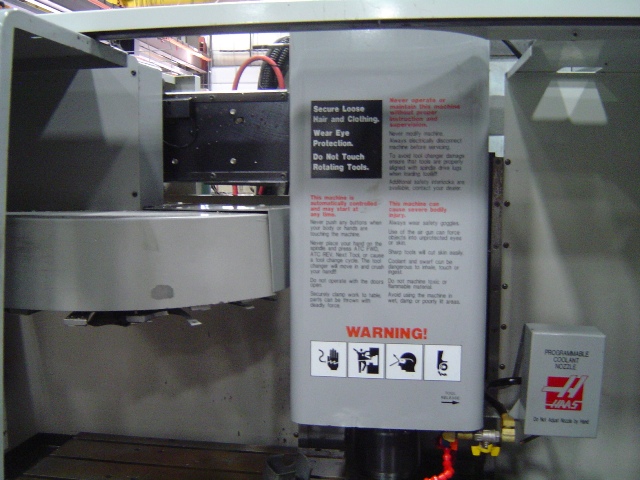

PROGRAMMABLE COOLANT NOZZLE, QUIKCODE PROGRAMMING
INTERNAL CHIP CONVEYOR,FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
