Specifications
Equipped With

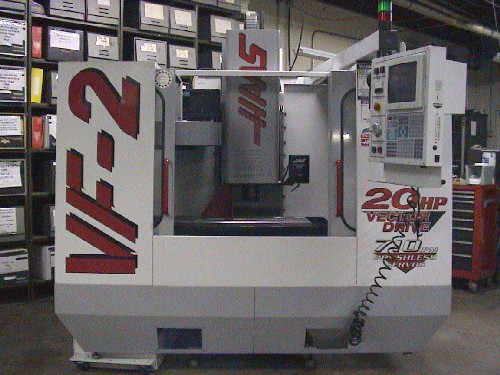

GENERAL SPECIFICATIONS:

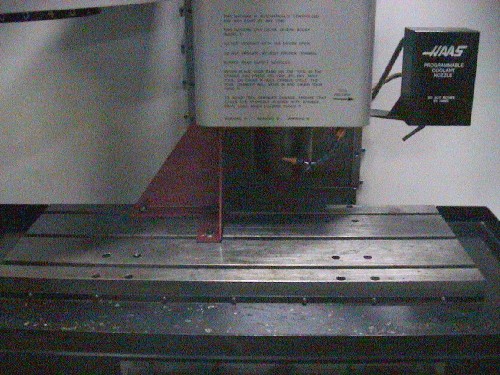

TABLE SIZE 36" X 14"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXIS 710 IPM
CUTTING FEED RATE 0.1 - 300 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 0 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 20 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:
HAAS 32-BIT CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
PROGRAMMABLE COOLANT, QUICK CODE, FLOPPY DRIVE
INTERNAL COIL TYPE CHIP REMOVAL CONVEYOR
WIRED FOR 4TH AXIS ROTARY TABLE, 1MB MEMORY UPGRADE

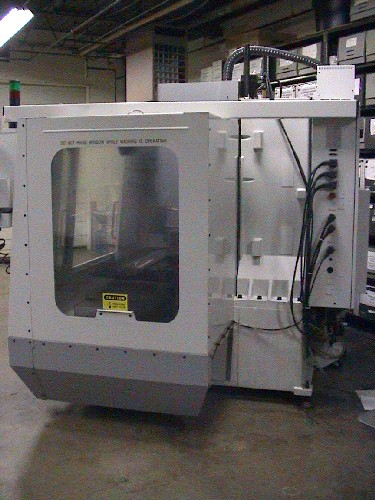

FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
