Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 36" X 14"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X AXIS 710 IPM
RAPID TRAVERSE RATE Y AXIS 710 IPM
RAPID TRAVERSE RATE Z AXIS 710 IPM
CUTTING FEED RATE 0.1 - 300 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 0 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 20 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:

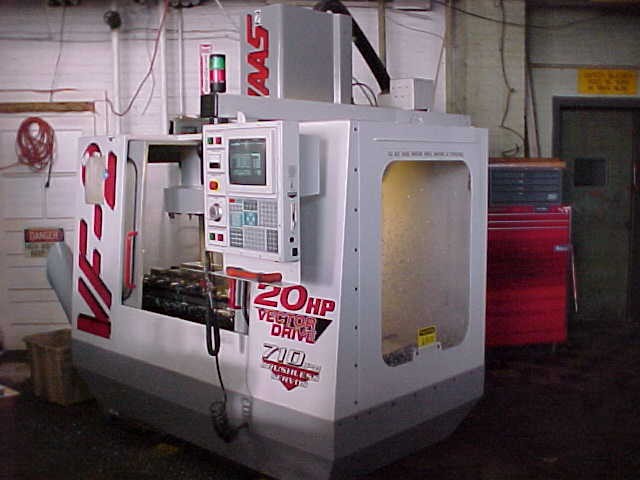

HAAS 32-BIT CNC CONTROL WITH 9" CRT, MANUAL PULSE GENERATOR
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING)
PROGRAMMABLE COOLANT NOZZLE, QUIKCODE PROGRAMMING
INTERNAL COIL TYPE CHIP REMOVAL CONVEYOR, FLOPPY DRIVE
WIRED FOR 4TH AXIS ROTARY TABLE, 1MB MEMORY UPGRADE

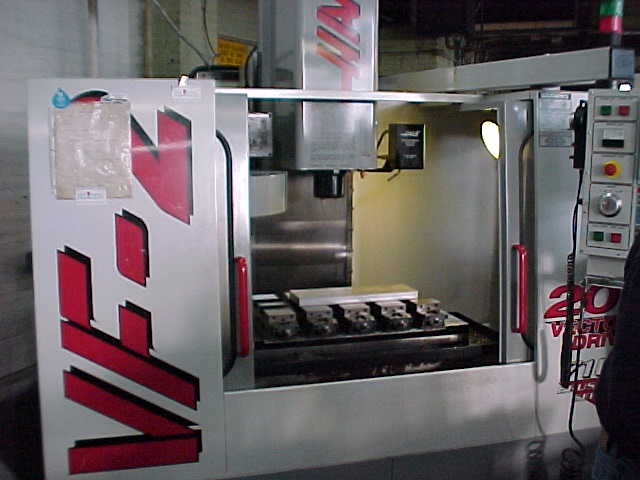

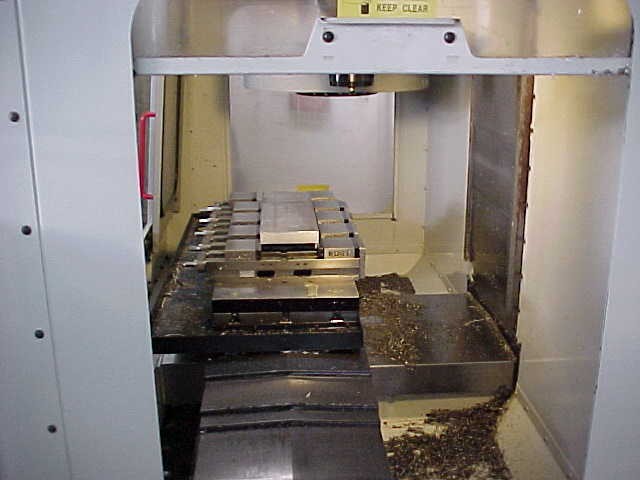

ALUMINUM SUBPLATE WITH (5) 4" CHICK DOUBLE LOCK VISES
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
