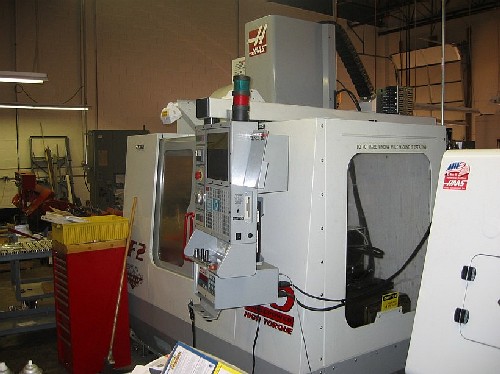

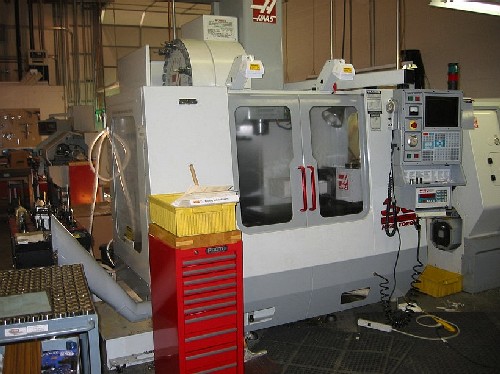

Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 36" X 14"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXIS 710 IPM
CUTTING FEED RATE 0.1 - 500 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 0 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 30 HP AC
TOOL CHANGER CAPACITY 24 + 1 STATION ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:
HAAS 32-BIT CNC CONTROL WITH 9" CRT & RS-232C INTERFACE
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING), MACROS
HAAS TRT-160 6.3" 4TH/5TH AXIS ROTARY WITH FACEPLATE & CHUCK
COOLANT THROUGH THE SPINDLE, 10000 RPM 30HP GEARED SPINDLE
SWING-ARM 24 + 1 SIDE MOUNT ATC, COORDINATE SCALE & ROTATION
PROGRAMMABLE COOLANT, QUICK CODE, COIL TYPE CHIP CONVEYOR
1MB MEMORY, FLOPPY DISK DRIVE, REMOTE PULSE GENERATOR

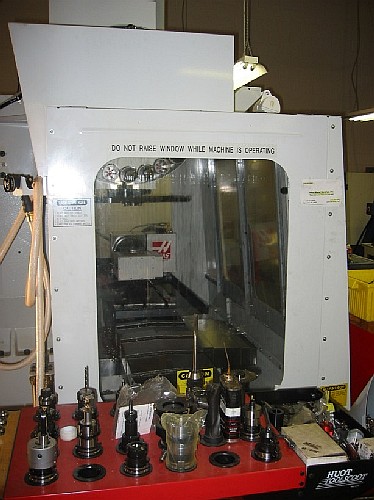

FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS & TOOLING
***MACHINE HAS 101 POWER ON & 70 CUT HOURS, BRAND NEW!***
