GENERAL SPECIFICATIONS

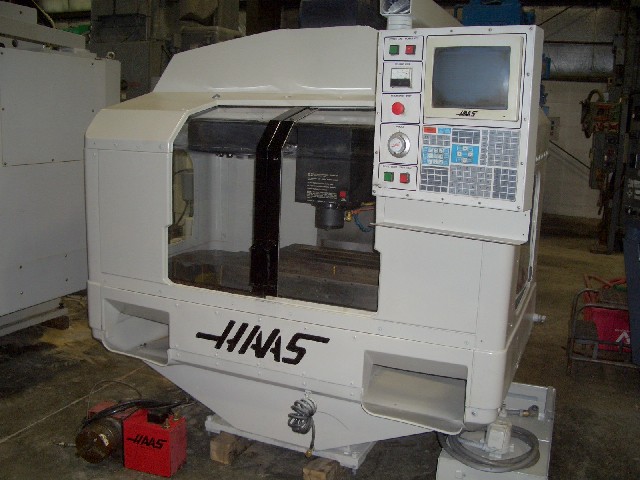

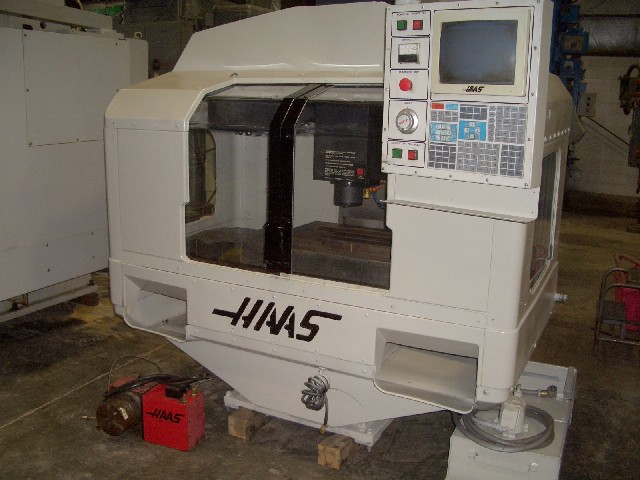

MODEL VF-1
SERIAL 1597
AGE 1992
TABLE SIZE 26" X 14"
MAXIMUM TABLE LOAD 750 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 20"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X AXIS 500 IPM
RAPID TRAVERSE RATE Y AXIS 500 IPM
RAPID TRAVERSE RATE Z AXIS 500 IPM
CUTTING FEED RATE 0.1 - 200 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 0 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 10 HP
TOOL CHANGER CAPACITY 16 STATION ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:
HAAS CNC CONTROL WITH 12" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

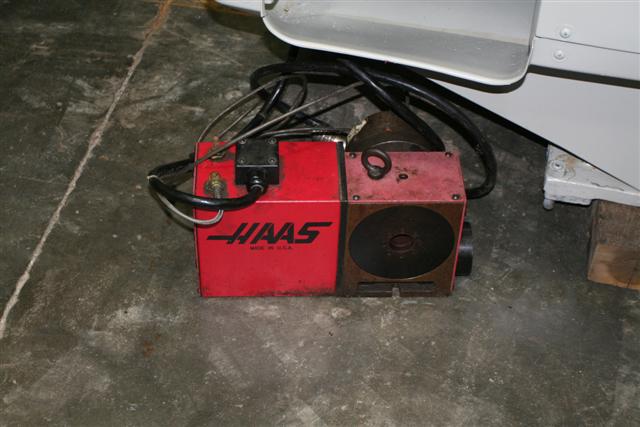

4TH AXIS ROTARY TABLE WITH 6" 3 JAW CHUCK
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
