Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 36" X 14"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXIS 710 IPM
CUTTING FEED RATE 0.1 - 500 IPM
SPINDLE SPEEDS (2 SPEED GEARED) 0 - 15,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR (VECTOR DRIVE) 20 HP AC
TOOL CHANGER CAPACITY 24 + 1 SIDE MOUNT ATC
MAXIMUM TOOL WEIGHT 12 LBS
EQUIPPED WITH:
HAAS 32-BIT CNC CONTROL WITH 12" CRT & 3.5" FLOPPY
RS-232C PORT INTERFACE, 24 + 1 SIDE MOUNT (SWING ARM) ATC
RIGID TAPPING, OPTIONAL 15000 RPM SPINDLE UPGRADE
GRAPHITE PACKAGE (CHILLER, DOWTHERM OIL, BELLOWS, AIR BLOW)
PROGRAMMABLE COOLANT, QUICK CODE, CUSTOM MACROS
INTERNAL CHIP CONVEYOR, 100MB ZIP DRIVE, HI SPEED MACHINING
WIRED FOR 4TH AXIS ROTARY TABLE, 1MB MEMORY UPGRADE
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS

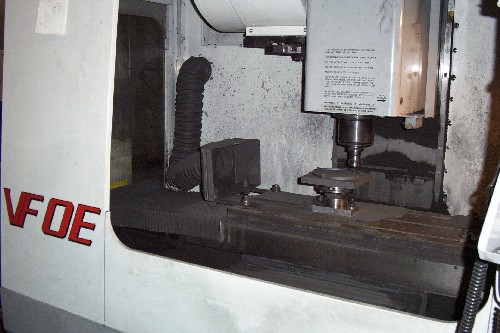

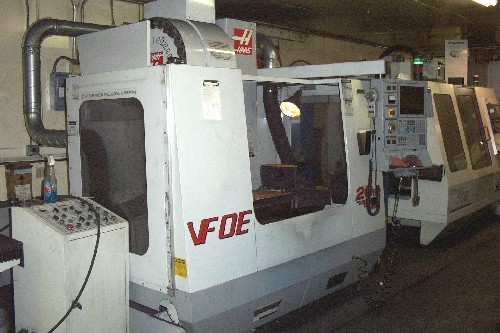

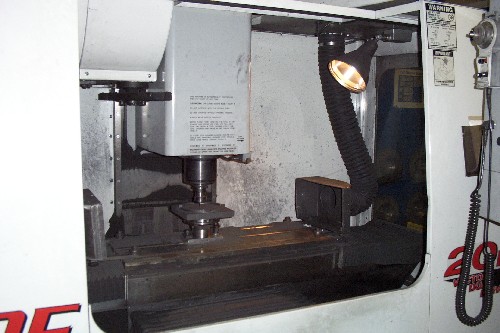

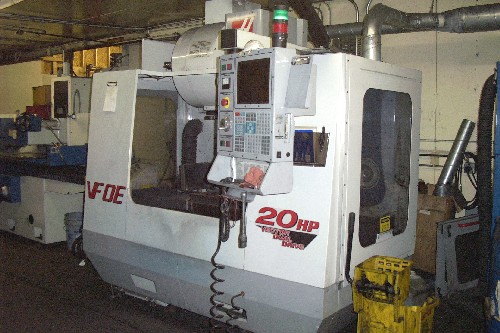

*****TORIT UNIT SHOWN IN PHOTOS IS NOT INCLUDED*****
