Specifications
Equipped With
GENERAL SPECIFICATIONS:

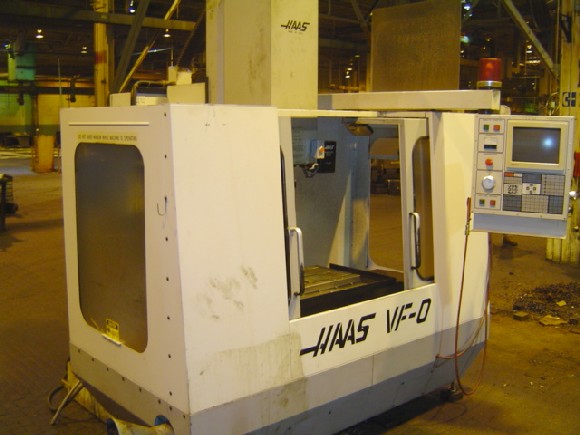

MANUFACTURER HAAS
MODEL VF-0
NEW (APPROX.) 1994
X-TRAVEL 20"
Y-TRAVEL 16"
Z-TRAVEL 20"
SPINDLE NOSE TO TABLE 4 - 24"
TABLE SIZE 26"L x 14"W
MAX. WEIGHT ON TABLE 3,000 LBS.
T-SLOT WIDTH .625"
TAPER SIZE #40 TAPER
SPINDLE SPEED 0 - 7500 RPM
SPINDLE MOTOR MAX. RATING 20 HP
AXIS MOTOR MAX. RATING 5 HP
AXIS MOTORS MAX. THRUST RATING 3,400 LBS.
FEEDRATES RAPIDS ON X-AXIS 710 IPM
FEEDRATES RAPIDS ON Y & Z-AXIS 710 IPM
FEEDRATES MAX. CUTTING 500 IPM
TOOL CHANGER CAPACITY 20
MAX. TOOL DIAMETER 3.5"
MAX. TOOL WEIGHT 12 LBS.
WEIGHT (APPROX.) 7,000 LBS.
