| Specifications |

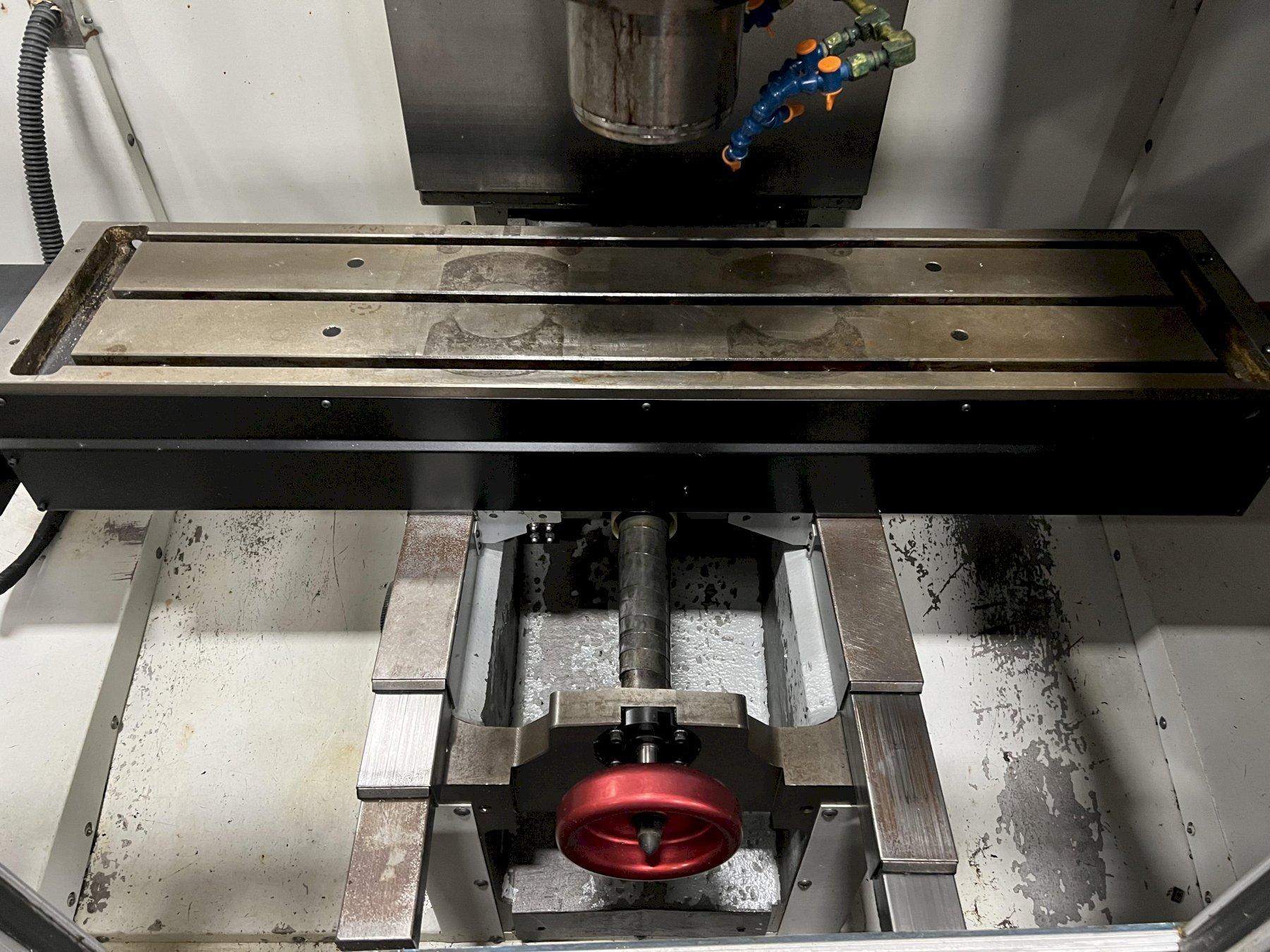

| Table Size | 47.5" x 10.5" |
| X-Axis Travel | 30" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 16" |
| Maximum Table Load | 1,000 lbs. |
| Rapid Traverse Rate (X,Y,Z) | 200 IPM |
| Min./Max. Distance, Spindle Nose to Table | 4" - 20" |
| Spindle Horsepower | 7.5 HP |
| Spindle Speeds | 0 - 4,000 RPM |
| Spindle Taper | CAT-40 |
| Approximate Dimensions | 64" W x 62" D x 102" H |
| Approximate weight | 4,300 lbs. |
| EQUIPPED WITH: |

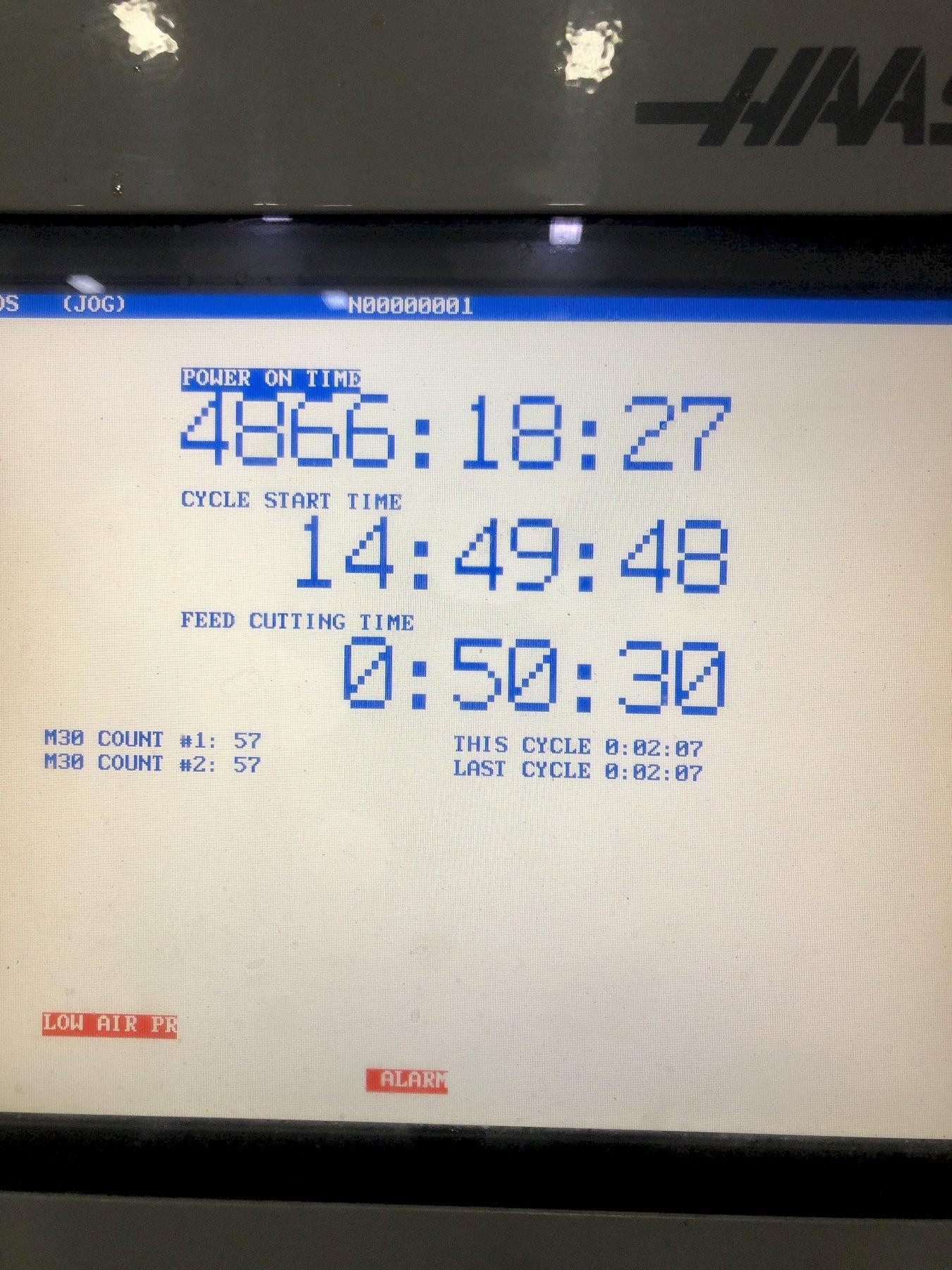

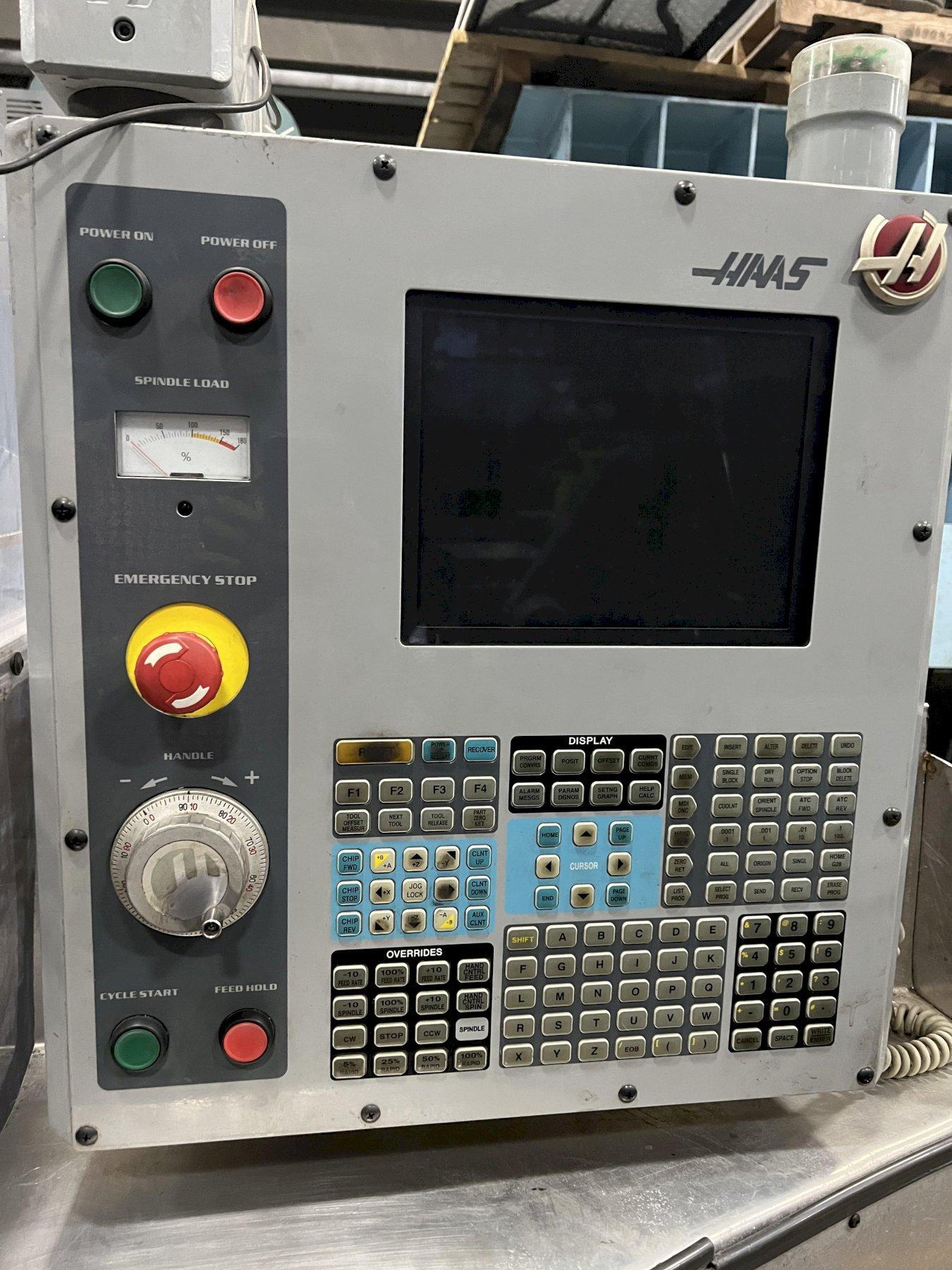

Haas Classic control with 16mb Rigid tap Macros Intuitive programming RS-232 |
