Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAXIMUM SWING 5.75"
COLLET SIZE 5C, AIR ACTUATED
X AXIS TRAVEL 12"
Z AXIS TRAVEL 12"
RAPID TRAVERSE RATE X AXIS 600 IPM
RAPID TRAVERSE RATE Z AXIS 600 IPM
SPINDLE NOSE A2-5
SPINDLE BORE 1.38"
DRAW TUBE BORE 1.18"
STANDARD BAR WITH 5C COLLET 1.06"
SPINDLE SPEEDS 60 - 6,000 RPM
SPINDLE MOTOR 7.5 HP AC

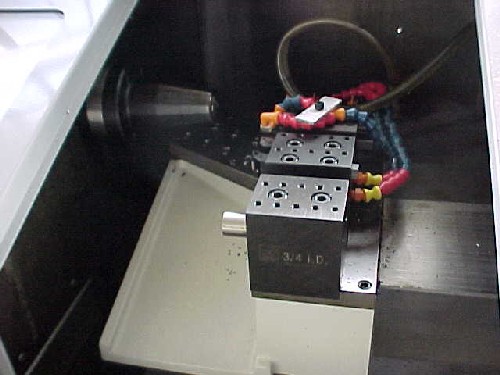

TOOLING CAPACITY (GANG PLATE) 10 MAXIMUM
MACHINE WEIGHT 4,100 LBS
MACHINE FOOTPRINT 5.5' x 4.5'
EQUIPPED WITH:
HAAS 32-BIT CNC CONTROL WITH 12" CRT, COOLANT THRU GANG PLATE
RS-232C PORT INTERFACE FOR DNC OPERATION, 1 MEG MEMORY
5C PNEUMATIC CHUCK SYSTEM, FLOPPY DISK DRIVE
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
HAAS VISUAL QUIKCODE PROGRAMMAING, AUTO PARTS CATCHER
LARGER CAPACTIY COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
