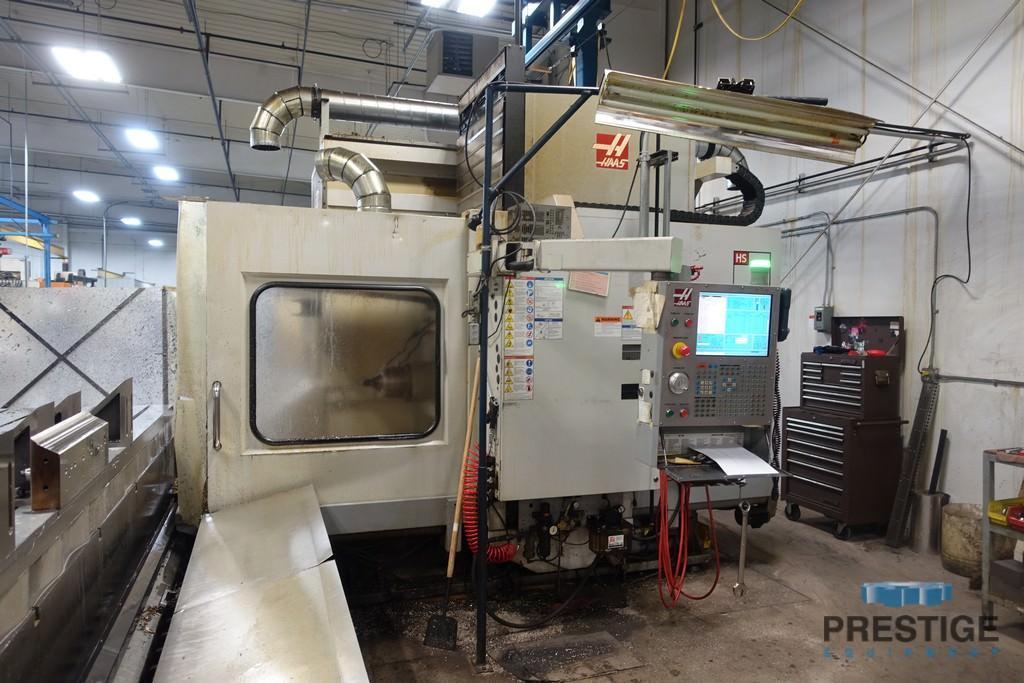

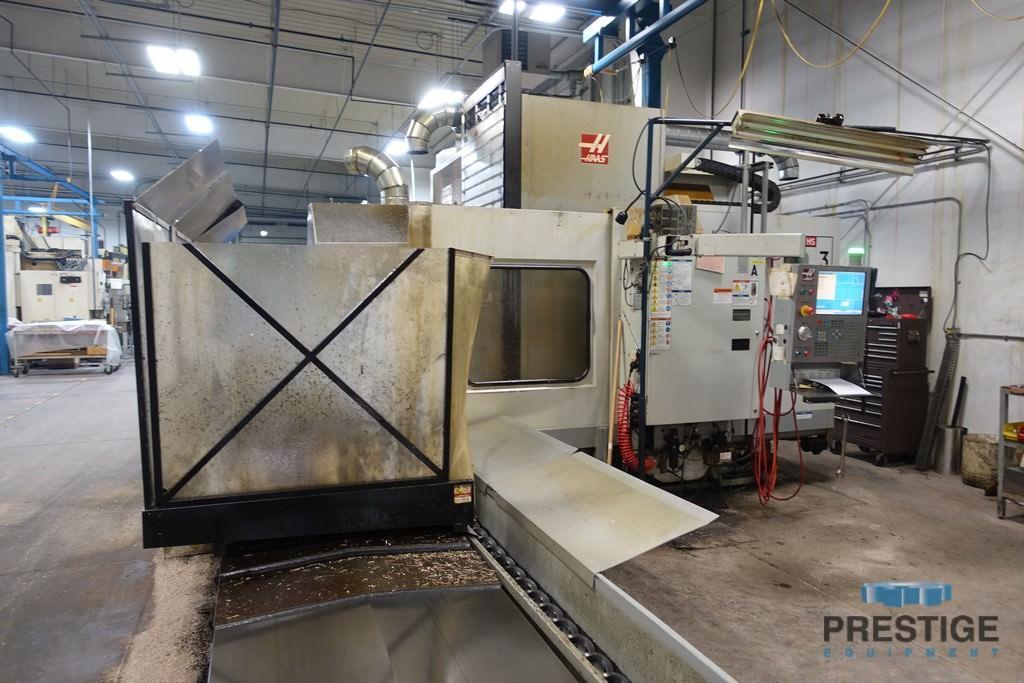

Haas HS-3 CNC Horizontal Machining Center

FEATURES:

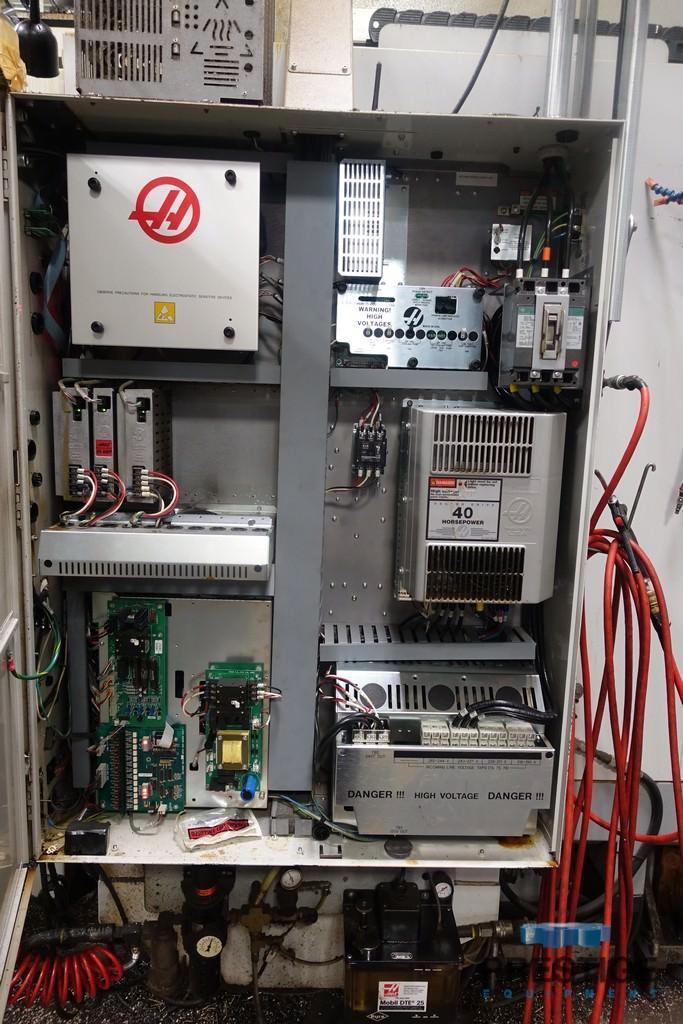

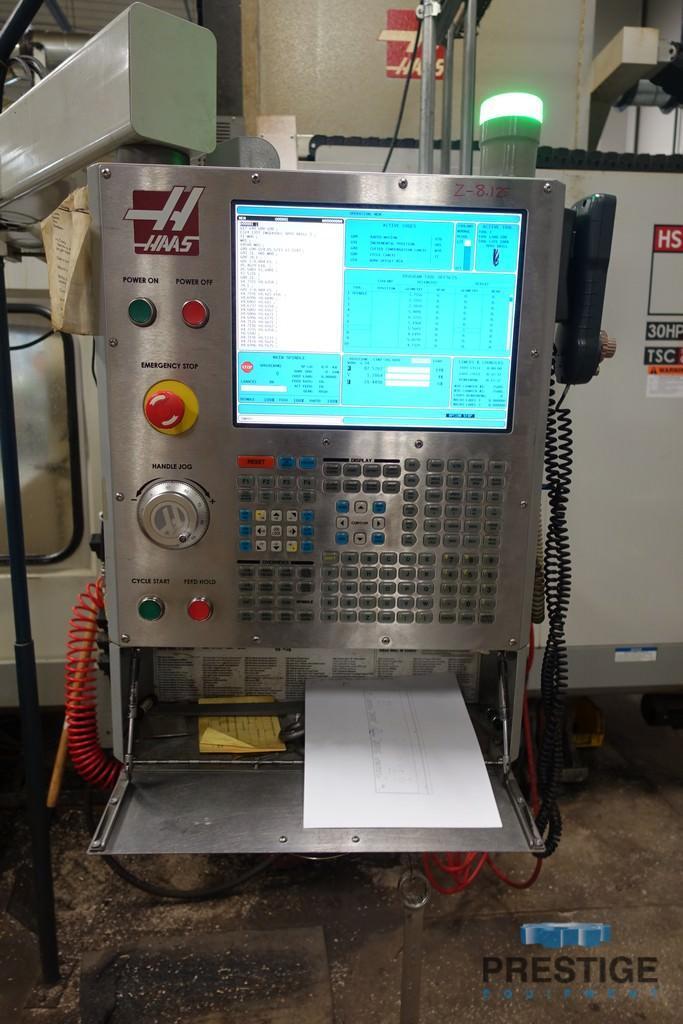

HAAS CNC CONTROL

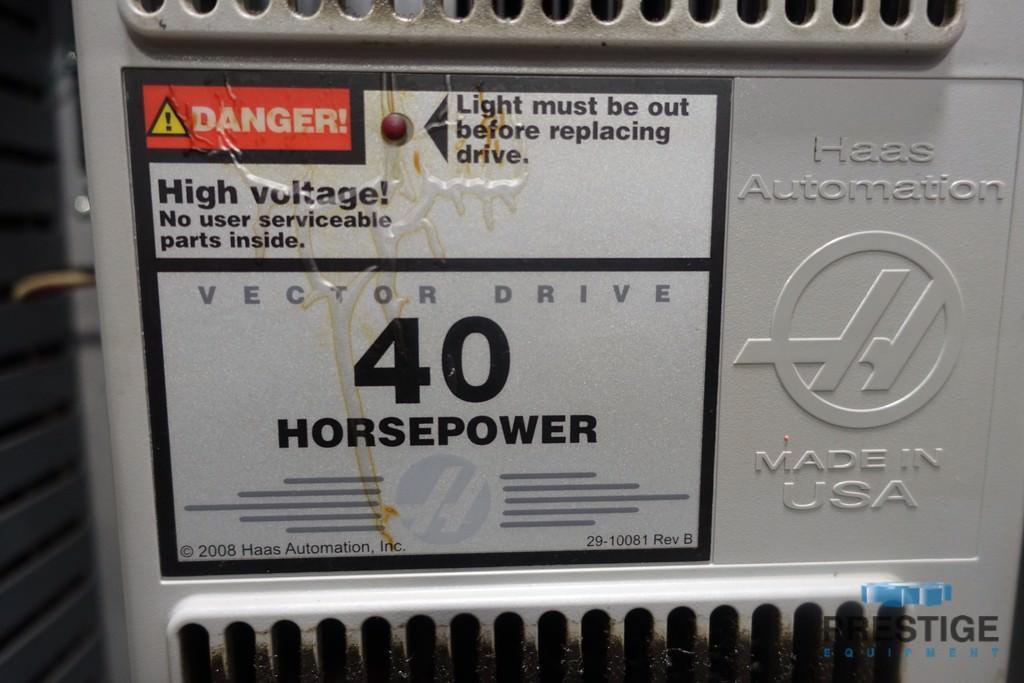

40 HP VECTOR DRIVE MOTOR

146" X 50" TABLE

38 ATC

CHIP AUGER

SPECIFICATIONS:

X-AXIS TRAVEL                                                                                                                                  150"

Y-AXIS TRAVEL                                                                                                                                    50"

Z-AXIS TRAVEL                                                                                                                                     60"

TABLE SIZE                                                                                                                                40" X 146"

TABLE CAPACITY                                                                                                                  10,000 LBS.

SPINDLE SPEEDS, 2-SPEED GEARED HEAD                                                                     0-5000 RPM

SPINDLE DRIVE MOTOR                                                                                                          40 HP AC

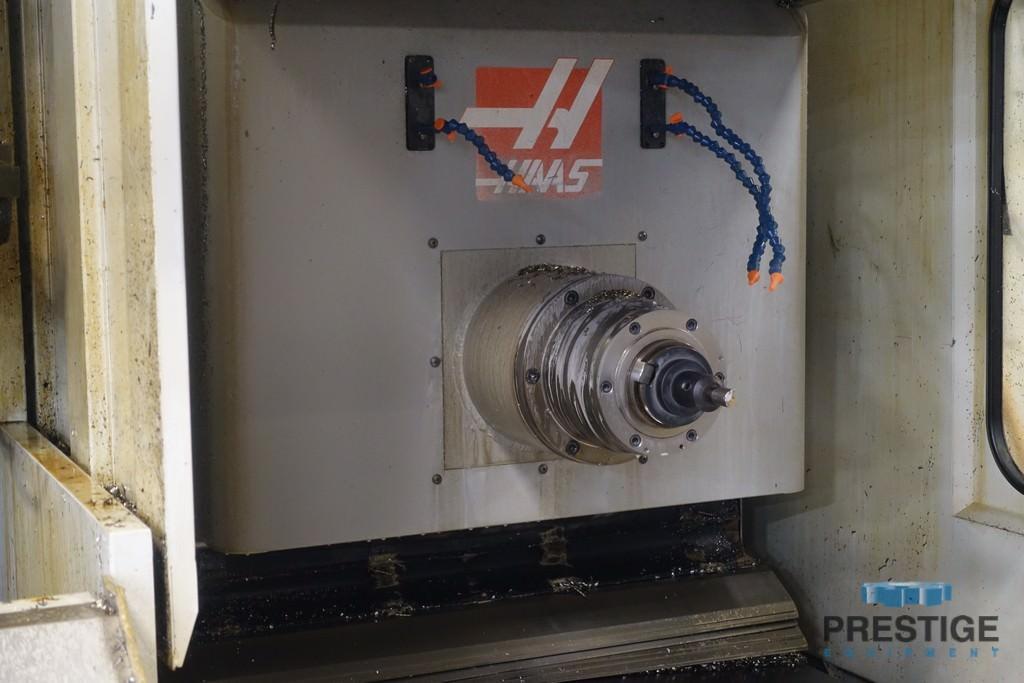

SPINDLE TAPER                                                                                                                             CAT 50

CUTTING FEED RATE                                                                                                                  500 IPM

RAPID FEEDS, XY AXES                                                                                                             500 IPM

RAPID FEEDS, Z-AXIS                                                                                                                  710 IPM

MAX. TOOL DIAMETER                                                                                                                      9.8"

MAX. TOOL WEIGHT                                                                                                                         79.4"

TOOL-TO-TOOL                                                                                                                  4.9 SECONDS

CHIP-TO-CHIP                                                                                                                   15.8 SECONDS

SHIPPING WEIGHT                                                                                                                 62,000 LBS.

EQUIPPED WITH:

HAAS CNC CONTROL

UPGRADED 40 HP VECTOR DRIVE MOTOR

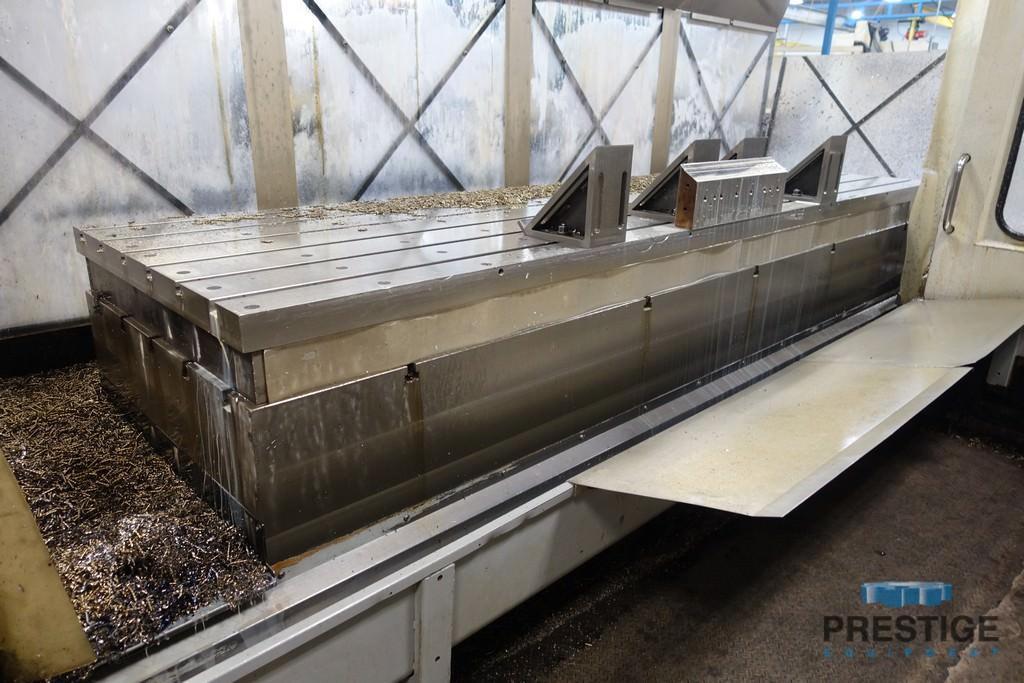

146" X 50" T-SLOTTED TABLE

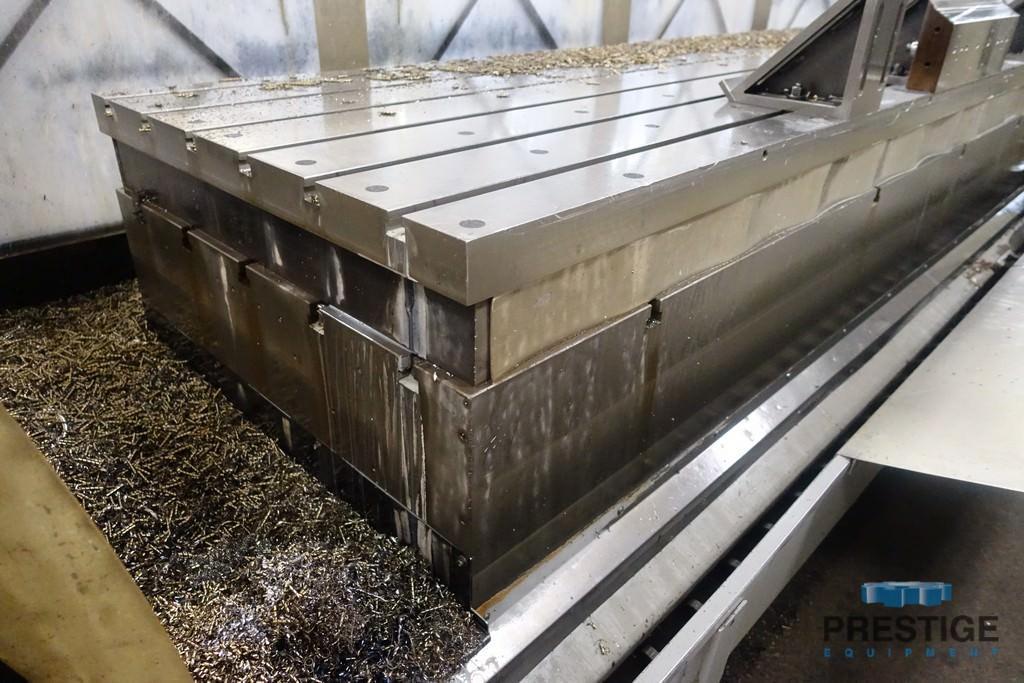

146" X 40" X 4" THICK T-SLOTTED SUB-TABLE

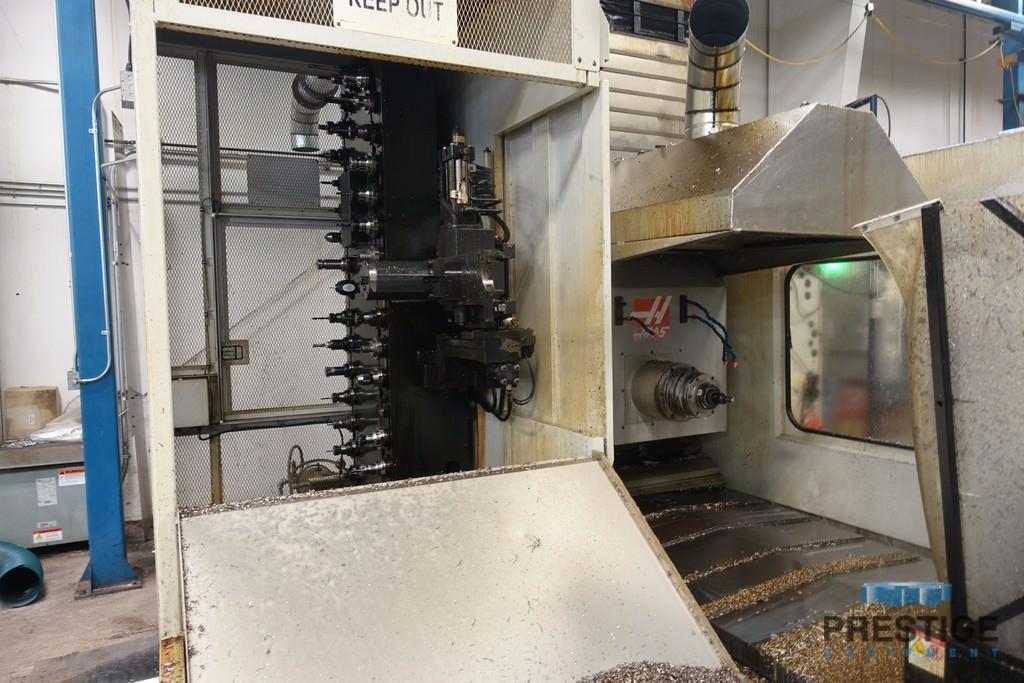

38-POSITION SIDE-MOUNTED AUTOMATIC TOOL CHANGER

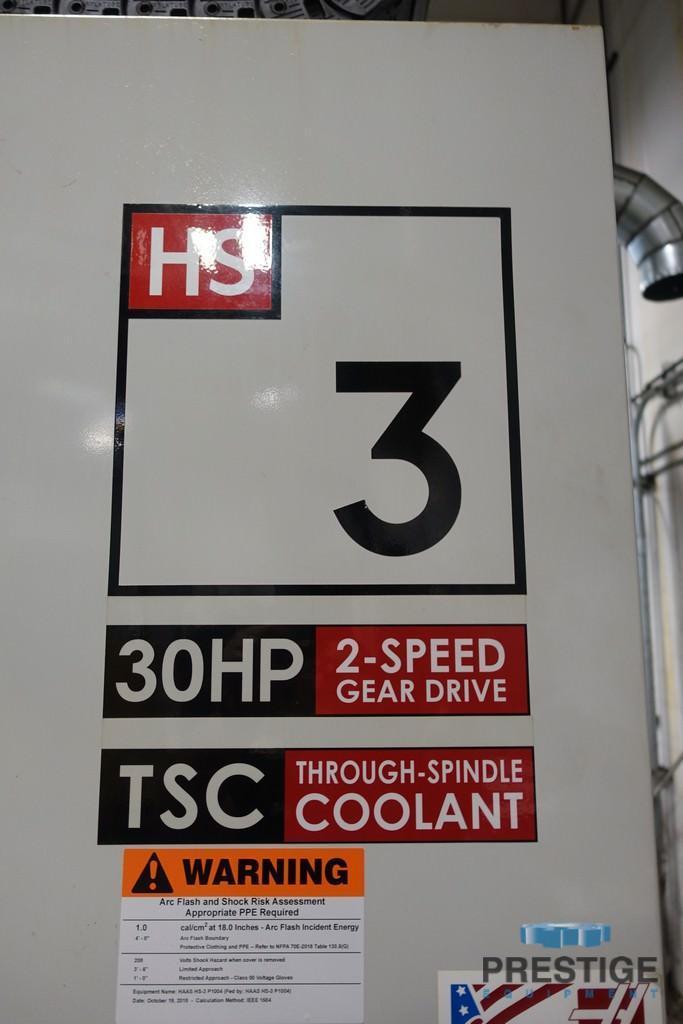

THROUGH SPINDLE COOLANT

REMOTE JOG HANDLE

CHIP AUGER

LOCATION:

UNDER POWER IN MIDWEST PLANT
