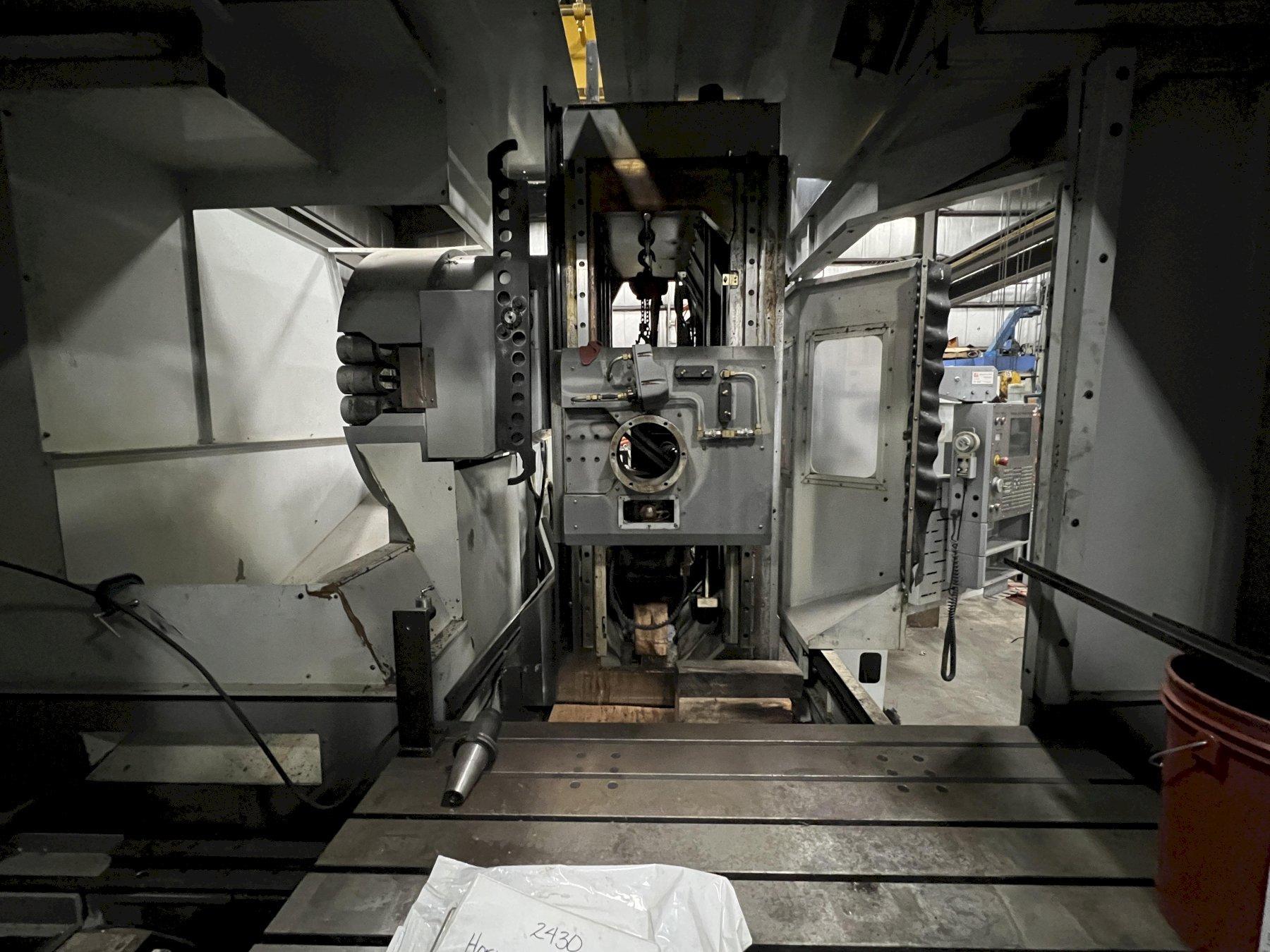

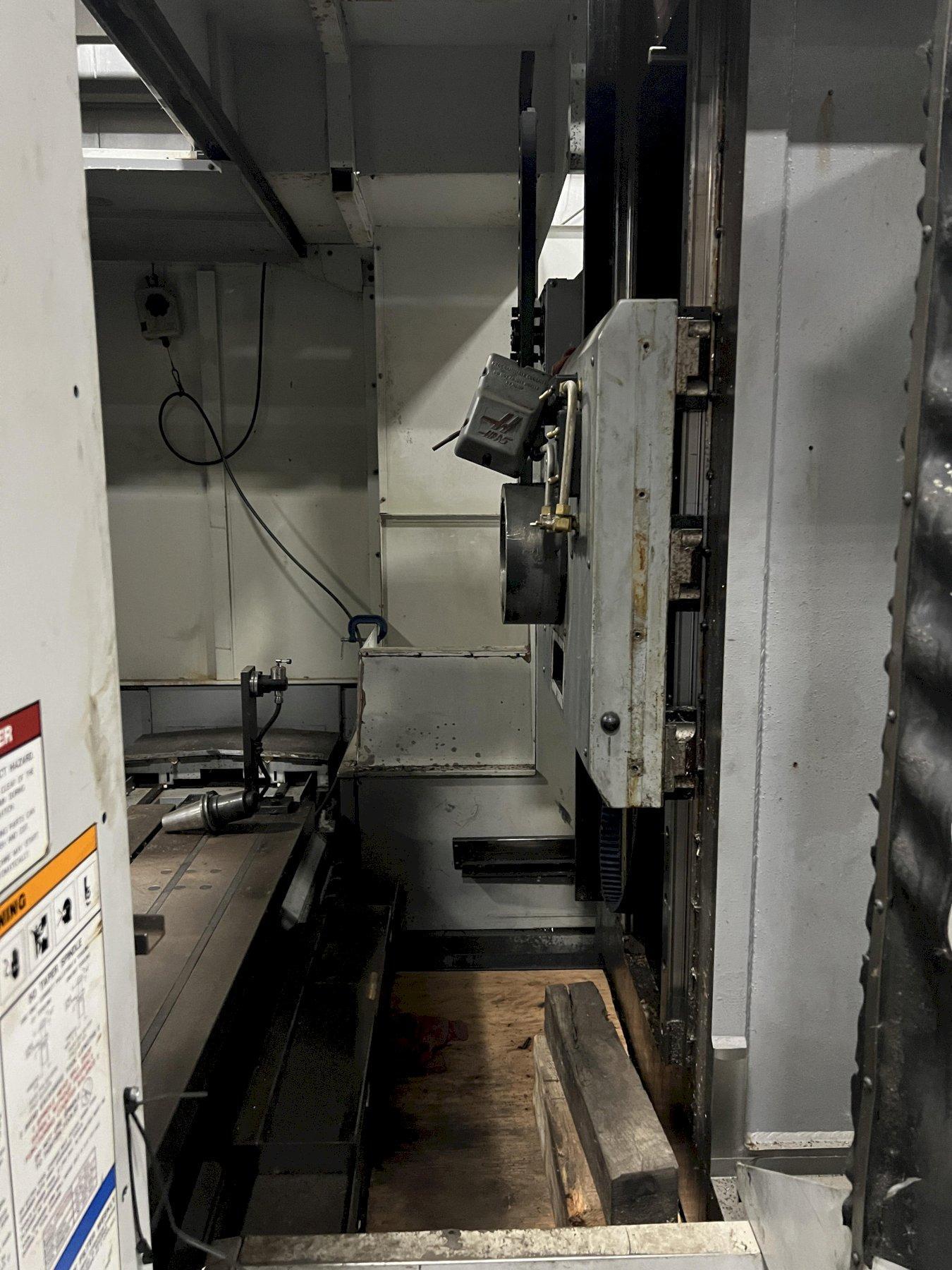

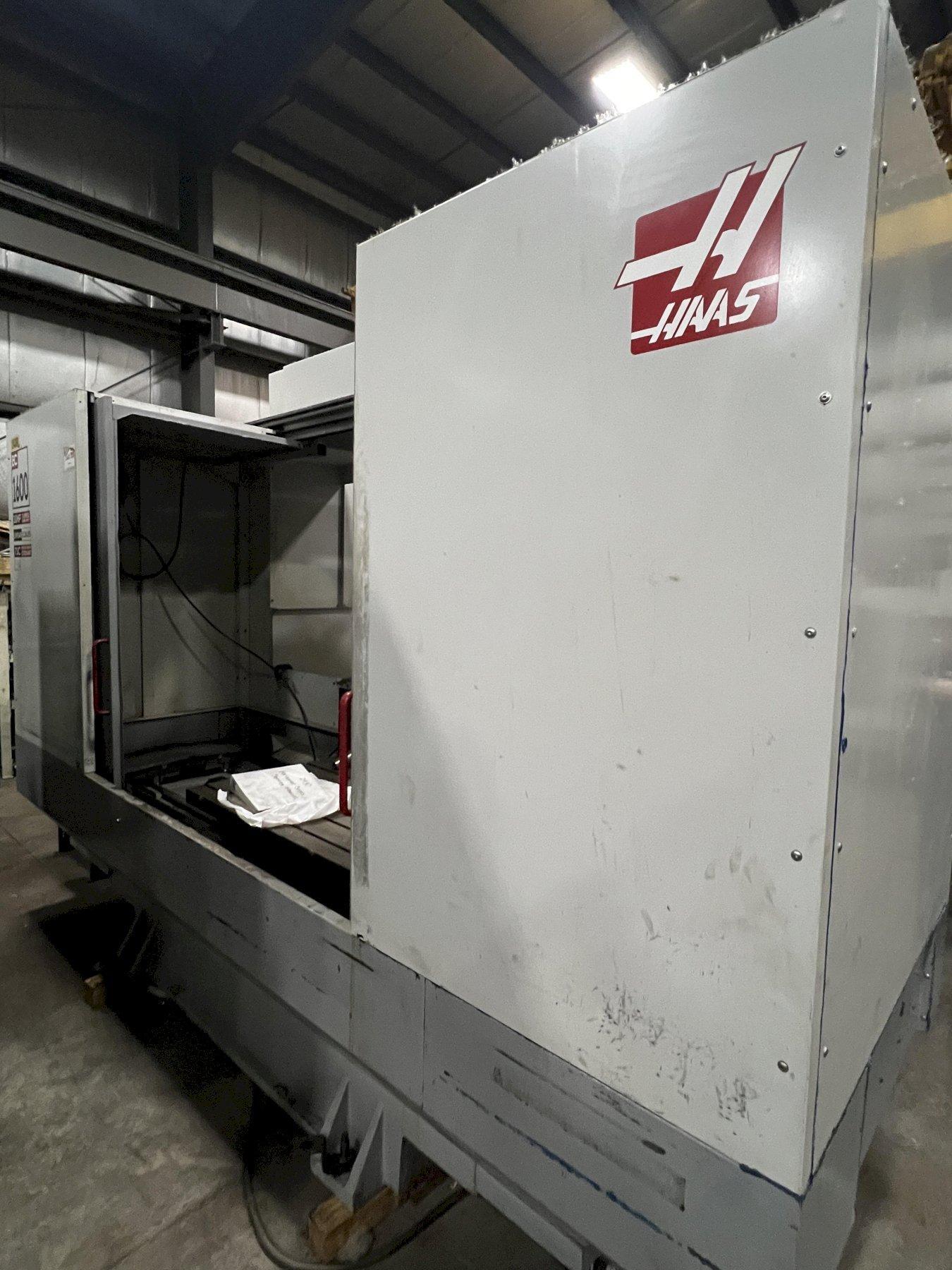

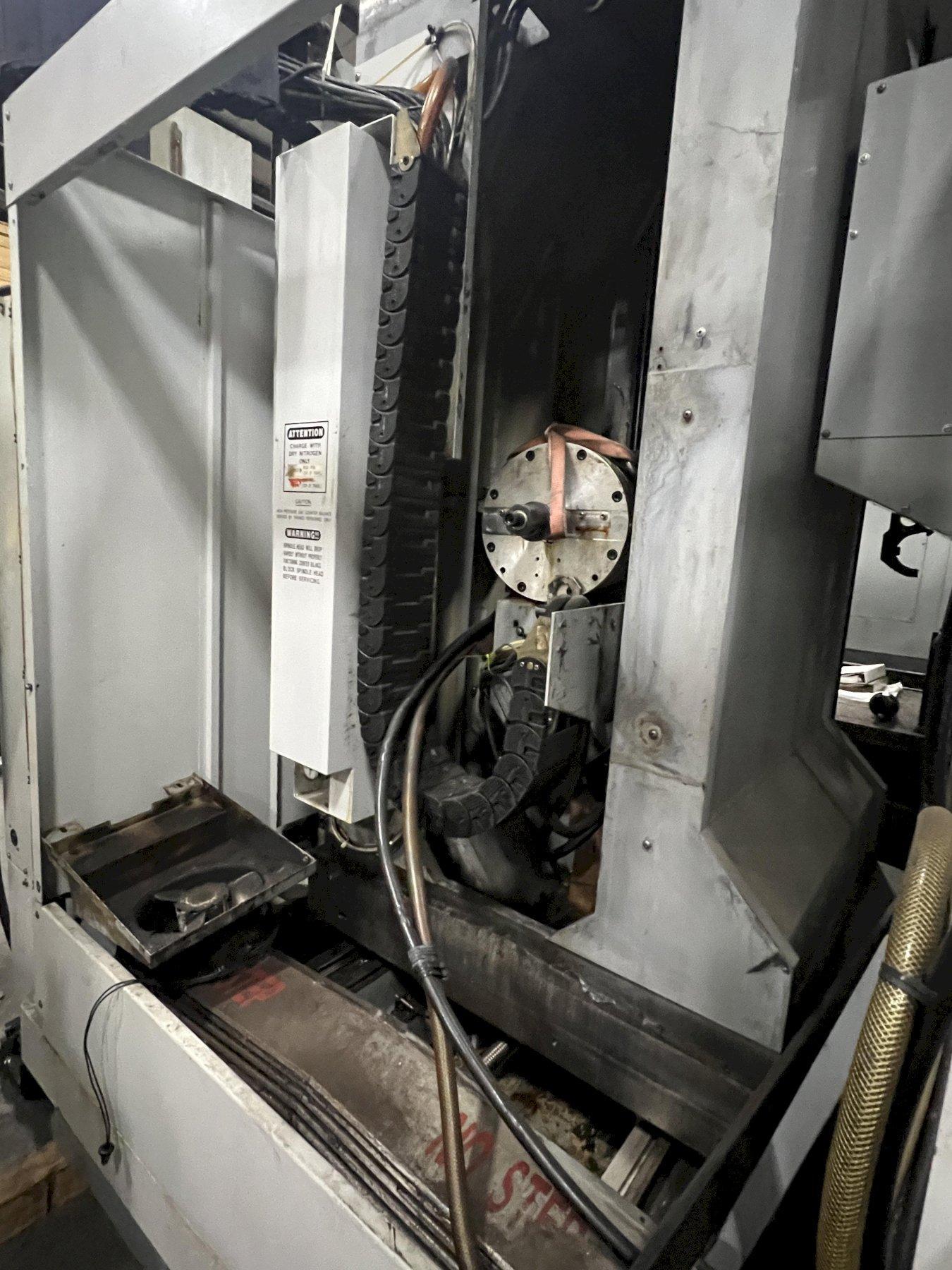

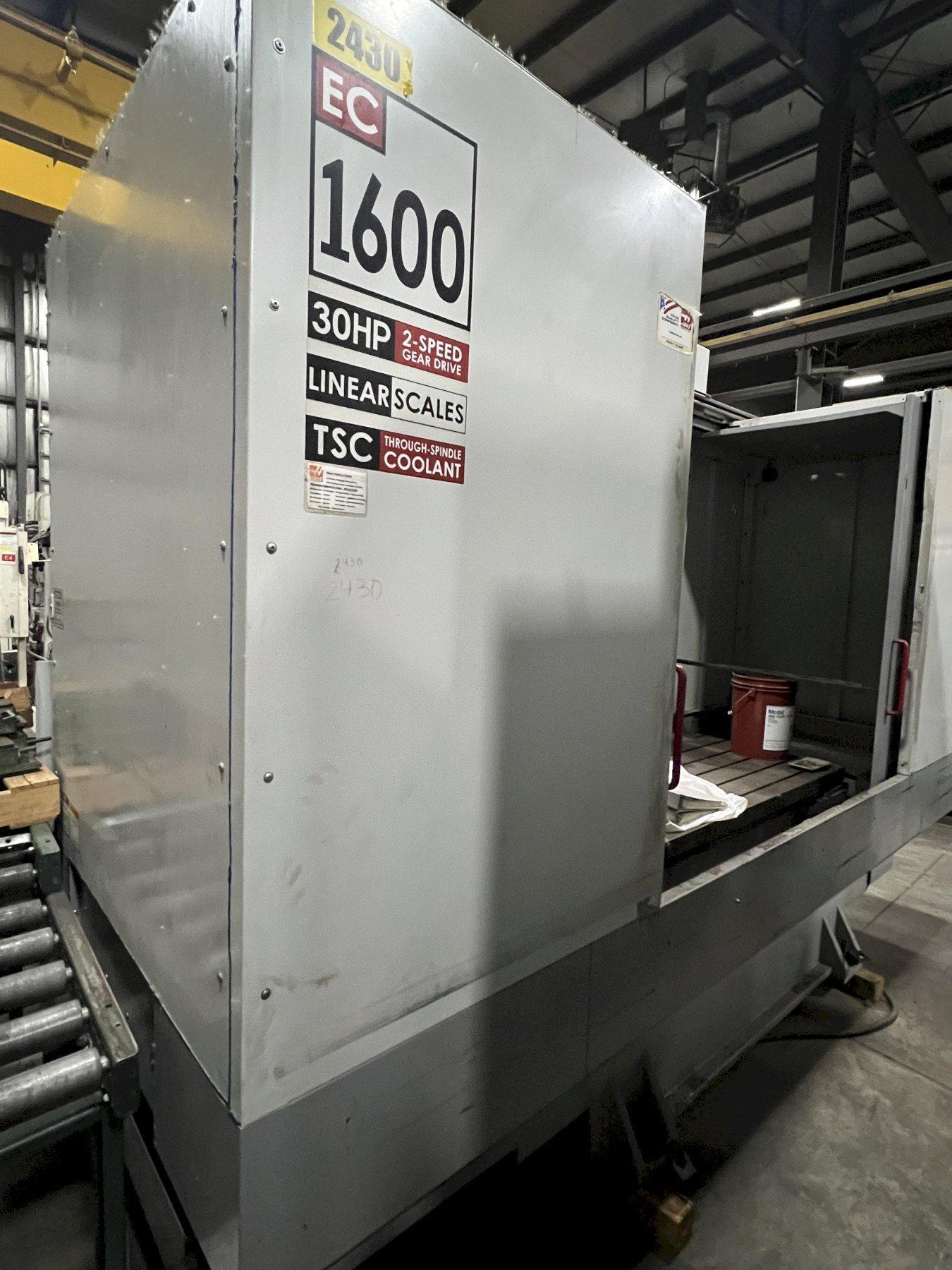

Haas EC-1600-3X Horizontal Machining Center, New 2005, 50 Taper, Thru spindle coolant, 30 HP, Linear Scales, 4th Axis interface

SPECIFICATIONS:

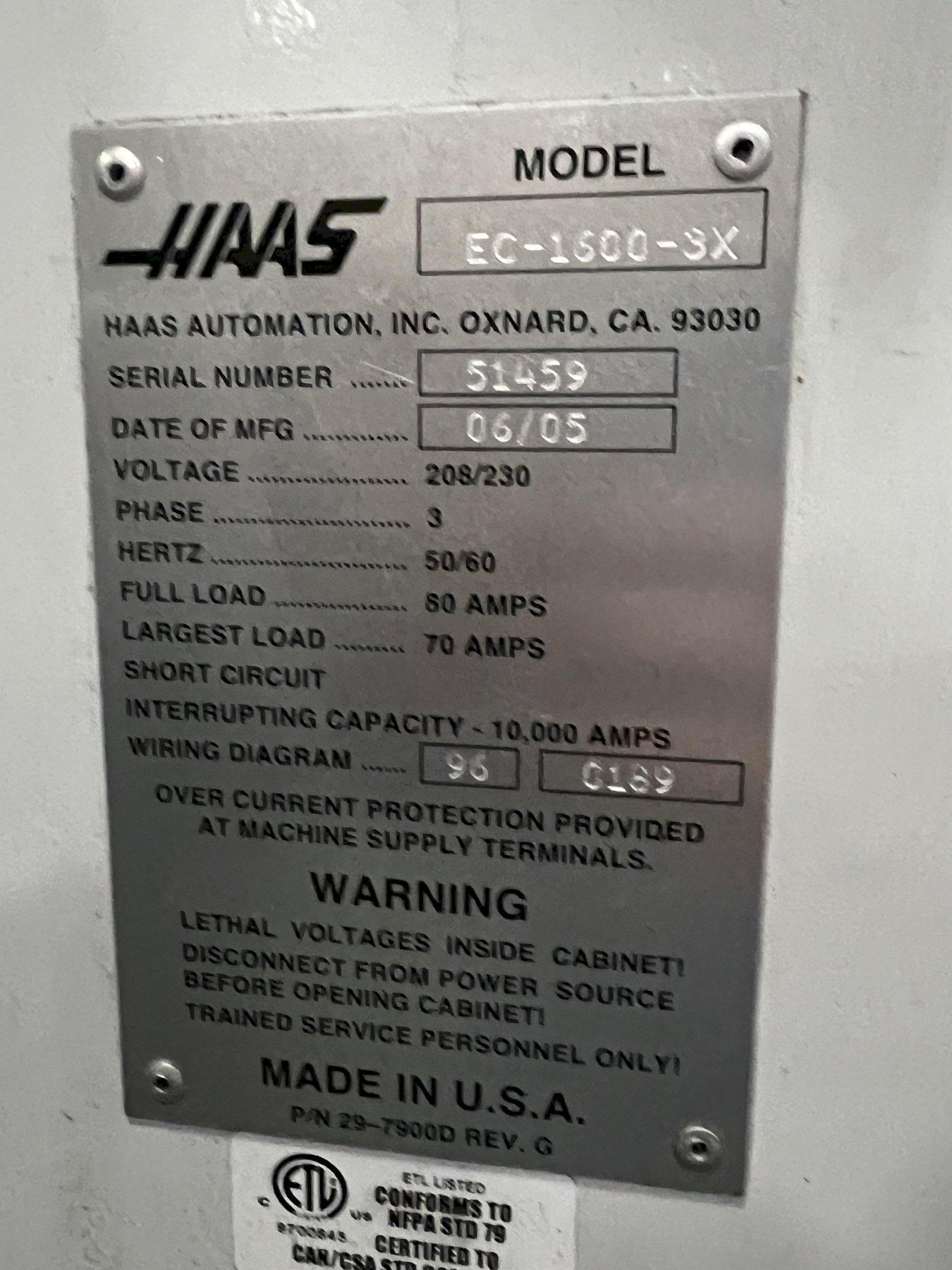

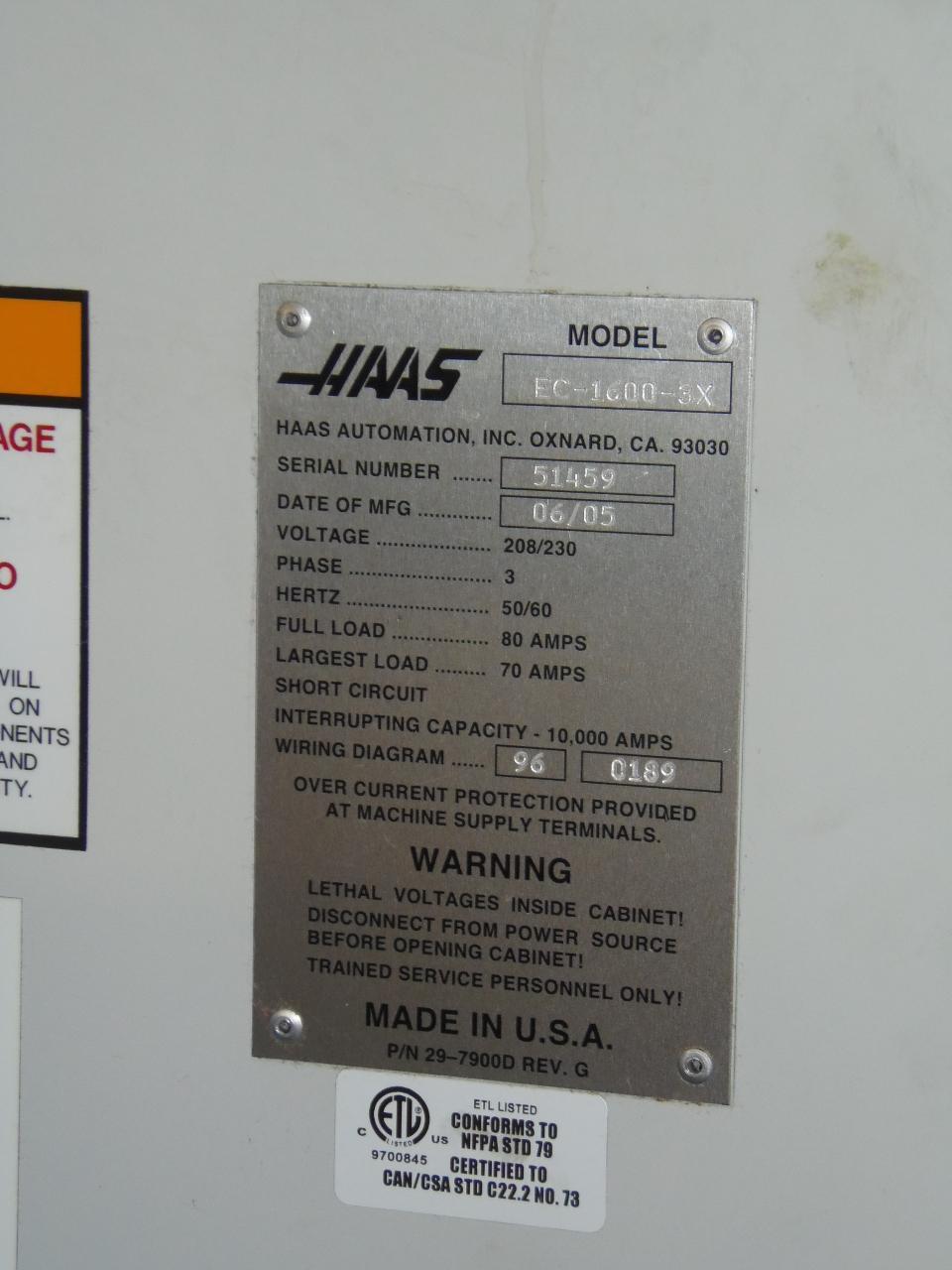

MANUFACTURER                              HAAS

MODEL                                     EC-1600-3X

AGE                                       2005

SERIAL NUMBER                             51459

X-AXIS TRAVEL                             64"

Y-AXIS TRAVEL                             40"

Z-AXIS TRAVEL                             32"

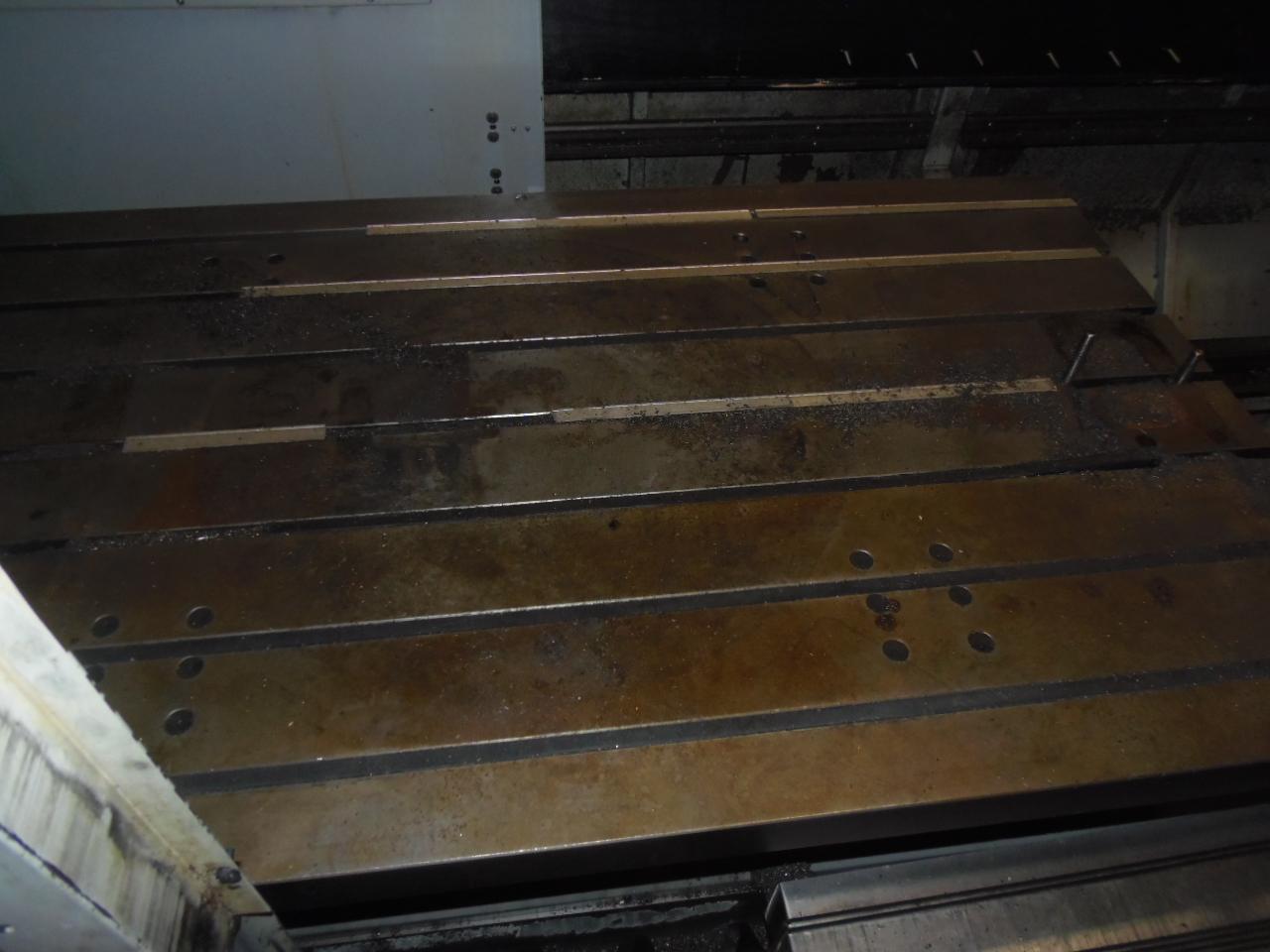

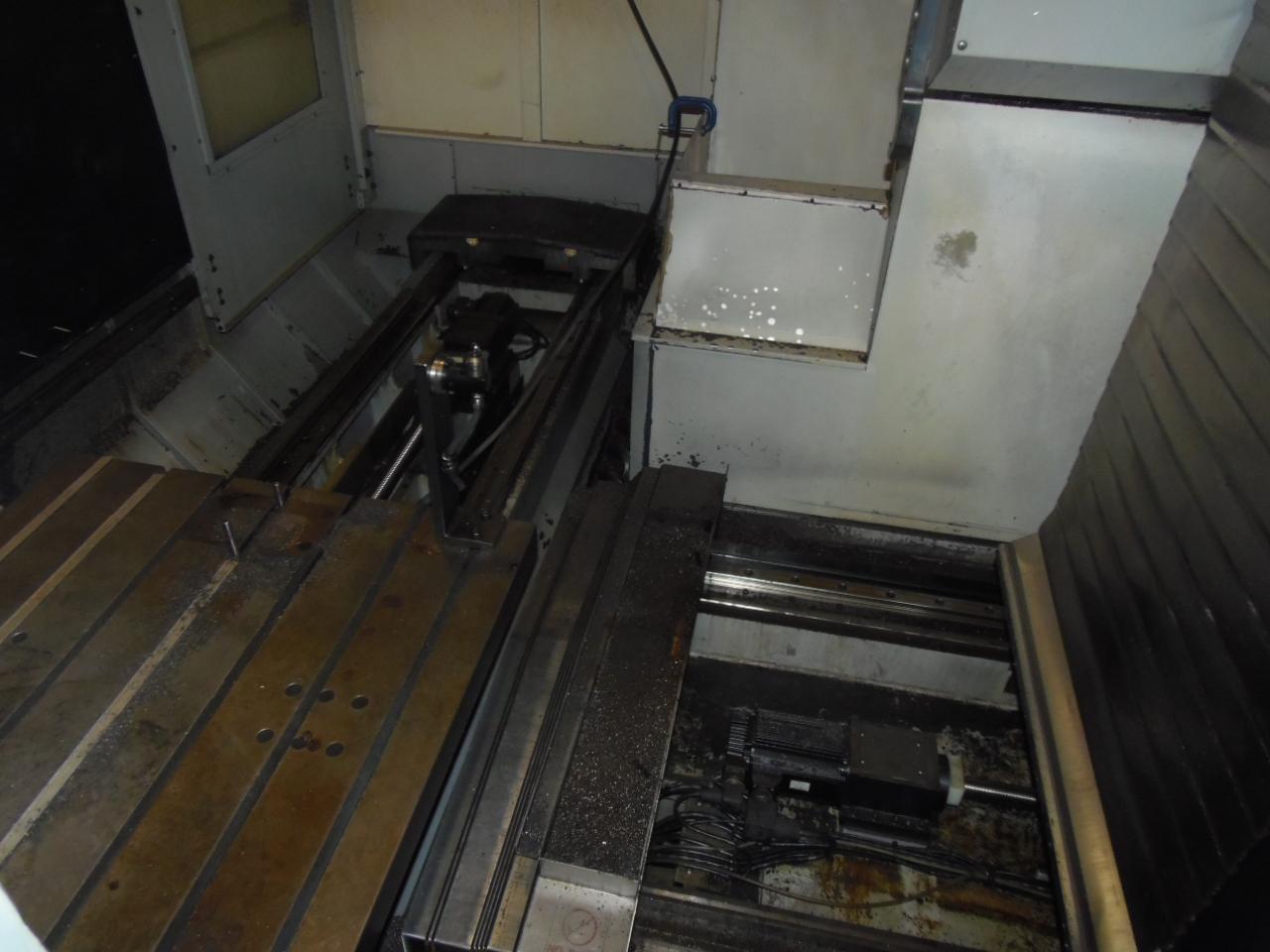

TABLE SIZE                                64" X 36"

TABLE CAPACITY                            10,000 LBS.

SPINDLE SPEEDS, 2-SPEED GEARED HEAD       0-6000 RPM

SPINDLE DRIVE MOTOR                       30 HP AC

SPINDLE TAPER                             CAT 50

CUTTING FEED RATE                         540 IPM

RAPID FEEDS, XY AXES                      540 IPM

RAPID FEEDS, Z-AXIS                       540 IPM

MAX. TOOL DIAMETER                        4"/10"

MAX. TOOL WEIGHT                          30 LBS

TOOL-TO-TOOL                              10.3 SECONDS

CHIP-TO-CHIP                              12.6 SECONDS

SHIPPING WEIGHT                           31,840 LBS.

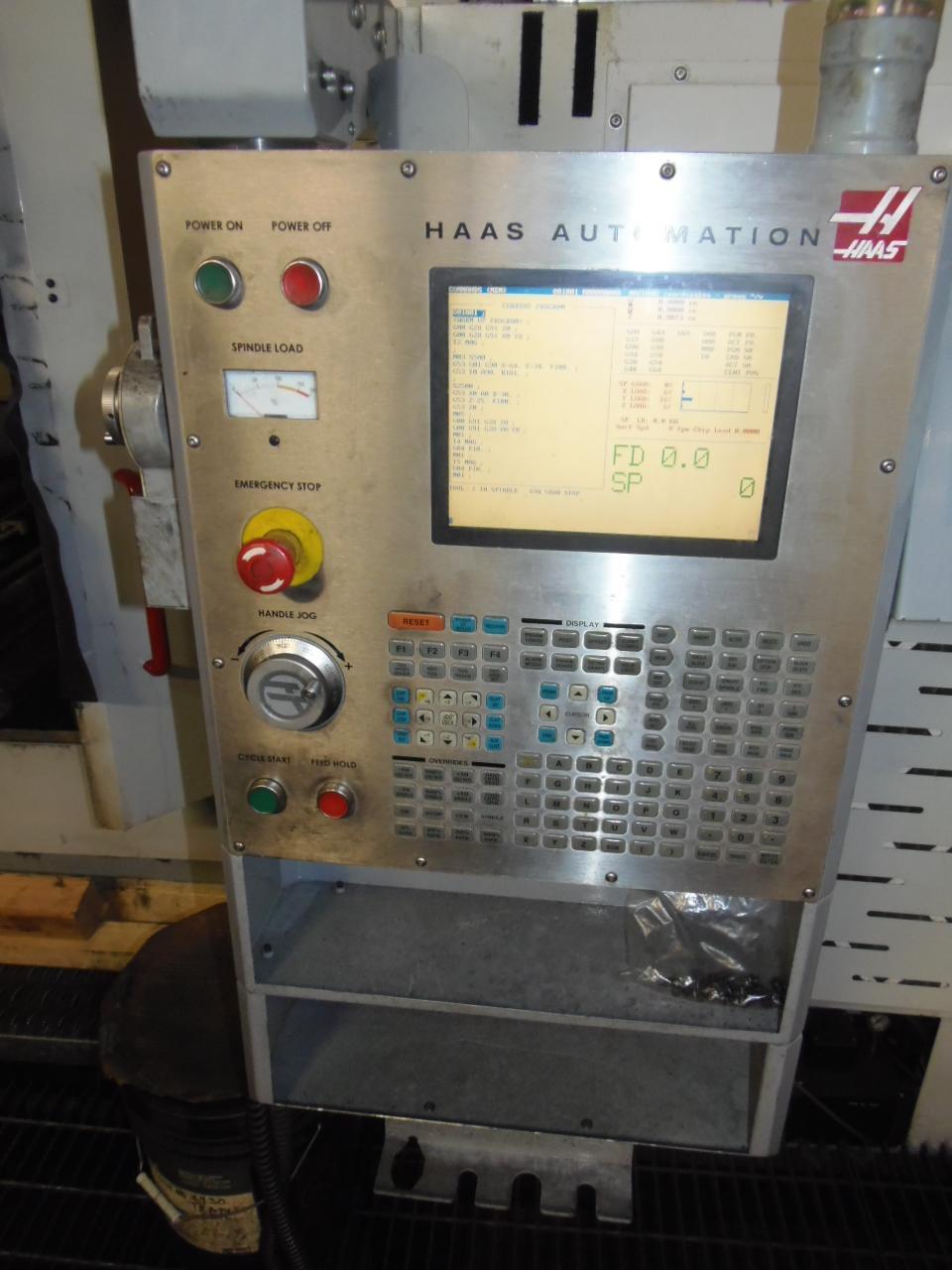

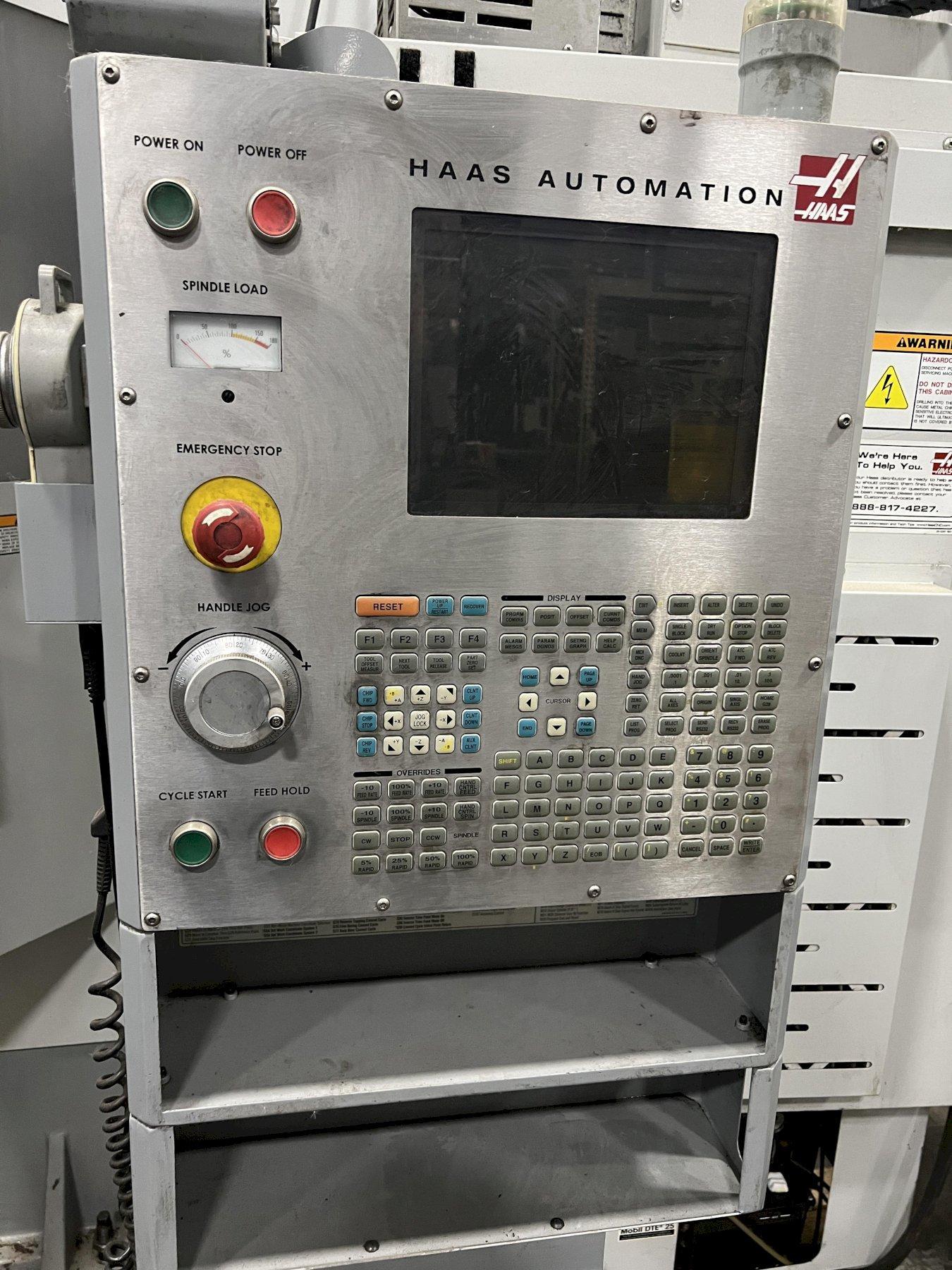

HAAS CNC CONTROL WITH RIGID TAPPING, COORDINATE ROTATION & SCALING MACROS, 4TH AXIS INTERFACE

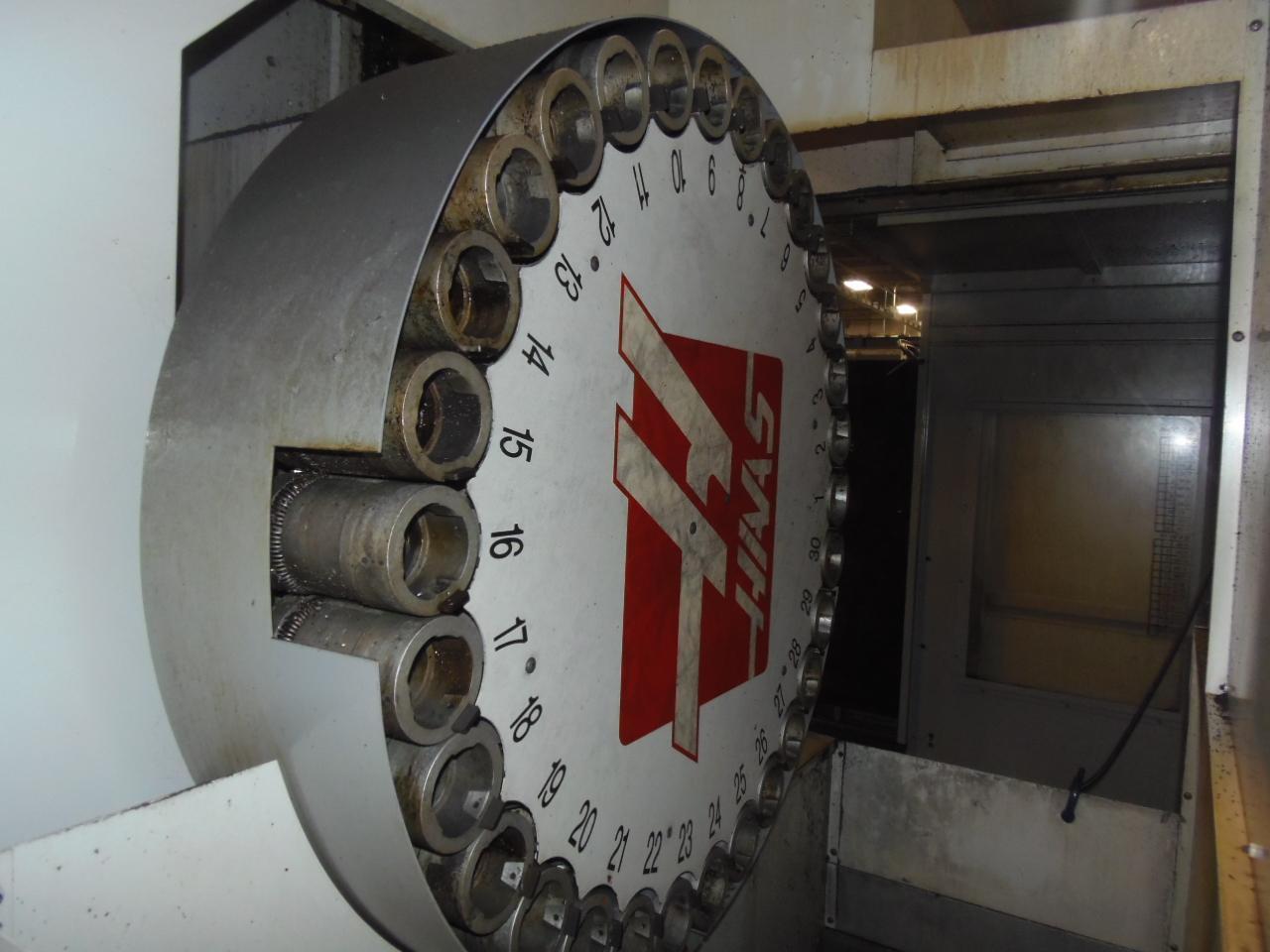

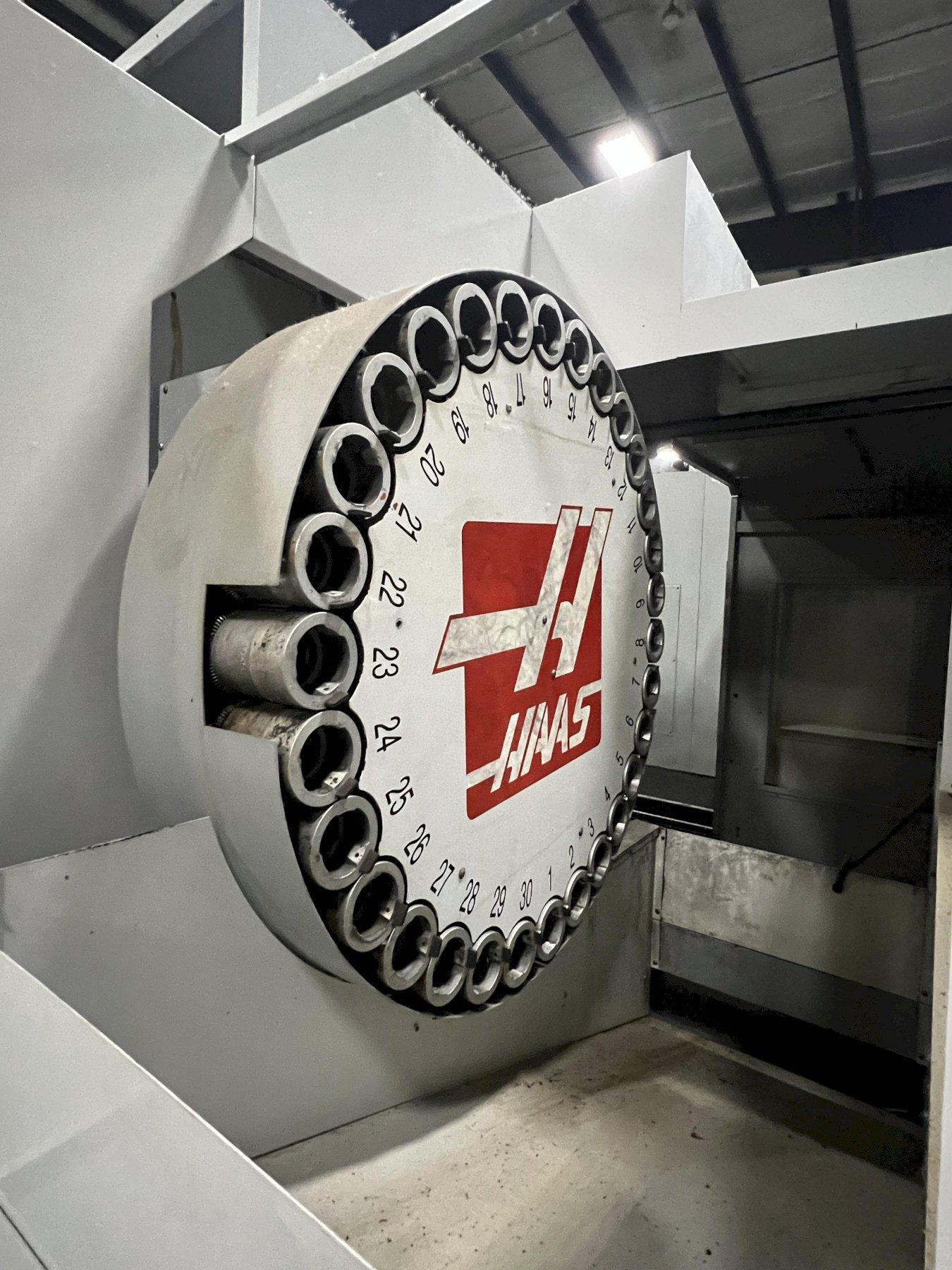

30-POSITION SIDE-MOUNTED AUTOMATIC TOOL CHANGER

HIGH PRESSURE THROUGH SPINDLE COOLANT SYSTEM & 20 POSITION COOLANT SPIGOT

REMOTE JOG HANDLE

LINEAR SCALES

M19 SPINDLE ORIENTATION P & R CODES

CHIP AUGER

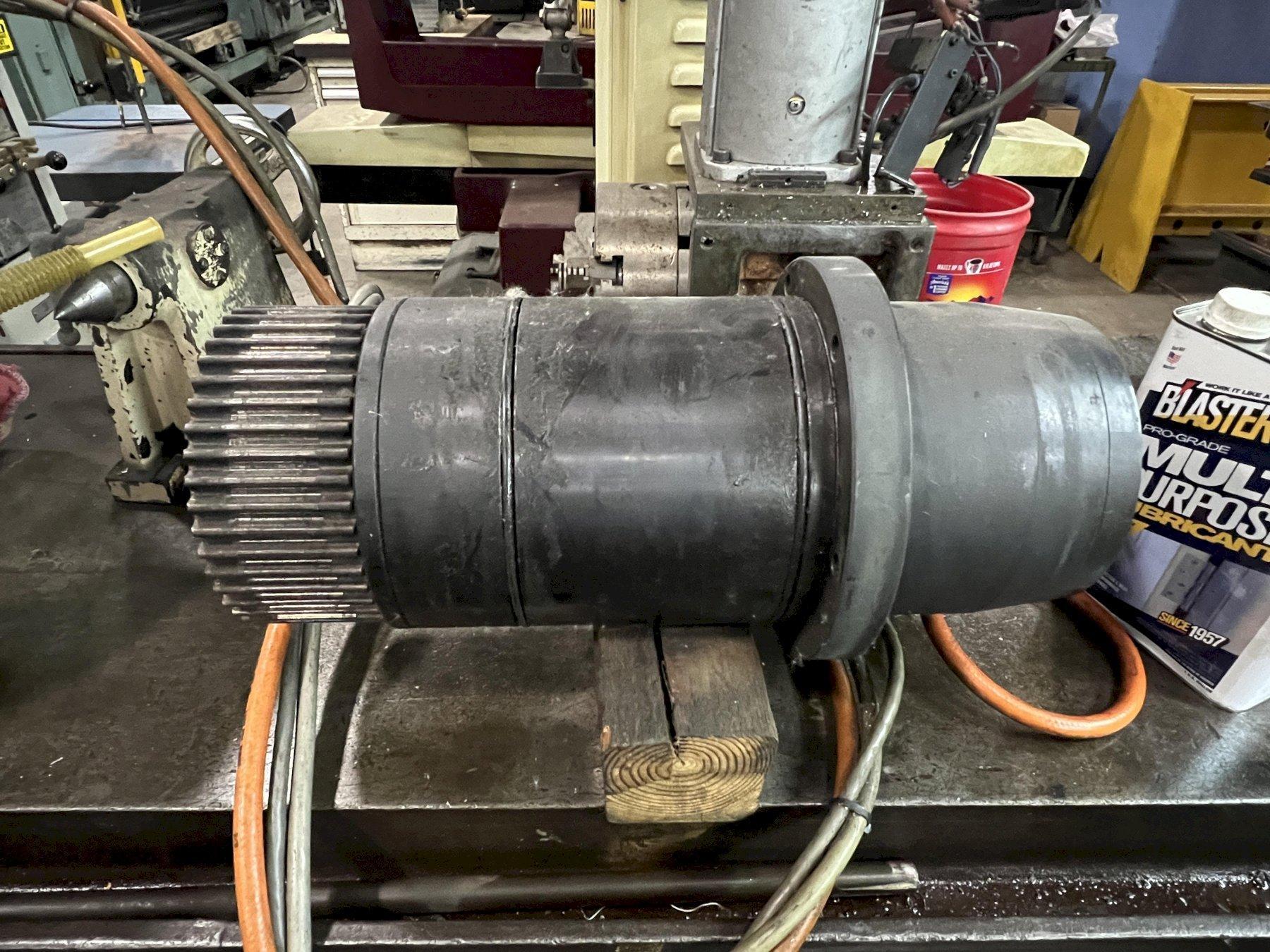

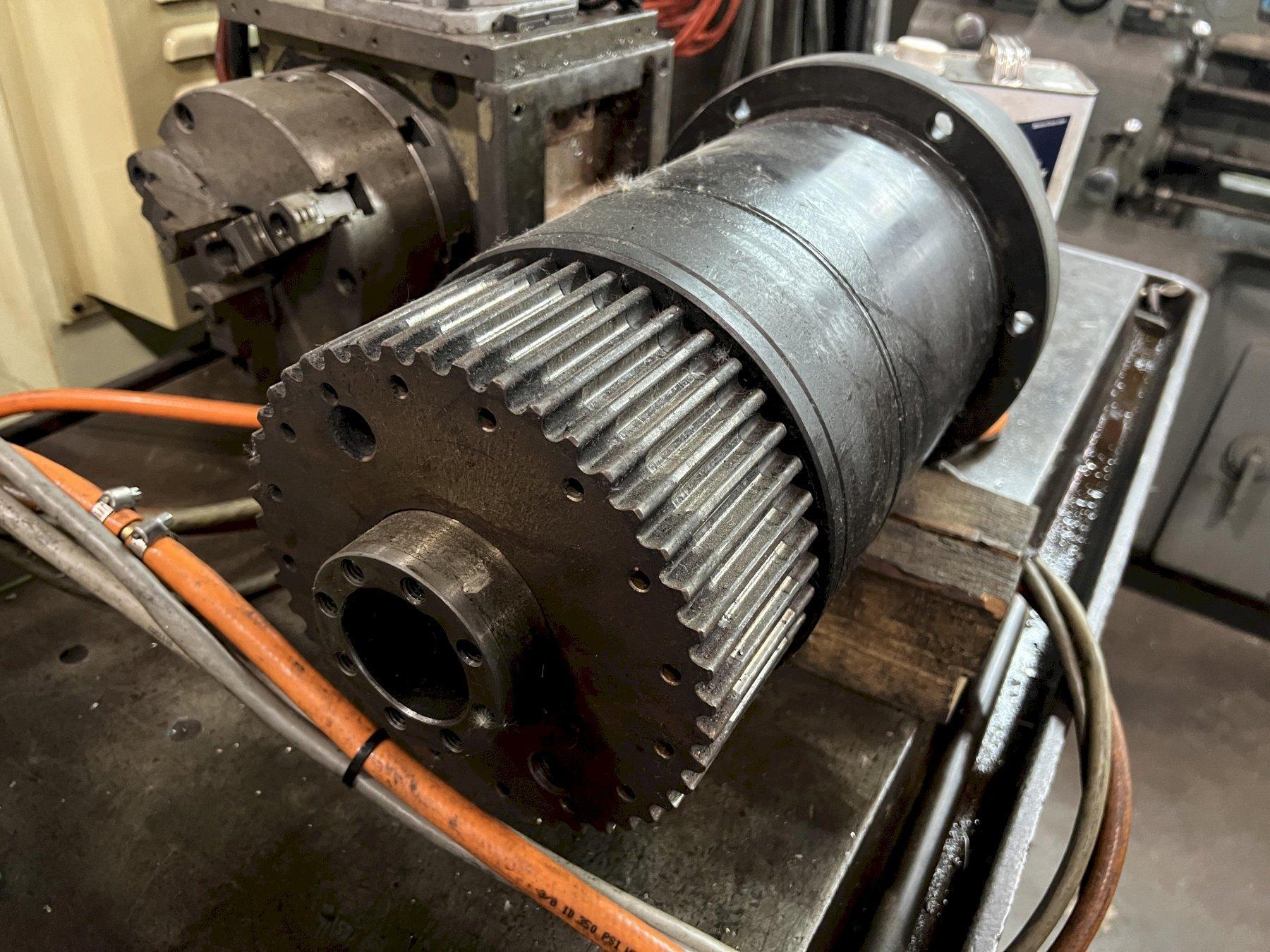

NEW TRANSMISSION 2019

MISC. MANUALS

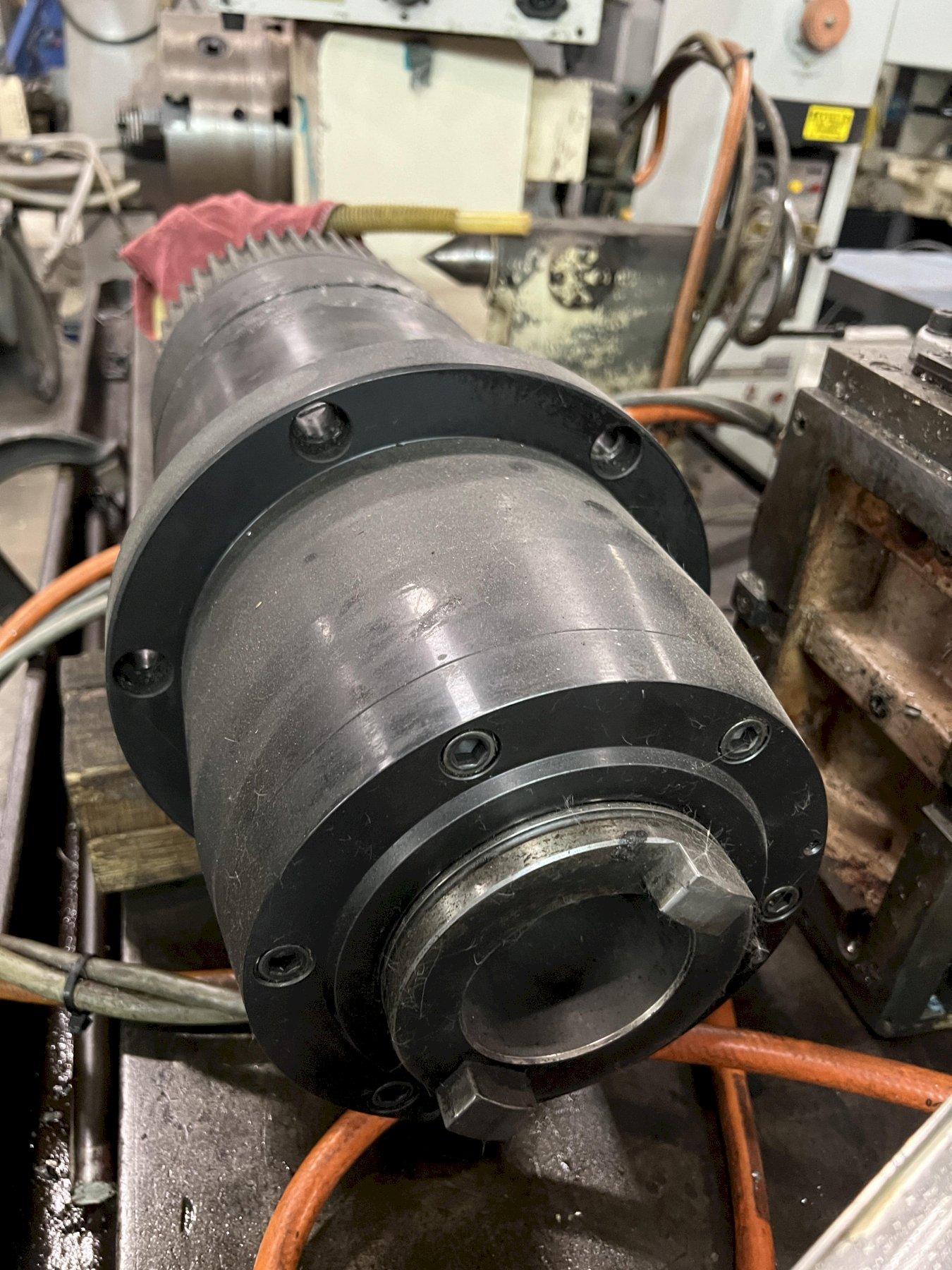

NEW HAAS SPINDLE WILL BE INSTALLED TO REPLACE THE ONE YOU HEAR IN THE VIDEO
