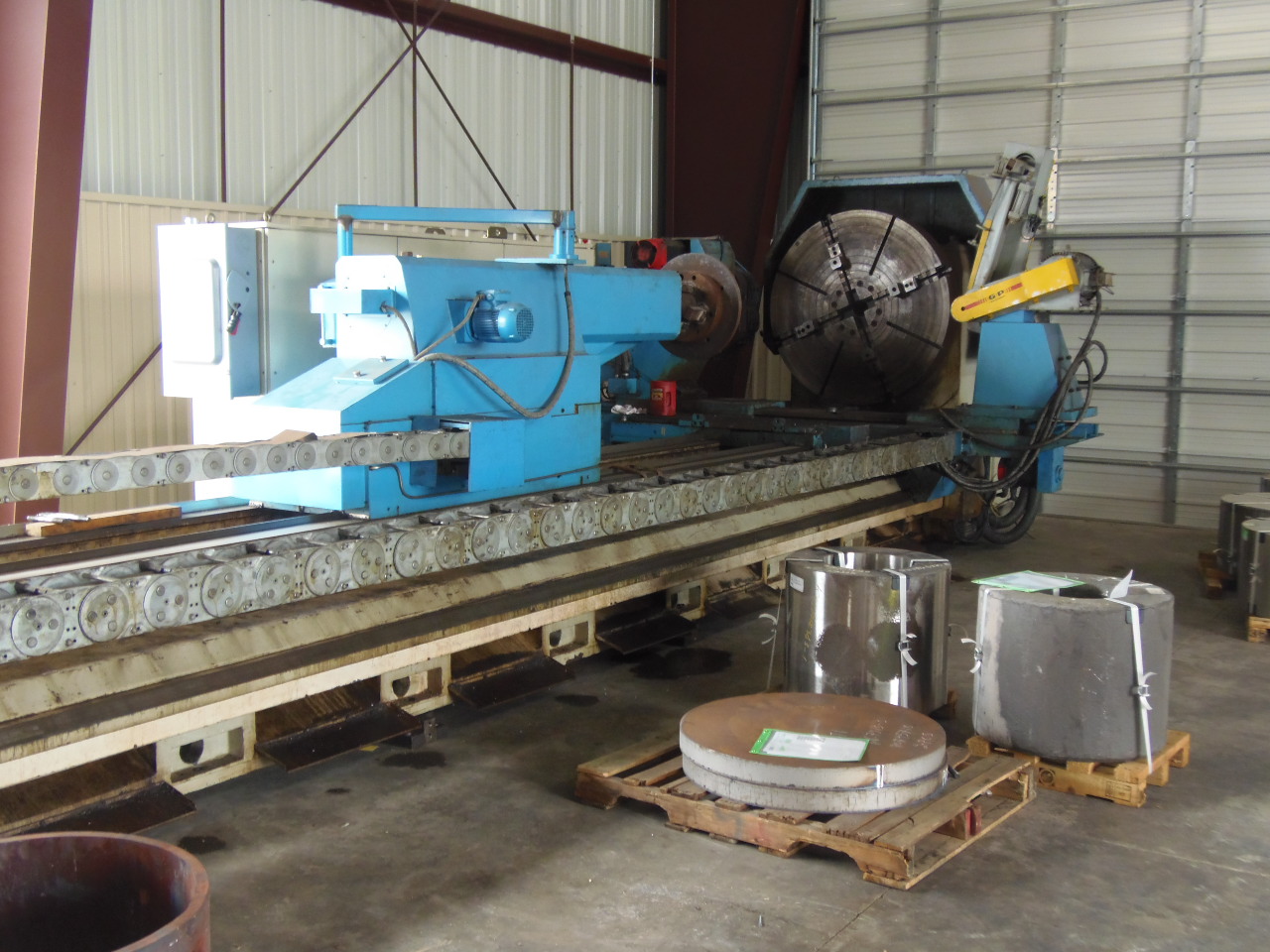

63" x 566" Gurutzpe CNC Lathe w/ Live
Tooling

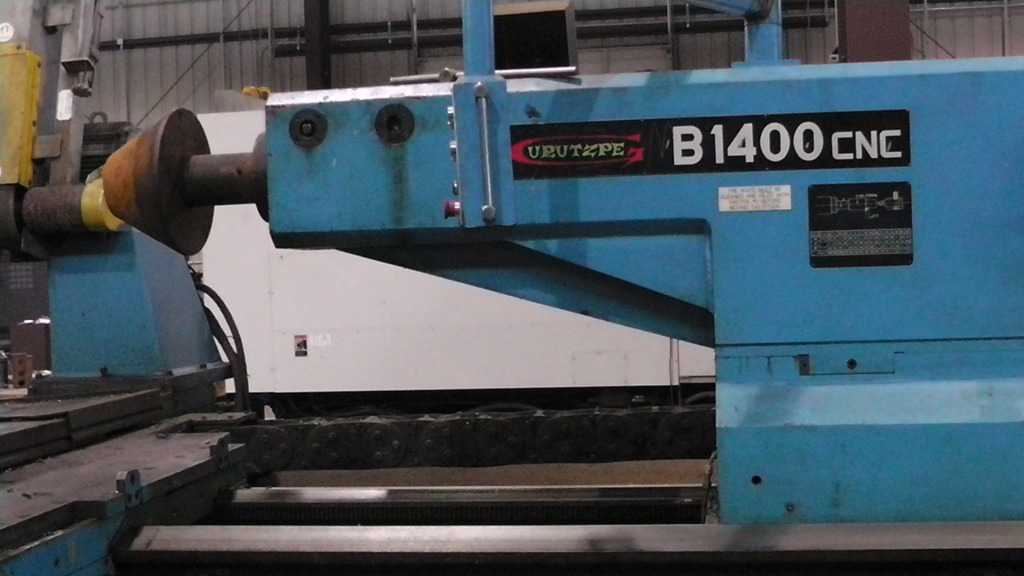

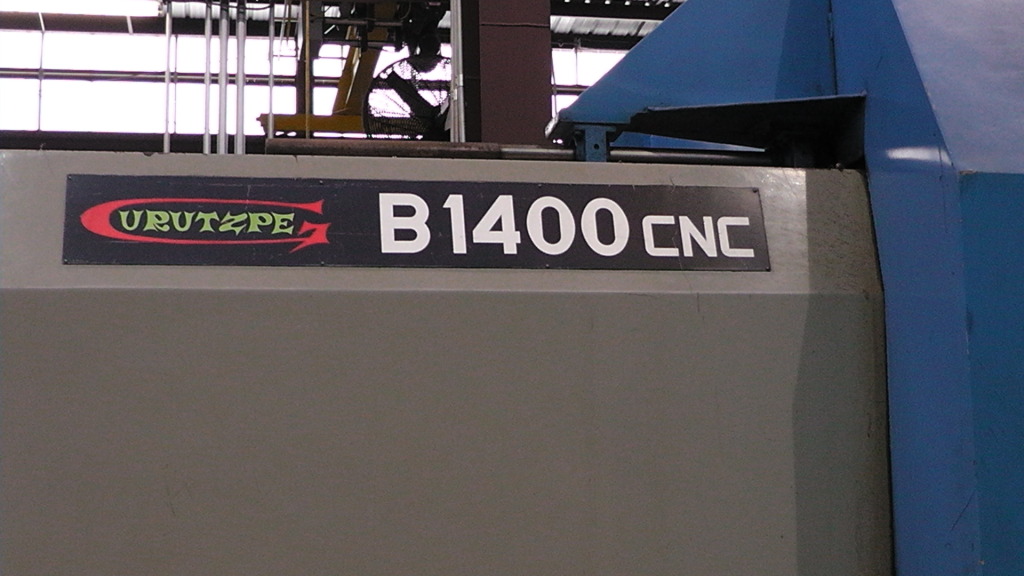

Model:
B1400 CNC
Series:
14400 x 800
Age 1998
Fanuc 16TB
CNC Control
12-Position
Turret w/ 6 Live Milling Stations
Maximum
Swing Over Bed ............................... 63"
Maximum
Swing Over Cross Slide ...................... 48"
Distance
Between Centers .............................. 566"
Spindle
Speeds ............................................. 2.5-600 RPM
Spindle
Bore ................................................ 4.02"
Max. Load
Between Cent. (Unsupported) ............ 30,900 lbs.
Max. Load
Between Cent. (Supported) ............... 41,800 lbs
Equipped
With:

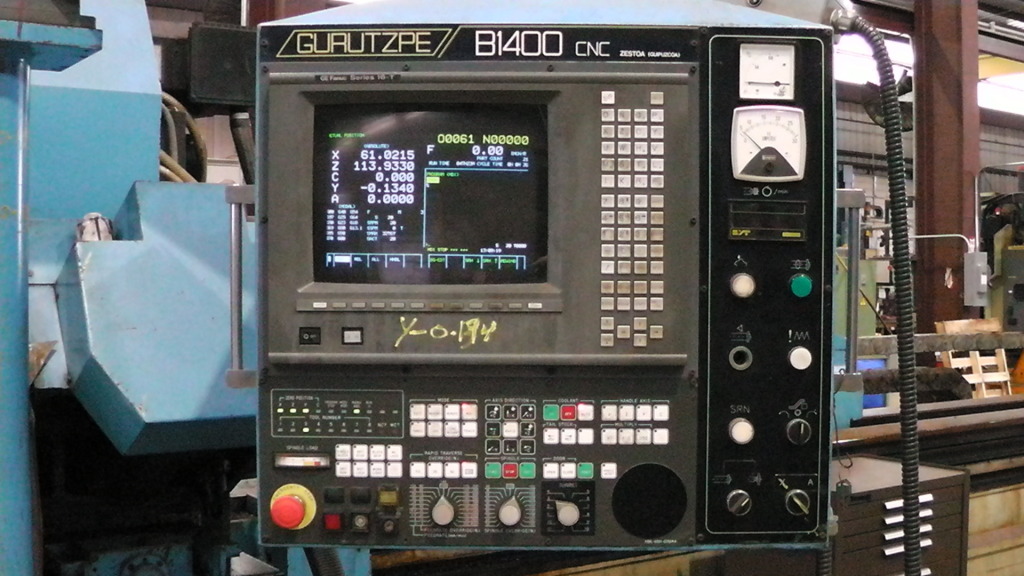

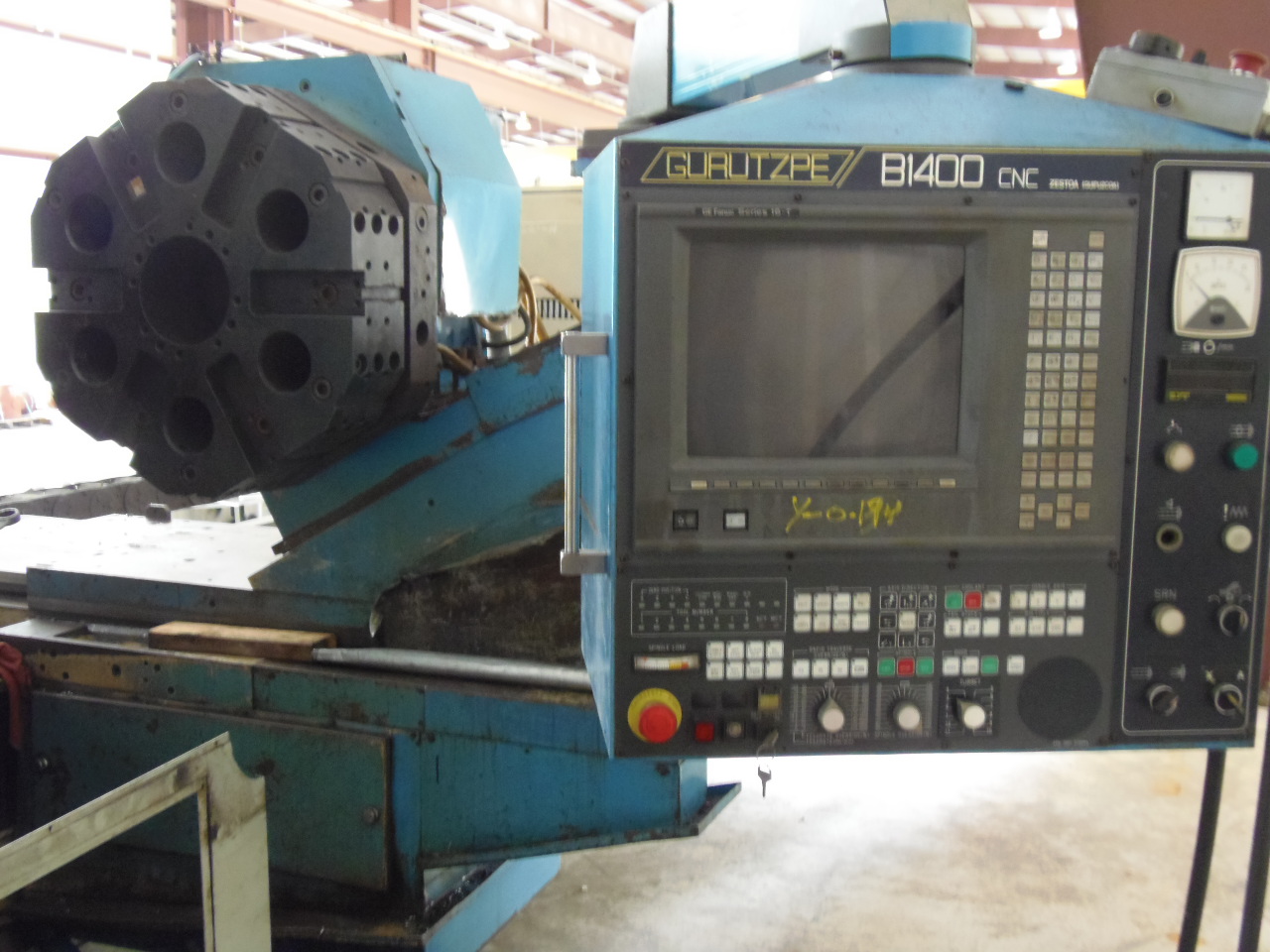

FANUC 16-TB

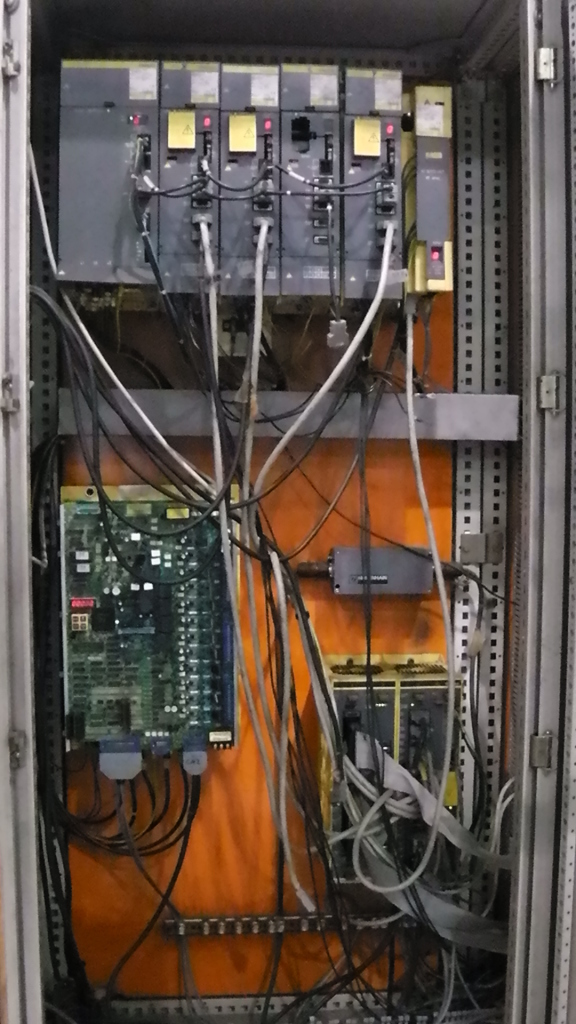

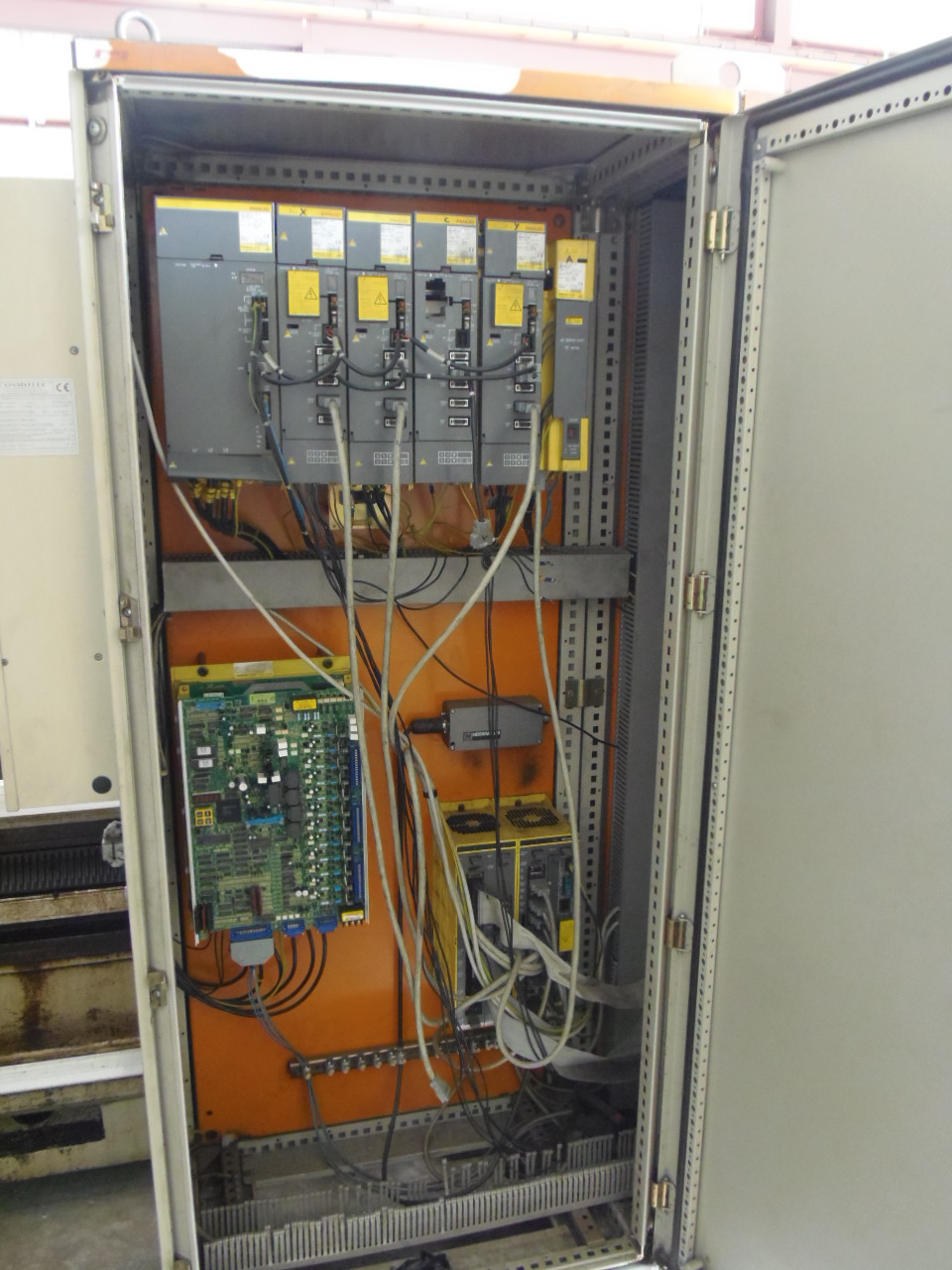

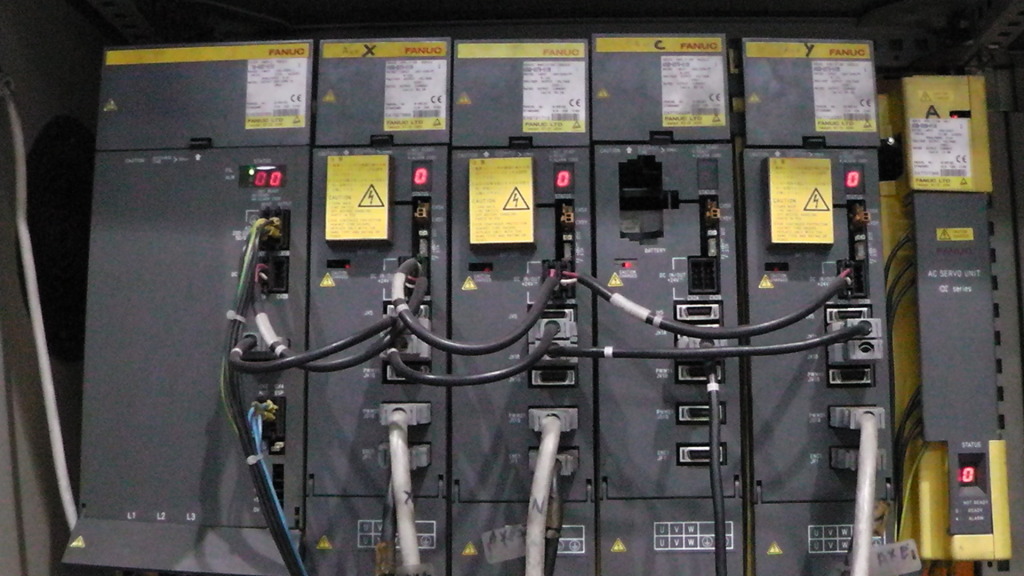

CNC Control w/Fanuc AC Servo Drives
NOTE:A NONE LIVE TOOLING HEAVY DUTY TURRET IS MOUNTED ON THE FRONT OF THE VDI TURRET. IT WAS MOUNTED THRU THE VDI TOOL HOLDERS WITHOUT MODIFYING THE ORIGINAL TURRET.

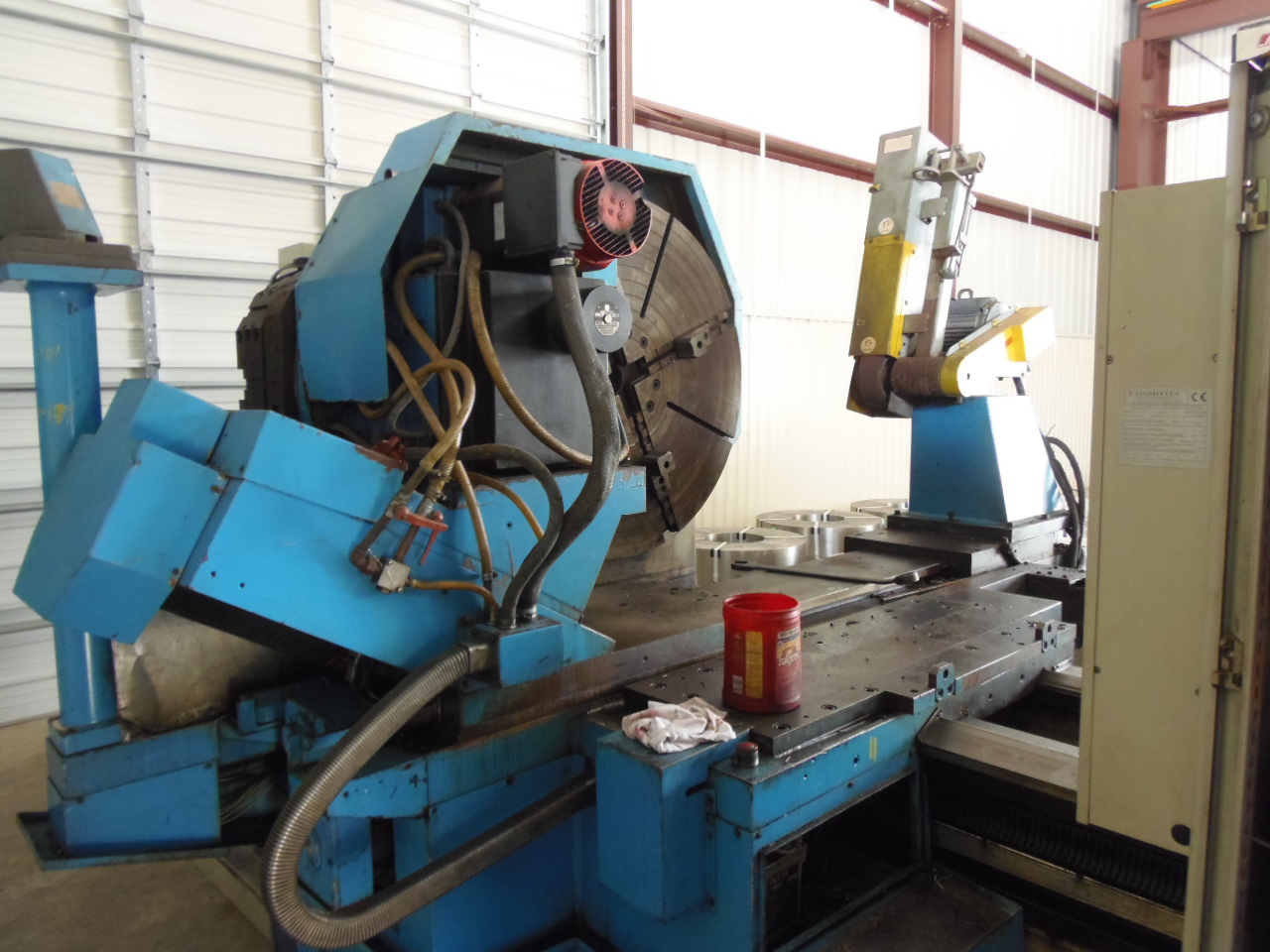

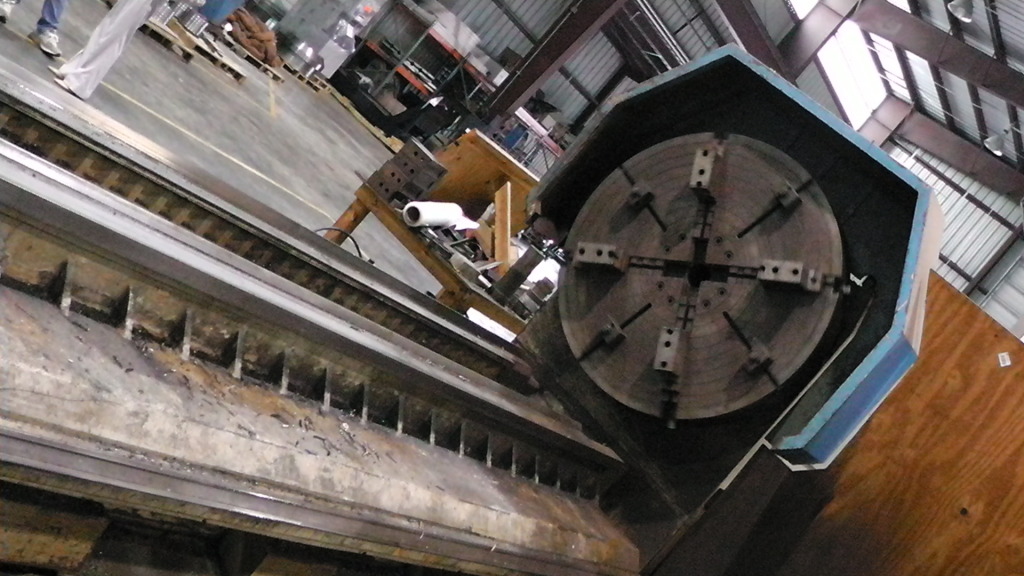

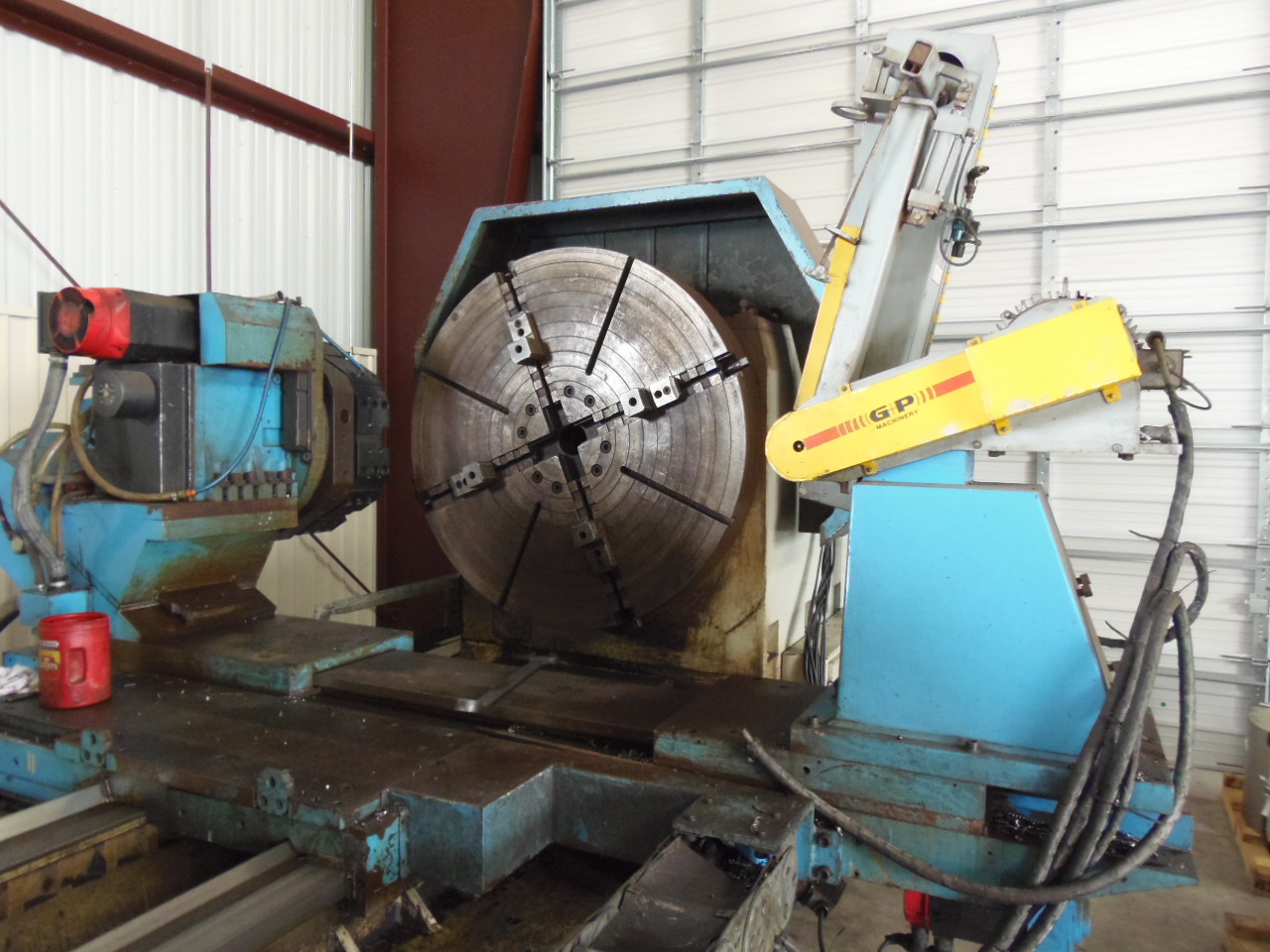

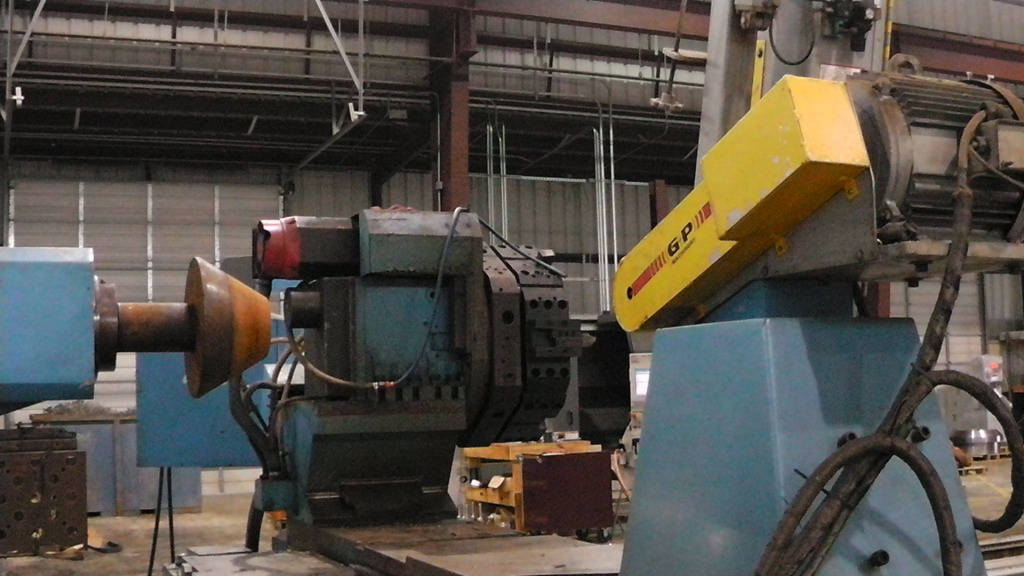

51" 4-Jaw
Independent Chuck

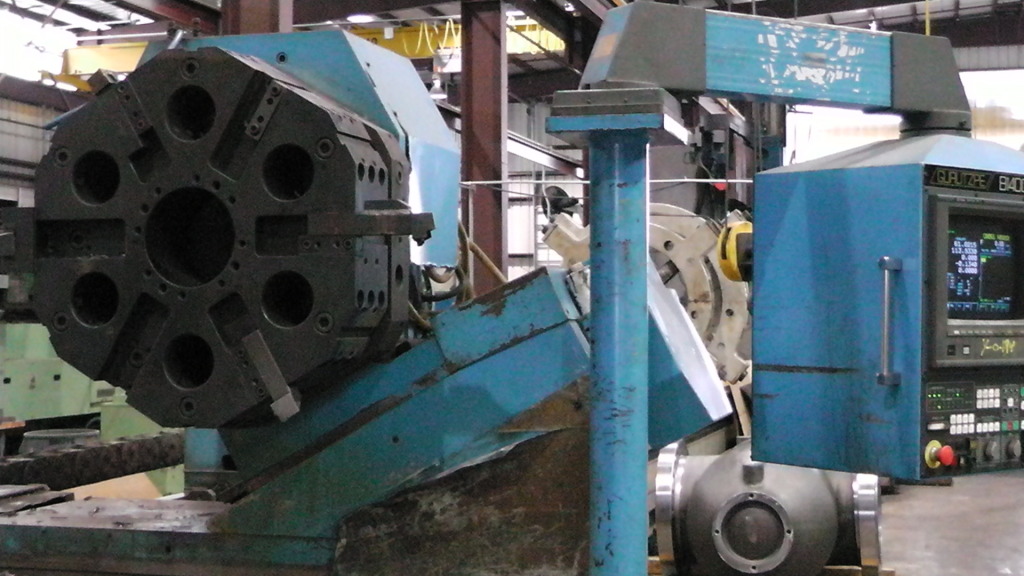

12-Position
Front Turret w/ 6 Live Milling Stations

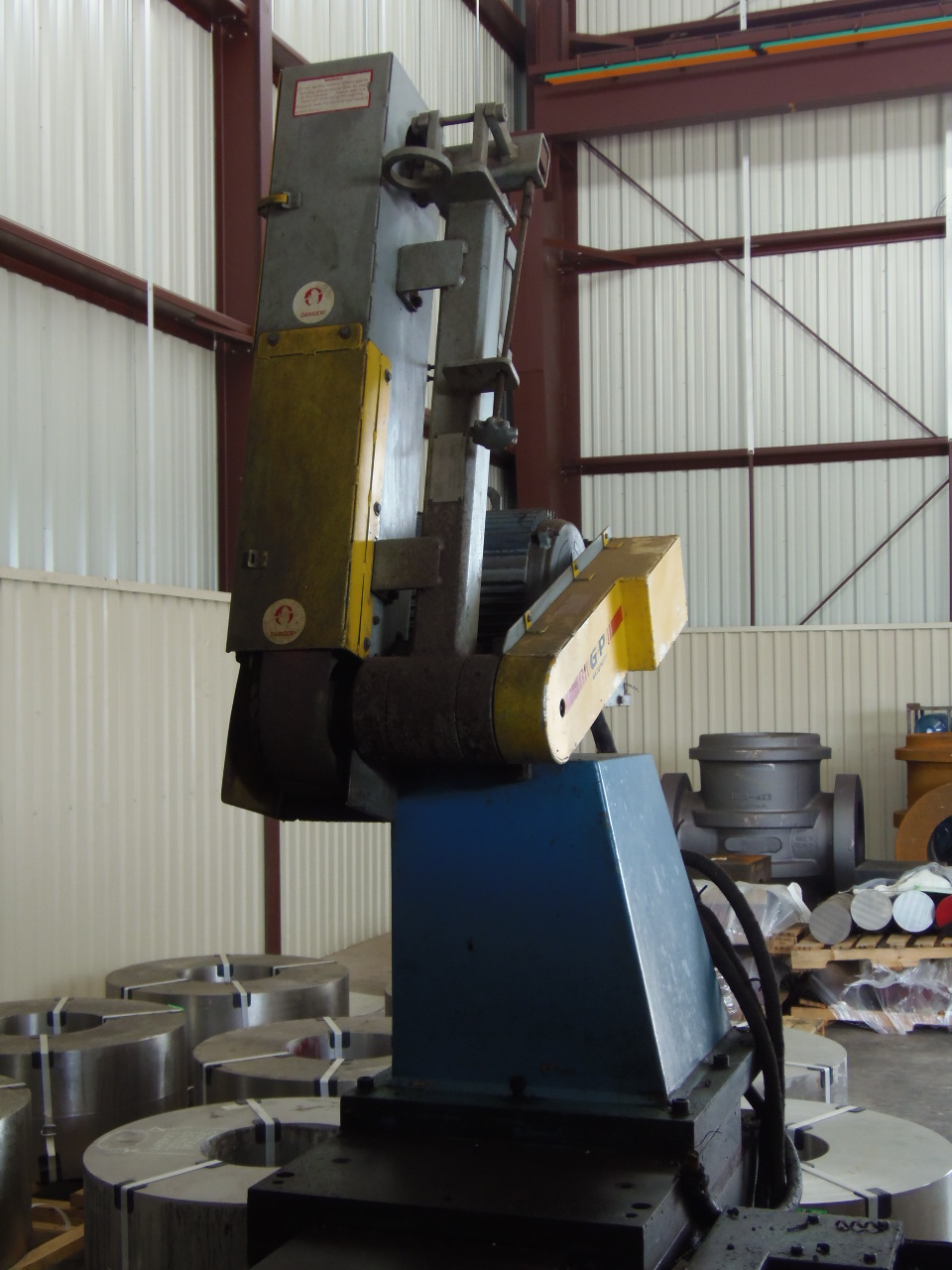

Rear
Mounted Roll Sander

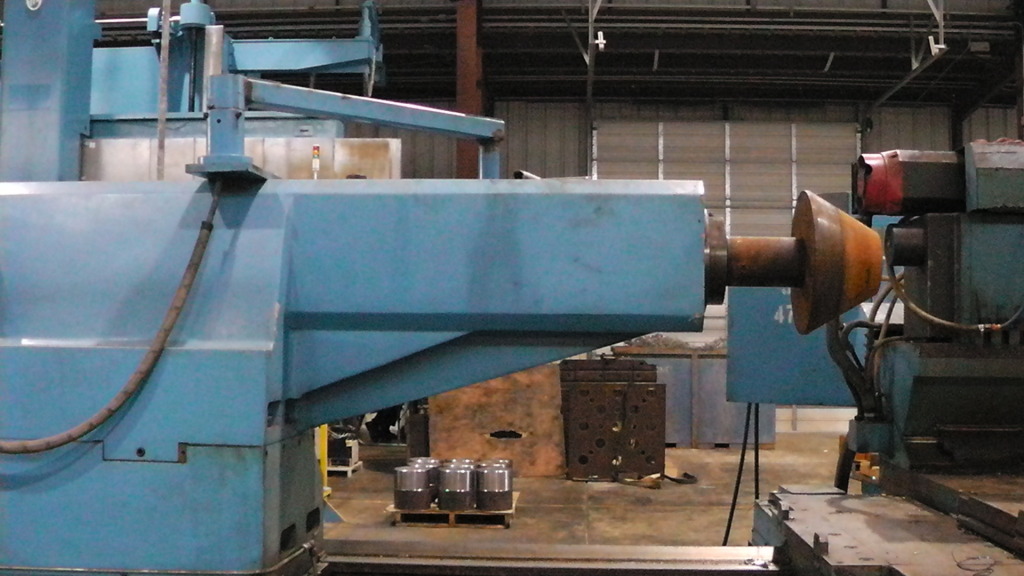

Heavy Duty
Tailstock
Full C-Axis
W/Fanuc AC Servo Drive & Brake
Y-Axis Off
Center Milling
Threading,
Coolant System

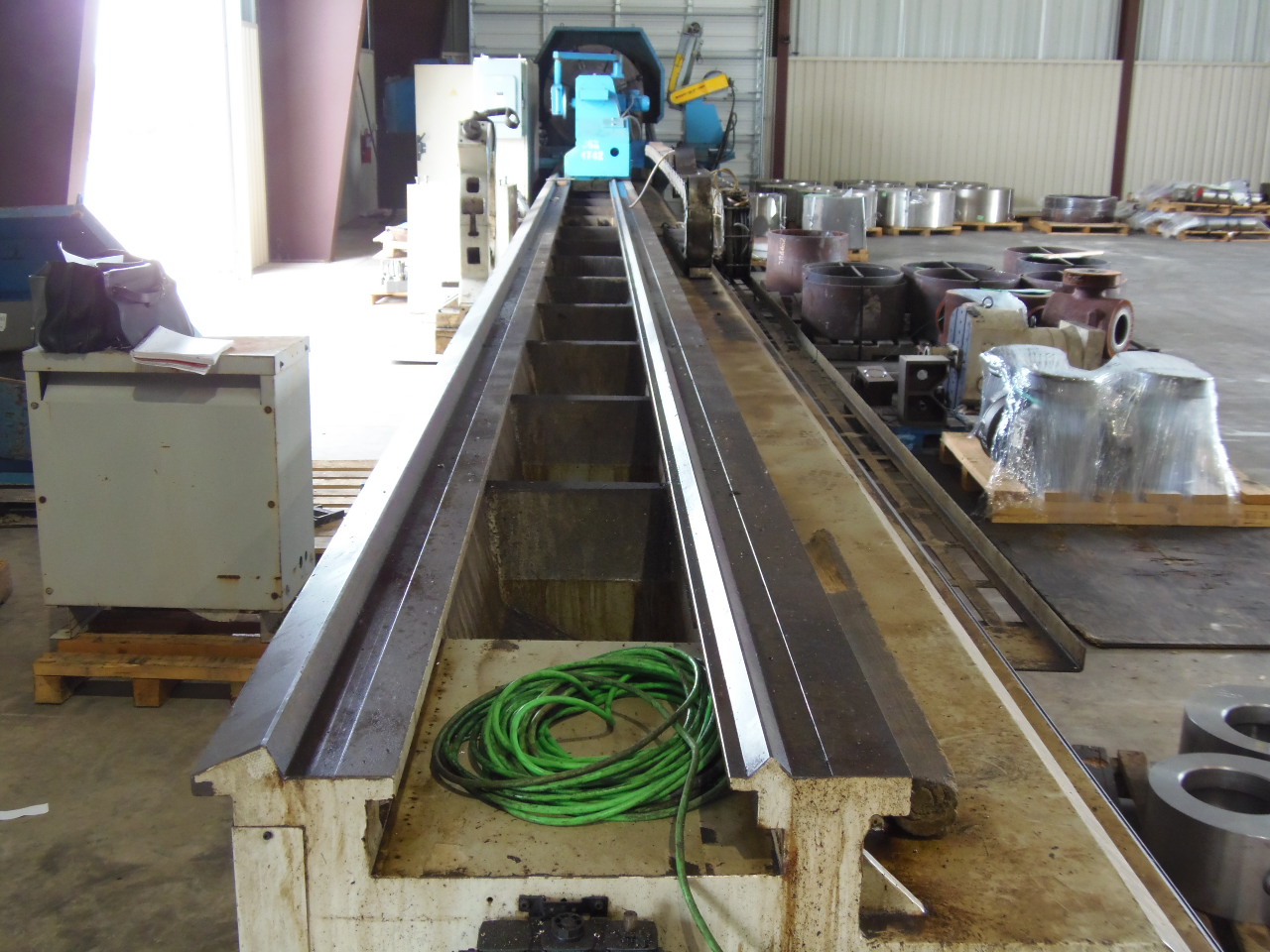

4-Way Bed
Construction

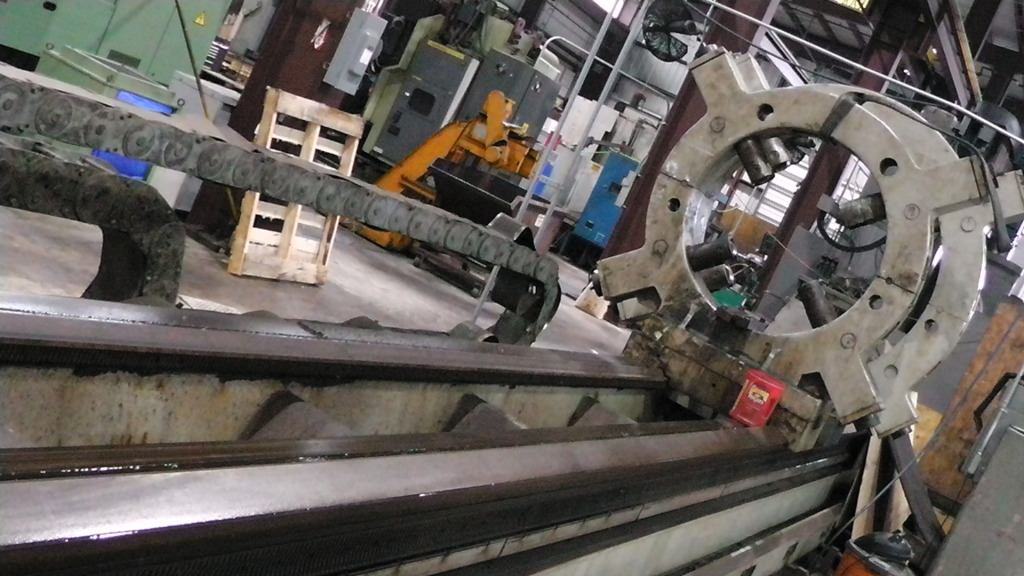

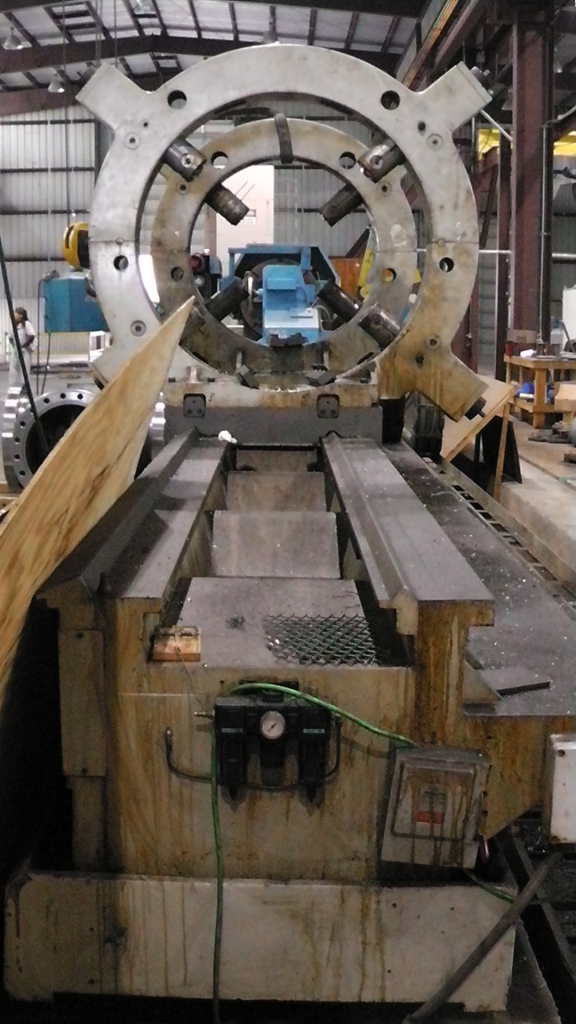

(1) Roller
Type Steady Rest: 36"

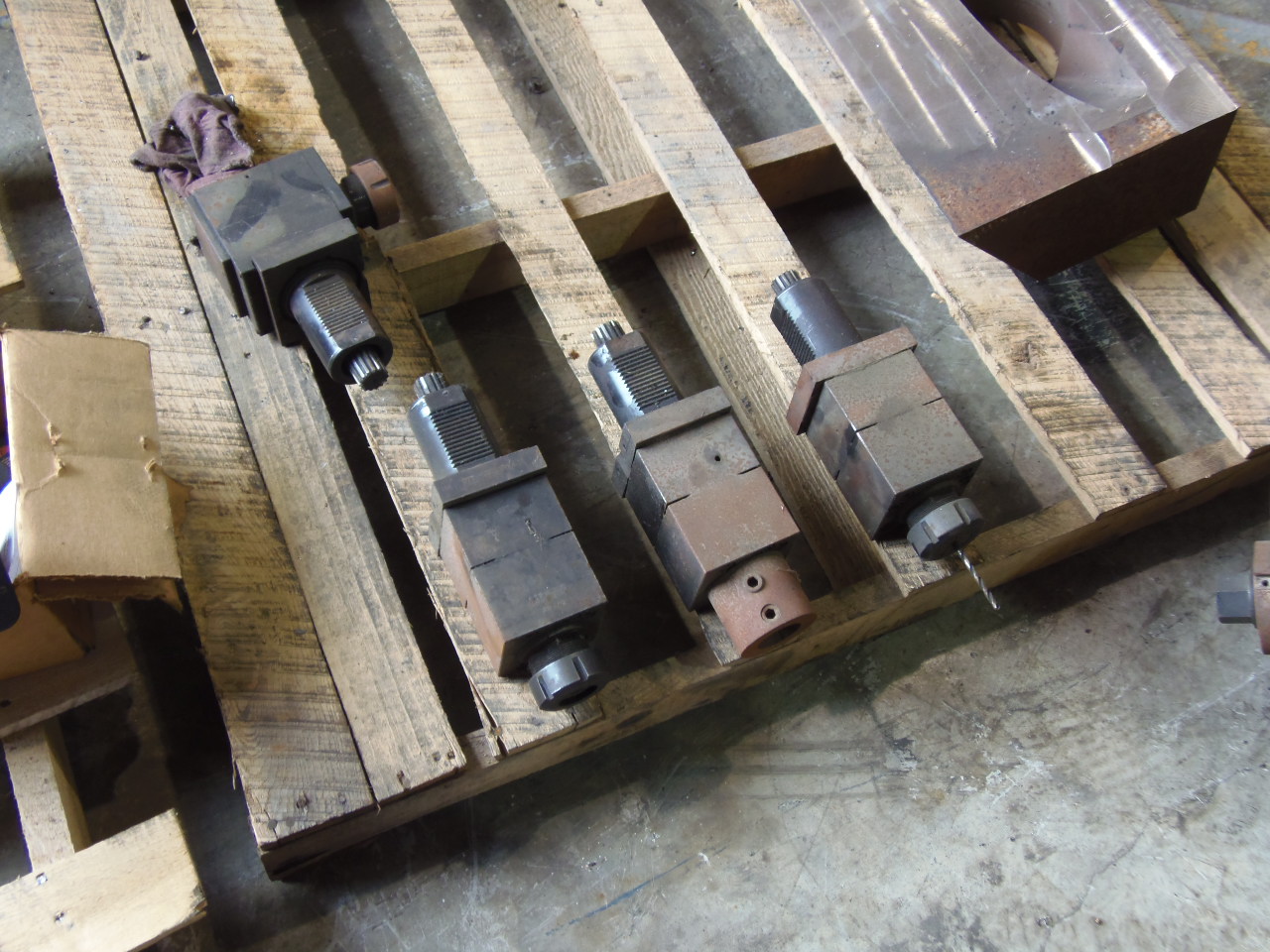

Live
Tooling Package
Hardened
Ways

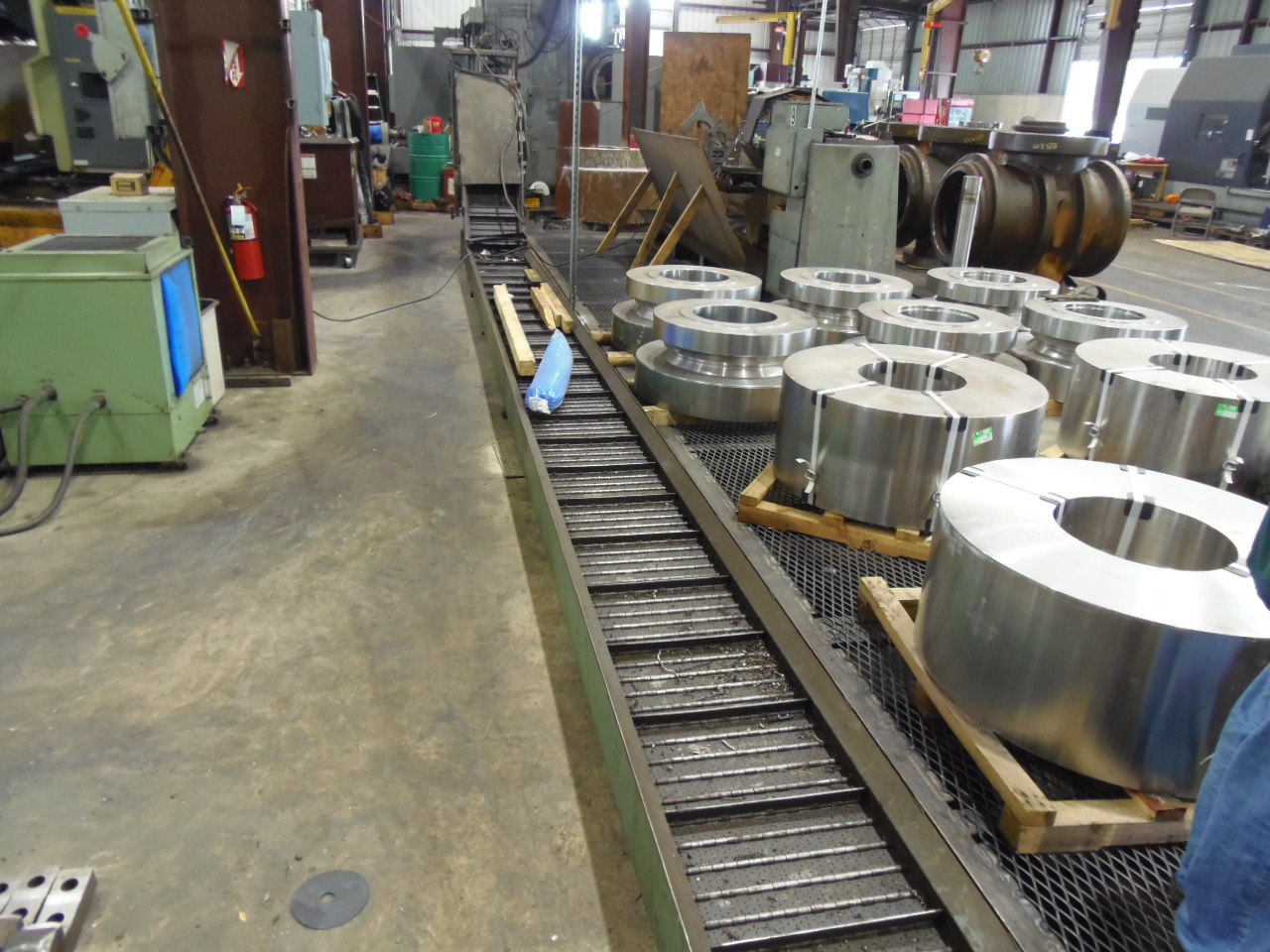

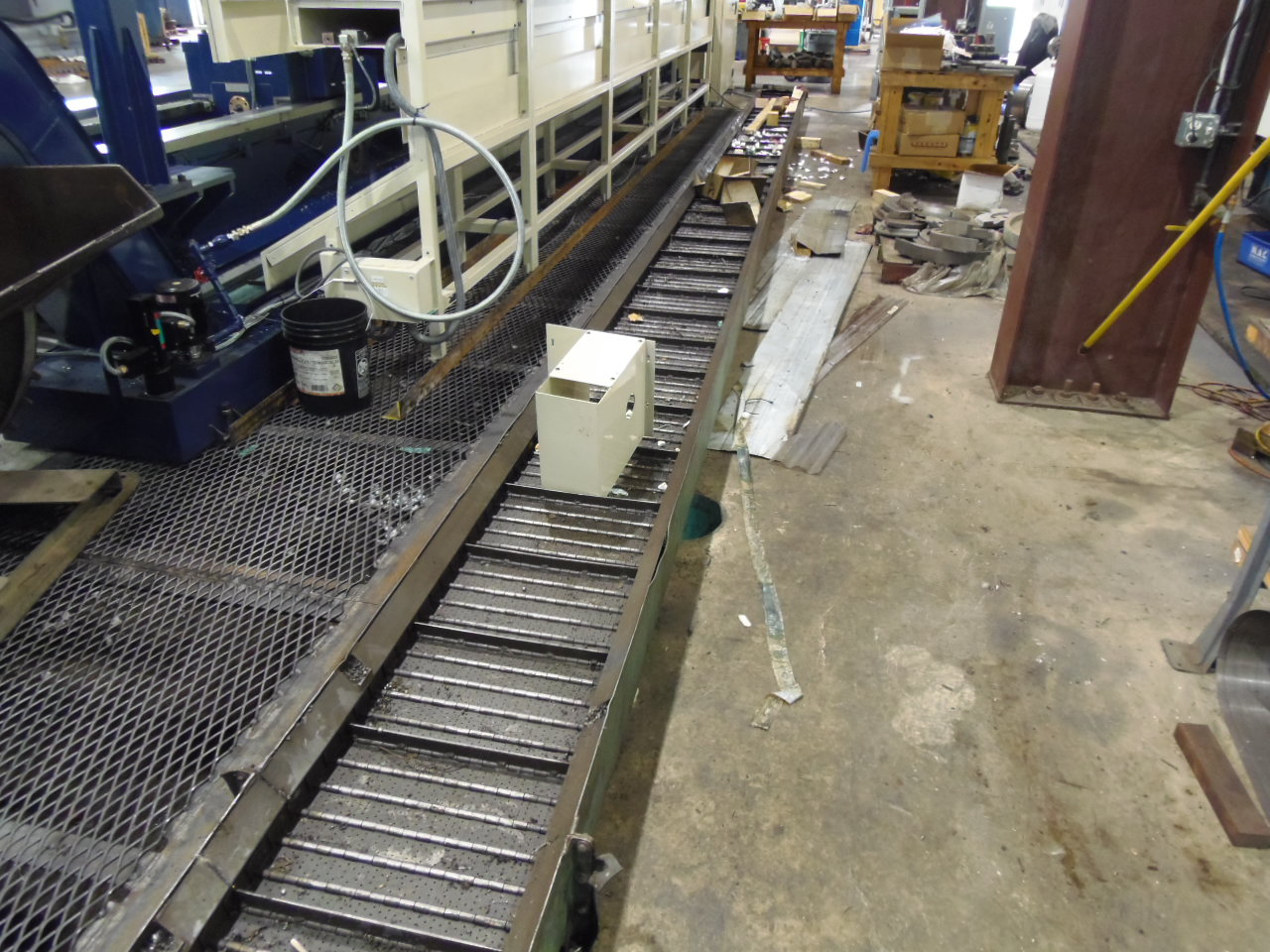

Jorgenson
Chip Conveyor
75 HP Spindle Drive
