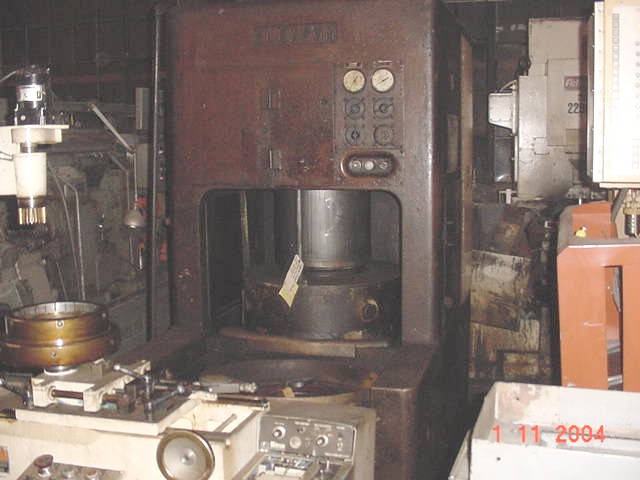

GLEASON #26, 3" PILOT DIA., 20 DEG. ANGLE, 25" UPPER DIE DIA., 27" LOWER DIE DIA.

GENERAL SPECIFICATIONS:
MANUFACTURER GLEASON
MODEL 26
DIAMETER OF PILOT 3"
ANGLE OF EXPANDER ON PILOT 20 DEG.
OUTSIDE DIA. OF UPPER DIE 25"
OUTSIDE DIA. OF LOWER DIE 27"
DIST. FROM BOTTOM OF UPPER DIE HOLDER
TO TOP OF LOWER DIE HOLDER:
OPEN 21"
CLOSED 6-7/8"
MACHINE CAPACITY 300 GAL.
SIZE OF OIL INLET PIPE 2"
SIZE OF OIL OUTLETS PIPE 3"
EXTERNAL OIL SUPPLY REQUIRED 40 GALS/MIN.
COMPRESSED AIR PRESSURE REQUIRED 35 CU. FT./MIN.
AIR STORAGE TANK CAPACITY RQUIRED 40 CU. FT.
AIR LINE PRESSURE 90 LBS.
SIZE OF AIR INLET 3/4"
PUMP MOTOR 10 HP/3600 RPM
TORQUE MOTOR 200" LBS/600 RPM
DIMENSIONS (APPROX.) 44" x 80" x 88"H
WEIGHT (APPROX.) 11,000 LBS.

EQUIPPED WITH:
TOOLING
