Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAXIMUM SWING 30"
MAX. TURNING DIA. W/ENDWRKG TRRT 22.5"
MAX. TURNING DIA. W/TURNING TRRT 18"
MAXIMUM TURNING LENGTH 72"
X AXIS TRAVEL (TURNING TURRET) 9.75"
(ENDWORKING TURRET) 21" (+20.5" TO -0.5")
Z AXIS TRAVEL 72"
RAPID TRAVERSE RATE X & Z AXES 400 IPM
CUTTING FEED RATE 0.1 - 200 IPM
SPINDLE MOTOR 50 HP
SPINDLE SPEEDS (LOW RANGE) 20 - 425 RPM
SPINDLE SPEEDS (HIGH RANGE) 30 - 1,440 RPM
SPINDLE NOSE A2-11
SPINDLE BORE 5.18"
TURRET CAPCITY (UPPER / LOWER) 6 BORING / 8 TURNING
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUUILL TRAVEL 6"
TAILSTOCK BODY TRAVEL 78"
EQUIPPED WITH:

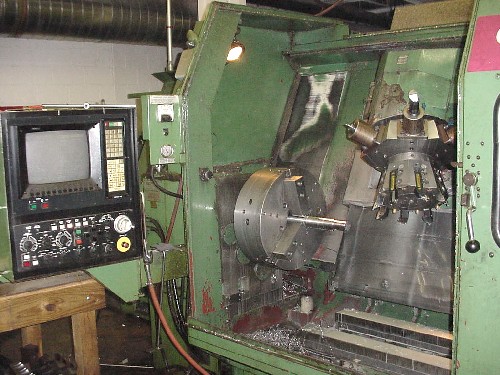

FANUC 10TF FULL CONVERSATIONAL CNC CONTROL WITH 14" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION, LOAD METER
21" 3-JAW CHUCK WITH JAWS, THREADCUTTING, FLOOD COOLANT
STANDARD COOLANT SYSTEM, FULLY PROGRAMMABLE TAILSTOCK
RIGHT HAND DISCHARGE CHIP CONVEYOR, FULLY ENCLOSED GUARDING
ALL AVAILABLE TOOL BLOCK HOLDERS, ALL AVAILABLE MANUALS
