Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE DIAMETER . . . . . . . . . . . 49.21"
MAXIMUM TURNING DIAMETER . . . . . . 66.93"
MAXIMUM HEIGHT UNDER RAM FACE . . . 59.05"
RAM STROKE, Z-AXIS . . . . . . . . . 49.21"
RAM TRAVEL, LEFT OF CENTER . . . . . 41.73"
RAM TRAVE, RIGHT OF CENTER . . . . . 41.73"
RAM CROSS SECTION . . . . . . . . . 9.84" X 9.84"
TABLE SPEEDS, 2-RANGES . . . . . . . 4-500 RPM
TABLE MOTOR . . . . . . . . . . . . 787 IPM
EQUIPPED WITH:

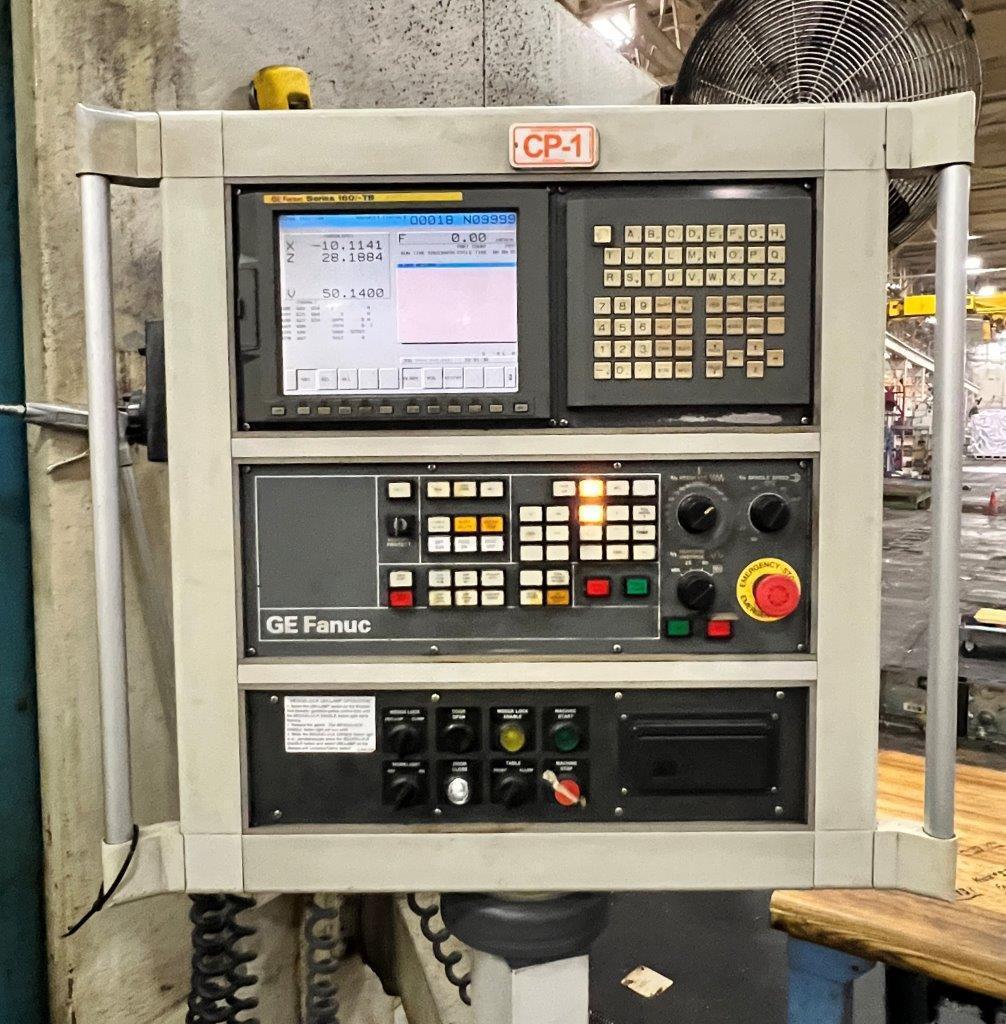

FANUC 160i-TB CNC CONTROL

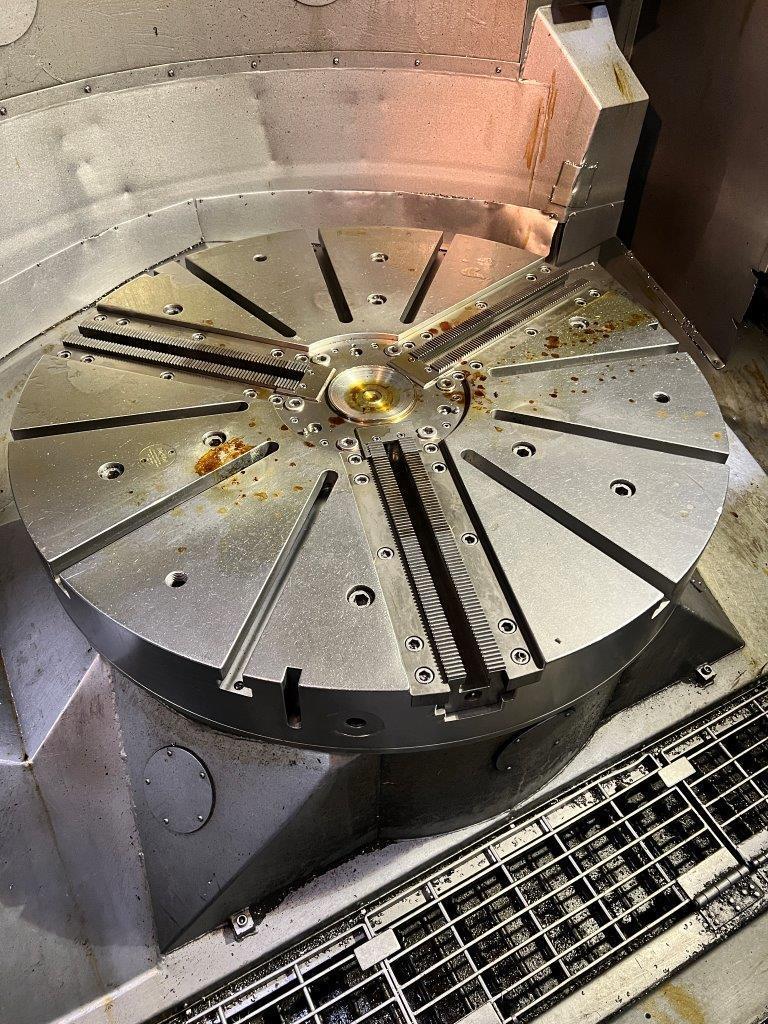

49.21" 3-JAW HYDRAULIC CHUCK
26-POSITION AUTOMATIC TOOL CHANGER (6-WEDGE & 20-KM80)
COOLANT THROUGH RAM
THREAD CUTTING
TOOL RETRACT RETURN OPTION
STEEL SLIDING WAY COVERS
PROBING
HEIDENHAIN LINEAR SCALES
CHIP CONVEYOR
100 HP TABLE DRIVE
