Specifications
Equipped With
GENERAL SPECIFICATIONS:
SERIAL # 532-1019-89
MAXIMUM SWING 30"
MAXIMUM TURNING DIAMETER (FACING) 22.5"
MAXIMUM TURNING DIAMETER (OD WORK) 18"
MAXIMUM TURNING LENGTH 32"
X AXIS TRAVEL 9.75"
Z AXIS TRAVEL 33"
RAPID TRAVERSE RATE X & Z AXES 400 IPM
CUTTING FEED RATE 0.1 - 200 IPM
SPINDLE MOTOR 40 HP
SPINDLE SPEEDS (LOW RANGE) 20 - 920 RPM
SPINDLE SPEEDS (HIGH RANGE) 64 - 3,160 RPM
SPINDLE NOSE A2-8
SPINDLE BORE 3.562"
HOLE THROUGH SPINDLE (USEABLE) 3.0"

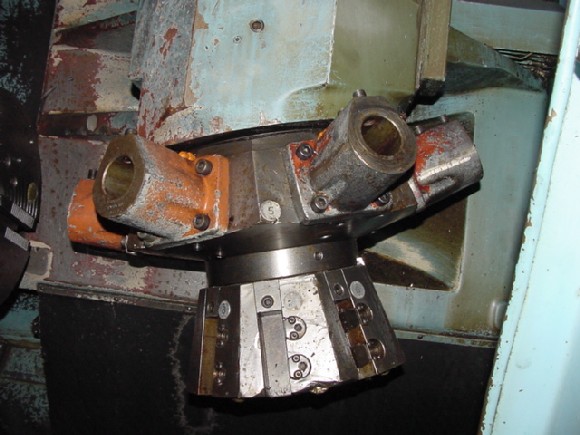

TURRET CAPCITY (UPPER SECTION) 6 STATION BORING
TURRET CAPCITY (LOWER SECTION) 8 STATION TURNING
FLOOR SPACE DIMENSIONS 191" x 167" x 87"
EQUIPPED WITH:

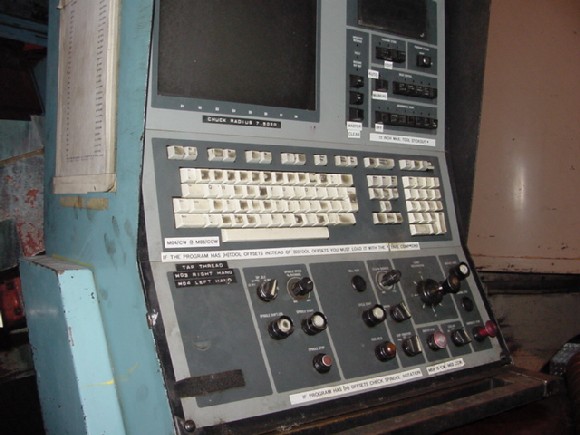

G & L 8000B CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

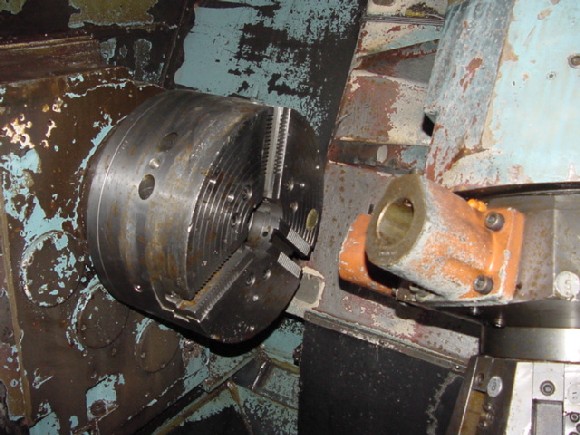

15" 3-JAW HYDRAULIC CHUCK WITH THROUGH HOLE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
FULLY ENCLOSED SPLASH GUARDING
ALL AVAILABLE TOOLING & MANUALS
