Specifications
Equipped With
GENERAL SPECIFICATIONS:

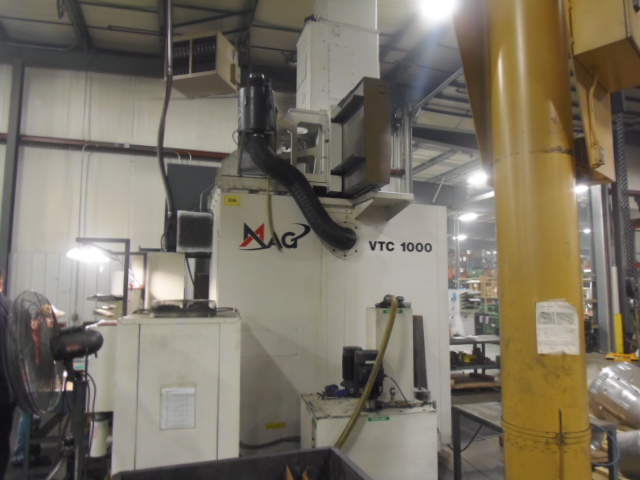

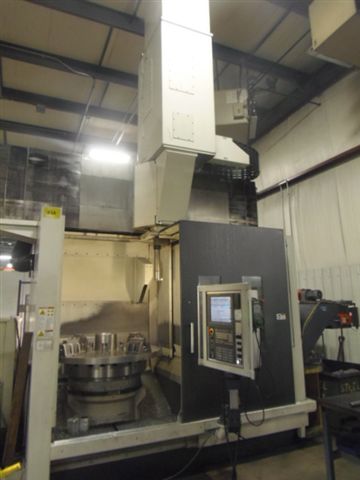

MANUFACTURER............................ GIDDING & LEWIS
MODEL................................... VTC 1000
AGE..................................... DELIVERED 2009
MAX. SWING & FACING CAP................. 51.18
FIXED RAIL HEIGHT....................... 66.14"
AC MOTOR RATING (S6-40 RATING).......... 112 HP
(CONTINUOUS RATING)..... 75 HP
TABLE SPEED-INF. VARIABLE............... 1-630 RPM
VERTICAL RAM TRAVEL..................... 49.21"
HORIZONTAL RAM TRAVEL
RIGHT OF CENTER (+X AXIS).......... 33.07"
LEFT OF CENTER (-X AXIS)........... 14.57"
TOOLING INTERFACE....................... G & L WEDGE CLAMPING
TOOL SHANK TAPER........................ 2:1 TAPER
LIVE SPINDLE AND C-AXIS PACKAGE
LIVE SPINDLE
AC DRIVE MOTOR S6-40%............ 44 HP
AC DRIVE MOTOR CONT.............. 29 HP
GEAR BOX RANGES.................. 2
SPINDLE SPEED.................... 4000 RPM
LIVE SPINDLE TAPER............... KENNAMETAL KM80
COOLANT TYPE..................... THRU SPINDLE
C-AXIS POSITIONING/CONTOUR TABLE
NUMBER OF POSITIONS.............. 360,000
RAPID TRAVERSE RATE.............. 20 RPM
FEED RATE INF. VAR. WITHIN 20 RPM RANGE

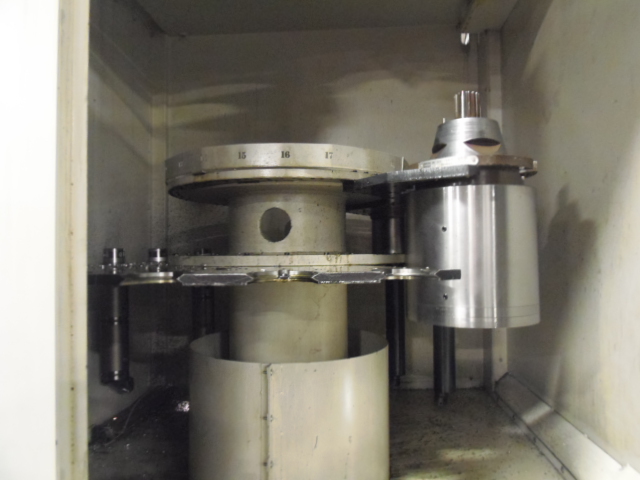

AUTOMATIC TOOL CHANGER WITH LIVE SPINDLE
NUMBER OF POCKETS.................. 18
WEDGE LOCK TAPER POCKETS........... 2
LIVE SPINDLE ATTACHMENT POCKETS.... 1
KM MODULAR TOOL POCKETS............ 15
WEDGE LOCK TO KM80 CLAMPING UNIT.... 1

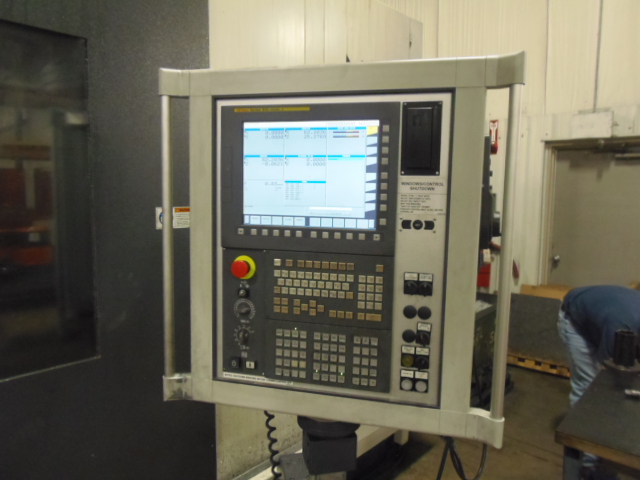

CONTROL................................. GE FANUC 310i CNC
MACHINE DIMENSIONS...................... 175"X, 165"Y, 196"HEIGHT
WEIGHT.................................. 55,000 LBS
EQUIPPED WITH:
RENISHAW PROBE
2 WEDGE LOCK HOLDERS
WEDGE LOCK LIVE TOOL HOLDER

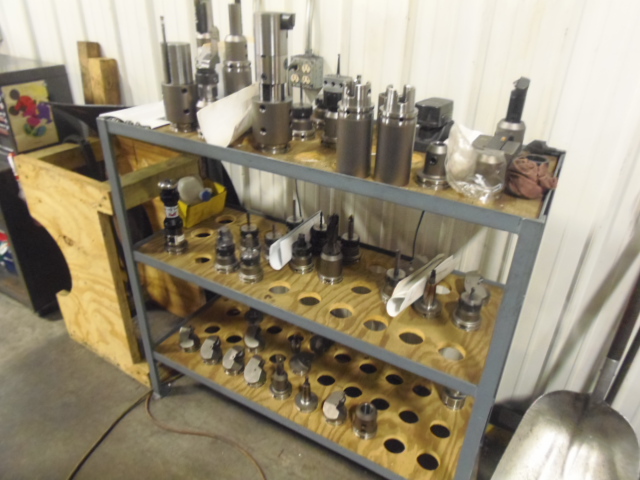

MISC KM80 TOOL HOLDERS
CHIP CONVEYOR

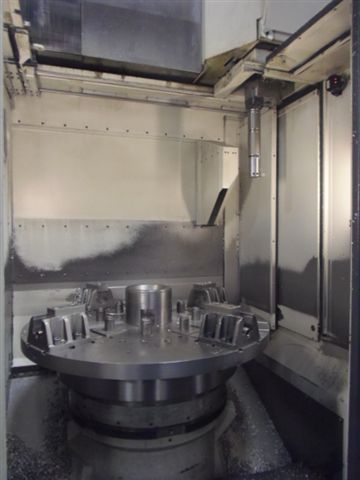

39" 4 JAW MANUAL CHUCK WITH JAWS
COOLANT SYSTEM WITH NOZZLES AND THRU LIVE SPINDLE
FULL ENCLOSURE
CONTROL FEATURES, 15" COLOR LCD, REMOTE PENDANT, 5120 METERS OF PROGRAM STORAGE, (HELICAL, POLAR COORDINATE, & CYLINDRICAL INTERPOLATION),THREAD CUTTING, (SPINDLE, TABLE, & LIVE SPINDLE ORIENT), RIGID TAPPING, CUSTOM MACROS & VARIABLES, ETC.
MISC MANUALS
FLUSH FLOOR MOUNT
SPECIFICATIONS SUBJECT TO VERIFICATION
