Specifications
Equipped With
GENERAL SPECIFICATIONS:

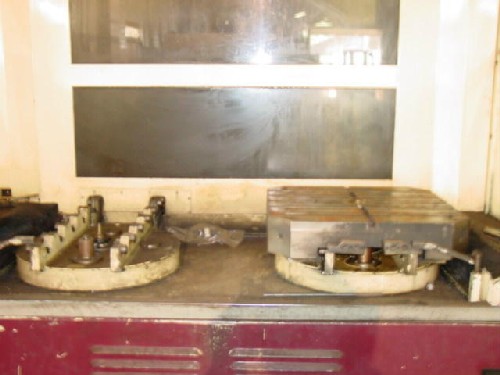

PALLET SIZE 24.8" X 24.8"
NUMBER OF PALLETS 2
MAXIMUM TABLE LOAD 2,640 LBS
SPINDLE CENTER TO PALLET SURFACE 2.0" - 33.5"
SPINDLE NOSE TO PALLET CENTER 3.9" - 33.4"
X AXIS TRAVEL 35.4"
Y AXIS TRAVEL 31.5"
Z AXIS TRAVEL 29.5"
B AXIS INDEXING 0.001 DEG.
RAPID TRAVERSE RATE X, Y & Z AXES 1496 IPM
CUTTING FEED RATE 0.1 - 1496 IPM
SPINDLE SPEEDS 10 - 7,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR (2 SPEED GEARED) 38/31 HP AC
TOOL CHANGER CAPACITY 80 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 3.5 SECONDS
EQUIPPED WITH:
G & L 8000 CNC CONTROL WITH 14" CRT, RS-232C PORT
RIGID TAPPING, BUILT IN 2 MEGABYTE MEMORY
HI PRESSURE COOLANT THRU SPINDLE (800 PSI)
LINEAR SCALE FEEDBACK SYSTEM ON X, Y & Z AXES
TOUCH SCREEN CONTROL, HAND-HELD PENDANT WITH MPG
EXTERNAL LIFT-UP TYPE CHIP CONVEYOR, SPINDLE CHILLER
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
