G & L 50U, 18" CHUCK, FANUC 10TF, 60 HP, 72" CENTERS, CHIP CONVEYOR
Specifications
Equipped With

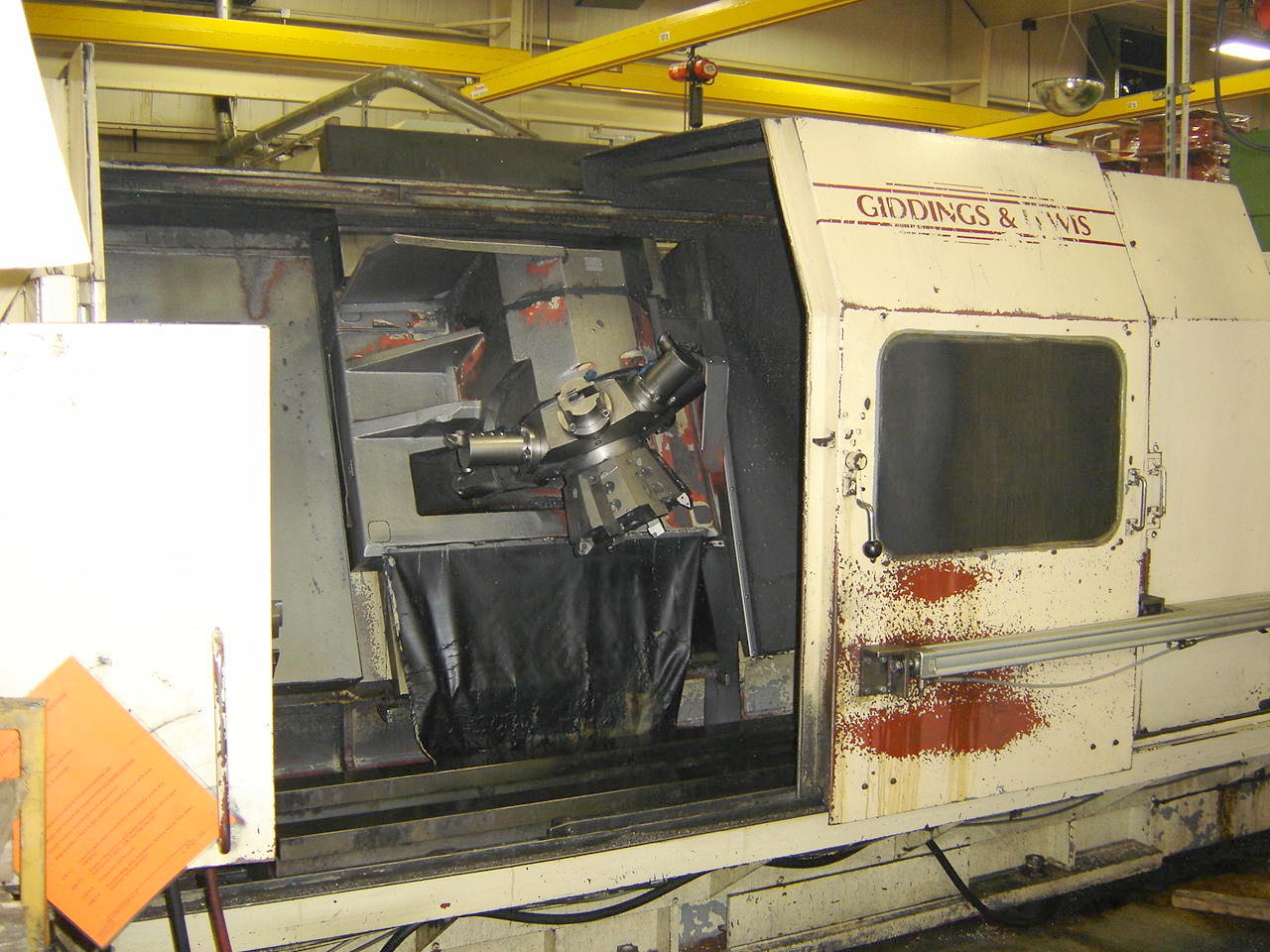

GIDDINGS & LEWIS MASTERLINE 50U CNC TURNING
CENTER
SPECIFICATIONS:
MAXIMUM SWING OVER BED
...................... 30"
MAX. TURNING DIA.W/ENDWORKING TURRET ........
22.5"
MAX. TURNING DIA.W/TURNING TURRET ........... 18"
MAXIMUM TURNING
LENGTH ...................... 72"
X-AXIS TRAVEL
............................... 9.75"
Z-AXIS TRAVEL
............................... 72"
RAPID TRAVERSE RATE X/Z AXES
................ 400 IPM
SPINDLE NOSE ................................
A2-11
SPINDLE MOTOR ............................... 60
HP
TURRET CAPACITY ............................. 6
BORING
8 TURNING

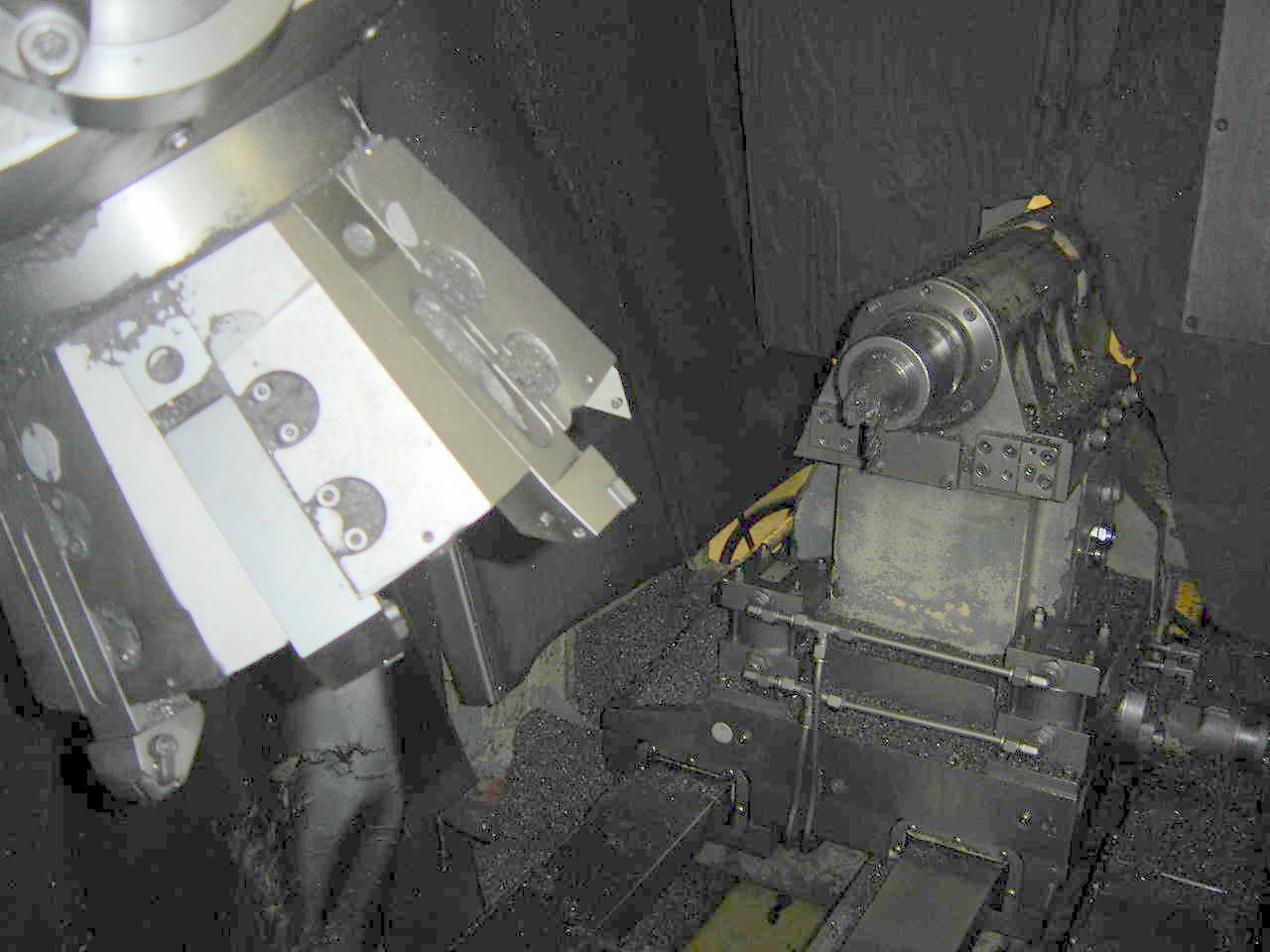

TAILSTOCK
QUILL TAPER ....................... MT #5
TAILSTOCK QUILL STROKE
...................... 6"
TAILSTOCK BODY STROKE .......................
78"
APPROX. MACHINE WEIGHT ...................... 32,000 LBS.
EQUIPPED
WITH:

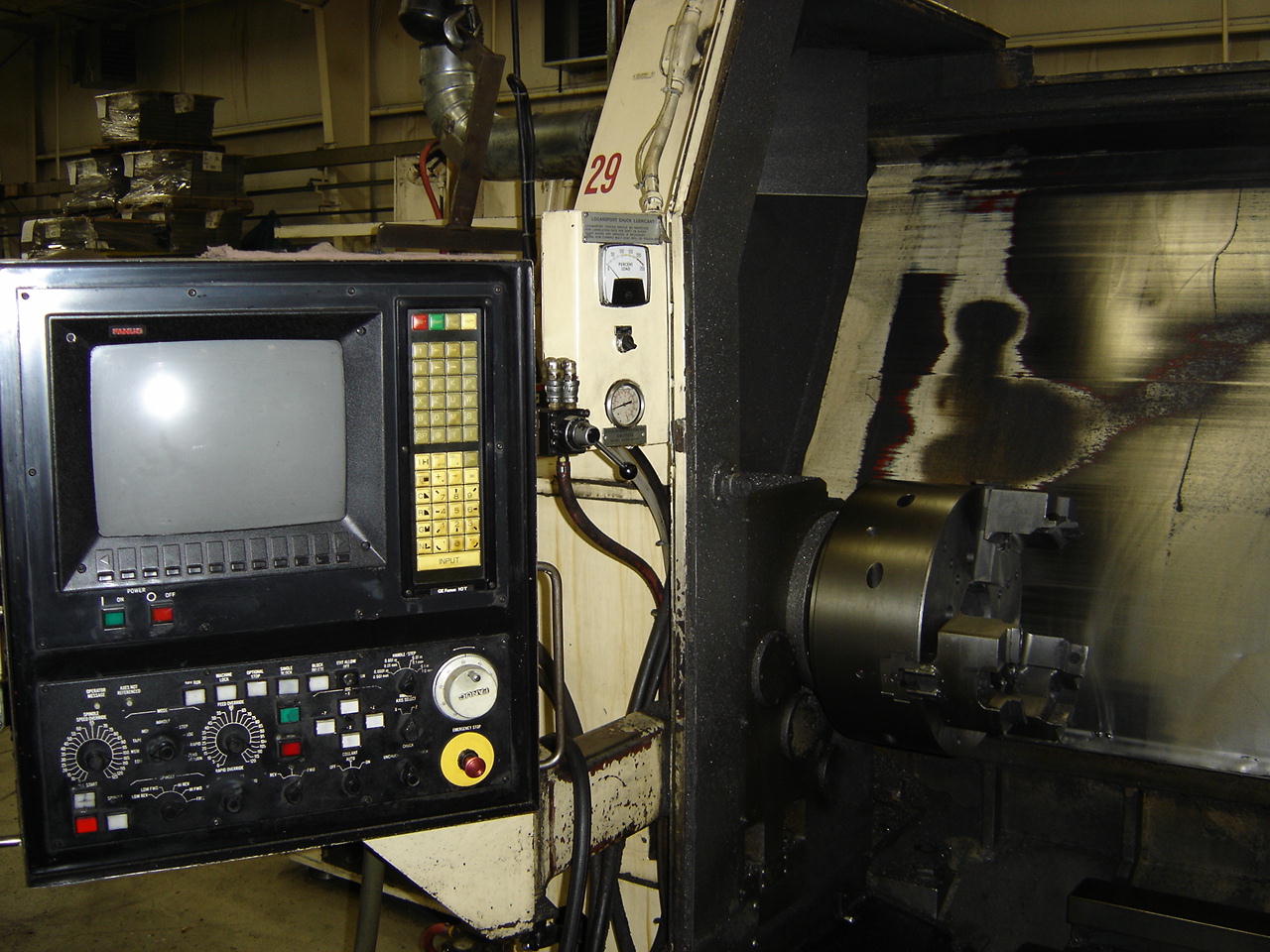

- FANUC 10TF CONVERSATIONAL CONTROL, RS-232C PORT
INTERFACE FOR DNC OPERATION

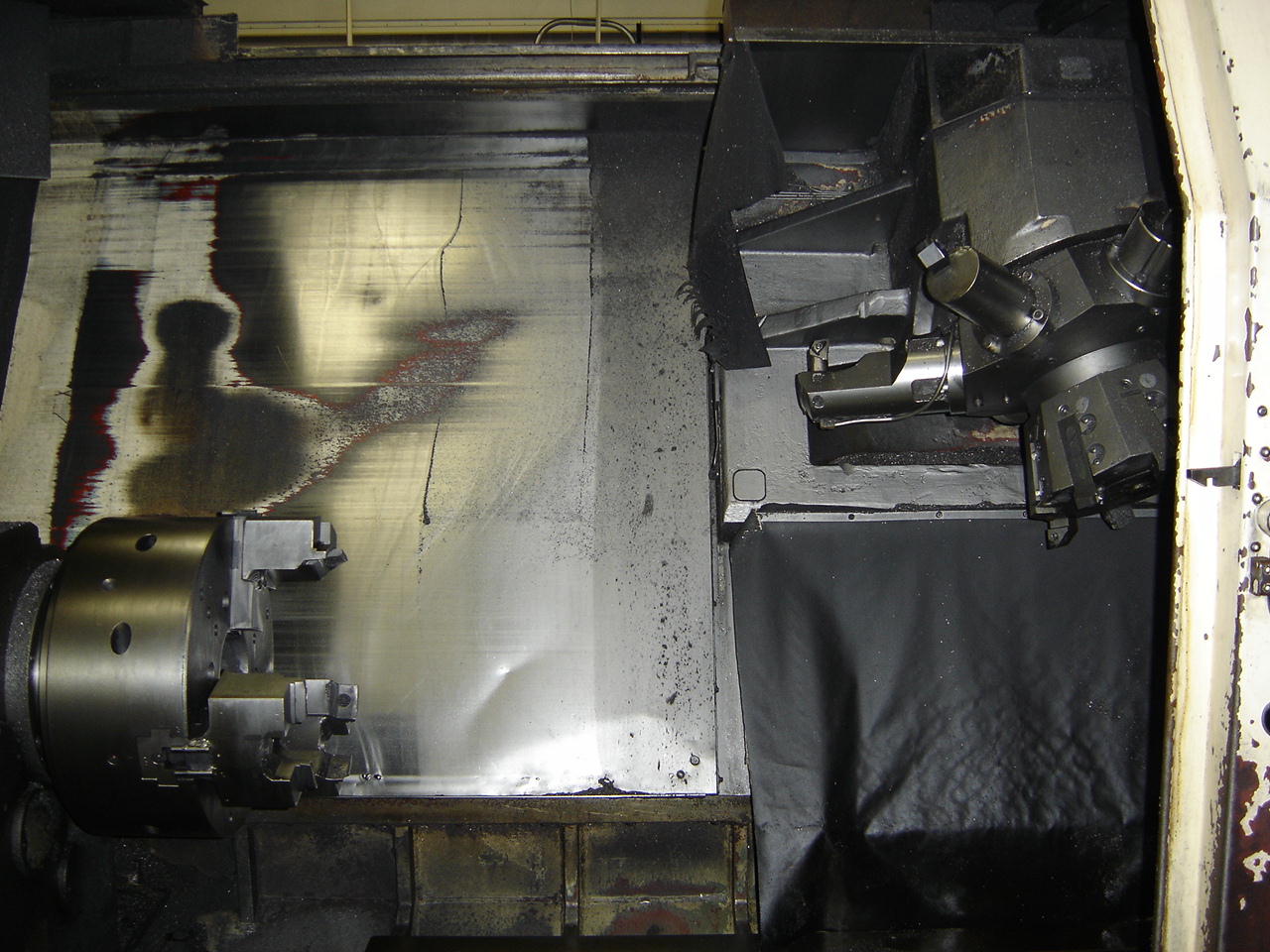

- 18" 3-JAW CHUCK W/ JAWS
- THREAD
CUTTING

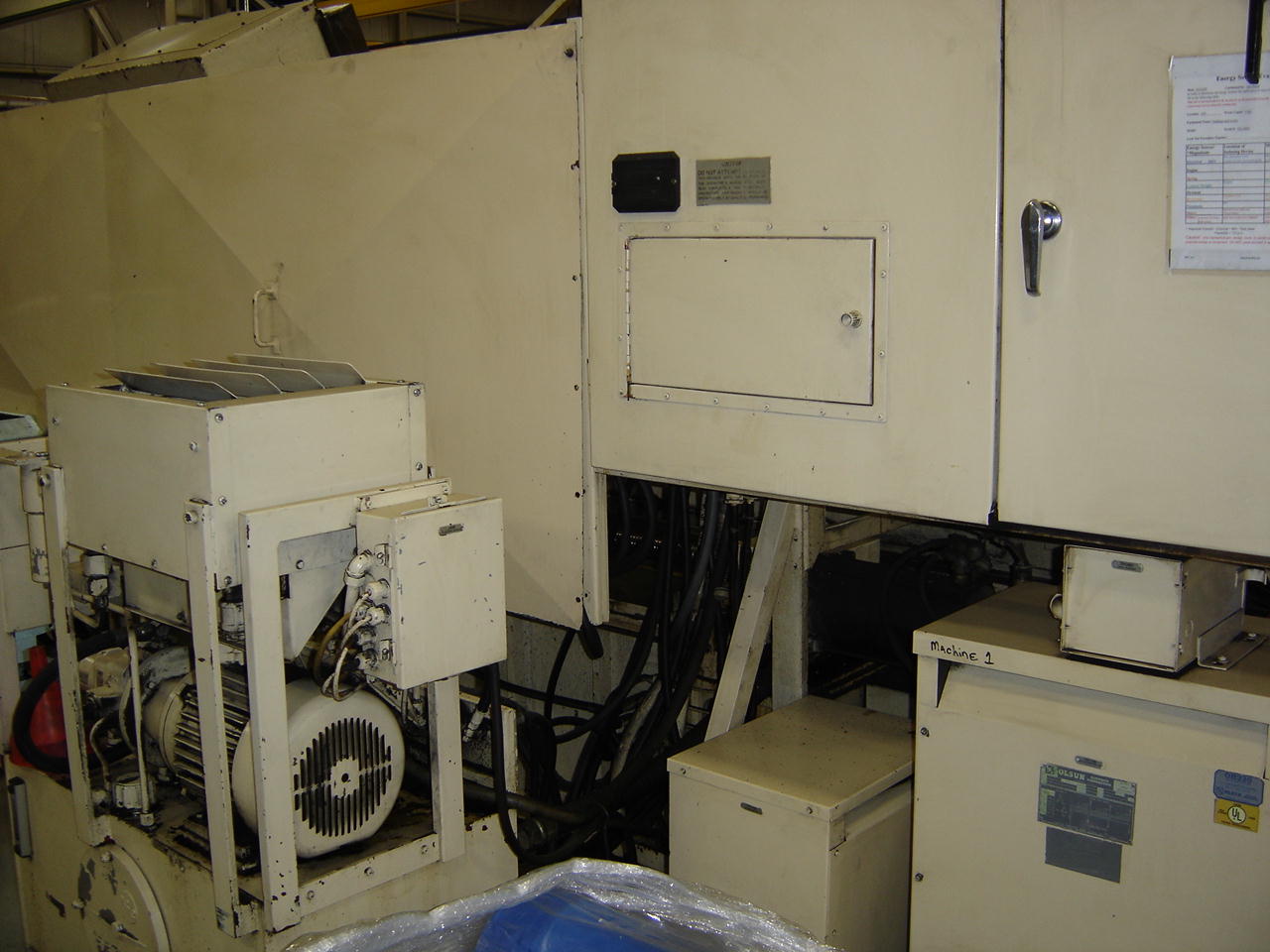

- FLOOD COOLANT STANDARD COLANT SYSTEM
- FULLY PROGRAMMABLE
TAILSTOCK
- RIGHT DISCHARGE CHIP CONVEYOR
- FULLY ENCLOSED
GUARDING
- ALL AVAILABLE TOOL BLOCK HOLDERS
- ALL AVAILABLE MANUALS
