Specifications
Equipped With
GENERAL SPECIFICATIONS:

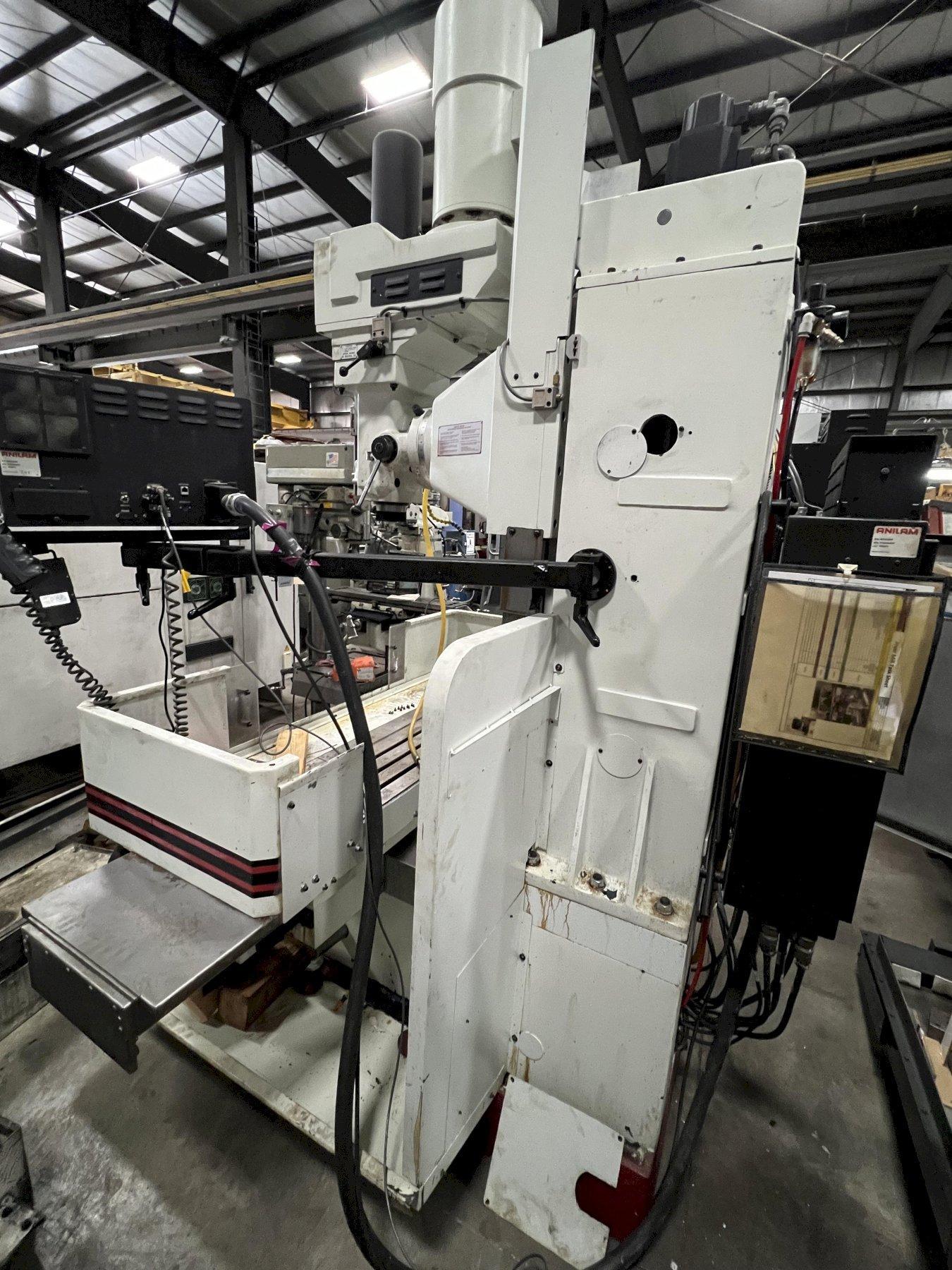

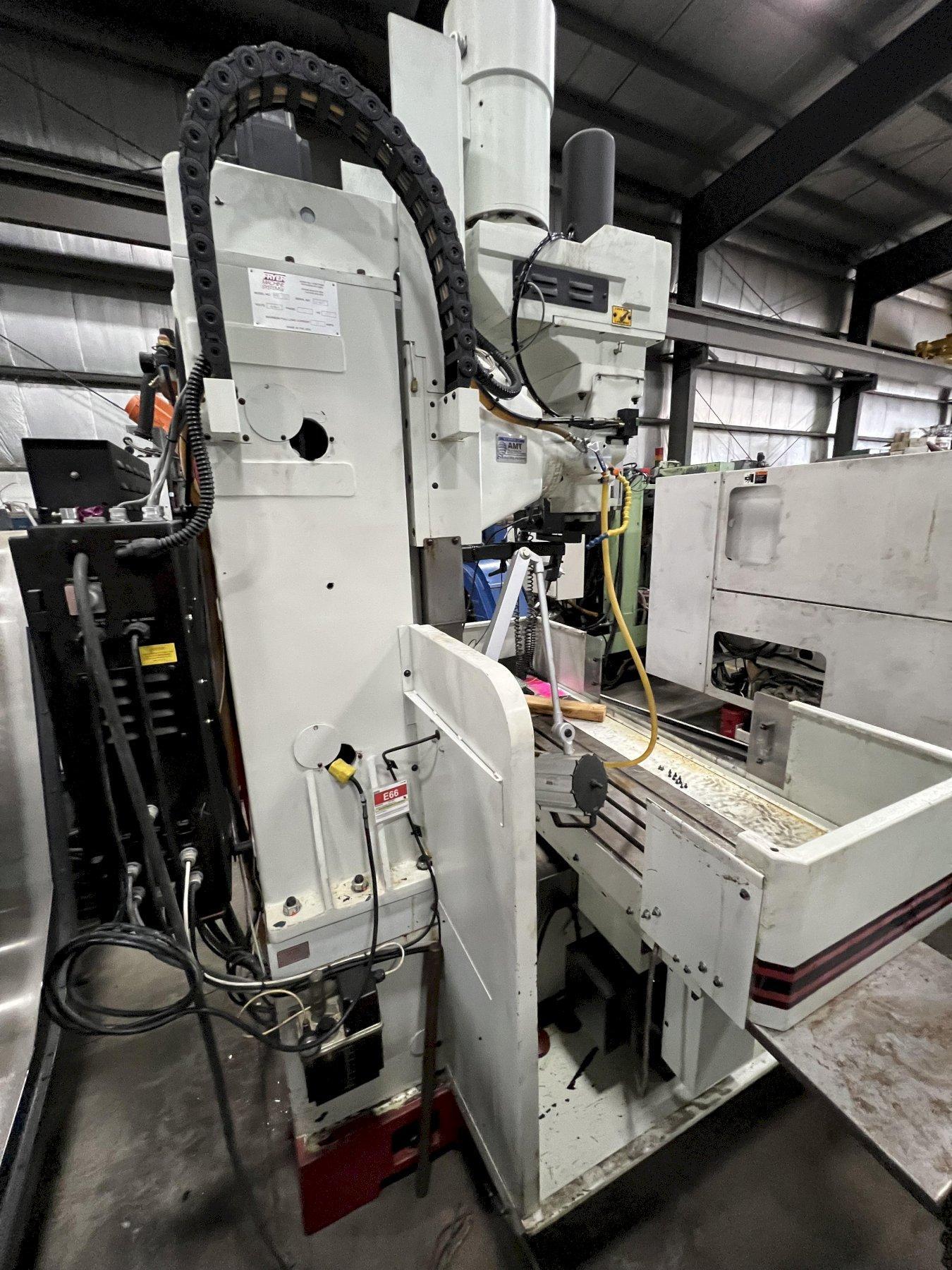

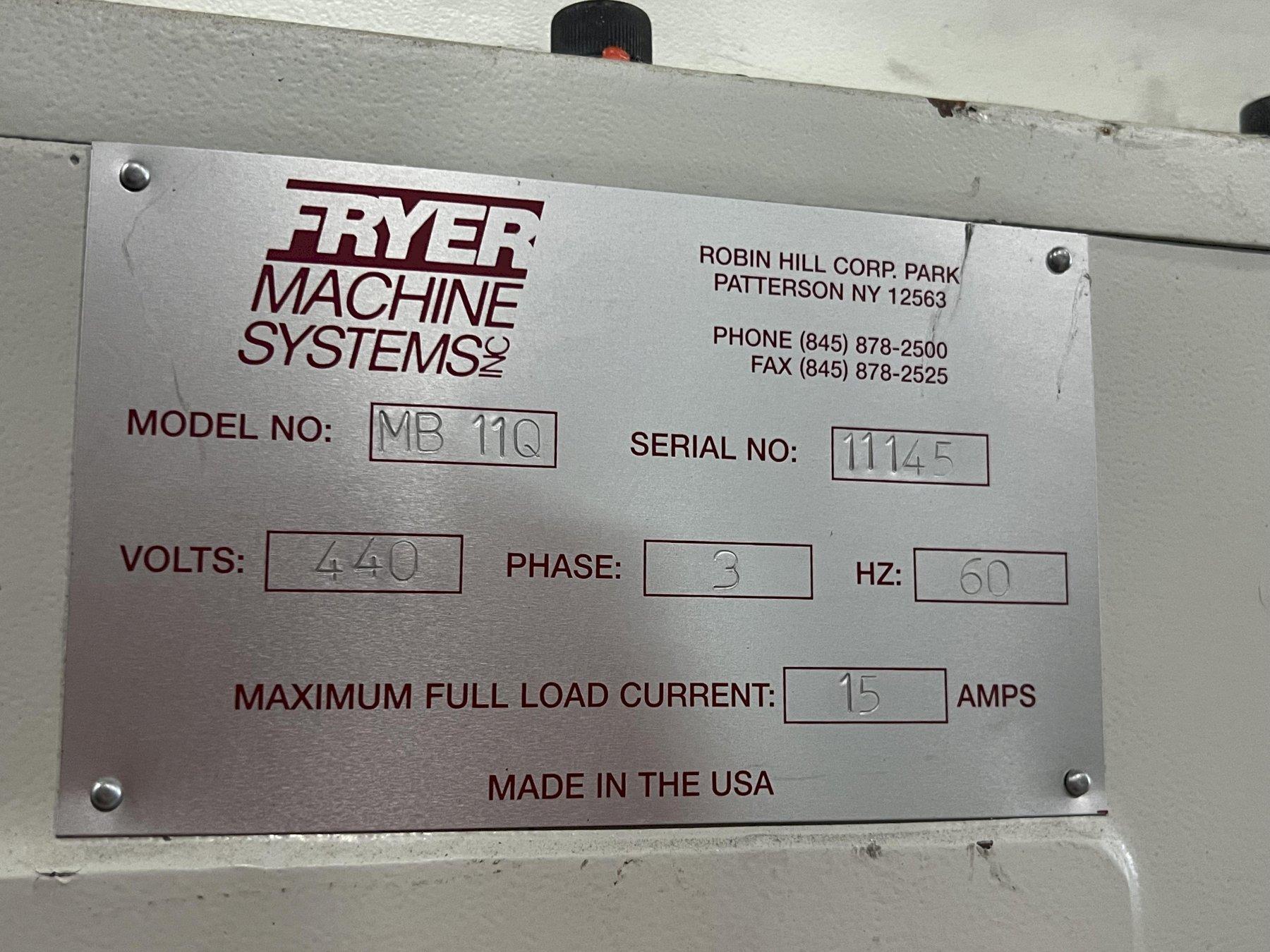

MAKE...................... FRYER
MODEL..................... MB 11Q
SERIAL NUMBER............. 11145
AGE (YEAR) APPROX......... 2007
X AXIS TRAVEL............. 30"
Y AXIS TRAVEL............. 20"
Z AXIS TRAVEL............. 22"
TABLE LOAD................ 1650 LBS

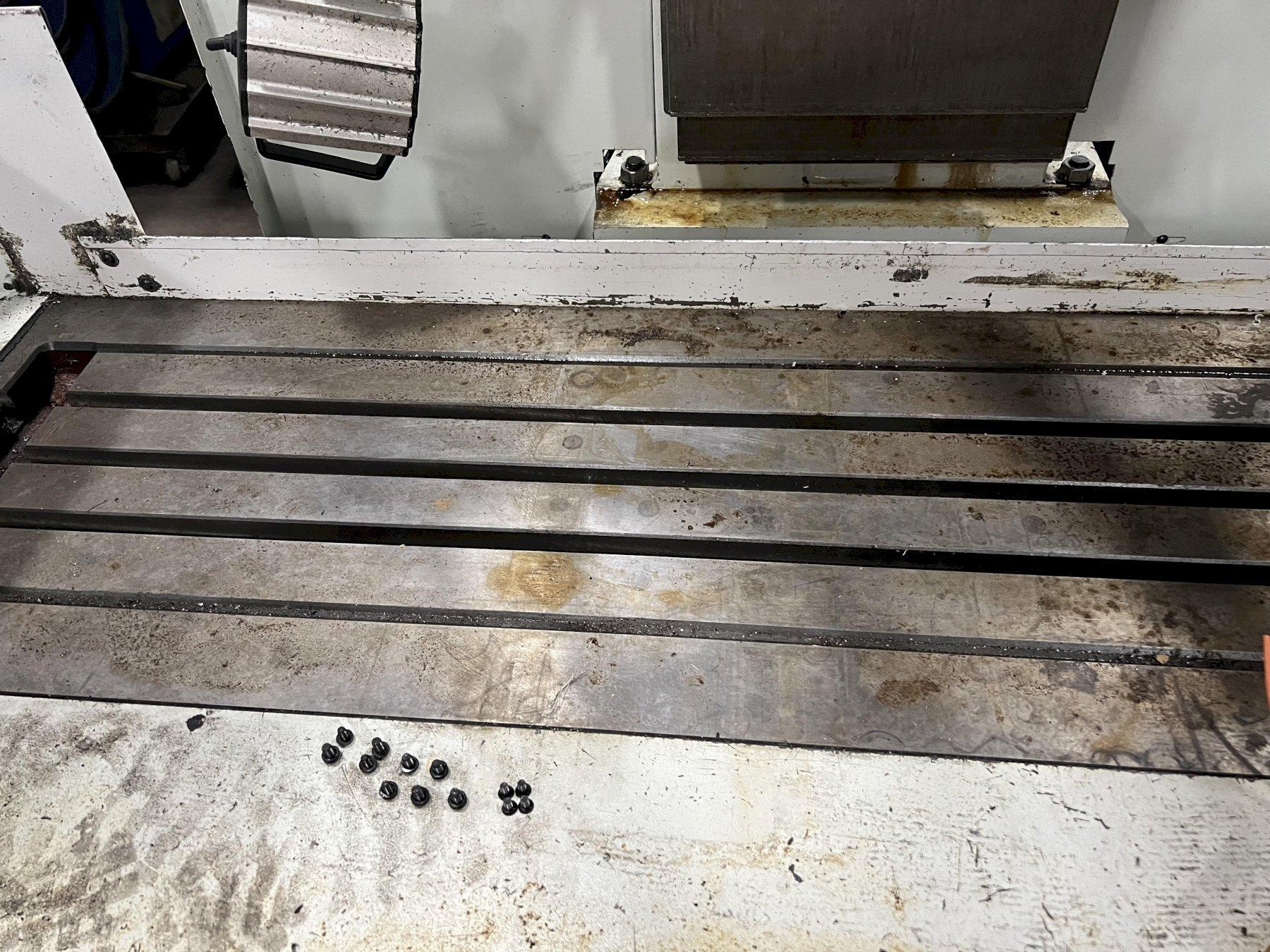

TABLE SIZE................ 16" X 50"
TABLE TOP TO FLOOR........ 33"

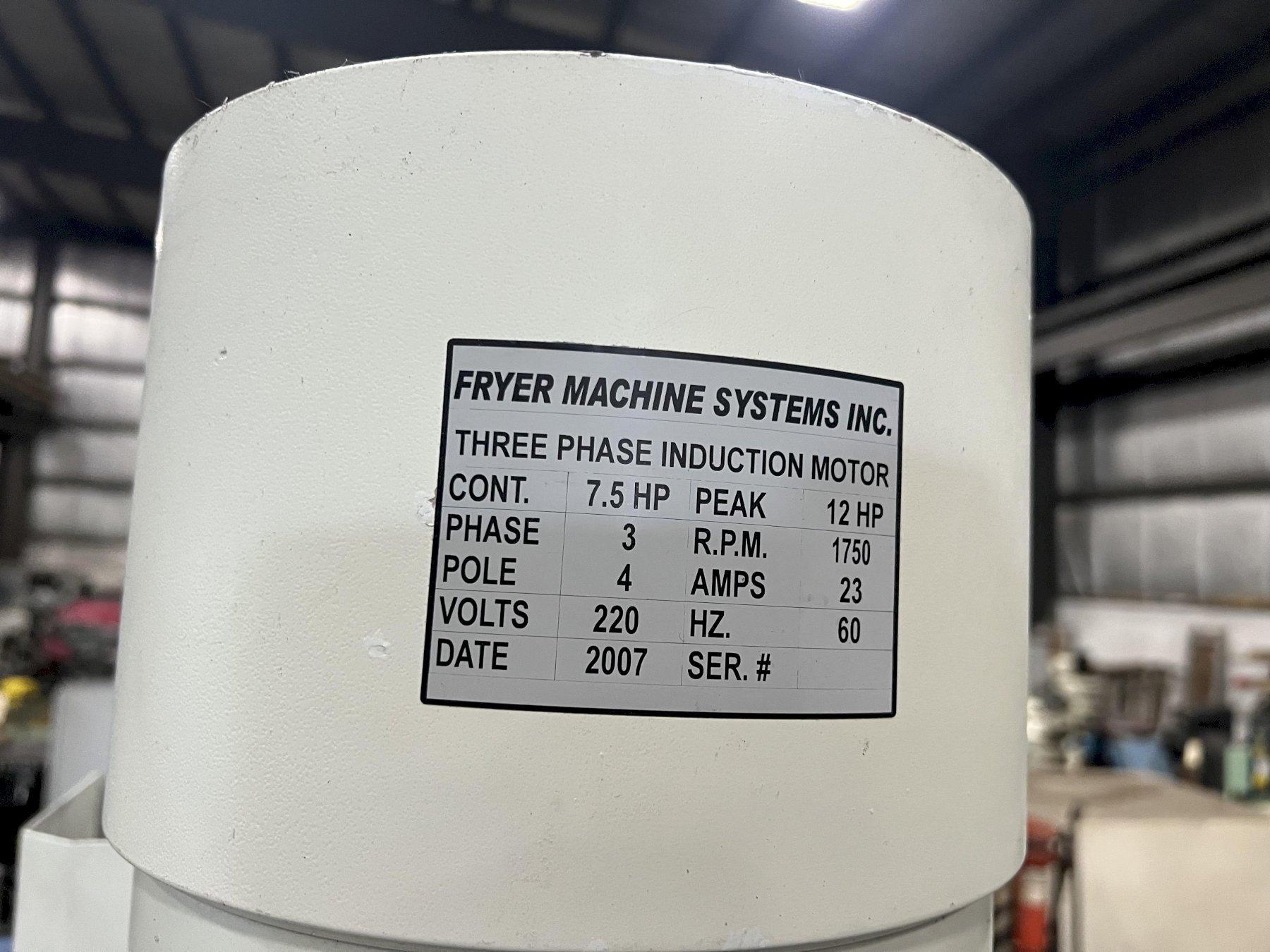

MOTOR HP.................. 7.5 CONT / 12 PEAK
SPINDLE SPEEDS............ 60-4500 RPM

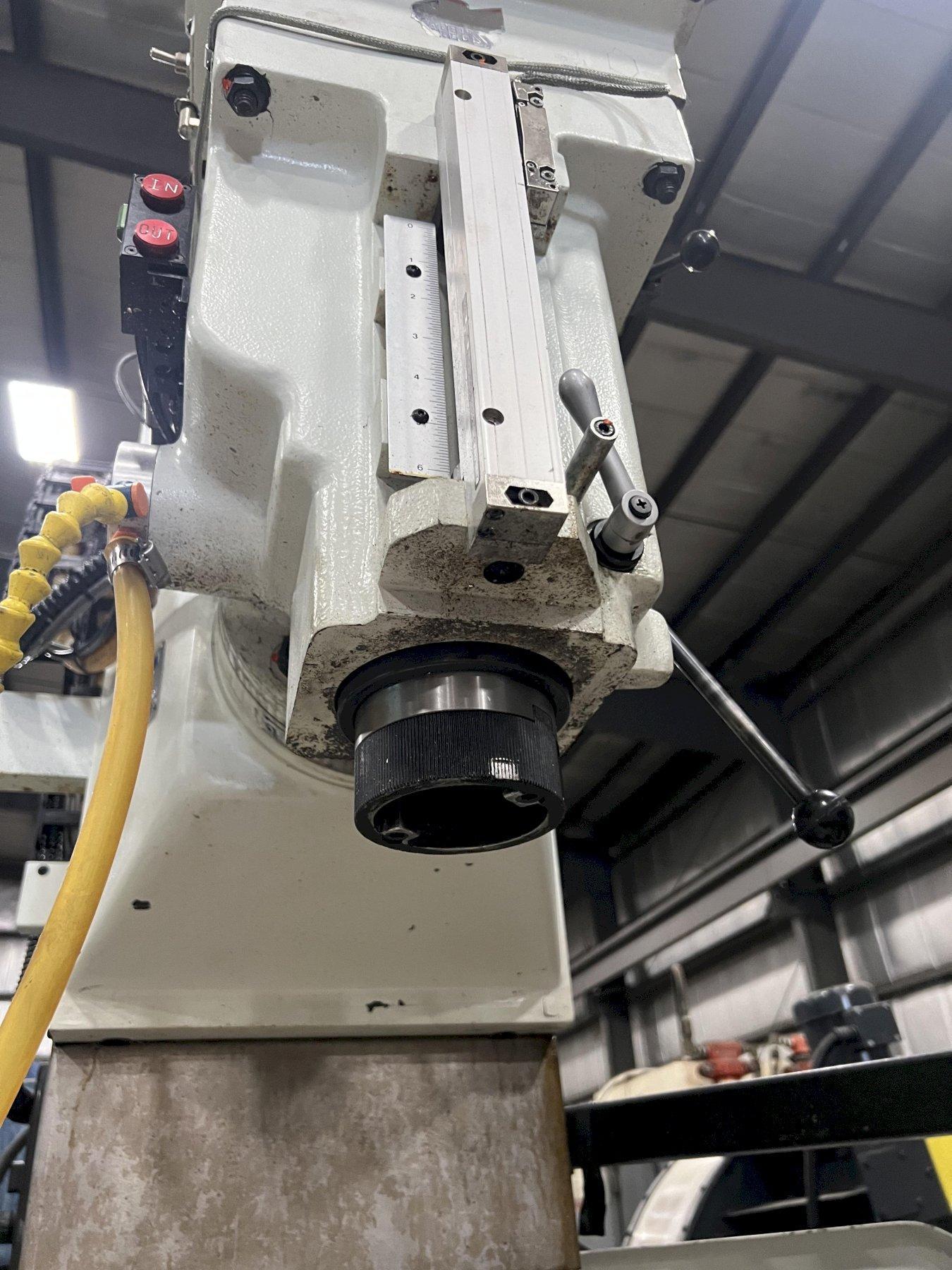

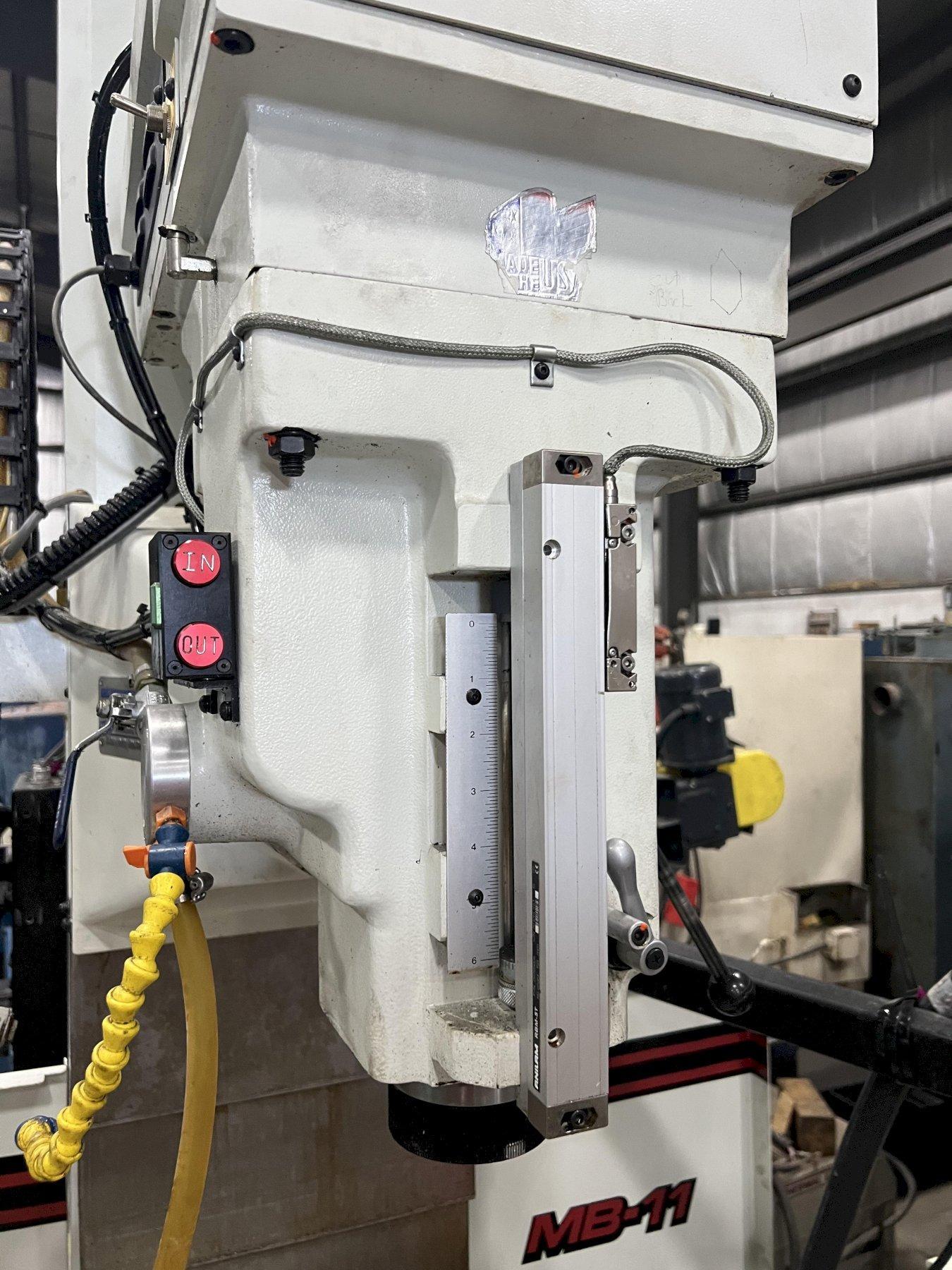

QUILL DIAMETER............ 4.125"
QUILL TRAVEL.............. 6"
SPINDLE NOSE TO TABLE..... 26" - 4" MIN
SPINDLE CENTER TO COLUMN.. 20"
HEAD SWIVEL............... 90 DEG
DIMENSIONS................ 103" X 76" X 96" H
WEIGHT.................... 5,600 LBS
EQUIPPED WITH:

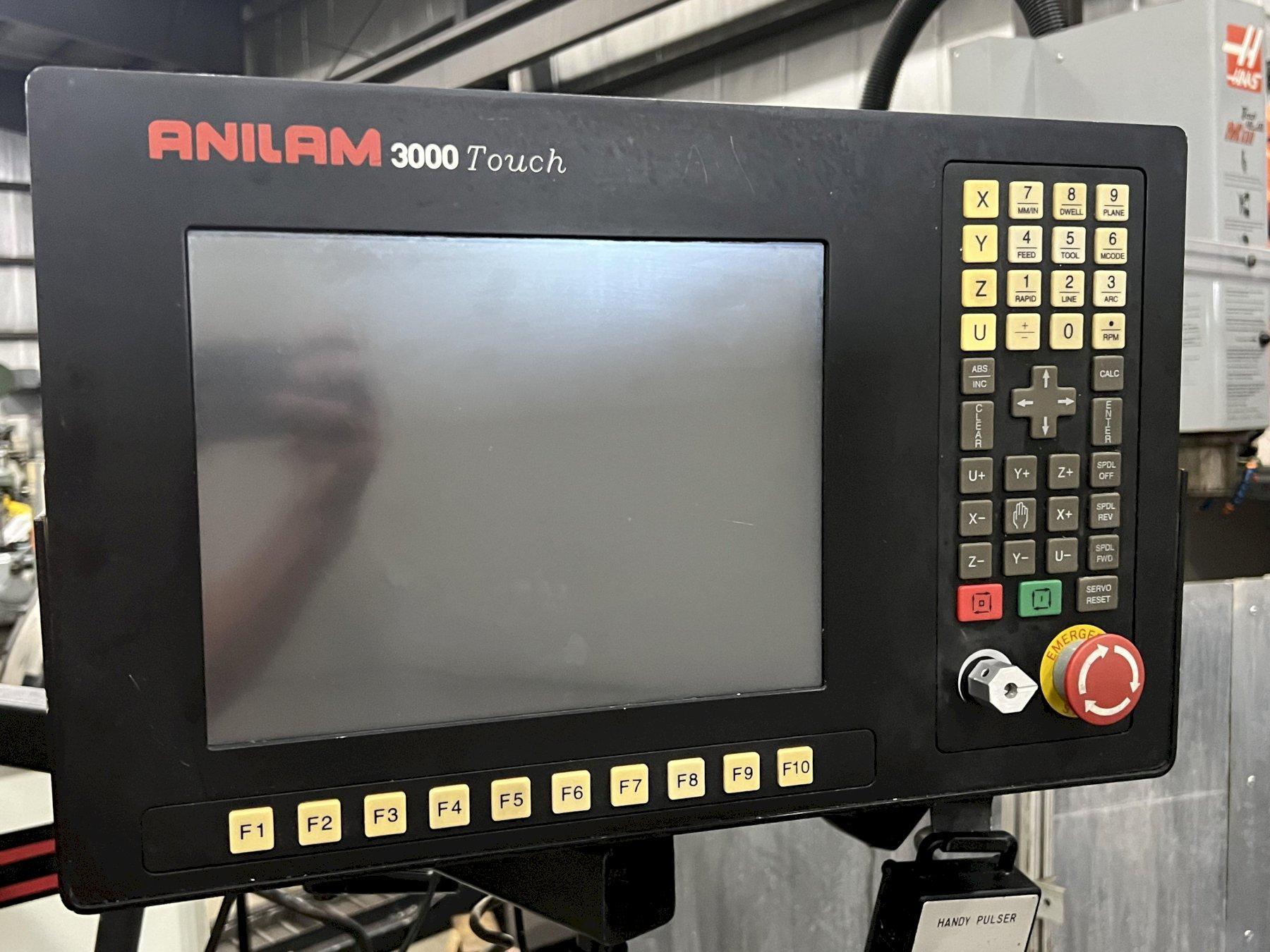

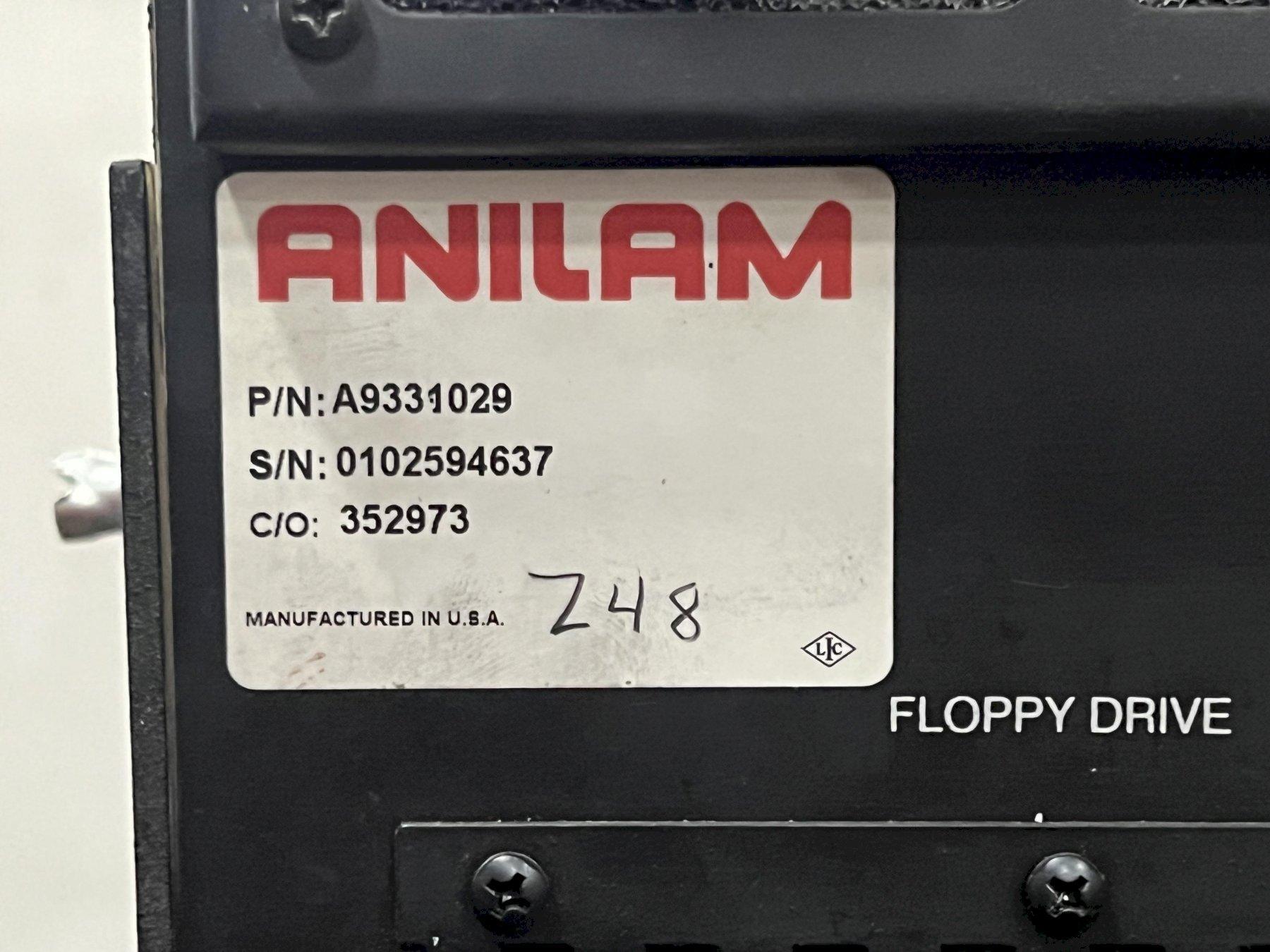

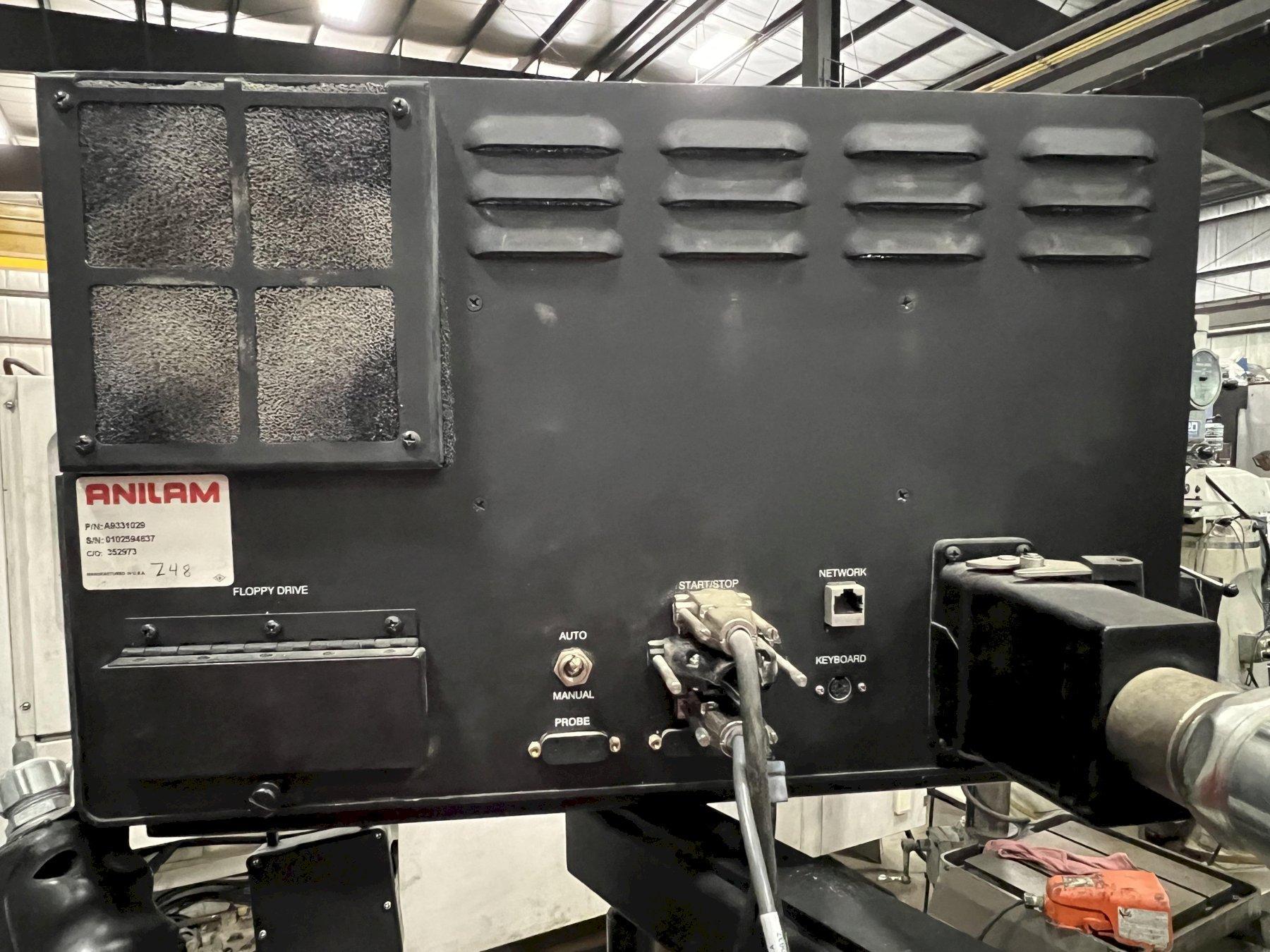

ANILAM 3000 TOUCH CNC CONTROL (NOT WORKING)
MISC MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
