Specifications
Equipped With
GENERAL SPECIFICATIONS:

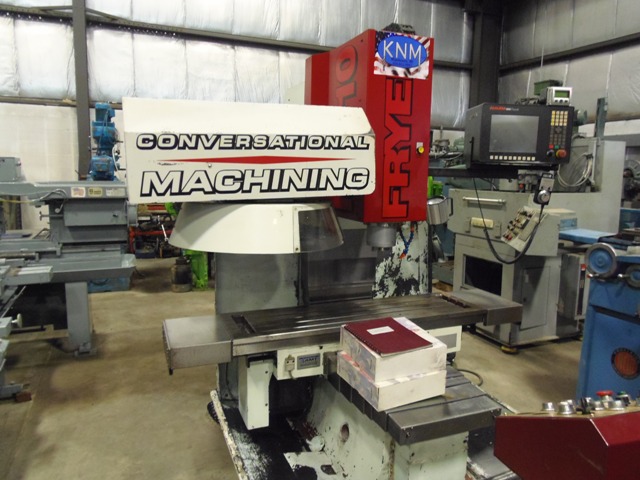

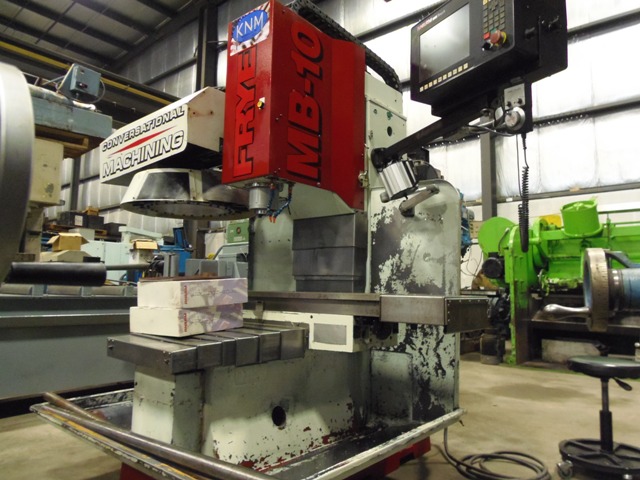

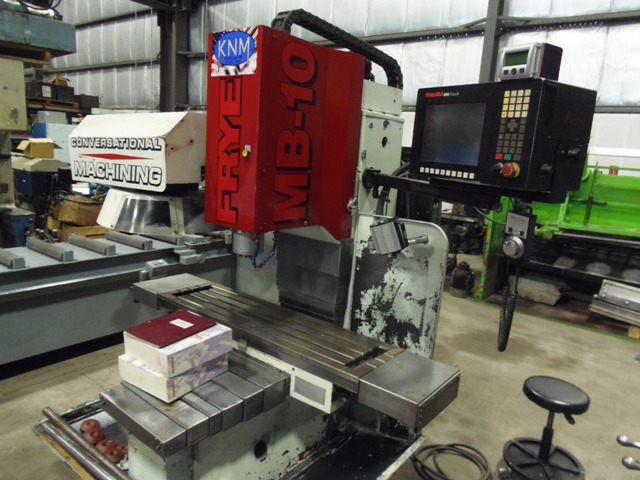

MANUFACTURER................... FRYER
MODEL#......................... MB-10
SERIAL#........................ 10160

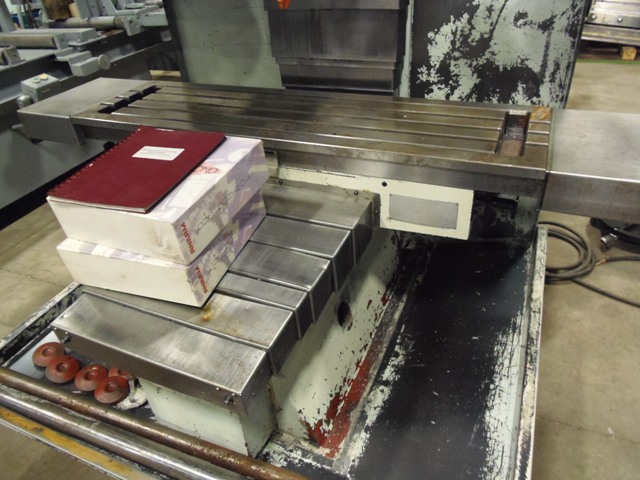

TABLE SIZE..................... 50" X 14"
MAX TABLE LOAD................. 1500 LBS
TRAVELS (X).................... 32"
(Y).................... 17"
(Z).................... 19"
TABLE TO FLOOR................. 31"
SPINDLE MOTOR.................. 12HP
SPINDLE SPEED (MAX)............ 6000 RPM
SPINDLE TAPER.................. CAT 40
SPINDLE NOSE TO TABLE.......... 23"-4"
SPINDLE CENTER TO COLUMN....... 17.5"
TOOL STORAGE................... 12
MAX TOOL WEIGHT................ 15.4 LBS.
MAX TOOL LENGTH................ 11"
RAPIDS......................... 400 IPM
CUTTING FEED RATE.............. .001-300 IPM
ELECTRICS...................... 220 / 3 PHS / 60 HZ
SHIPPING DIMENSIONS............ 60" X 67" X 85"H
OPERATING DIMENSIONS........... 103" X 67" X 98"H
WEIGHT APPROXIMATELY........... 5000 LBS.
EQUIPPED WITH:

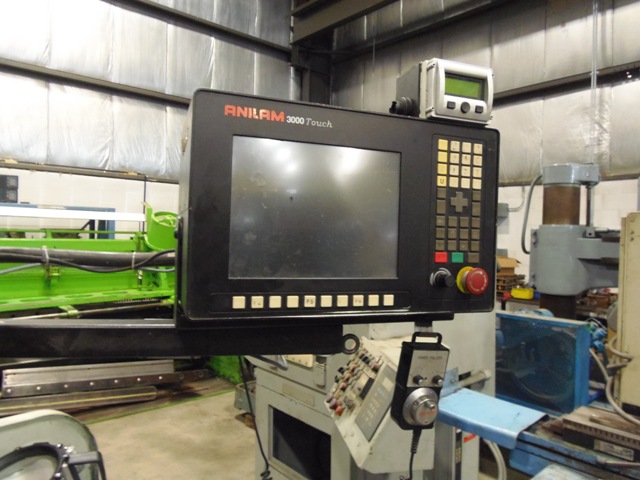

ANILAM 3000 CONTROL
REMOTE HAND WHEEL
RIGID TAP
