Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER FRYER
MODEL ET-21
SERIAL NUMBER 21082
NEW (APPROX.) 2004
SWING OVER BED 21"
SWING OVER CROSS SLIDE 12"
CENTER HEIGHT 11"
DISTANCE BETWEEN CENTERS 60"
WIDTH OF BED 14"
X-TRAVEL 14"
Z-TRAVEL 57"
RPM RANGE (2 SPEED AUTOSHIFT) 20-2000
SPINDLE NOSE D1-8
SPINDLE BORE 3.15"
ELECTRICS 220/3 PH/60 HZ
WEIGHT (APPROX.) 8,000 LBS
DIMENSIONS (APPROX.) 106" x 76" x 68"
EQUIPPED WITH:

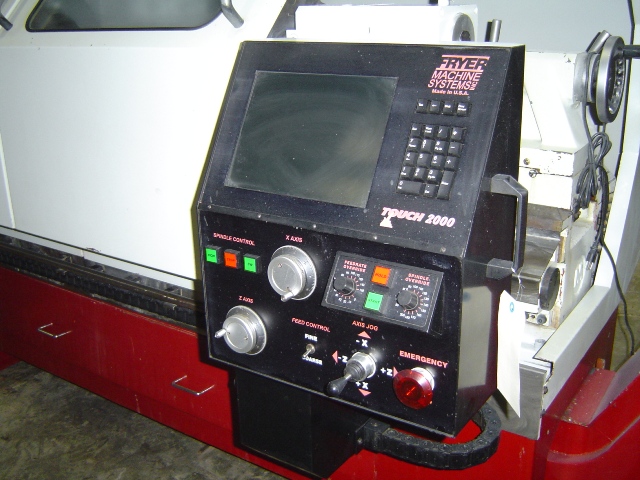

TOUCH 2000 CONTROL WITH 12" COLOR DISPLAY, AUTOMATIC TEACH MODE, PC BASED WITH PENTIUM PROCESSOR, 1.2 GB MEMORY, INTEGRATED TOUCH SCREEN, 3.5" FLOPPY DISK DRIVE, STANDARD G & M PROGRAMMING, 3-D SOLID MODEL GRAPHICS WITH ZOOM AND ROTATE, BUILT-IN MODEM FOR ONLINE SUPPORT, HANDWHEEL RUN MODE

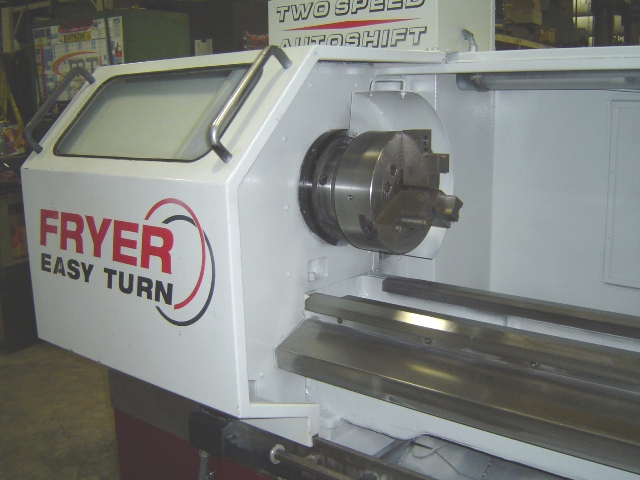

HYDRAULIC 12" 3-JAW CHUCK

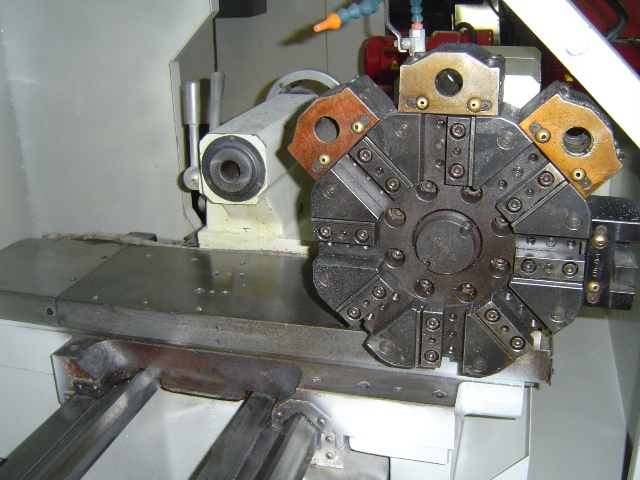

8 POSITION BI-DIRECTIONAL TURRET
CHIP CONVEYOR

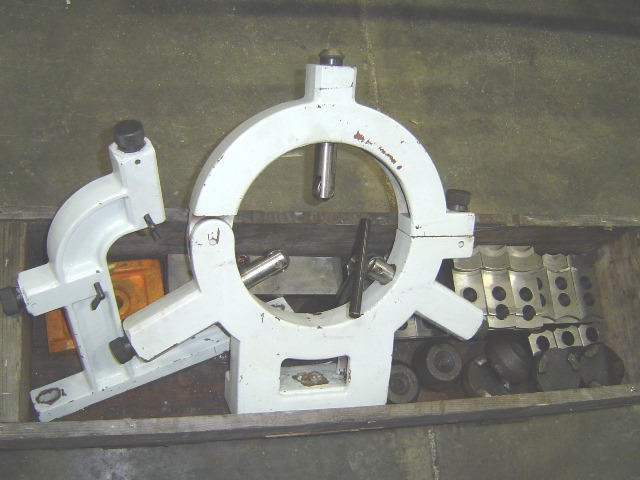

STEADY REST
FOLLOW REST
CONSTANT SURFACE FEED
