Specifications
Equipped With
GENERAL SPECIFICATIONS:

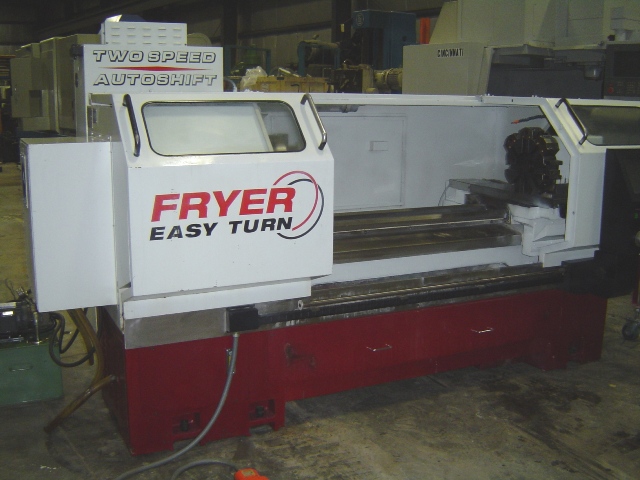

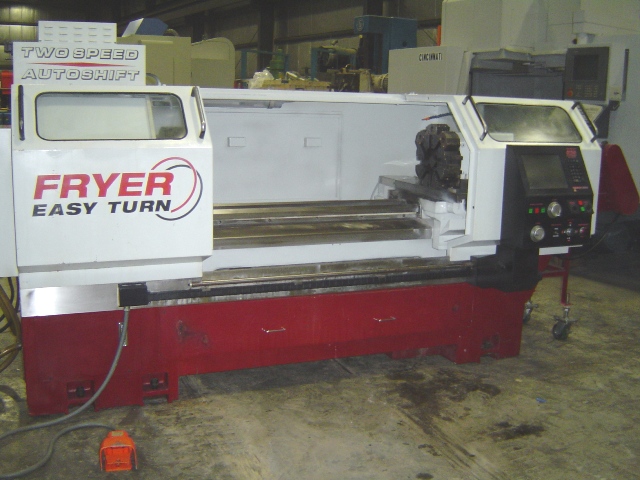

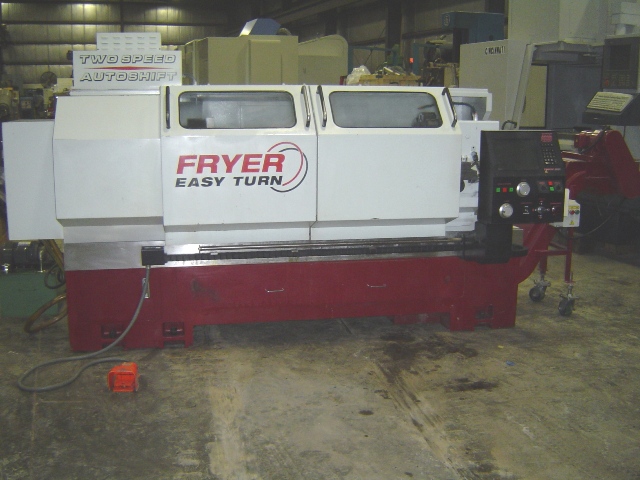

MANUFACTURER.................................... FRYER
MODEL........................................... ET-21
SERIAL NUMBER................................... 21082
NEW (APPROX.) .................................. 2004
SWING OVER BED.................................. 21"
SWING OVER CROSS SLIDE.......................... 12"
CENTER HEIGHT................................... 11"
DISTANCE BETWEEN CENTERS........................ 60"
WIDTH OF BED.................................... 14"
X-TRAVEL........................................ 12"
Z-TRAVEL........................................ 57"
RPM RANGE (2 SPEED AUTOSHIFT)................... 50-2000
SPINDLE NOSE.................................... D1-8
SPINDLE BORE.................................... 3.15"
ELECTRICS....................................... 220/3 PH/60 HZ
WEIGHT (APPROX.)................................ 8,000 LBS
DIMENSIONS (APPROX.)............................ 106" x 76" x 68"
EQUIPPED WITH:

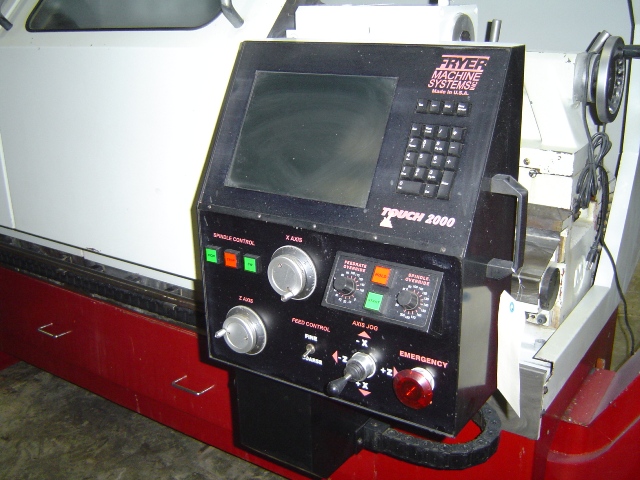

TOUCH 2000 CONTROL WITH 12" COLOR DISPLAY, AUTOMATIC TEACH MODE, PC
BASED WITH PENTIUM PROCESSOR, 1.2 GB MEMORY, INTEGRATED TOUCH SCREEN,
3.5" FLOPPY DISK DRIVE, STANDARD G & M PROGRAMMING, 3-D SOLID MODEL
GRAPHICS WITH ZOOM AND ROTATE, BUILT-IN MODEM FOR ONLINE SUPPORT,
HANDWHEEL RUN MODE

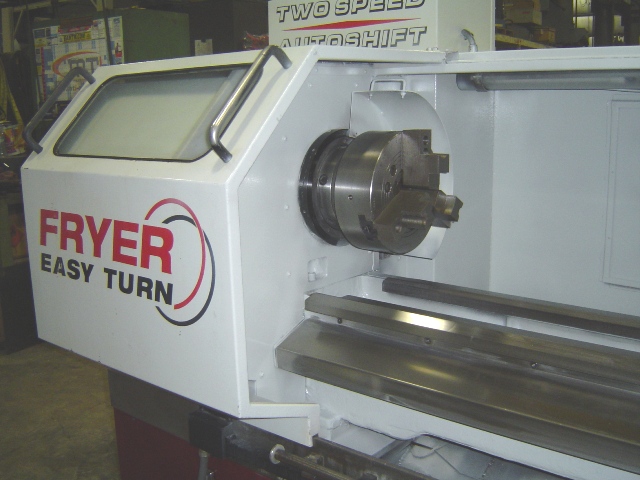

HYDRAULIC 12" 3-JAW CHUCK

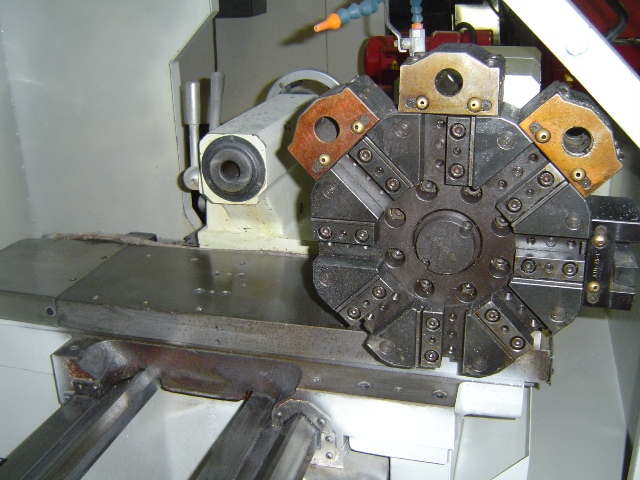

8 POSITION BI-DIRECTIONAL TURRET

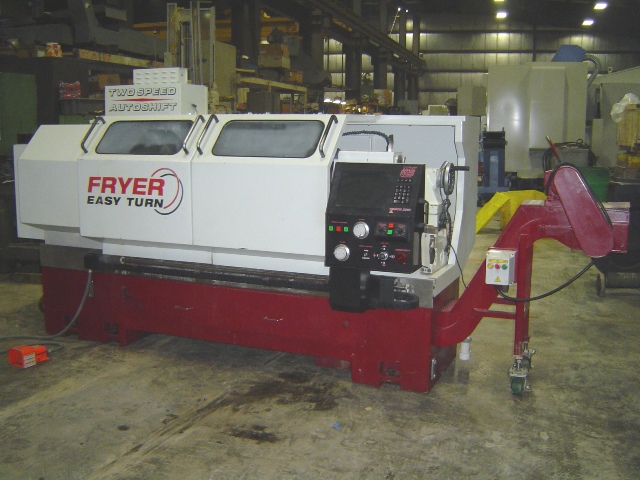

CHIP CONVEYOR
STEADY REST
FOLLOW REST
CONSTANT SURFACE FEED
