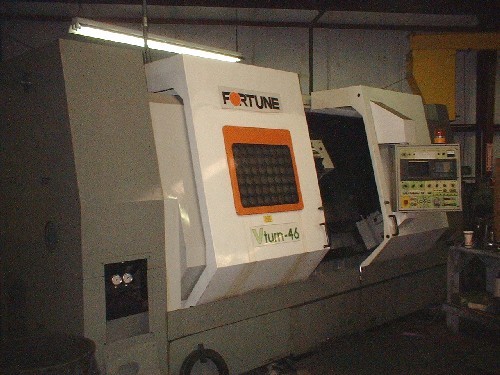

Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 35.43"
SWING OVER FRONT COVER 28.74"
MAXIMUM TURNING DIAMETER 28.74"
X AXIS TRAVEL 15.35"
Z AXIS TRAVEL 64.96"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 590 IPM
SPINDLE NOSE A2-11
SPINDLE BORE 4.84"
HOLE THROUGH DRAW TUBE 4.33"
SPINDLE SPEEDS 6 - 1,500 RPM
SPINDLE MOTOR 40 HP AC

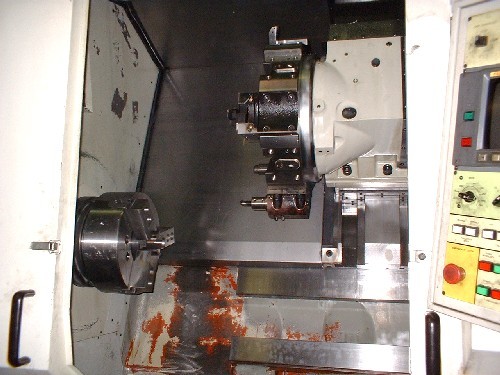

TURRET CAPACITY 10 STATION TURRET
TAILSTOCK BODY STROKE 55.7"
TAILSTOCK QUILL DIAMETER 5.91"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL 5.91"
EQUIPPED WITH:
FANUC OTC CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

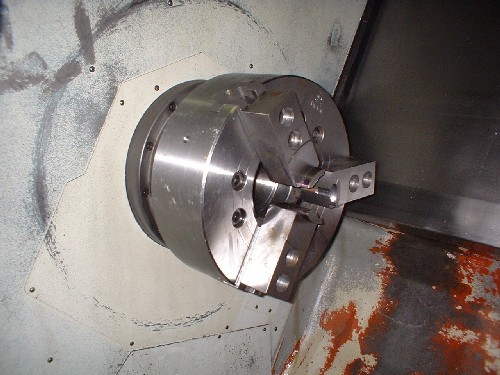

15" 3-JAW HYDRAULIC CHUCK WITH JAWS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS & MANUALS
