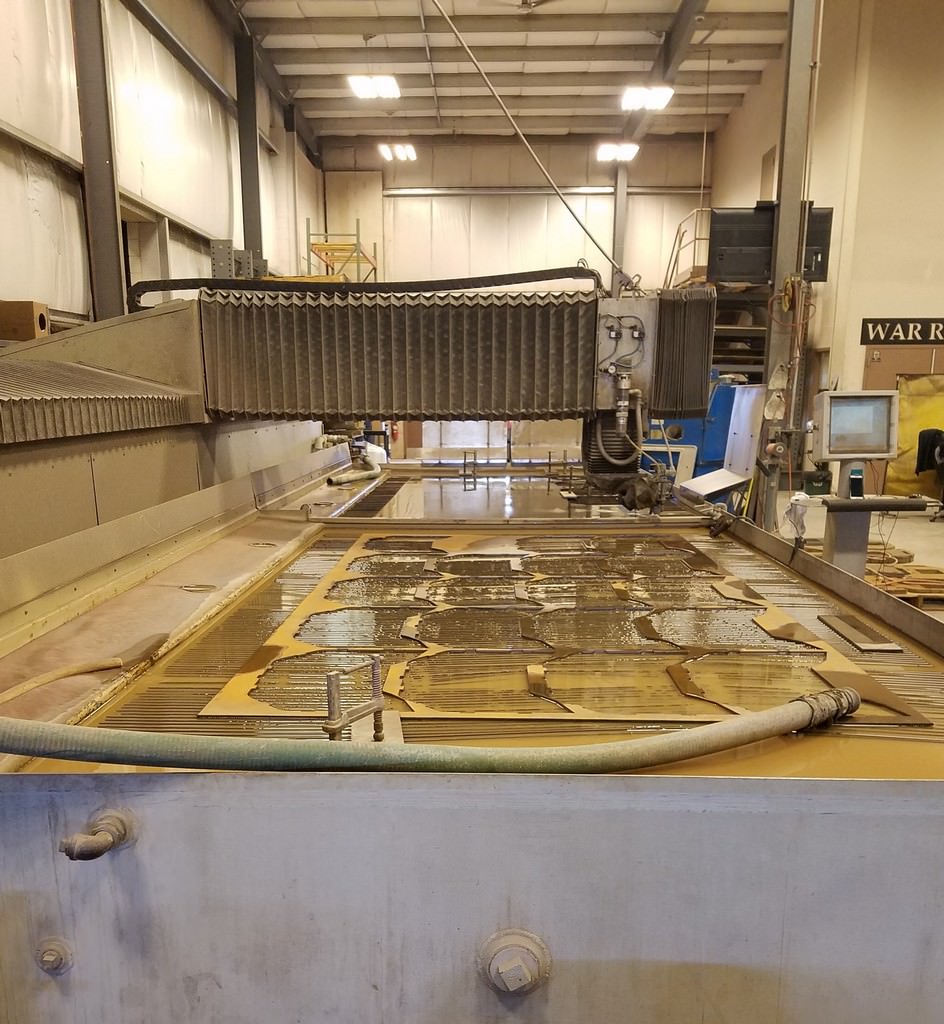

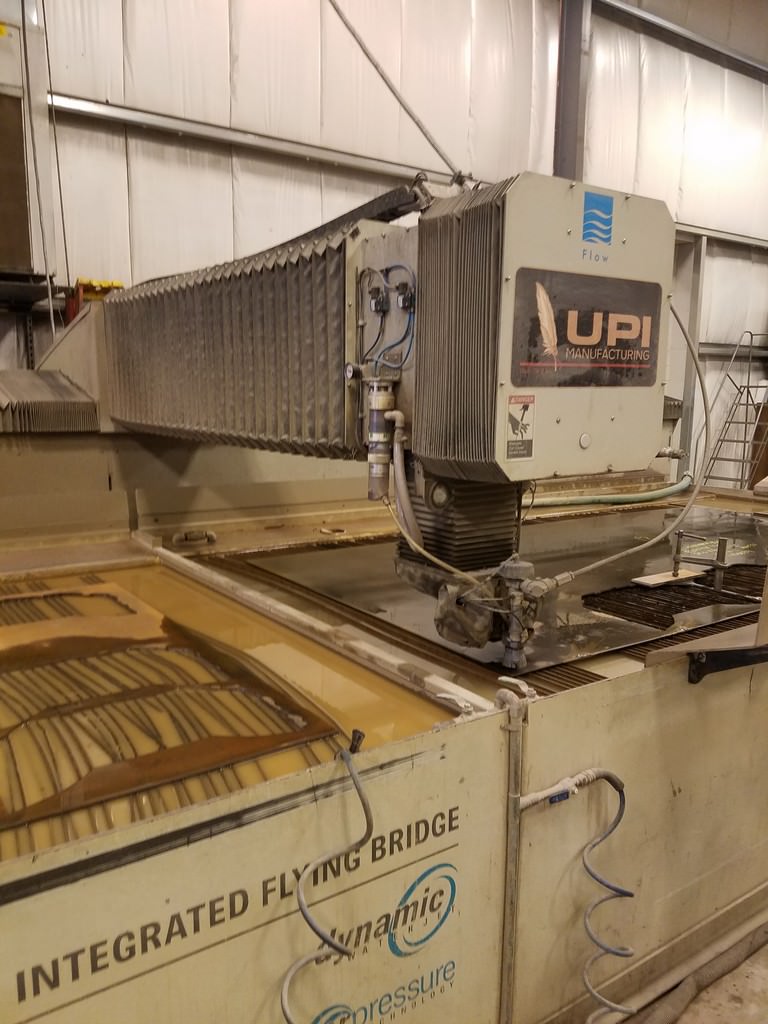

FLOW IFB 6' X 24' CNC WATER JET CUTTING SYSTEM
FEATURES:

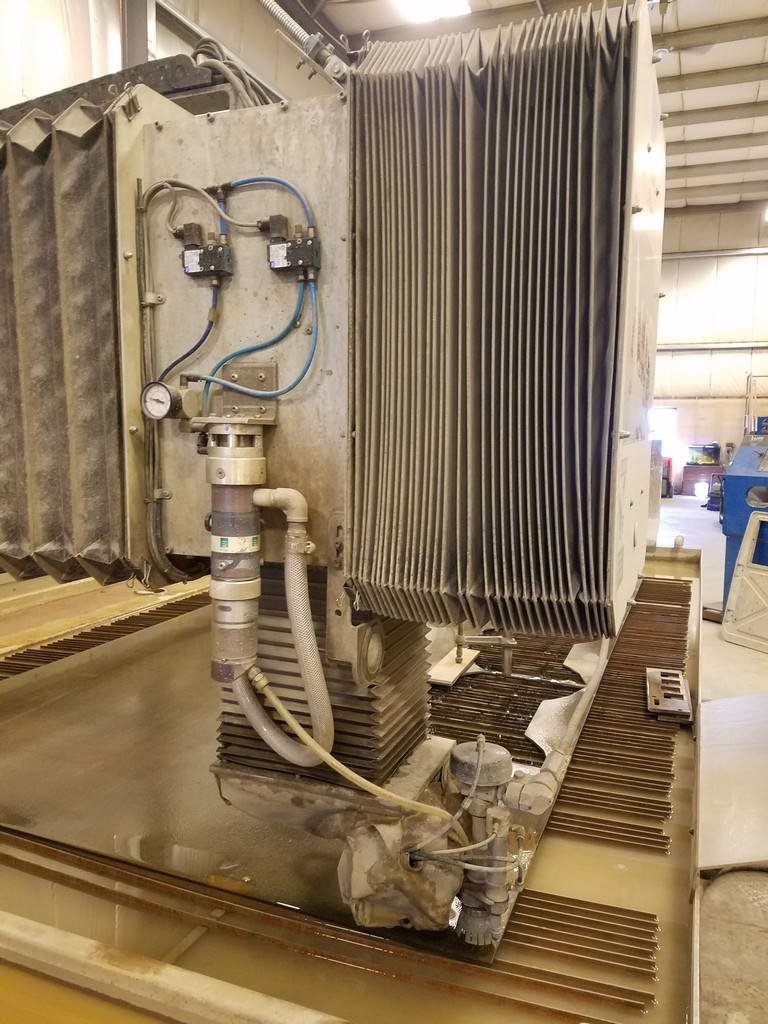

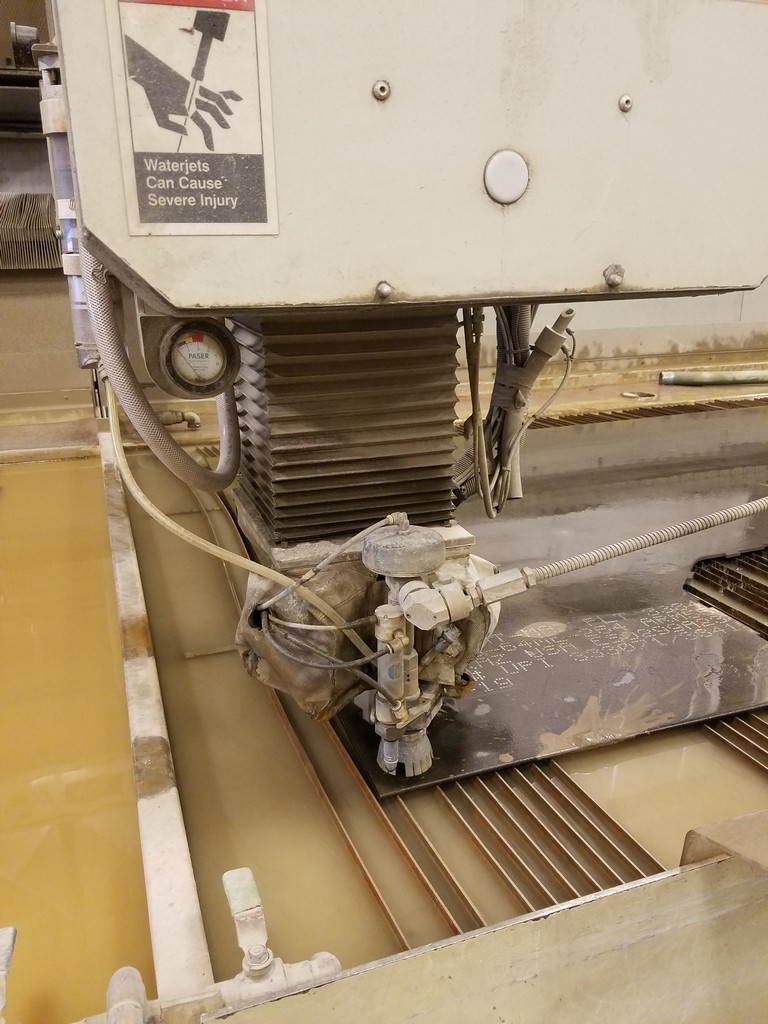

DYNAMIC CUTTING HEAD

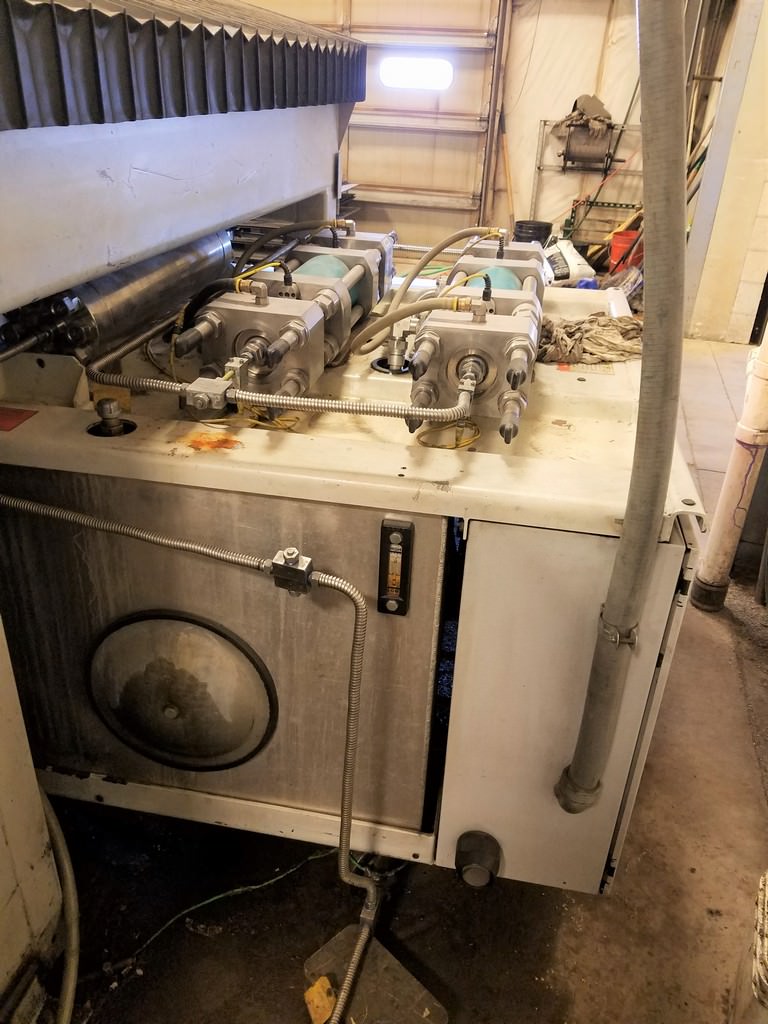

HYPER-PRESSURE DUAL INTENSIFIER PUMP
SPECIFICATIONS:
CUTTING AREA......................................................6' X 24'
INTENSIFIER OUTPUT...........................................87,000 psi
MOTORS (2).............................................................50 hp each
Z-AXIS ADJUSTABILITY.......................................8"
LINEAR POSITIONING ACCURACY....................+/- .003"
REPEATABILITY......................................................+/- .002"
CONTOURING SPEED............................................300 ipm
TRAVERSE SPEED..................................................0-500 ipm
EQUIPPED WITH:

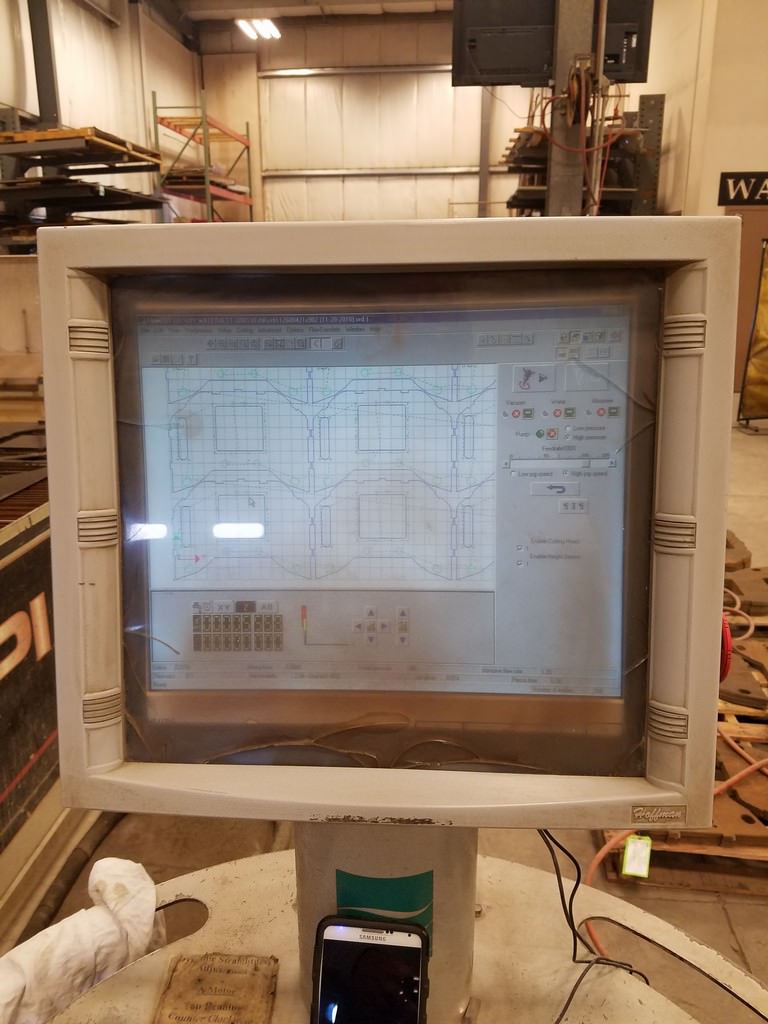

FLOWMASTER PC-BASED CNC CONTROL
(2) 50 hp PUMP MOTORS
(2) 6' X 12' CUTTING TANKS
