Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 21.26"
MAXIMUM TURNING DIAMETER 10.24"
MAXIMUM TURNING LENGTH 24.41"
X AXIS TRAVEL 5.91"
Z AXIS TRAVEL 24.8"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 630 IPM
SPINDLE NOSE A2-8
SPINDLE BORE 3.43"
HOLE THROUGH DRAW TUBE 2.95"
SPINDLE SPEEDS 50 - 4,000 RPM
SPINDLE MOTOR 25 HP AC

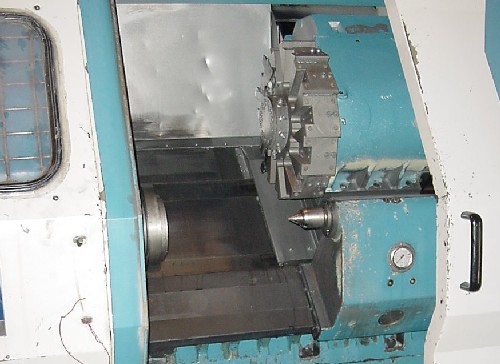

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK QUILL DIAMETER 2.95"
TAILSTOCK QUILL TAPER MT #5
TAILSTOCK QUILL TRAVEL 3.94"
EQUIPPED WITH:

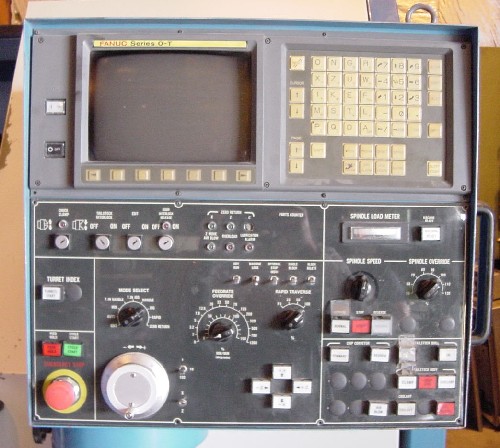

FANUC OTC CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOL BLOCK HOLDERS & MANUALS
