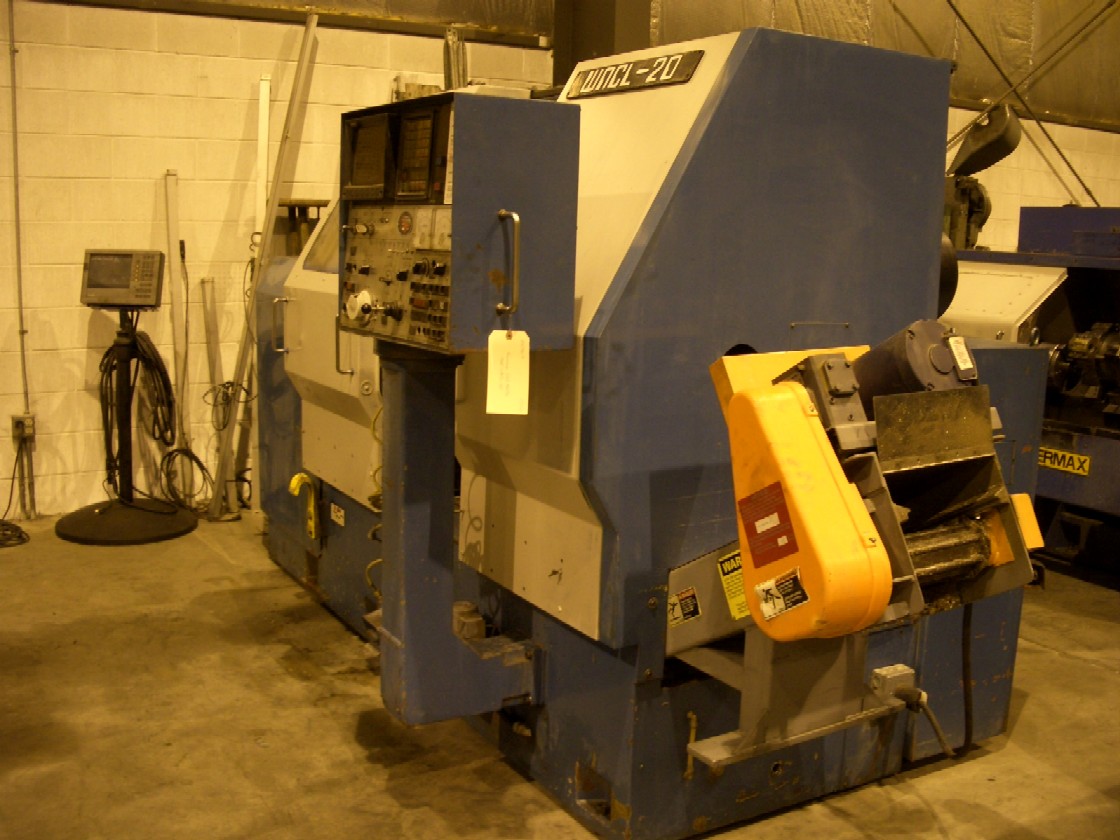

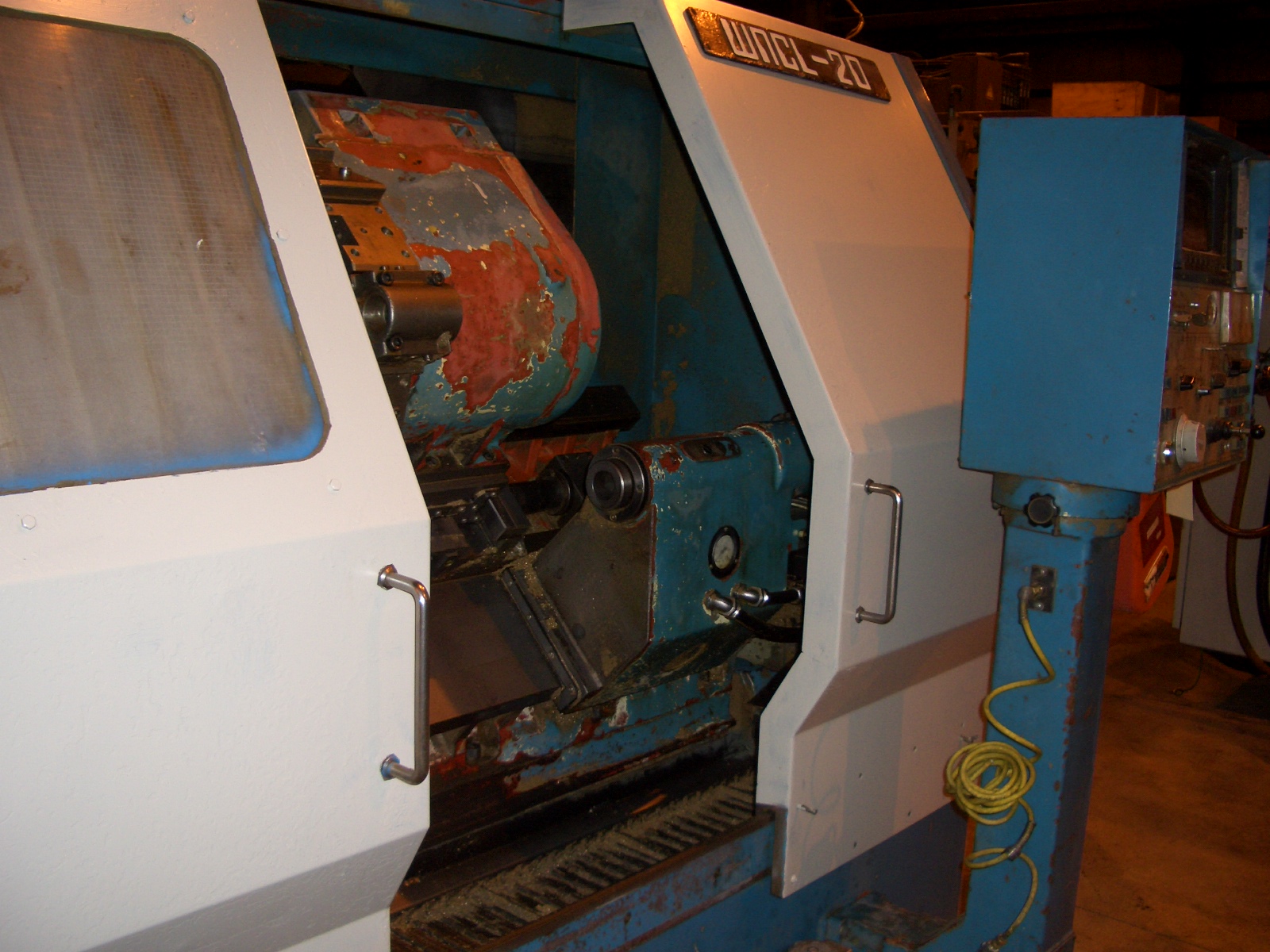

FEMCO WNCL-20/60, 21.2" SW, 8" CHUCK, 30" CENTERS, 15 HP,, FANUC 10T CTRL, RUNS GREAT

GENERAL SPECIFICATIONS:
MANUFACTURER FEMCO
MODEL WNCL-20/60
SERIAL # 5047
NEW (APPROX.) 1986
SWING OVER SADDLE 21.2"
MAX. TURNING DIAMETER 10.2"
CHUCK SIZE 8"
MAX. WORK LENGTH 30"
Z-AXIS STROKE 19.69"
SPINDLE MOTOR 15 HP
SPINDLE BORE 2"
SPINDLE TAPER A2-6, CT #6
SPINDLE SPEED 65 - 3500 RPM

EQUIPPED WITH:
CHIP CONVEYOR
TAILSTOCK

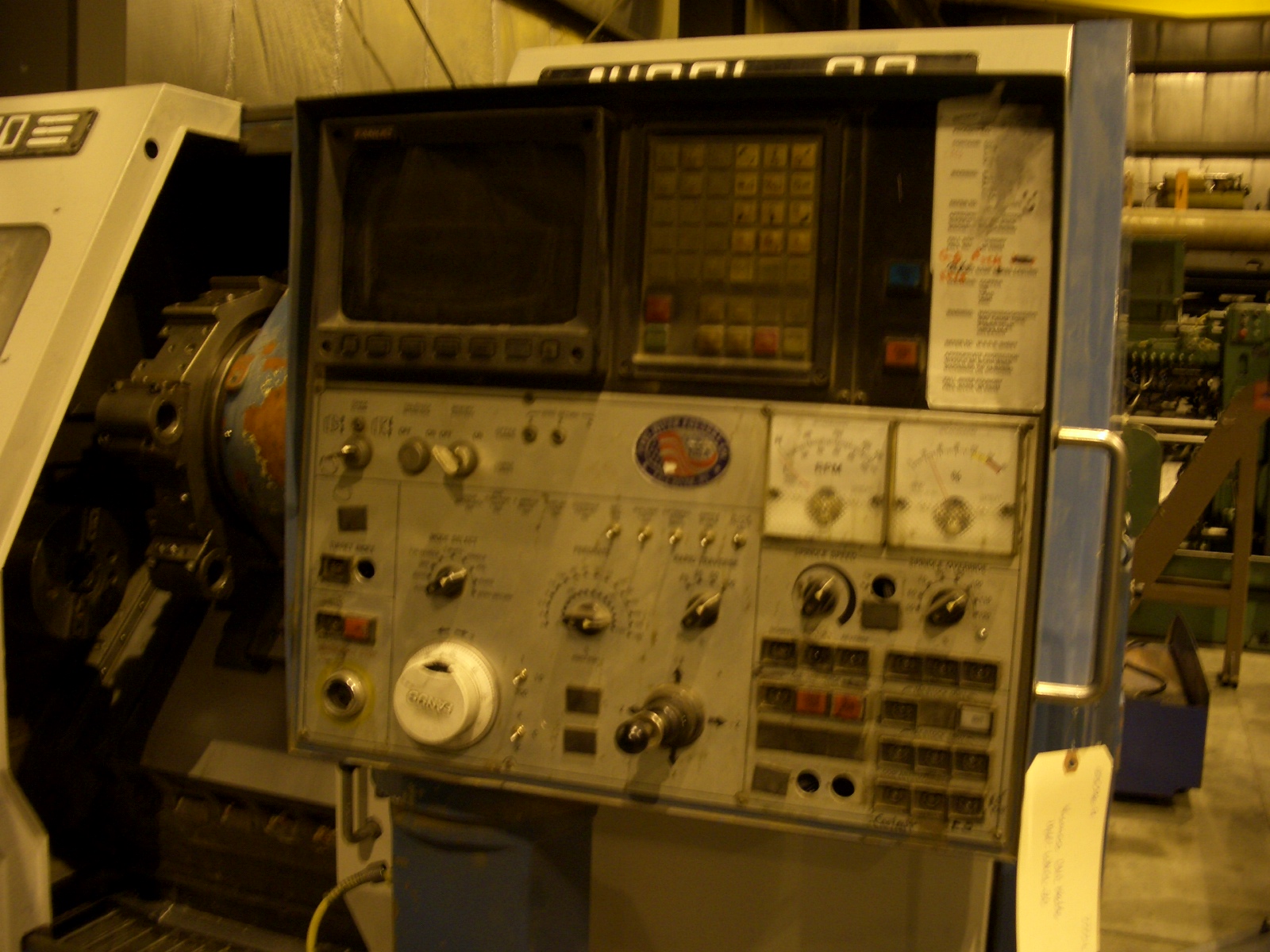

FANUC 10T CONTROL TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
