Specifications
Equipped With
GENERAL SPECIFICATIONS:

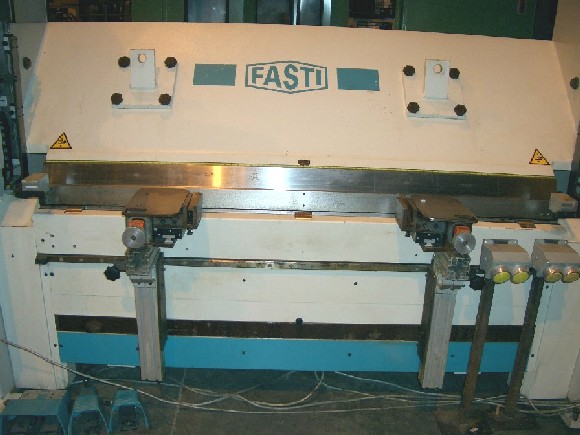

MANUFACTURER FASTI
MODEL FASTRAK 726 20/4
NEW (APPROX.) 2000
SERIAL # 00726003

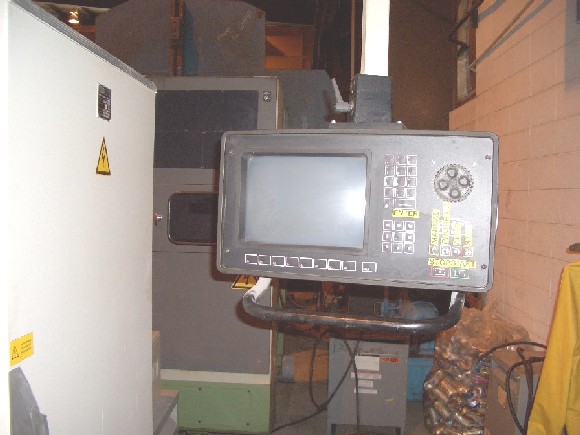

CONTROL TYPE FM200H DELEM
BENDING THICKNESS CAPACITY 9 GAUGE (4mm)
BENDING LENGTH 78.75" (2040mm)
TOOLING TYPE FOLDING BEAM
TOOLING HEIGHT 4.55mm/3.0mm
TYPE HYDRAULIC
APPROACH SPEED 50mm/SEC.
FOLDING SPEED/SEC. 200 DEG.UP-300 DEG. DOWN
RETURN SPEED 83mm/SEC.

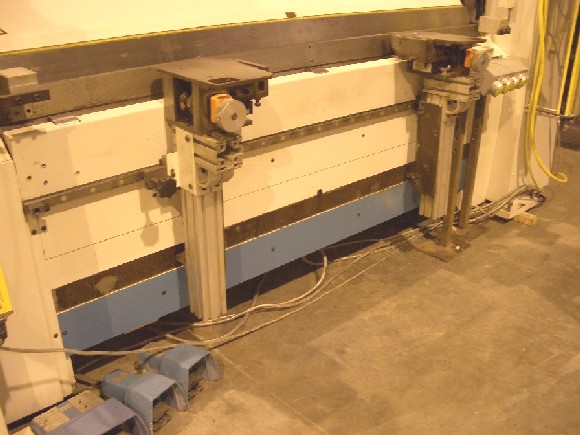

BACKGAUGE STYLE MAH72, MOTORIZED
BACKGAUGE LENGTH 10 - 1000mm
MOTOR 7.5 KW
OIL RESERVOIR CAPACITY 140 LITERS
WEIGHT (APPROX.) 6500 kg TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
