GENERAL SPECIFICATION:

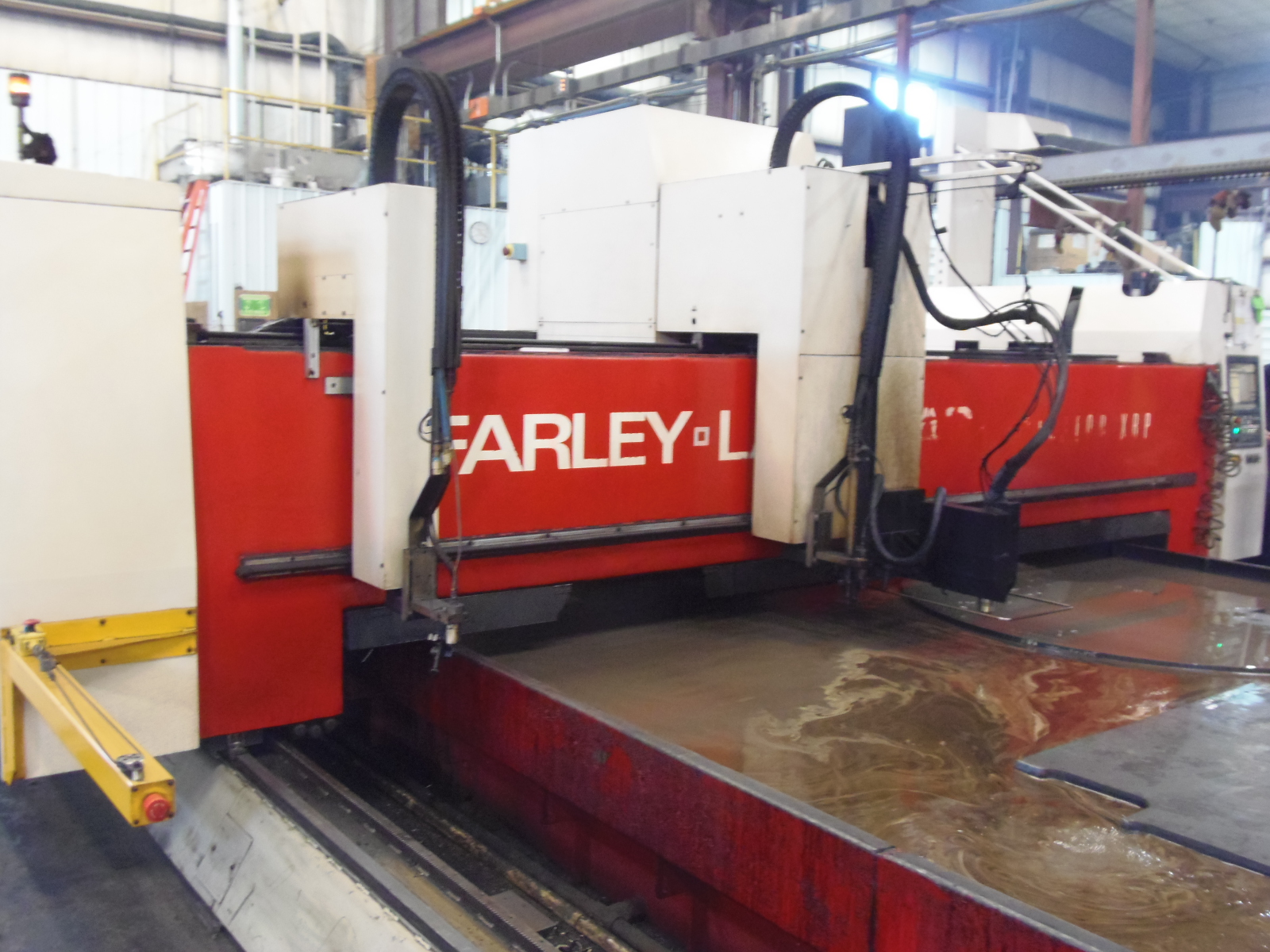

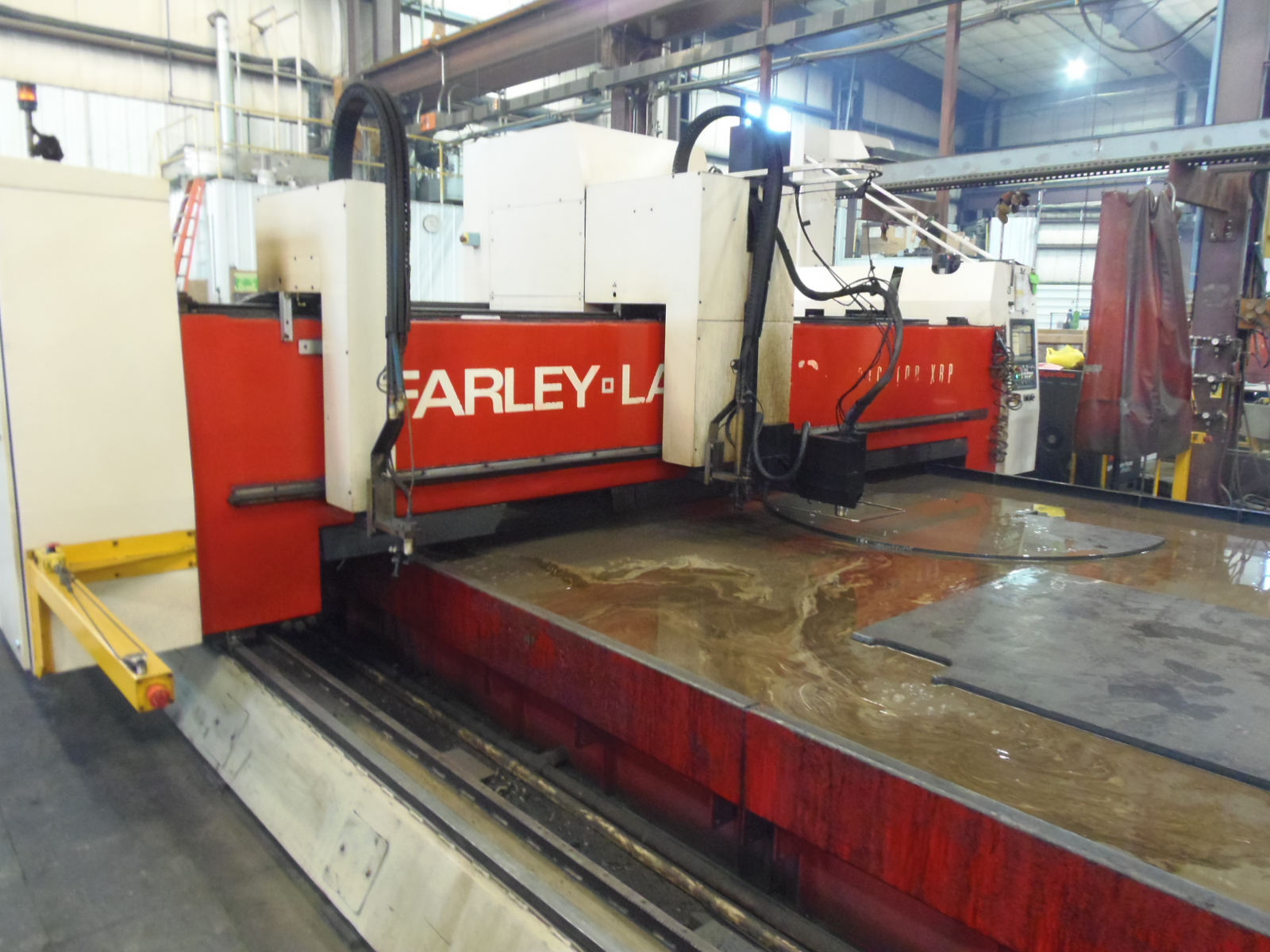

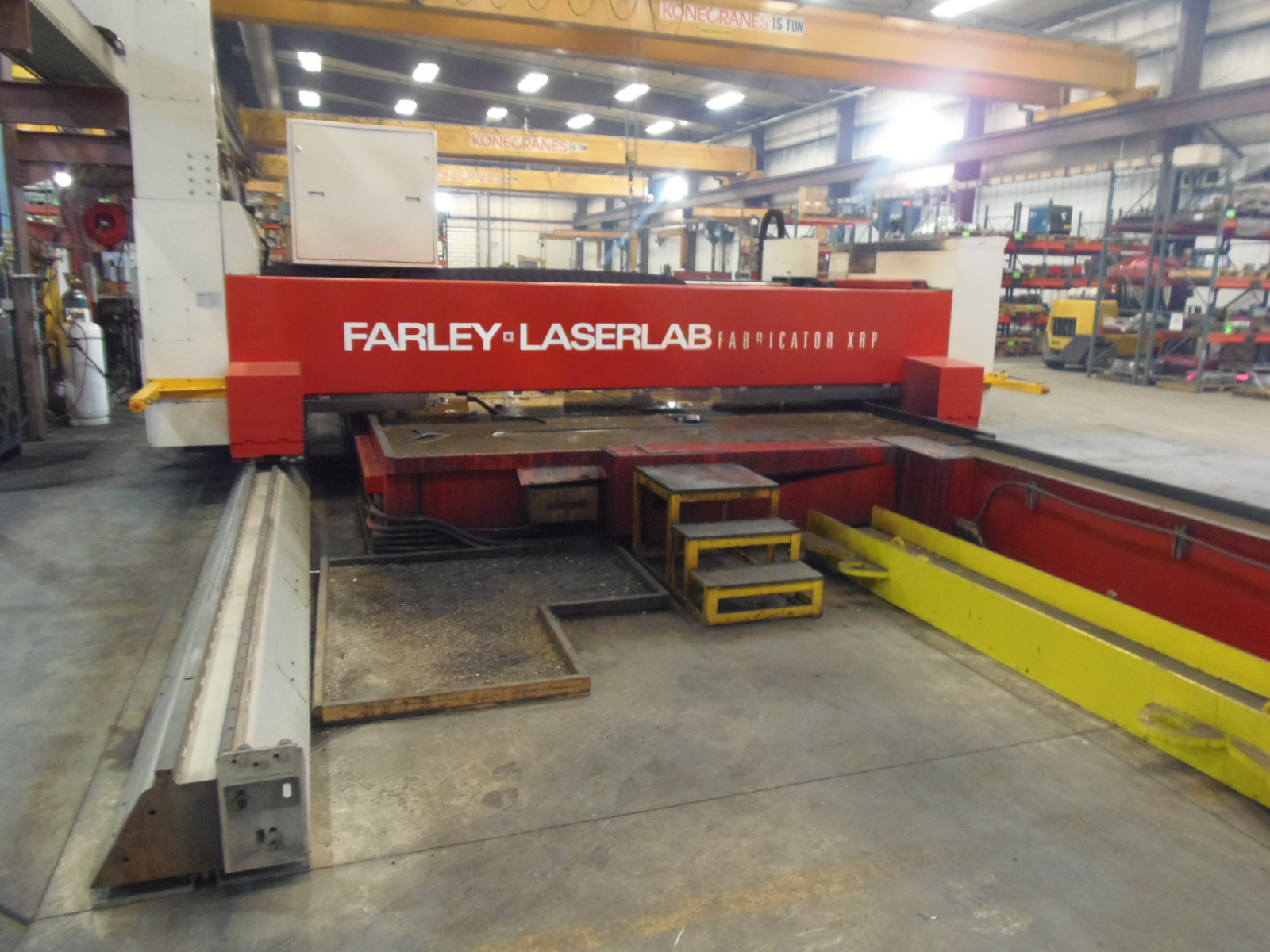

MANUFACTURER.......................... FARLEY
MODEL................................. XRP-50
AGE................................... 2008
OVERALL WORKING SERVICE............... 10' X 45'
WORKING SERVICE IF DAM IS PUT UP...... 2- 10' X 20' ZONES
DRILLING SYSTEM
HORSEPOWER OF DRILLING SYSTEM...... 46
SPINDLE TAPER...................... 50 BT
MAX. RPM........................... 5000
RAPID TRAVERSE SPEED............... 2000 IPM

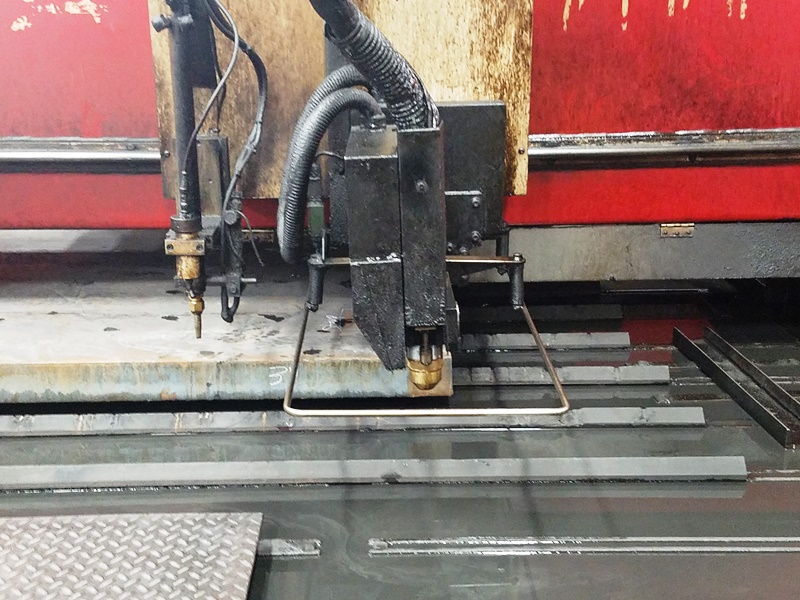

PLASMA TORCH
MANUFACTURER....................... HYPERTHERM
MODEL.............................. HPR260
RATED THICKNESS.................... 2"
BEVEL CUTTING...................... TO FULL WIDTH
OXY TORCH
NUMBER OF TORCHES.................. 2
RATED THICKNESS.................... 8"
BEVEL CUTTING...................... TO FULL WIDTH
MARKING SYSTEM........................ INK/POWDER/PLASMA/HARD
EQUIPPED WITH:
WATER TABLE
10' X 45' WHICH CAN BE DIVIDED BE A REMOVABLE DAM INTO TWO 10' X 20' WORK AREAS.
EASY CLEAN SYSTEM WITH LIFT OUT FRAMES AND DROSS/SWARF BOXES

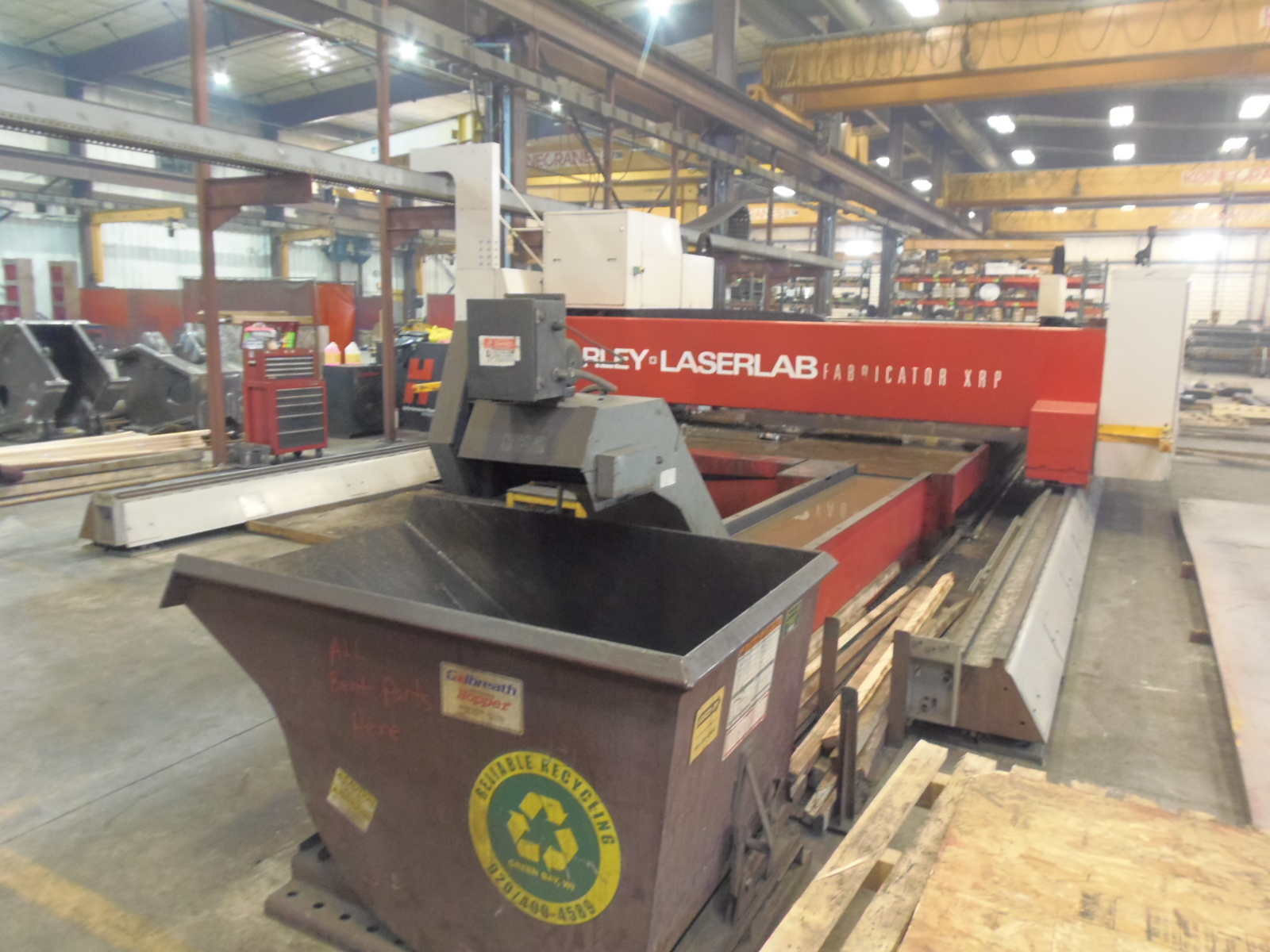

CONVEYORS FOR CHIP AND SLAG REMOVAL
HYPERFORMANCE PROGRAMMABLE AUTOGAS CONSOLE
PLASMA BEVEL HEAD

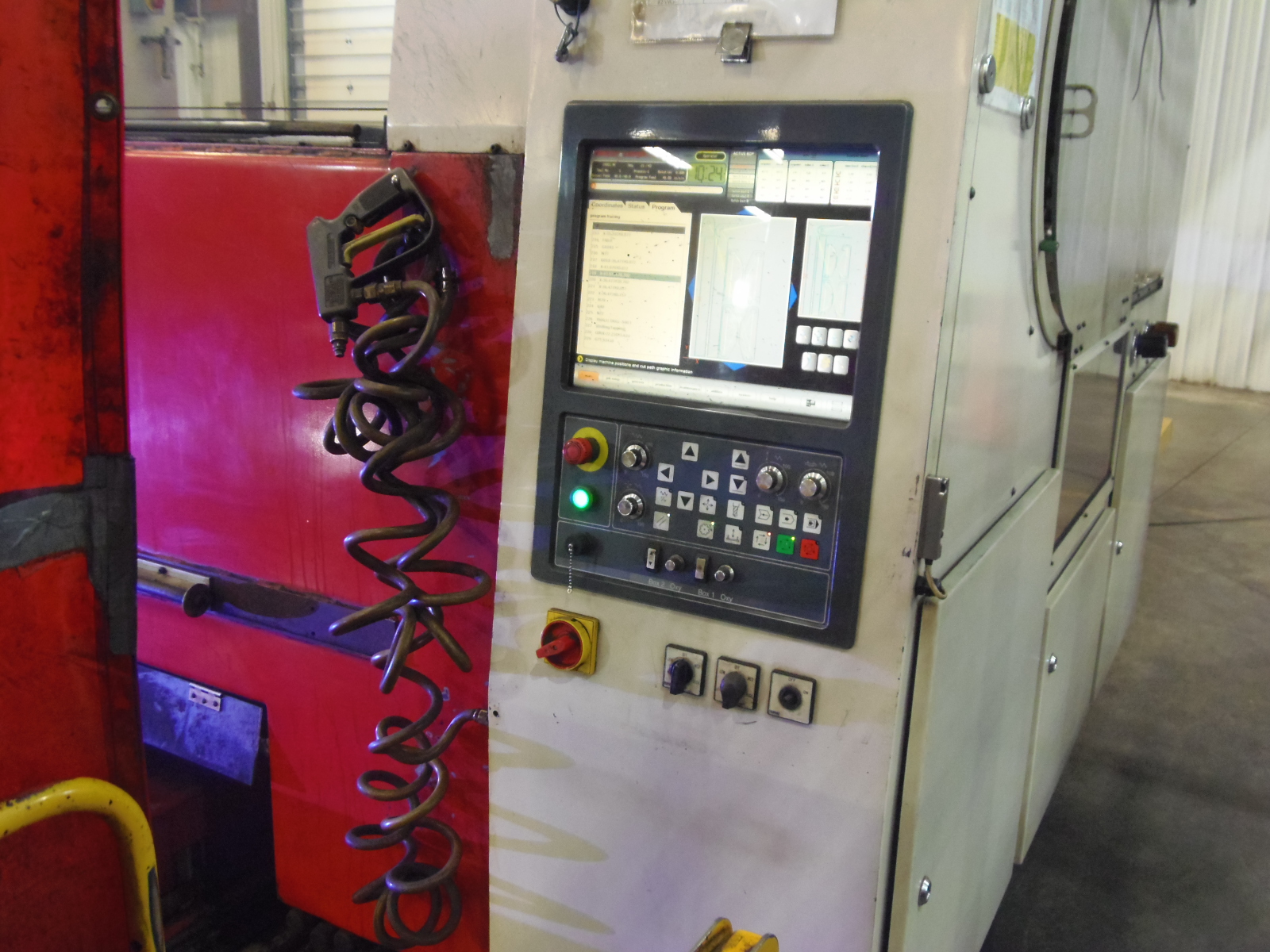

FARLEY PDF32000 CNC CONTROL
DNC/RS232 INTERFACE
HIGH LEVEL, G, AND M CODE PROGRAMMING FOR AT THE MACHINE OR OFF LINE PROGRAMMING
14" VGA COLOR GRAPHICS
45 STANDARD SHAPES WITH VARIABLE DIMENSIONING
2 GIGA BYTES OF BATTERY BACKED RAM STORAGE
REALTIME GRAPHICS
ON SCREEN MACHINE DIAGNOSTICS
SUBROUTINE PROGRAMMING
INDEPENDENT X/Y SCALING
2 BUTTON CUT PATH RETRACE
EDITING/LOADING OF ONE PROGRAM WHILE LOADING ANOTHER
TOOL RETRACT
MUCH MORE!
MACHINE CAN BE INSPECTED UNDER POWER (SEE VIDEO)
