Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE................. FANUC
MODEL................ ROBODRILL ALPHA T14-ESE
SERIAL NUMBER........ PP054UF040
AGE (YEAR)........... 2005
TABLE SIZE........... 24.8" X 13"
TABLE WEIGHT CAP..... 660 LBS. APPROX
TRAVELS (X).......... 11.8" (300 MM)
TRAVELS (Y).......... 11.8" (300 MM)
TRAVELS (Z).......... 13" (330 MM)
RAPIDS............... 2125 IPM
SPINDLE MAX SPEED.... 10,000 RPM
SPINDLE TAPER........ 30
VOLTAGE.............. 220 VOLTS

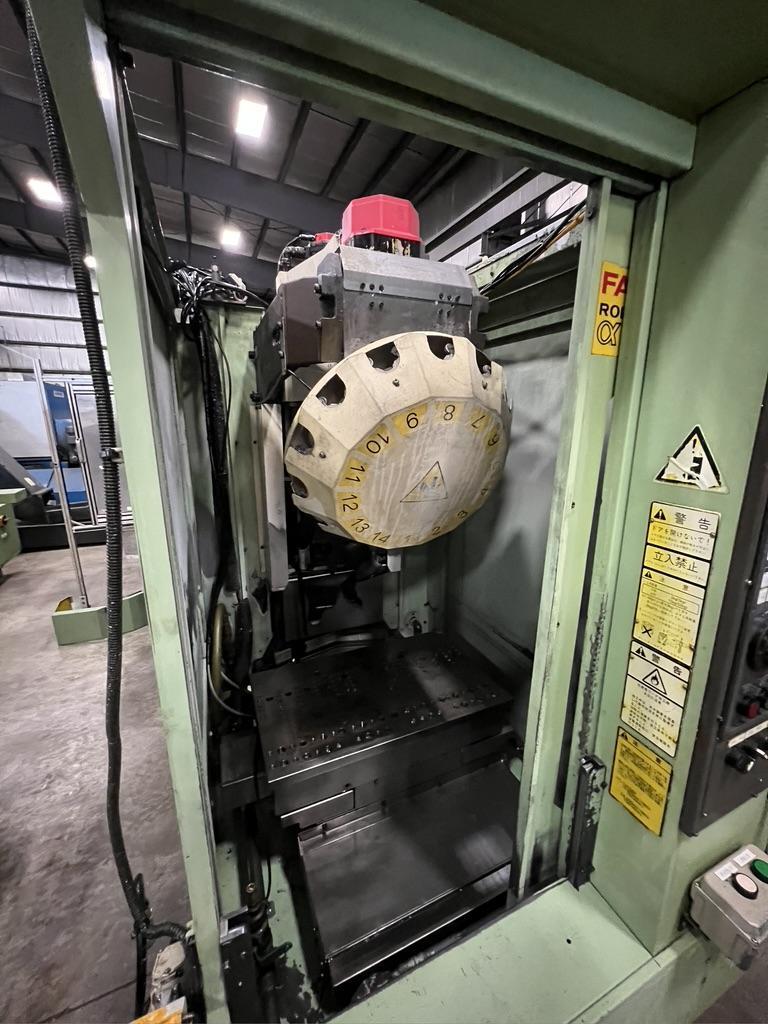

TURRET............... 14 STATIONS
EQUIPPED WITH:

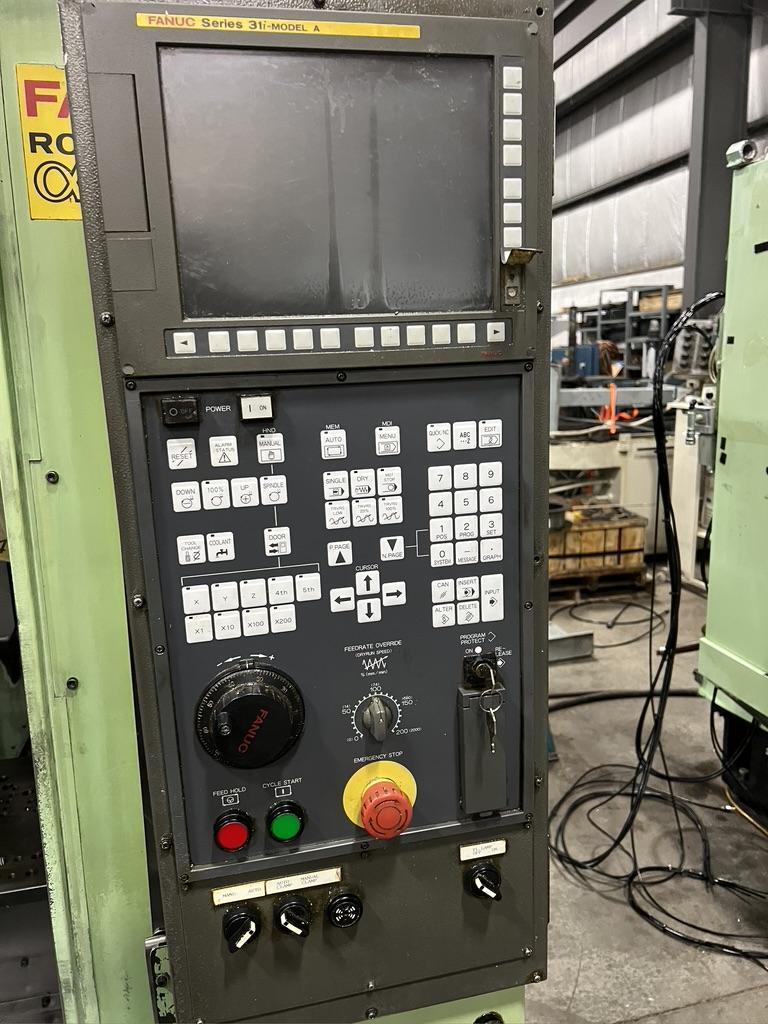

FANUC 31i MODEL A CNC CONTROL
COOLANT/CHIP CONVEYOR
