Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE................. FANUC

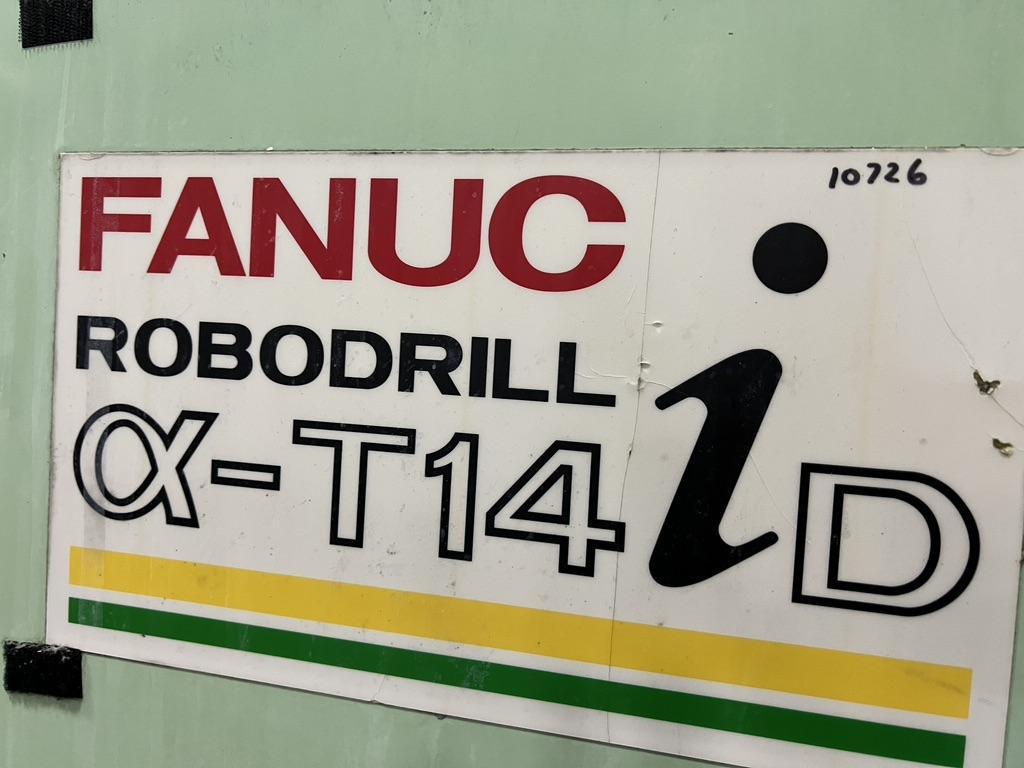

MODEL................ ROBODRILL ALPHA T14-iD

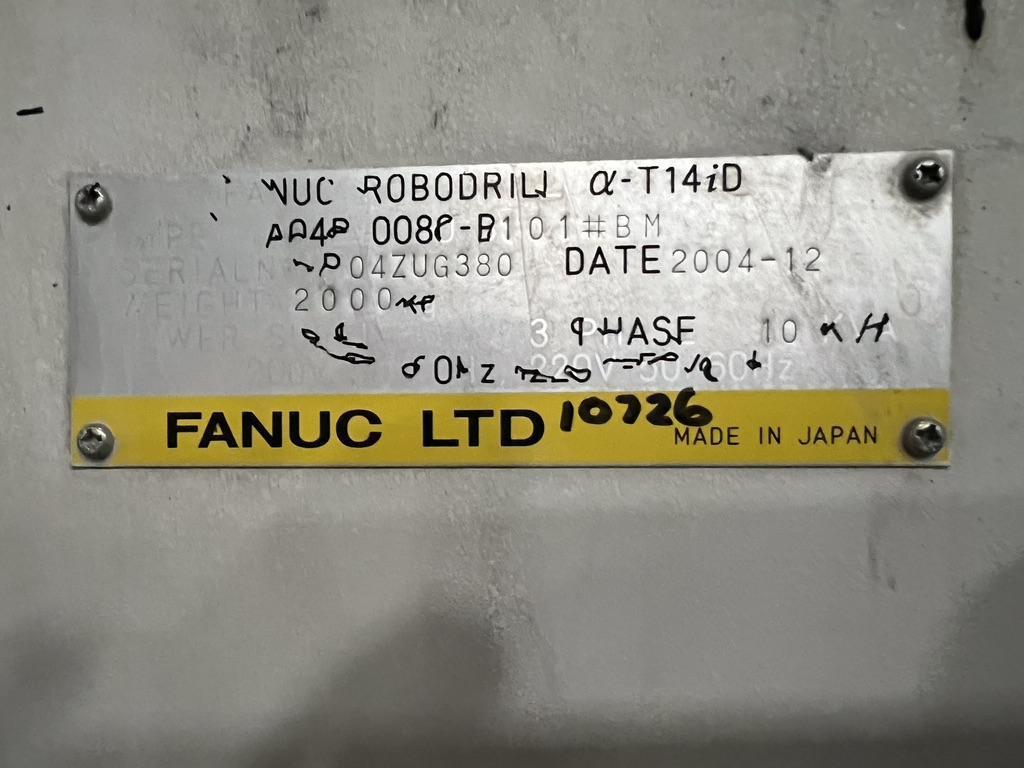

SERIAL NUMBER........ P04ZUG380
TYPE #............... A04B-0080-B114#BB
AGE (YEAR)........... 2004
TABLE SIZE........... 24.8" X 13"
TABLE WEIGHT CAP..... 660 LBS. APPROX
TRAVELS (X).......... 11.8" (300 MM)
TRAVELS (Y).......... 11.8" (300 MM)
TRAVELS (Z).......... 13" (330 MM)
RAPIDS............... 2125 IPM
SPINDLE MAX SPEED.... 10,000 RPM
SPINDLE TAPER........ 30
VOLTAGE.............. 220 VOLTS

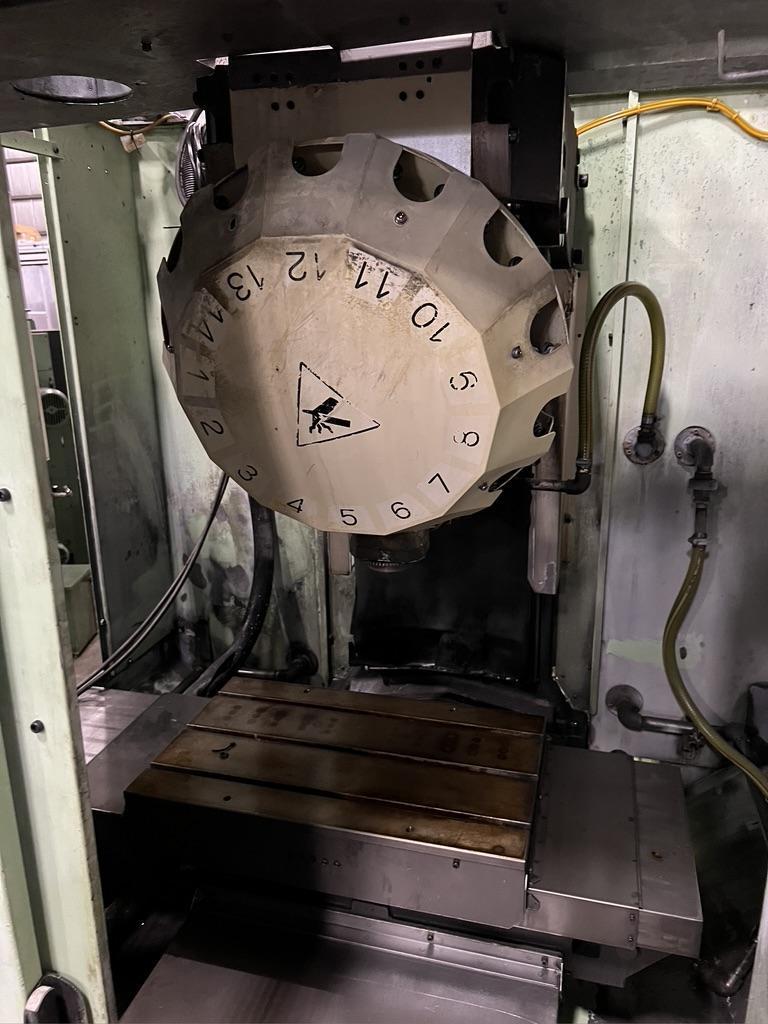

TURRET............... 14 STATIONS
EQUIPPED WITH:

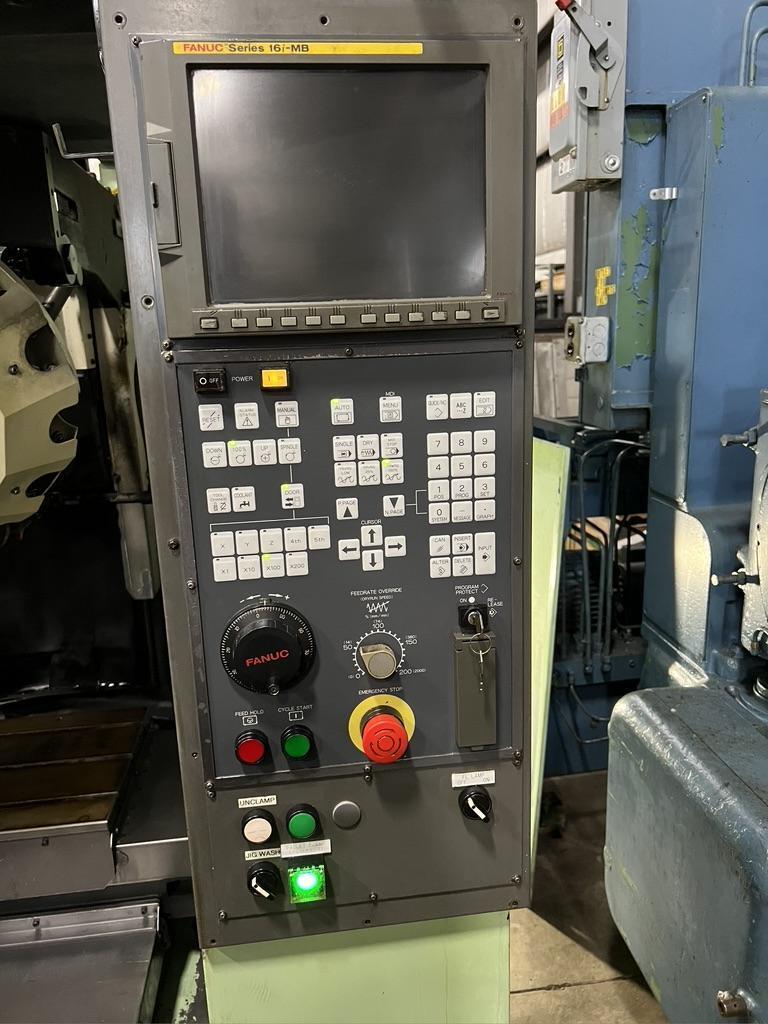

FANUC 16iMB CNC CONTROL

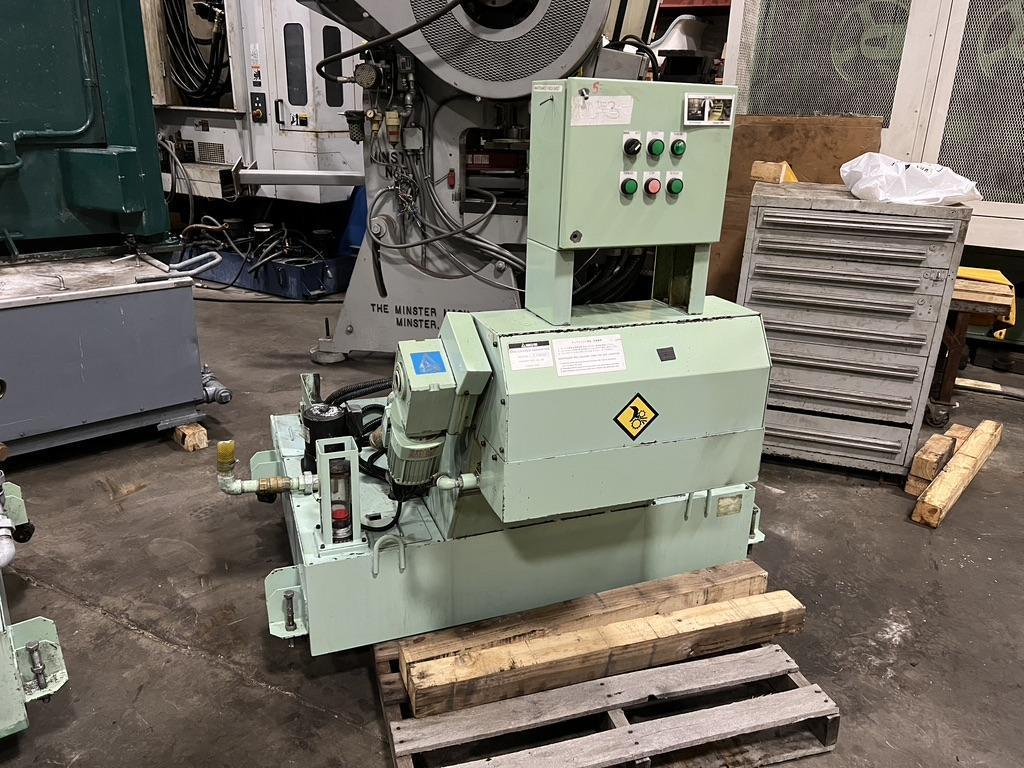

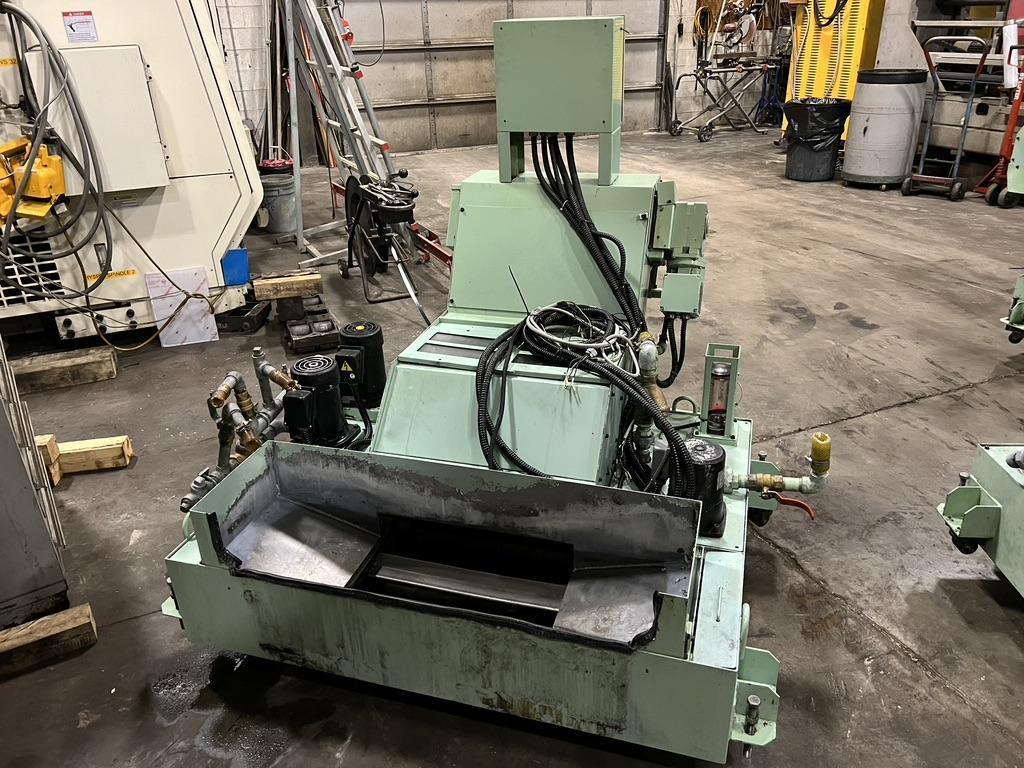

COOLANT/CHIP CONVEYOR
