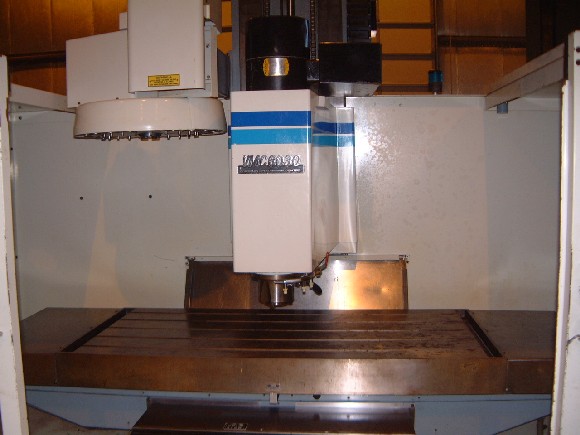

FADAL VMC6030, 62.5" x 30" TBL, X-60", Y-30", Z-30", CAT 40, 15 HP, 21 ATC, 10,000 RPM, CNC 88 FADAL CTRL, 1991

GENERAL SPECIFICATIONS:
MANUFACTURER FADAL
MODEL VMC6030
SERIAL # 9112842
NEW (APPROX.) 1991
TABLE SIZE 62.5" x 30"
MAX. TABLE LOAD 4,120 LBS.
SPINDLE NOSE TO TABLE TOP 5.5" - 35.5"
X AXIS TRAVEL 60"
Y AXIS TRAVEL 30"
Z AXIS TRAVEL 30"
RAPID TRAVERSE RATE (X,Y & Z AXES) 400 IPM
CUTTING FEED RATE 0.1 - 250 IPM
SPINDLE SPEEDS 0 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 15 HP
MAX. TOOL WEIGHT 15 LBS.
WEIGHT (APPROX.) 17,000 LBS
DIMENSIONS (APPROX.) 158"W x 103"D x 122"H

EQUIPPED WITH:
21 STATION AUTOMATIC TOOL CHANGER

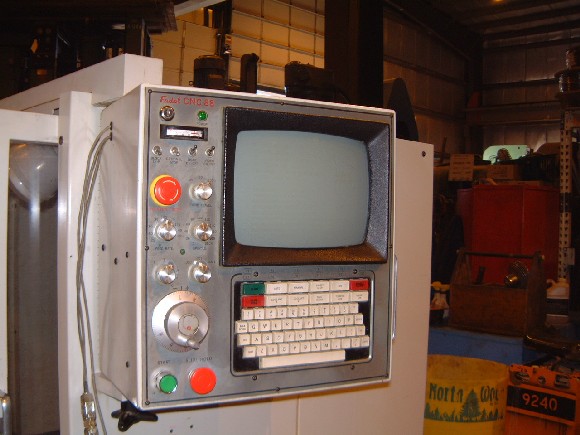

CNC88 FADAL CONTROL
4TH AXIS PREWIRE
