Specifications
Equipped With
GENERAL SPECIFICATIONS:

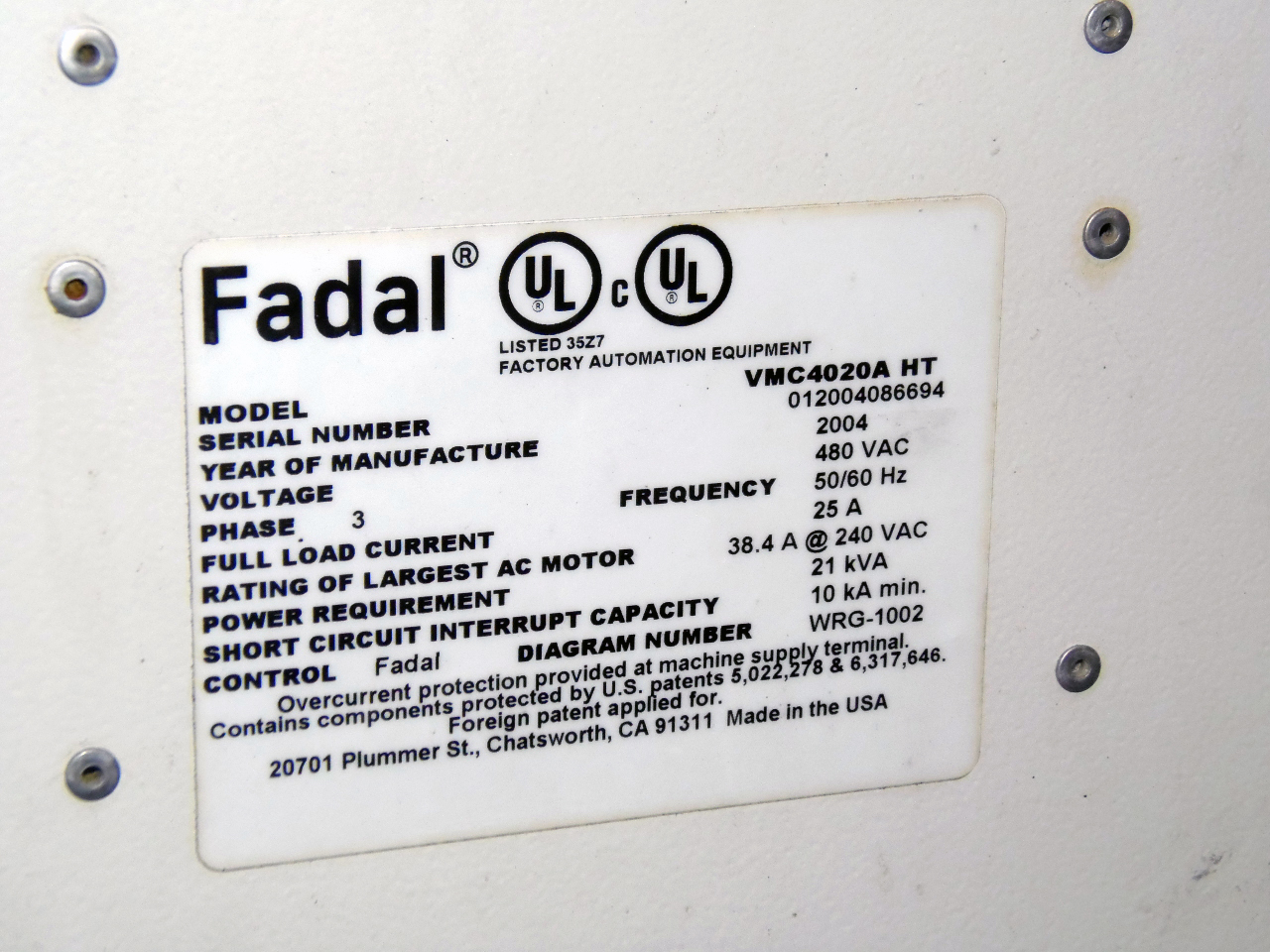

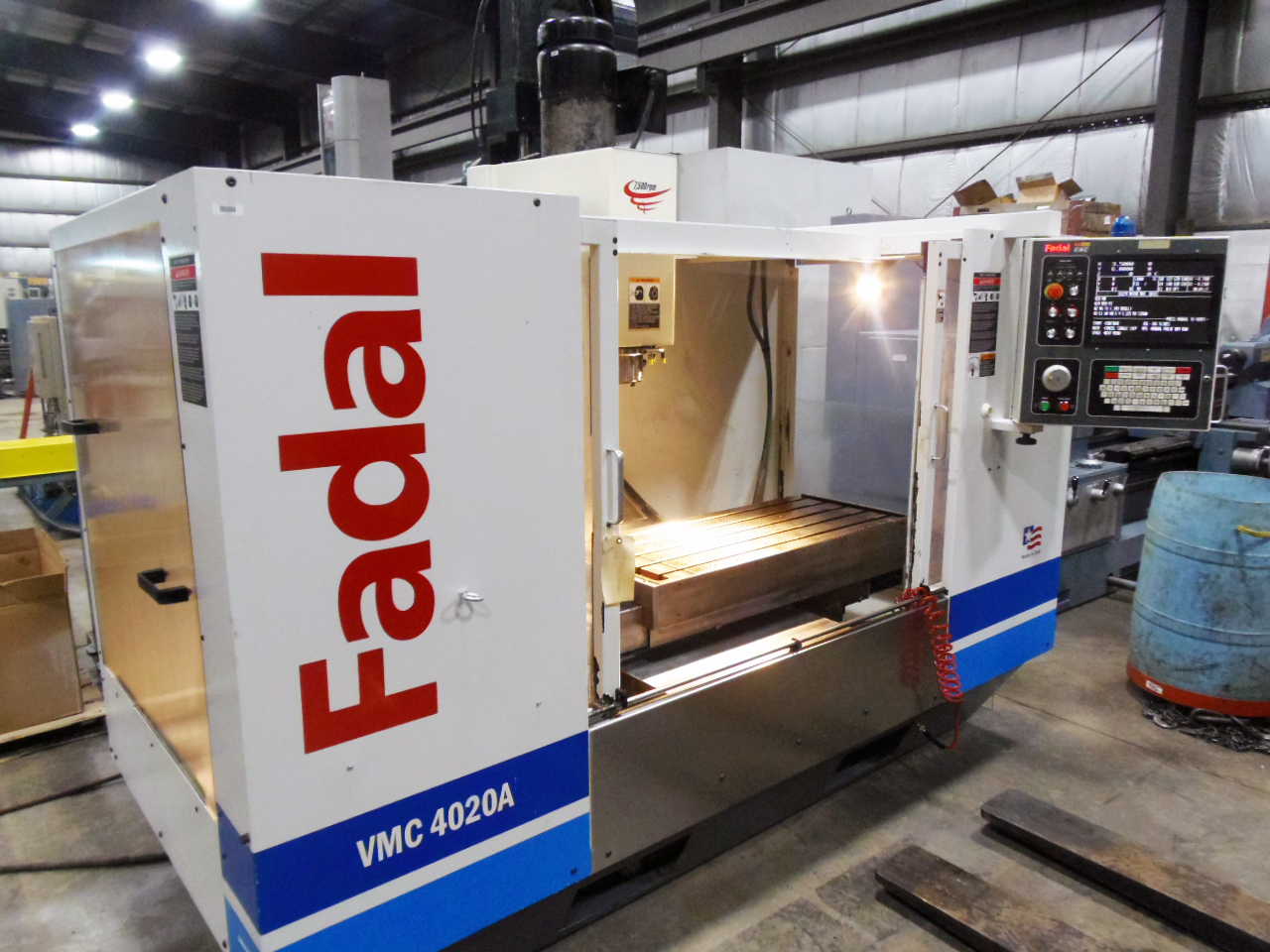

MANUFACTURER...................... FADAL
MODEL............................. VMC-4020A HT
SERIAL NUMBER..................... 012004086694
NEW............................... 2004

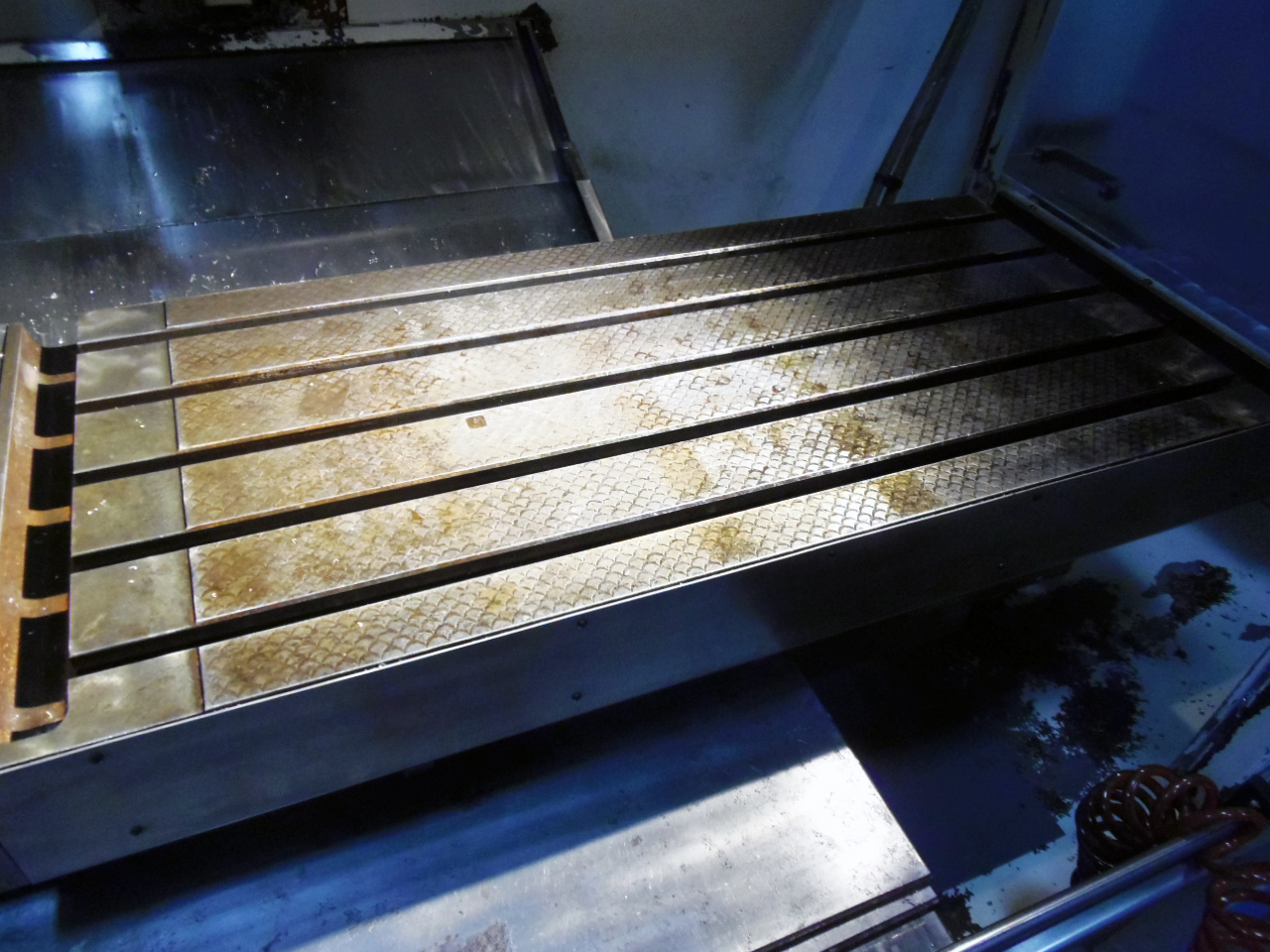

TABLE SIZE........................ 20" X 48"
SPINDLE NOSE TO TABLE TOP......... 4" - 24"
X AXIS TRAVEL..................... 40"
Y AXIS TRAVEL..................... 20"
Z AXIS TRAVEL..................... 20"

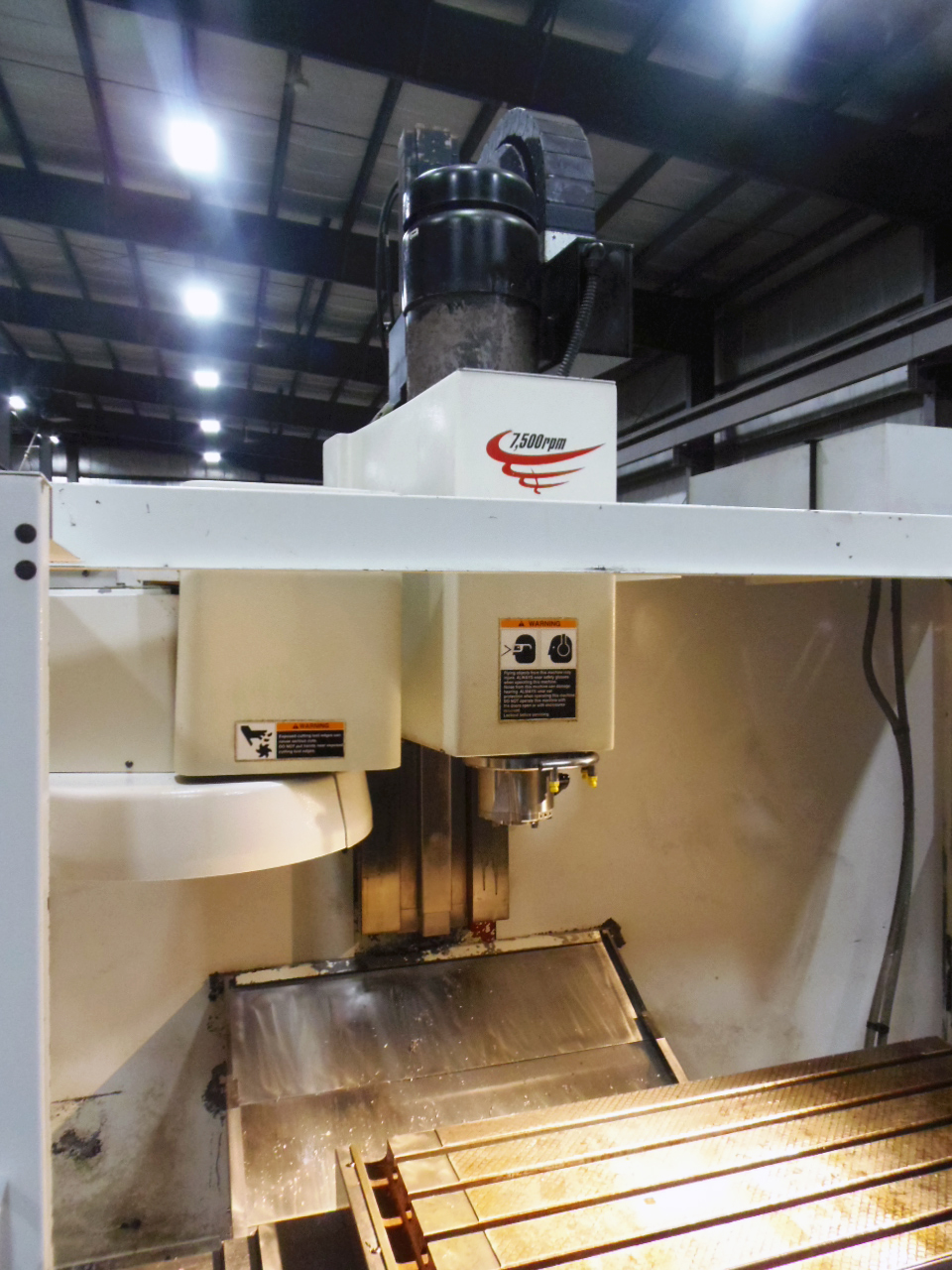

MAX. SPINDLE SPEED................ 7,500 RPM
SPINDLE TAPER..................... CAT 40
SPINDLE MOTOR..................... 22.5 HP AC

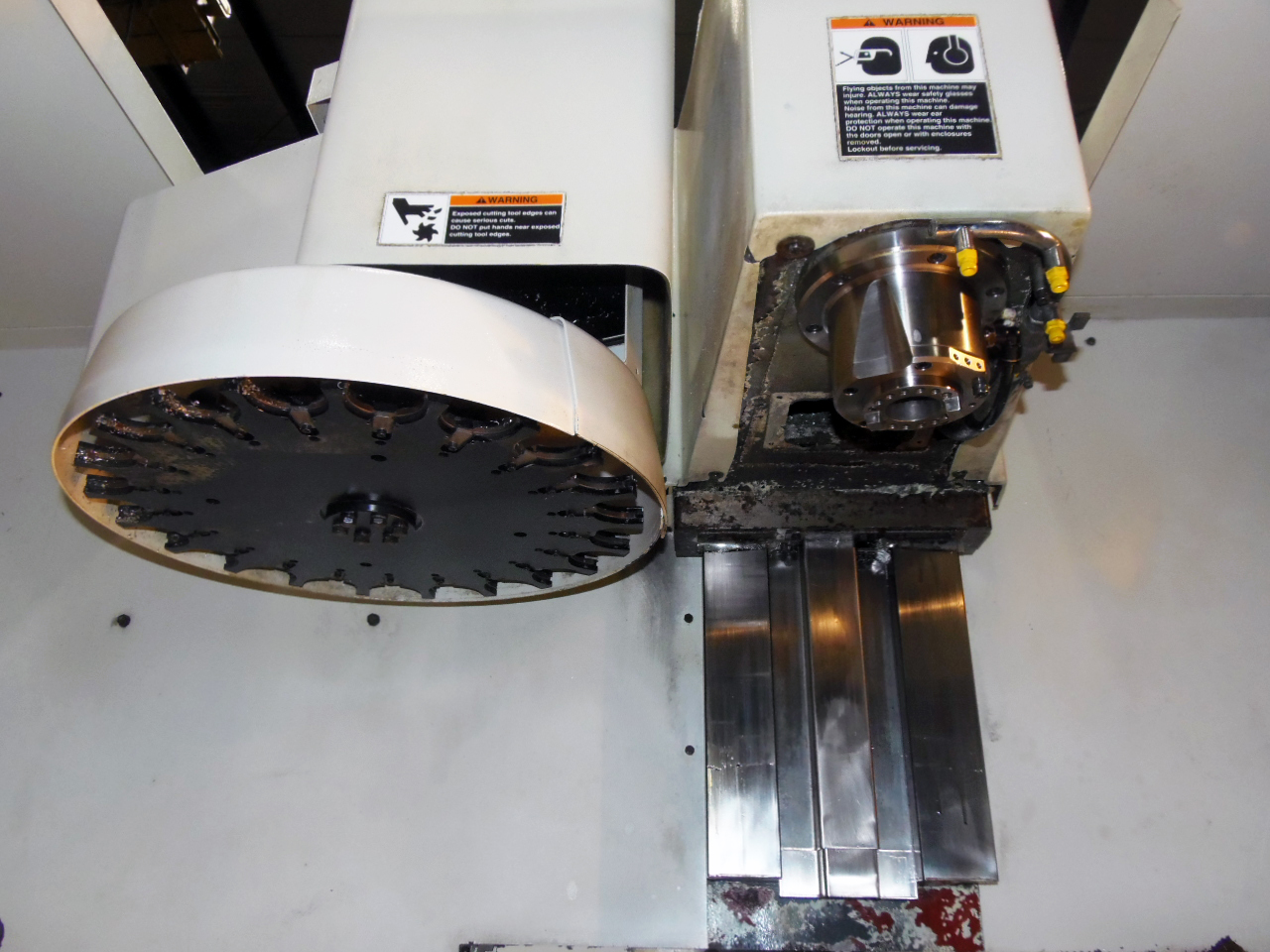

TOOL CHANGER CAPACITY............. 21 STATION ATC
EQUIPPED WITH:

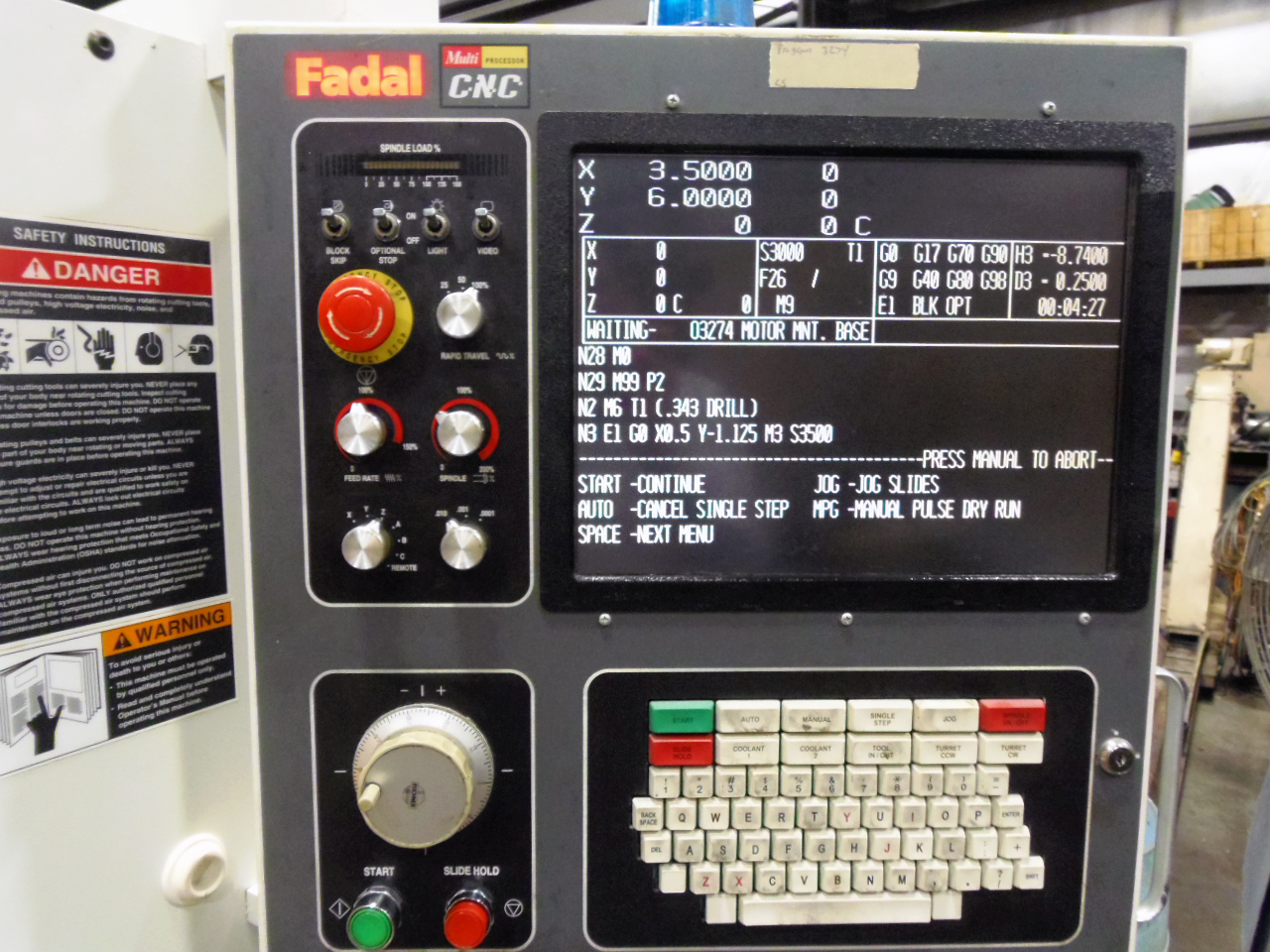

FADAL 88HS MULTIPROCESSOR CNC CONTROL WITH 12" X 9" CRT AND GRAPHICS
RS-232C INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
HIGH TORQUE

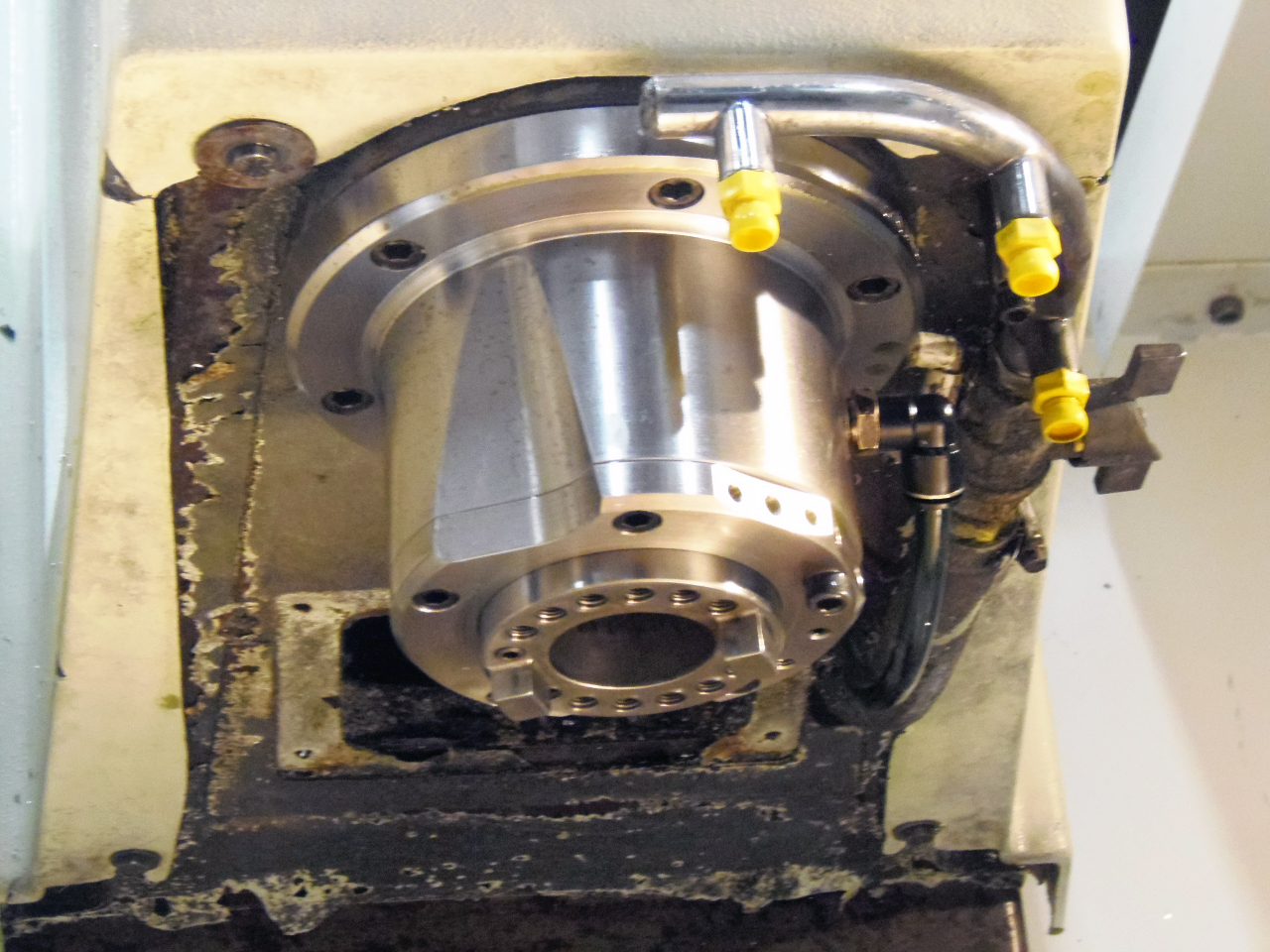

NEW SPINDLE AND LUBE SYSTEM 2015
COOLANT THRU SPINDLE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
GRAPHITE RESTRAINT PACKAGE

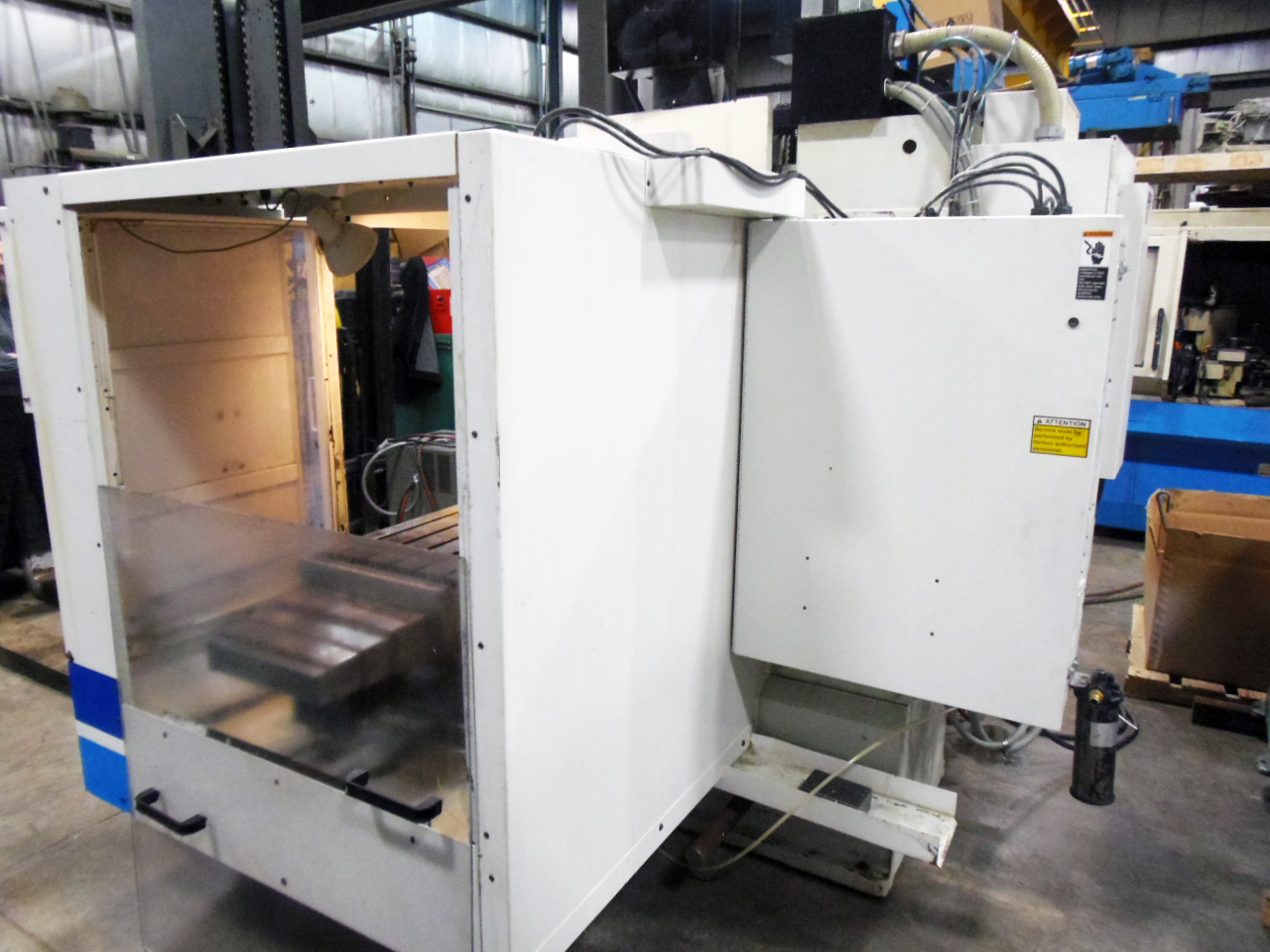

FULLY ENCLOSED GUARDING
