Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER FADAL
YEAR MANUFACTURER 1996
TABLE SIZE 20" X 47.94"
MAXIMUM TABLE LOAD 3,641 LBS
SPINDLE NOSE TO TABLE TOP 4" - 28"
X AXIS TRAVEL 40"
Y AXIS TRAVEL 20"
Z AXIS TRAVEL (extended) 28"
RAPID TRAVERSE RATE X AXIS 900 IPM
RAPID TRAVERSE RATE Y AXIS 900 IPM
RAPID TRAVERSE RATE Z AXIS 700 IPM
RAPID TRAVERSE RATE B AXIS 22 RPM
CUTTING FEED RATE 0.1 - 600 IPM
SPINDLE SPEEDS 50 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 22.5 HP AC
TOOL CHANGER CAPACITY 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 3 SECONDS
EQUIPPED WITH:

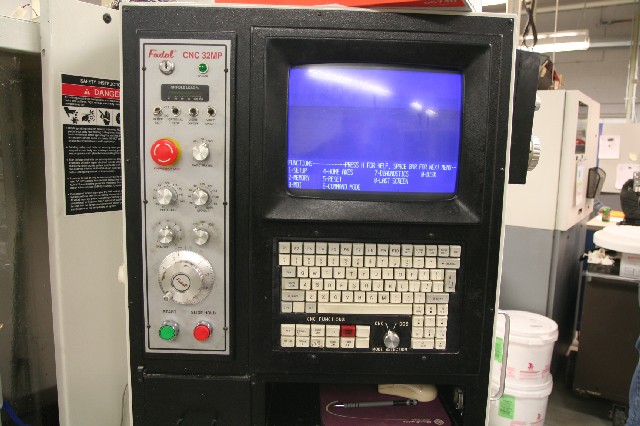

FADAL CNC-32MP CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAP

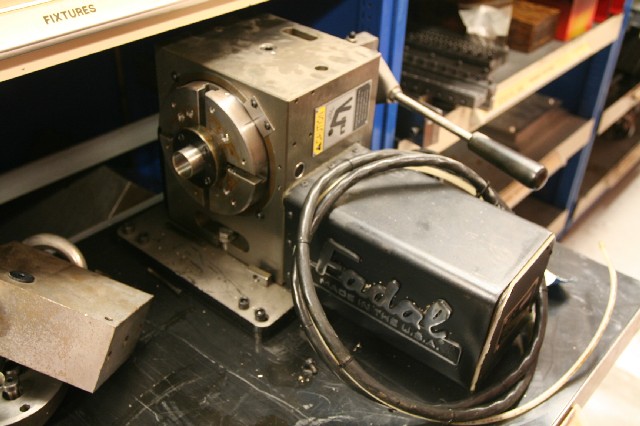

FADAL VH65 12" ROTARY TABLE
COOLANT SYSTEM WITH TANK & PUMP
SERVO COOLANT
EXPANDED MEMORY (4 MEG)
GRAPHICS
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
