Specifications
Equipped With
GENERAL SPECIFICATIONS:
MODEL# 906-1
SERIAL# 9309771
AGE APPROXIMATELY 1993
TABLE SIZE 20" X 47.94"
MAXIMUM TABLE LOAD 3,641 LBS
X AXIS TRAVEL 40"
Y AXIS TRAVEL 20"
Z AXIS TRAVEL (EXTENDED) 28"
RAPID TRAVERSE RATE X AXIS 900 IPM
RAPID TRAVERSE RATE Y AXIS 900 IPM
RAPID TRAVERSE RATE Z AXIS 700 IPM
CUTTING FEED RATE 0.1 - 600 IPM
SPINDLE SPEEDS 50 - 10,000 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 22.5 HP AC
TOOL CHANGER CAPACITY 24 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 3 SECONDS
EQUIPPED WITH:

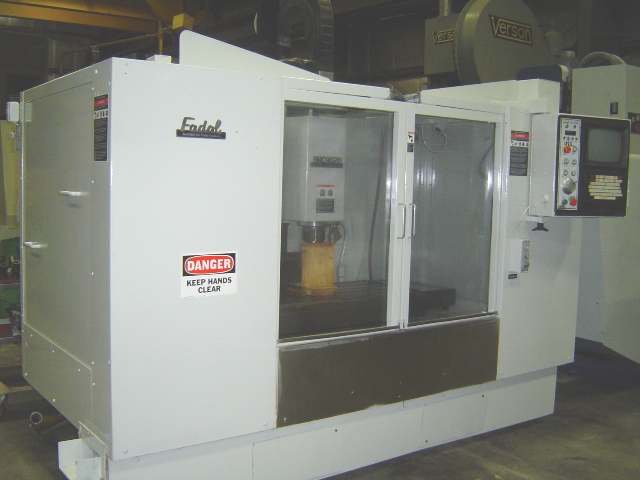

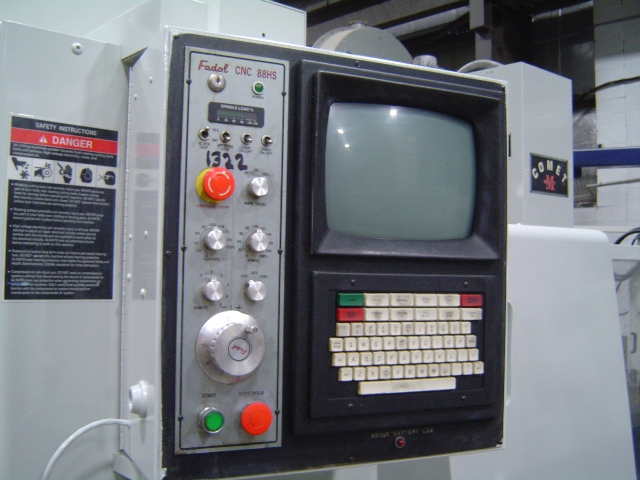

FADAL CNC-88HS CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING
28" EXTENDED Z AXIS TRAVEL & COLUMN
24 STATION SIDE MOUNT ATC

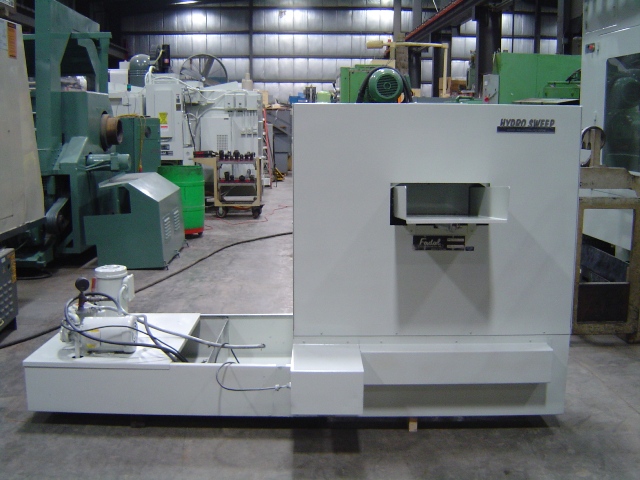

HYDRO SWEEP
COOLANT THRU SPINDLE
RENISHAW M17 PROBE
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
