Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 38" x 16"
MAXIMUM TABLE LOAD 750 LBS
SPINDLE NOSE TO TABLE TOP 4" - 24"
X AXIS TRAVEL 30"
Y AXIS TRAVEL 16"
Z AXIS TRAVEL 20"
RAPID TRAVERSE RATE X, Y & Z AXES 500 IPM
CUTTING FEED RATE 0.1 - 250 IPM

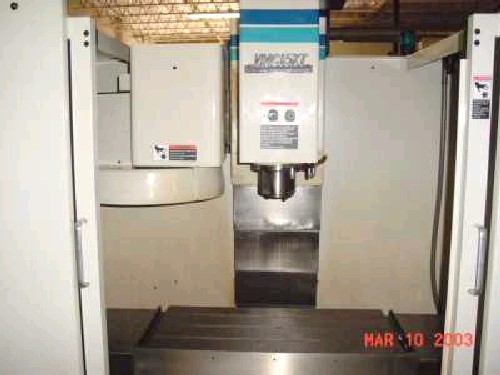

SPINDLE SPEEDS 10 - 7,500 RPM
SPINDLE TAPER CAT 40
SPINDLE MOTOR 15 HP AC
TOOL CHANGER CAPACITY 21 STATION ATC
MAXIMUM TOOL WEIGHT 15 LBS
MAXIMUM TOOL LENGTH 15"
EQUIPPED WITH:

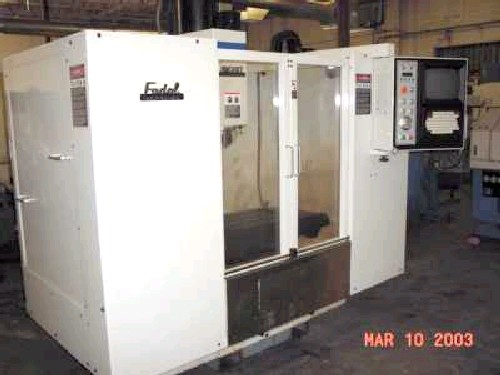

FADAL CNC 88-HS CNC CONTROL WITH 9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
HIGH SPEED CPU WITH GRAPHICS CAPABILITY
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
