Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE....................... 38" x 16"
MAXIMUM TABLE LOAD............... 750 LBS
SPINDLE NOSE TO TABLE TOP........ 4" - 24"
X AXIS TRAVEL.................... 30"
Y AXIS TRAVEL.................... 16"
Z AXIS TRAVEL.................... 20"
RAPID TRAVERSE RATE X, Y & Z AXES.500 IPM
CUTTING FEED RATE................ 0.1 - 250 IPM
SPINDLE SPEEDS................... 10 - 7,500 RPM
SPINDLE TAPER.................... BT40
SPINDLE MOTOR.................... 10 HP AC
TOOL CHANGER CAPACITY............ 21 STATION ATC
MAXIMUM TOOL WEIGHT.............. 15 LBS
MAXIMUM TOOL LENGTH.............. 15"
EQUIPPED WITH:

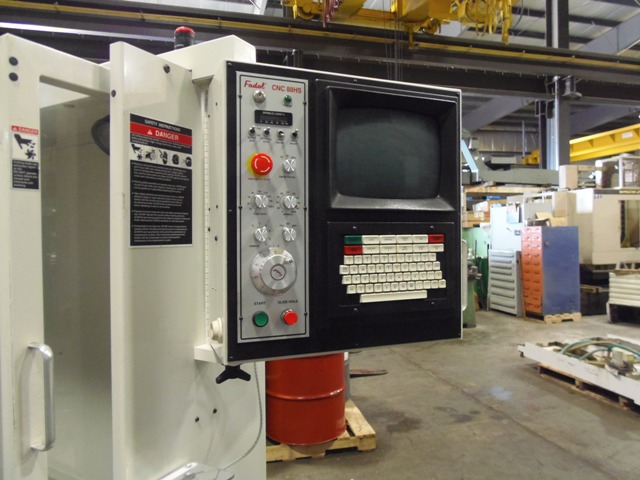

FADAL CNC 88-HS CNC CONTROL WITH 9" MONOCHROME CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
EXPANDED 4 MEG MEMORY
