FADAL 6030, 30" X 60" X 30" TRAVELS, HEC 88 CONTROL, BEAUTIFUL

Brand
Not Specified

Model
VMC-6030

Type
Machining Centers, Vertical, (5-Axis or More)

Stock #
10260

Condition
Used

Year

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER........................ FADAL
MODEL............................... VMC6030
SERIAL #............................ 9112842
NEW................................. 1991
TABLE SIZE.......................... 62.5" x 30"
MAX. TABLE LOAD..................... 4,120 LBS.
SPINDLE NOSE TO TABLE TOP........... 5.5" - 35.5"
X AXIS TRAVEL....................... 60"
Y AXIS TRAVEL....................... 30"
Z AXIS TRAVEL....................... 30"
RAPID TRAVERSE RATE (X,Y & Z AXES).. 400 IPM
CUTTING FEED RATE................... 0.1 - 250 IPM
SPINDLE SPEEDS...................... 0 - 10,000 RPM
SPINDLE TAPER....................... CAT 40
SPINDLE MOTOR....................... 15 HP
MAX. TOOL WEIGHT.................... 15 LBS.
WEIGHT (APPROX.).................... 17,000 LBS
DIMENSIONS.......................... 158"W x 103"D x 122"H

EQUIPPED WITH:
21 STATION AUTOMATIC TOOL CHANGER

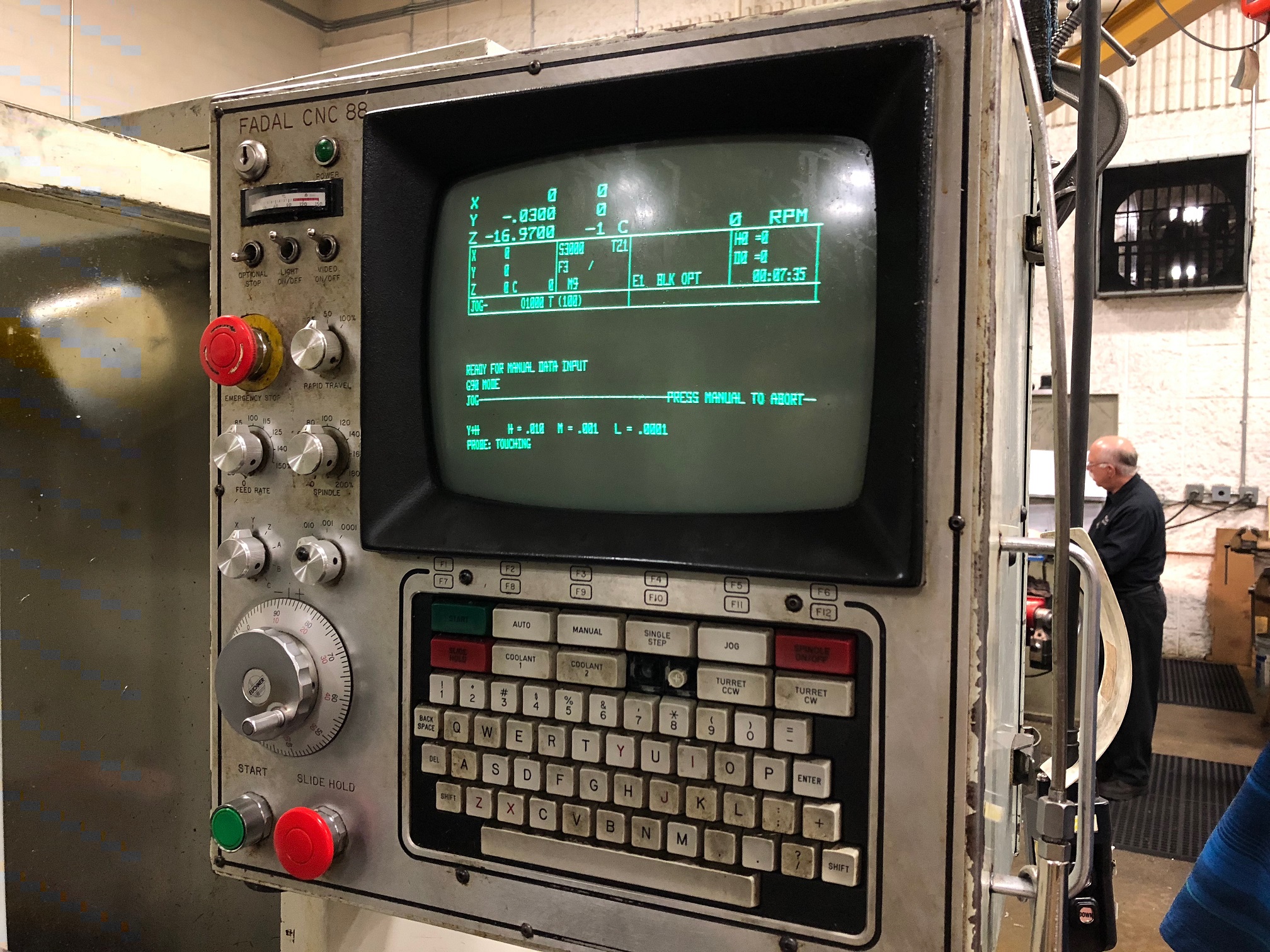

CNC88 FADAL CONTROL
