Specifications
Equipped With

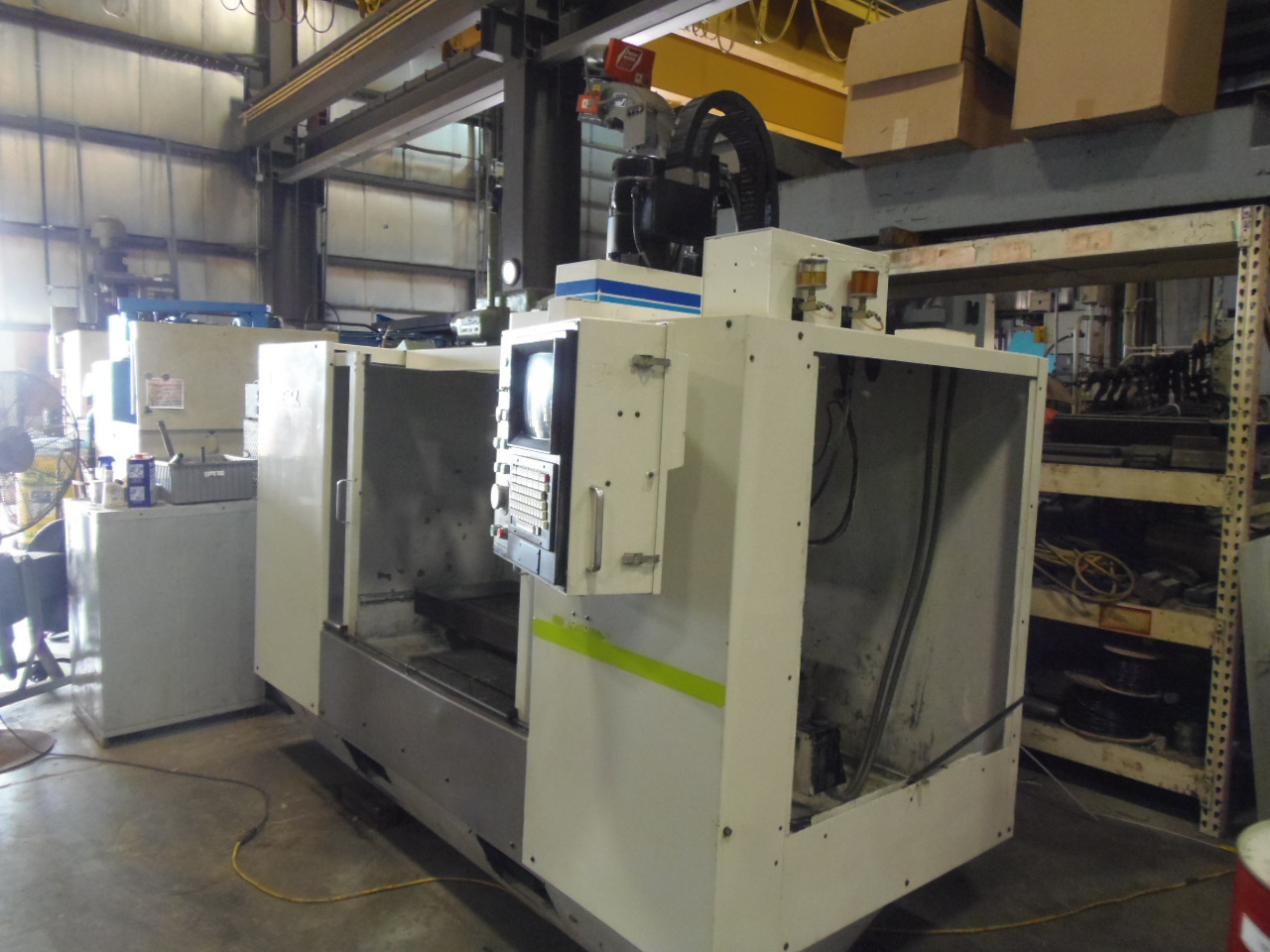

GENERAL SPECIFICATIONS:

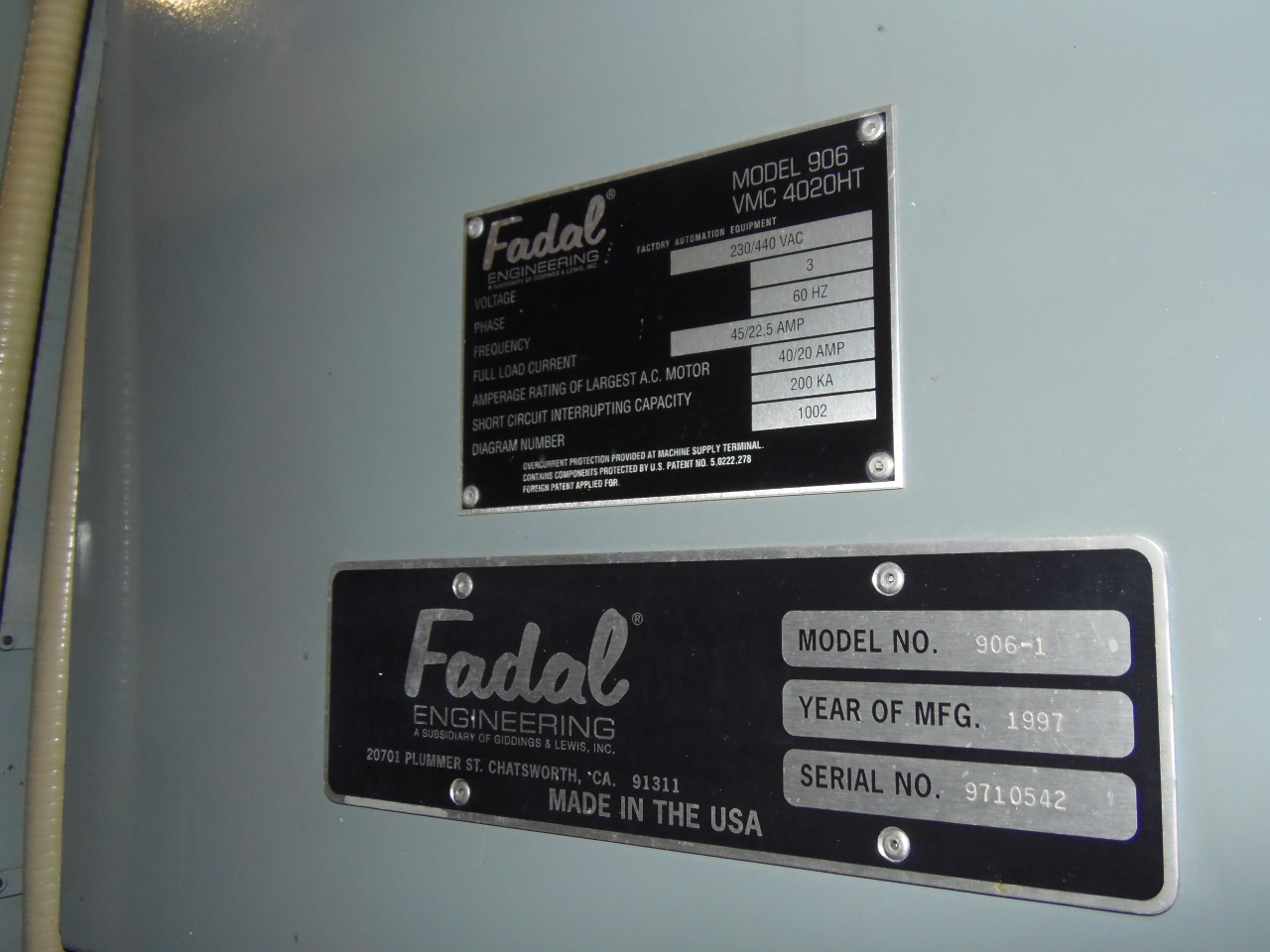

MODEL ..................................... 4020 HT
SERIAL..................................... 906-1 / 9710542
AGE APPROXIMATELY.......................... 1997
TABLE SIZE................................. 20" X 47.94"
MAXIMUM TABLE LOAD......................... 3,641 LBS
X AXIS TRAVEL.............................. 40"
Y AXIS TRAVEL.............................. 20"
Z AXIS TRAVEL (EXTENDED)................... 28"
RAPID TRAVERSE RATE X AXIS................. 900 IPM
RAPID TRAVERSE RATE Y AXIS................. 900 IPM
RAPID TRAVERSE RATE Z AXIS................. 700 IPM
CUTTING FEED RATE.......................... 0.1 - 600 IPM
SPINDLE SPEEDS............................. 50 - 10,000 RPM
SPINDLE TAPER.............................. CAT 40
SPINDLE MOTOR.............................. 22.5 HP AC
TOOL CHANGER CAPACITY...................... 24 STATION ATC

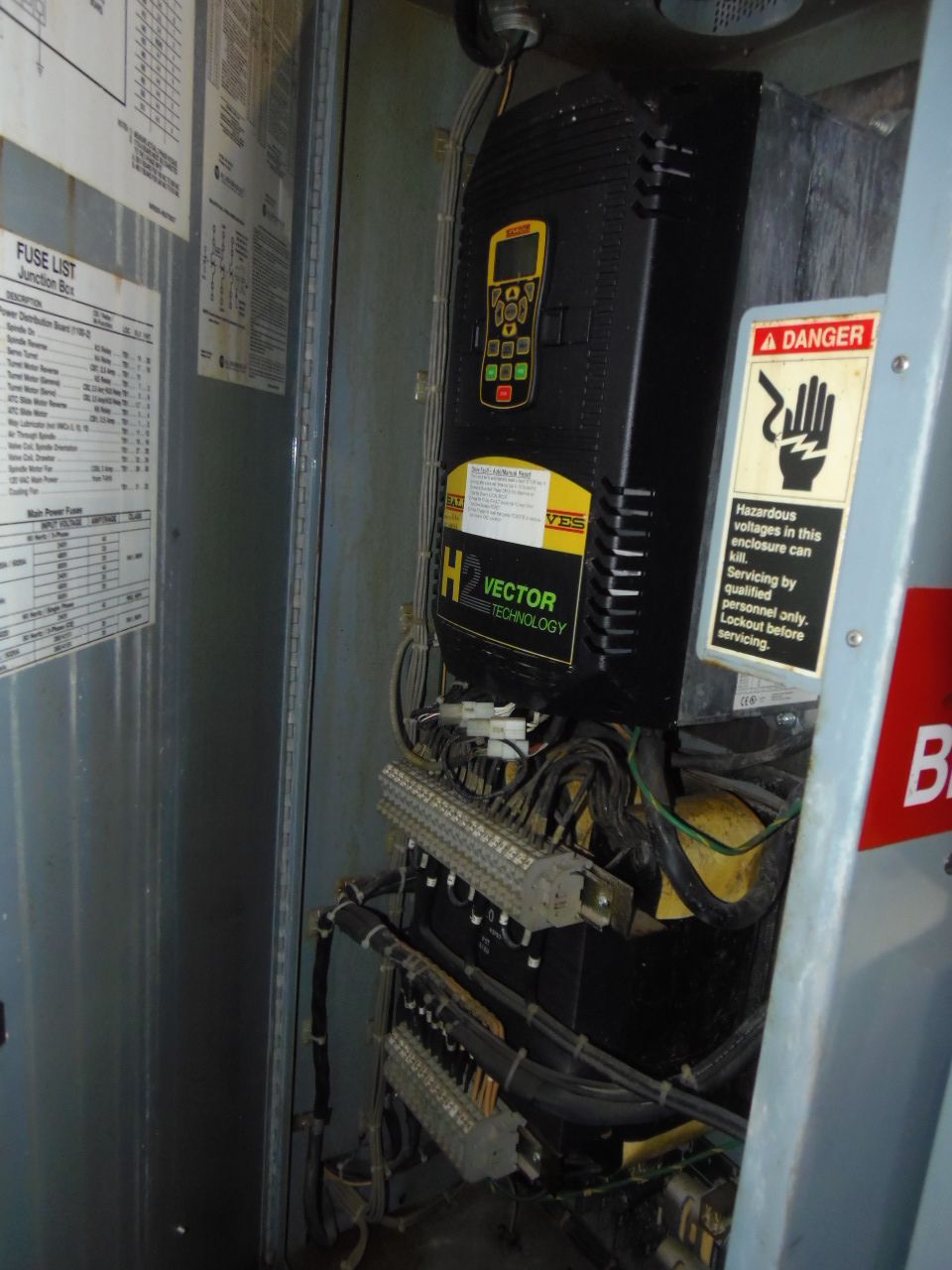

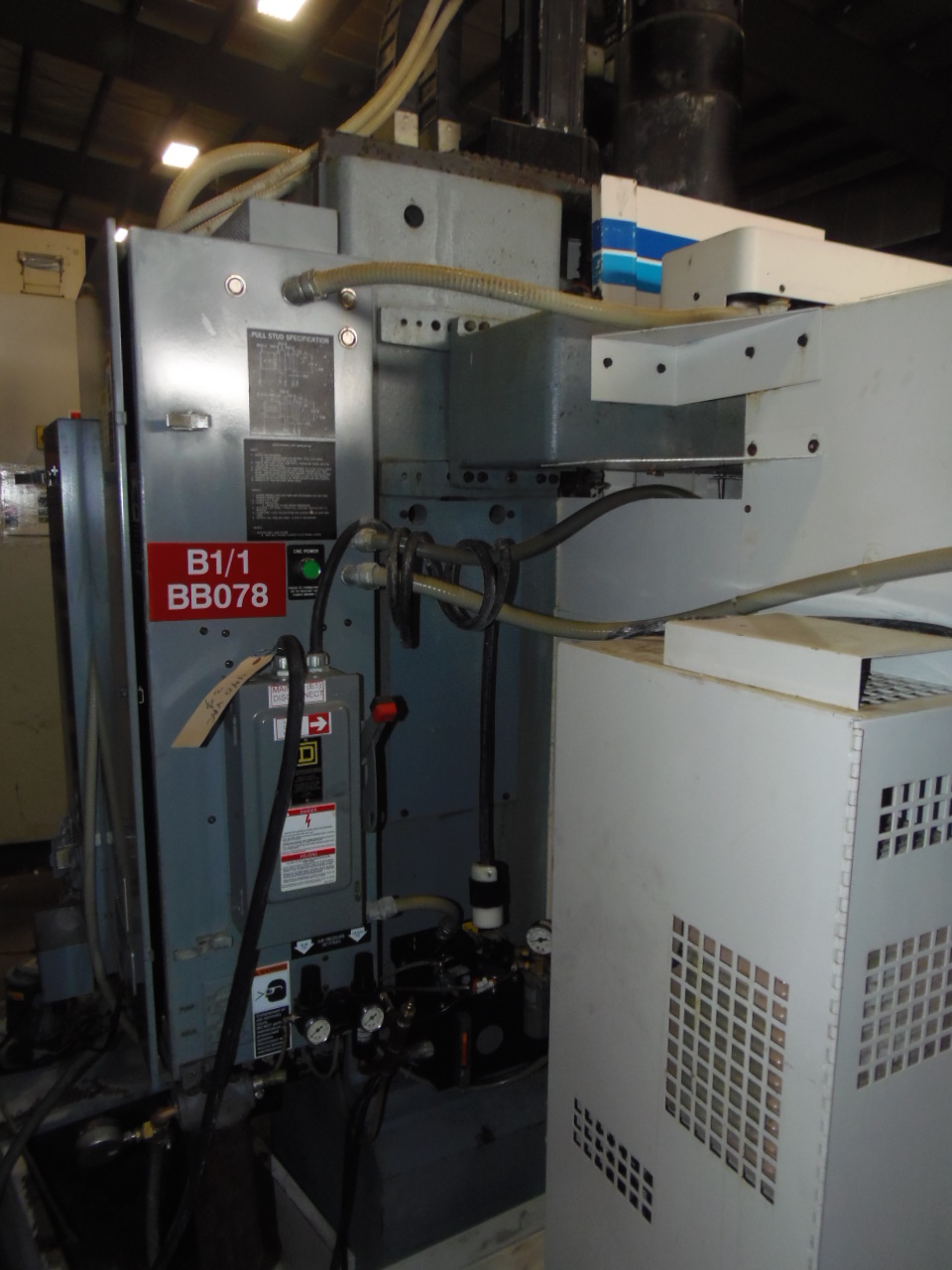

ELECTRICS.................................. 220/440 V / 3PH / 60HZ
DIMENSIONS................................. 120" X 100" X 112" H
APPROXIMATE WEIGHT......................... 12,000 LBS

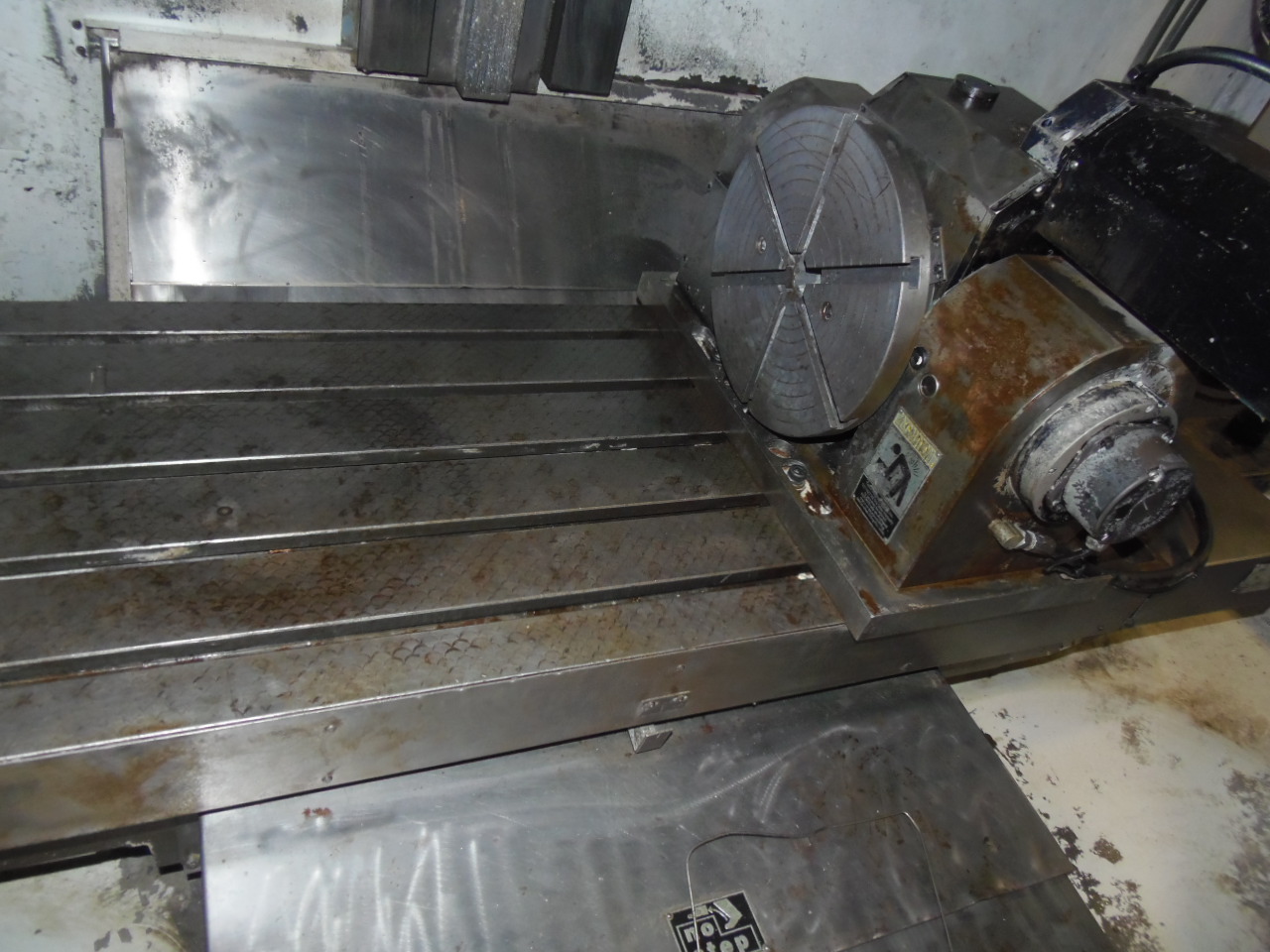

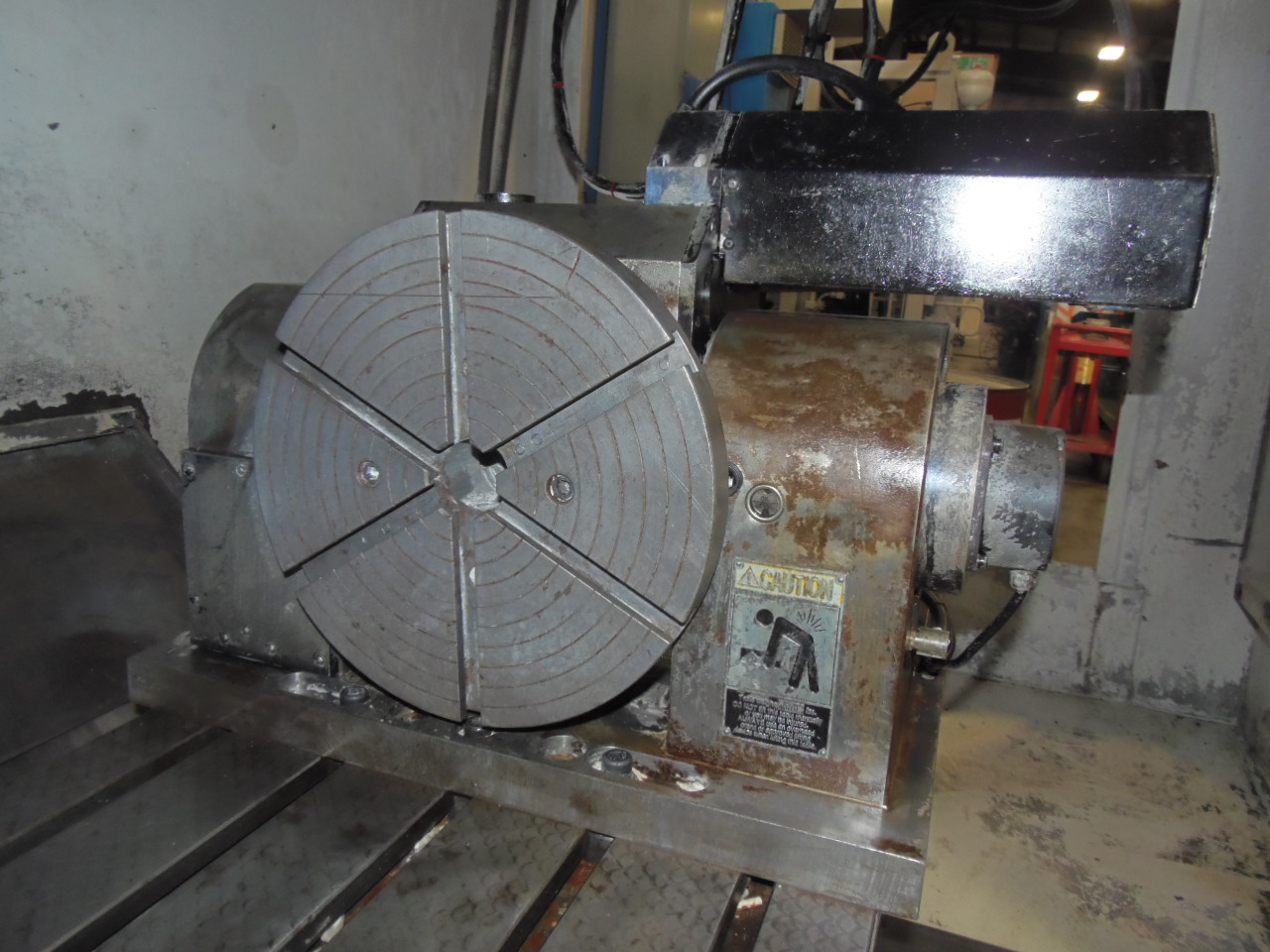

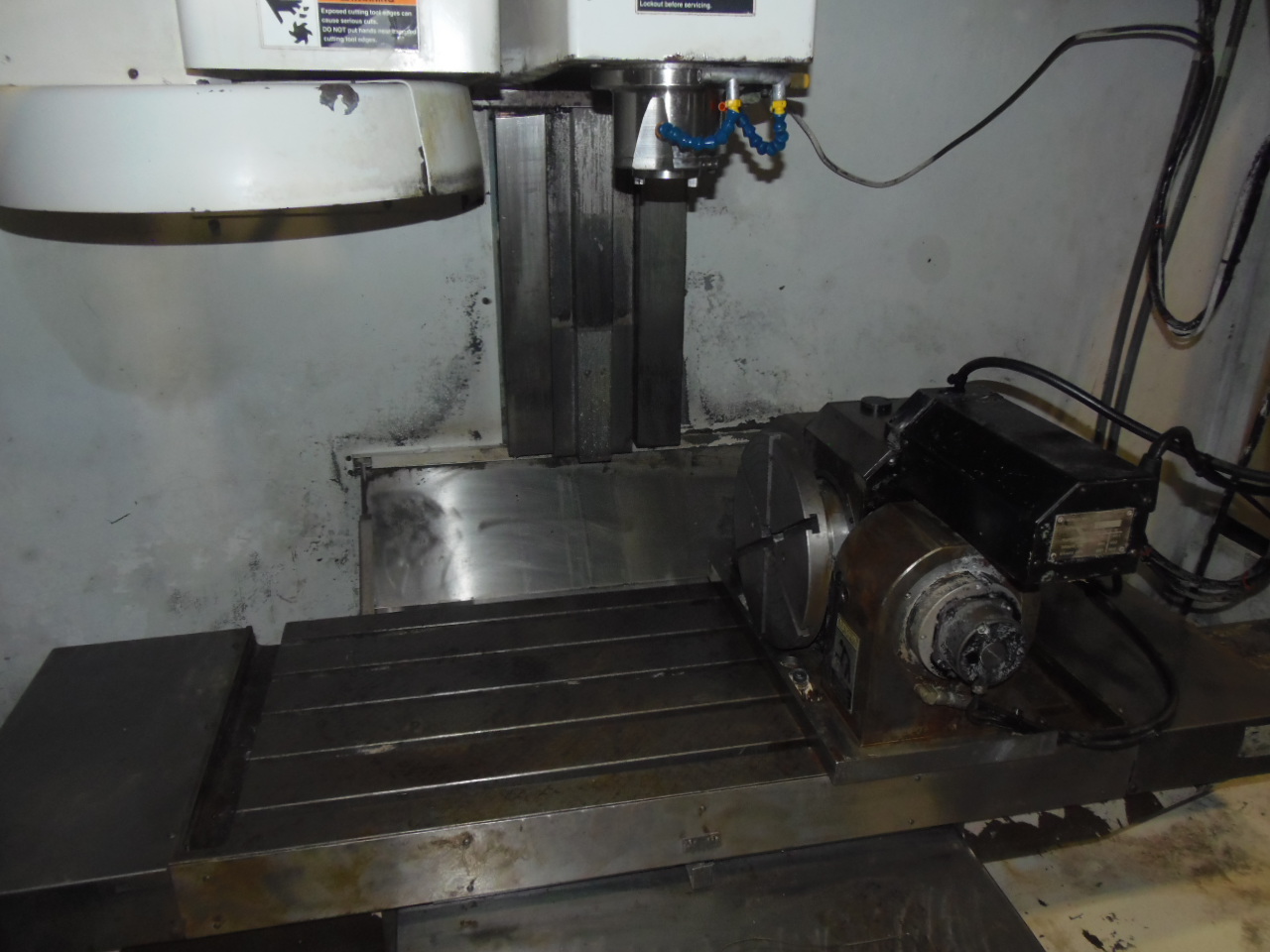

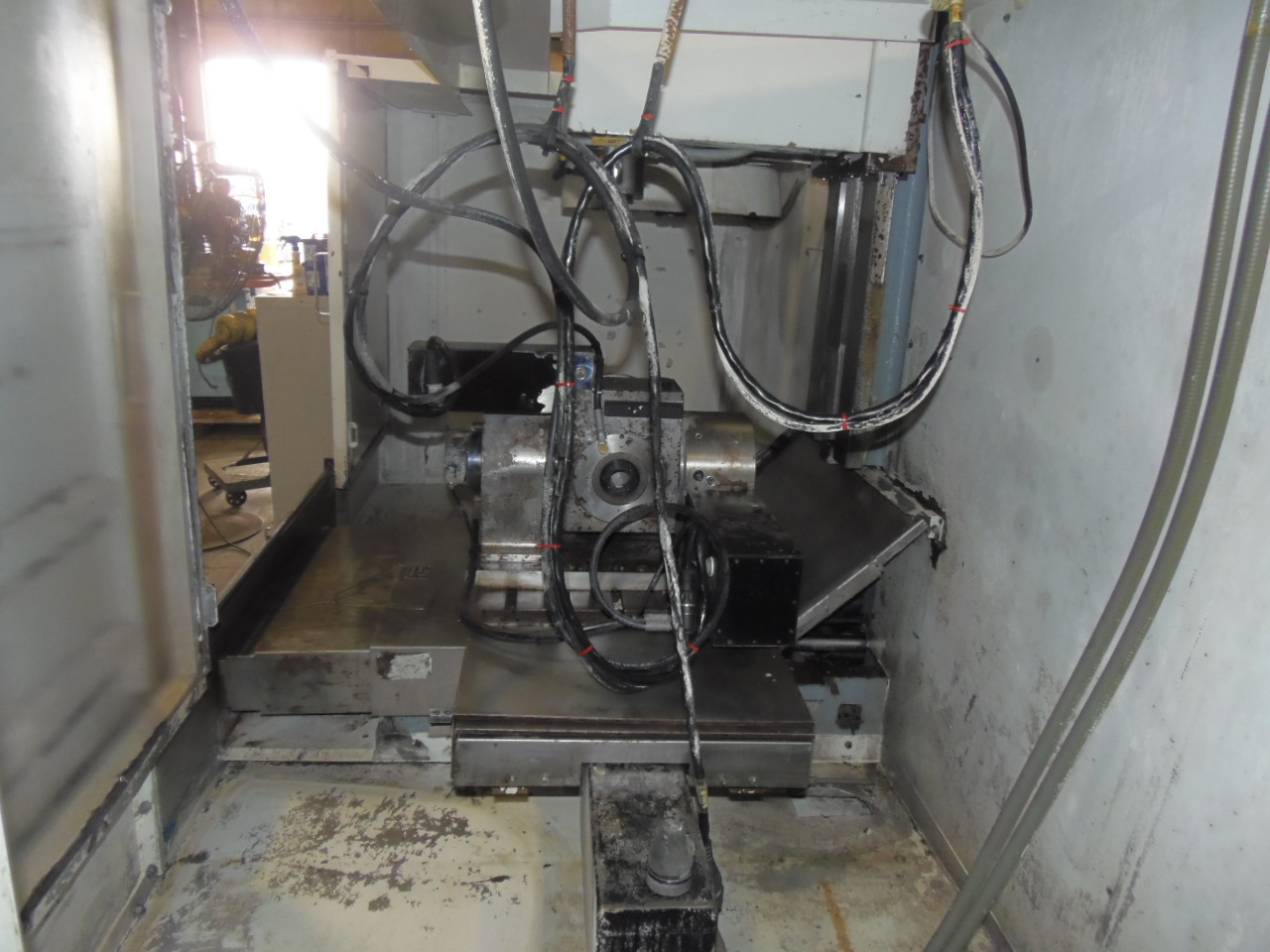

5TH AXIS ROTARY TABLE:

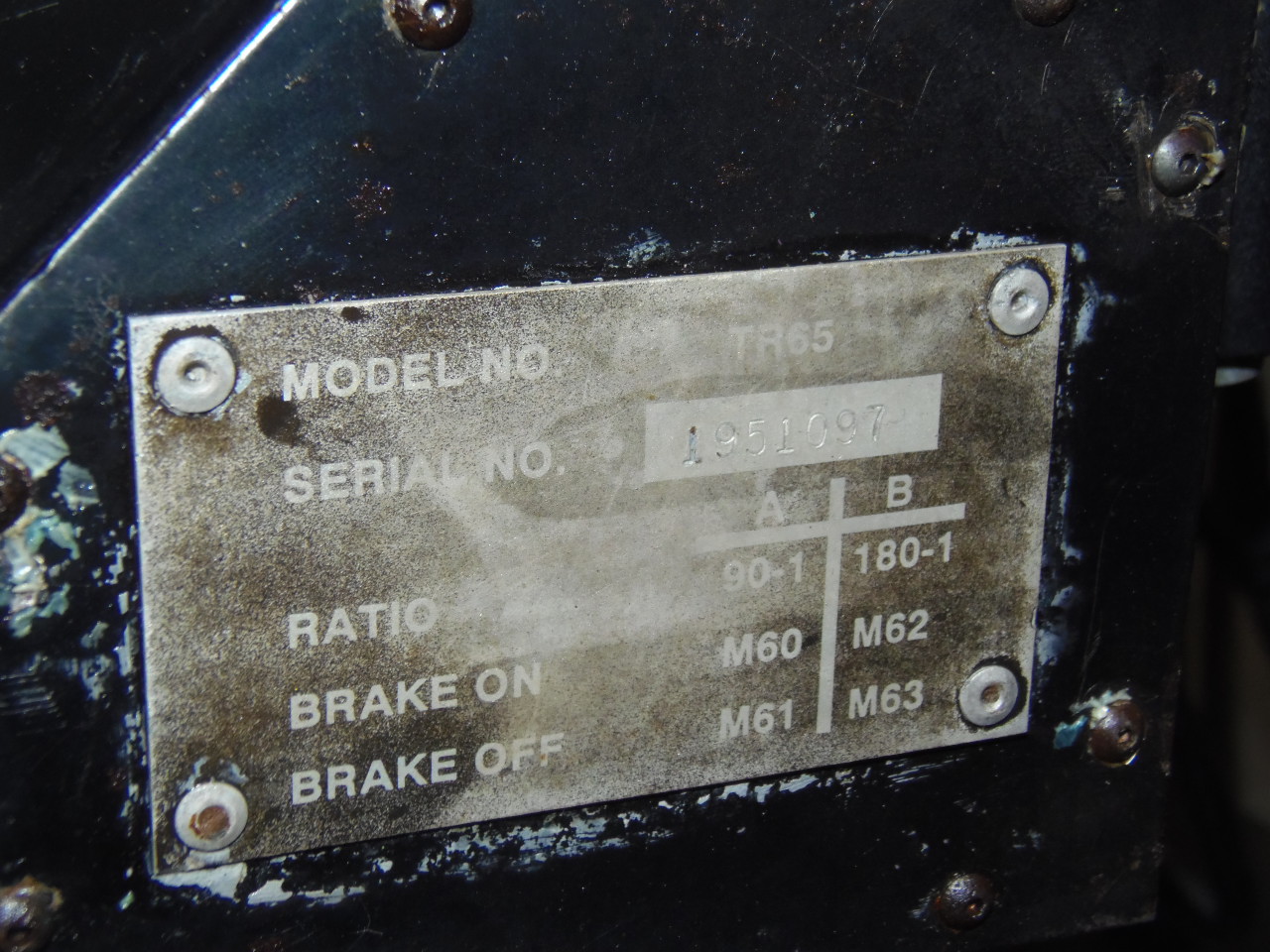

MODEL...................................... TR-65
SERIAL NUMBER.............................. 1951097
RATIO A)................................... 90-1
RATIO B)................................... 180-1

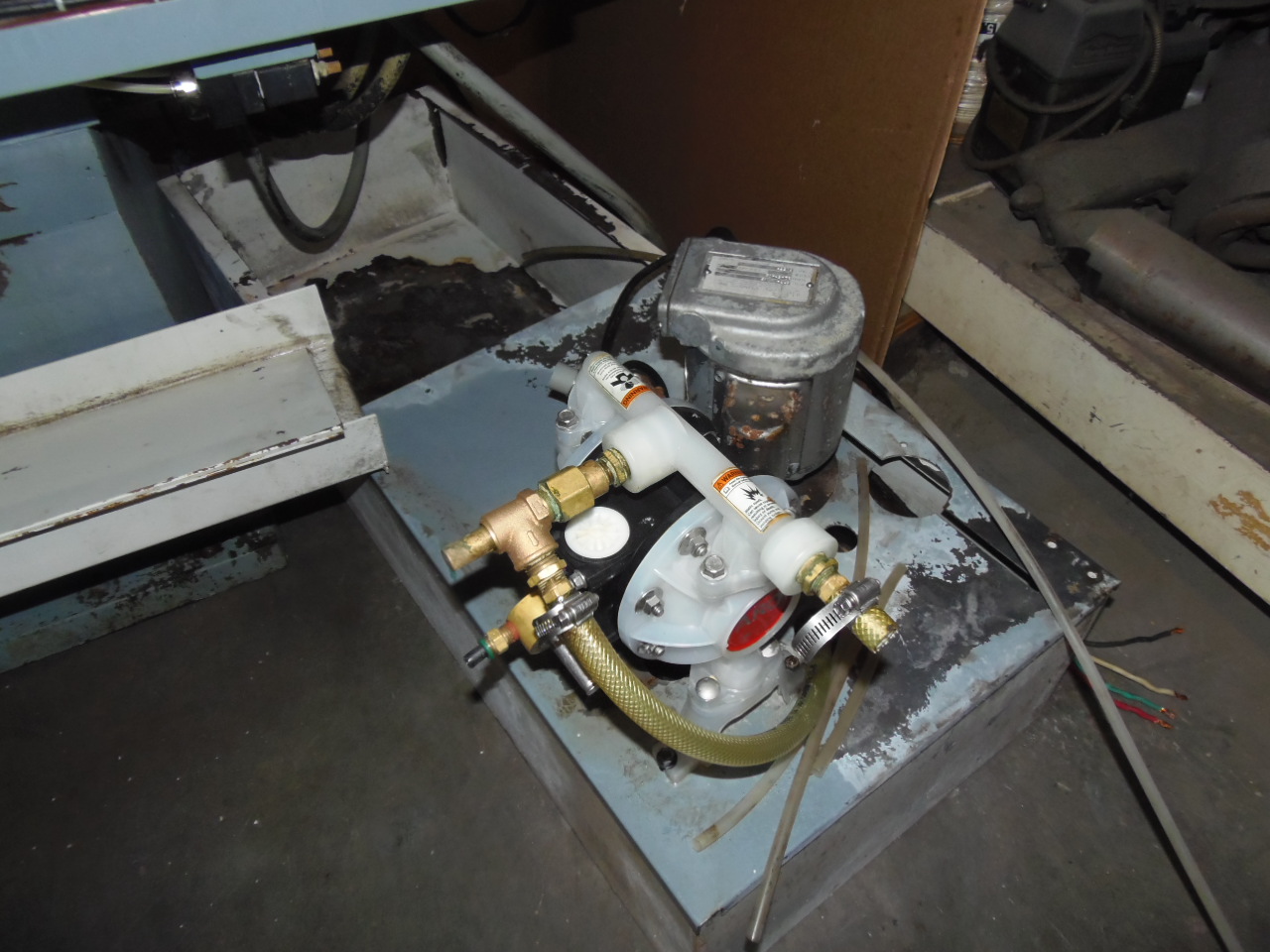

EQUIPPED WITH:

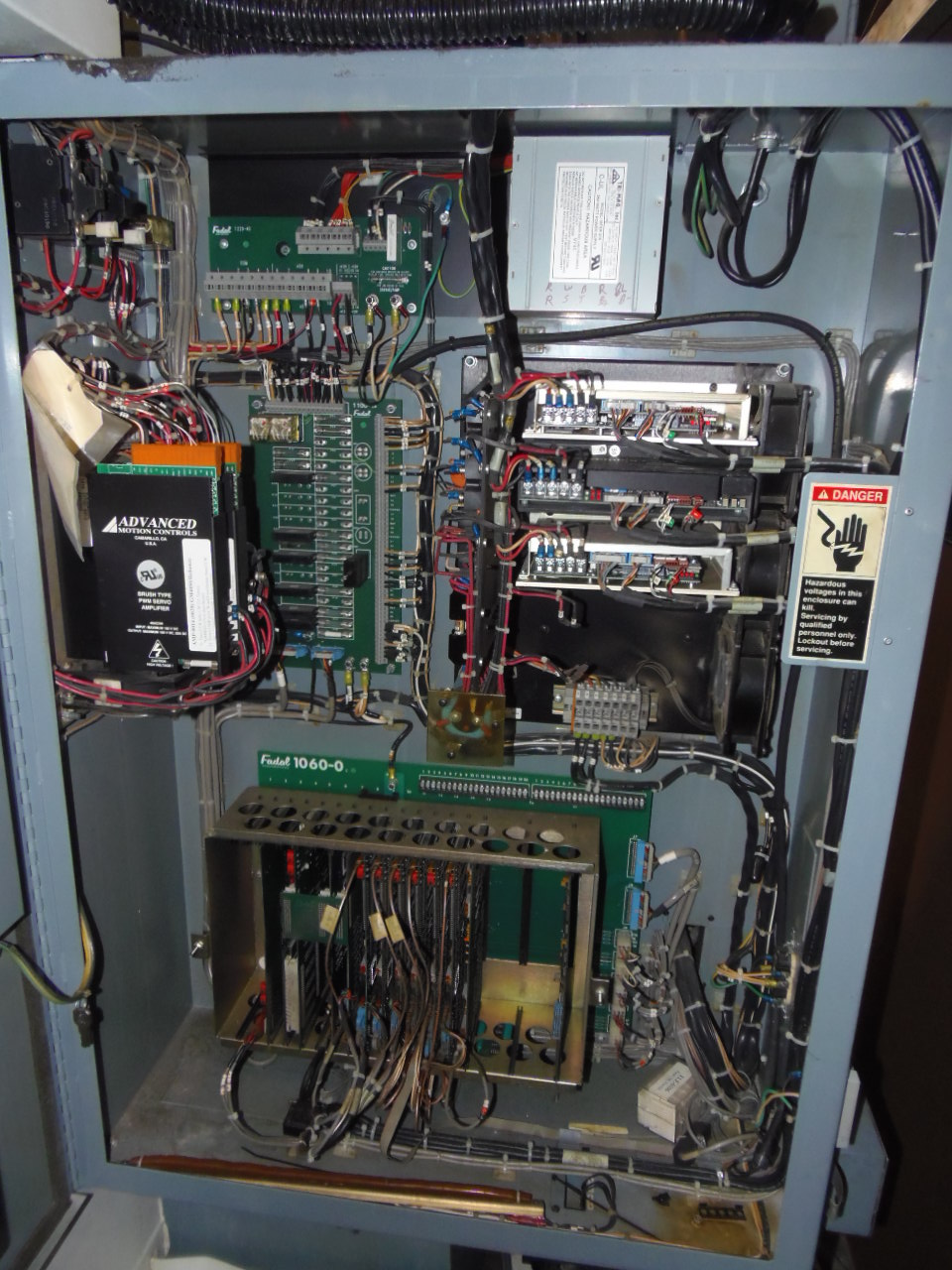

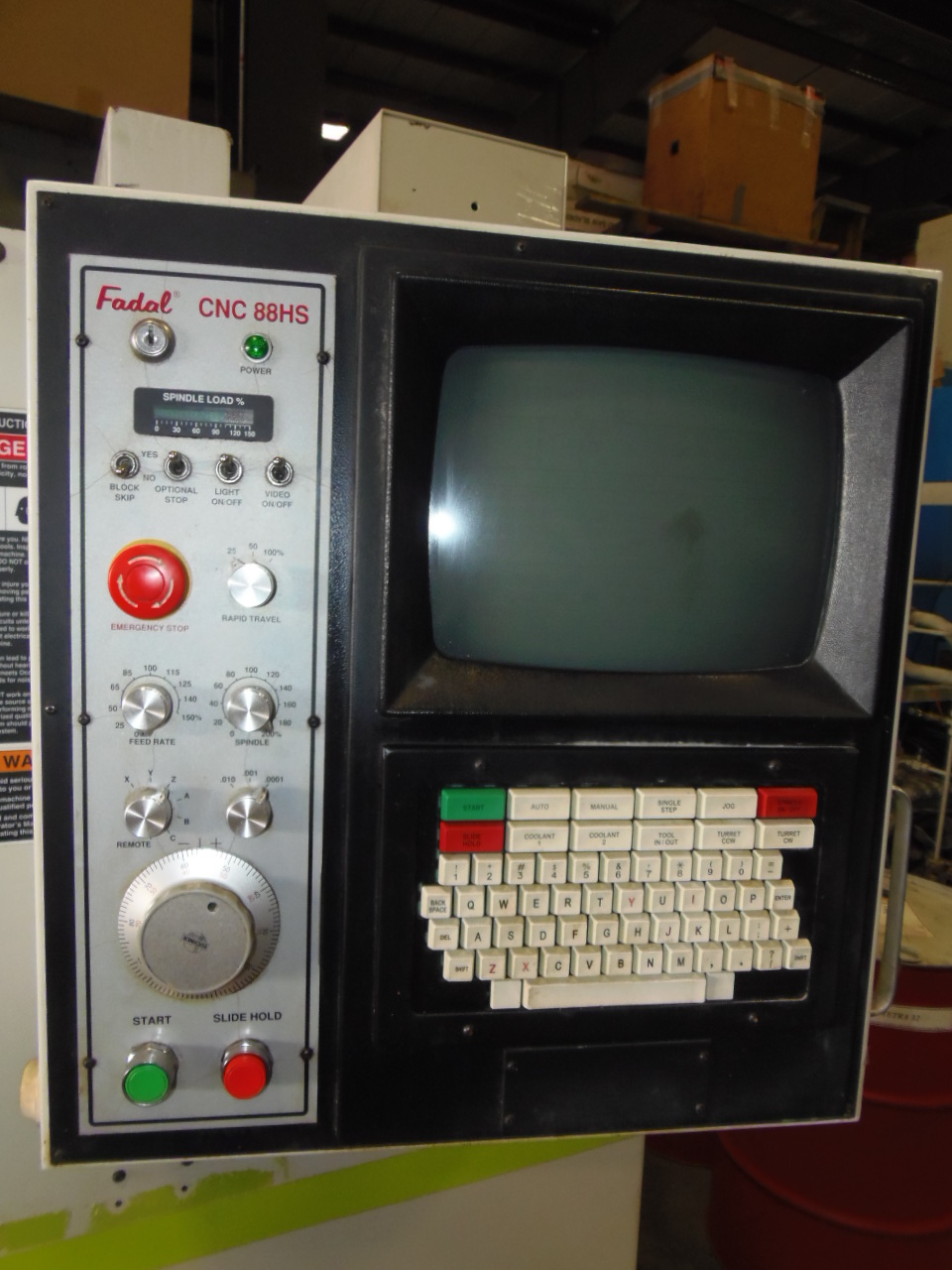

FADAL CNC-88HS CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING
28" EXTENDED Z AXIS TRAVEL & COLUMN

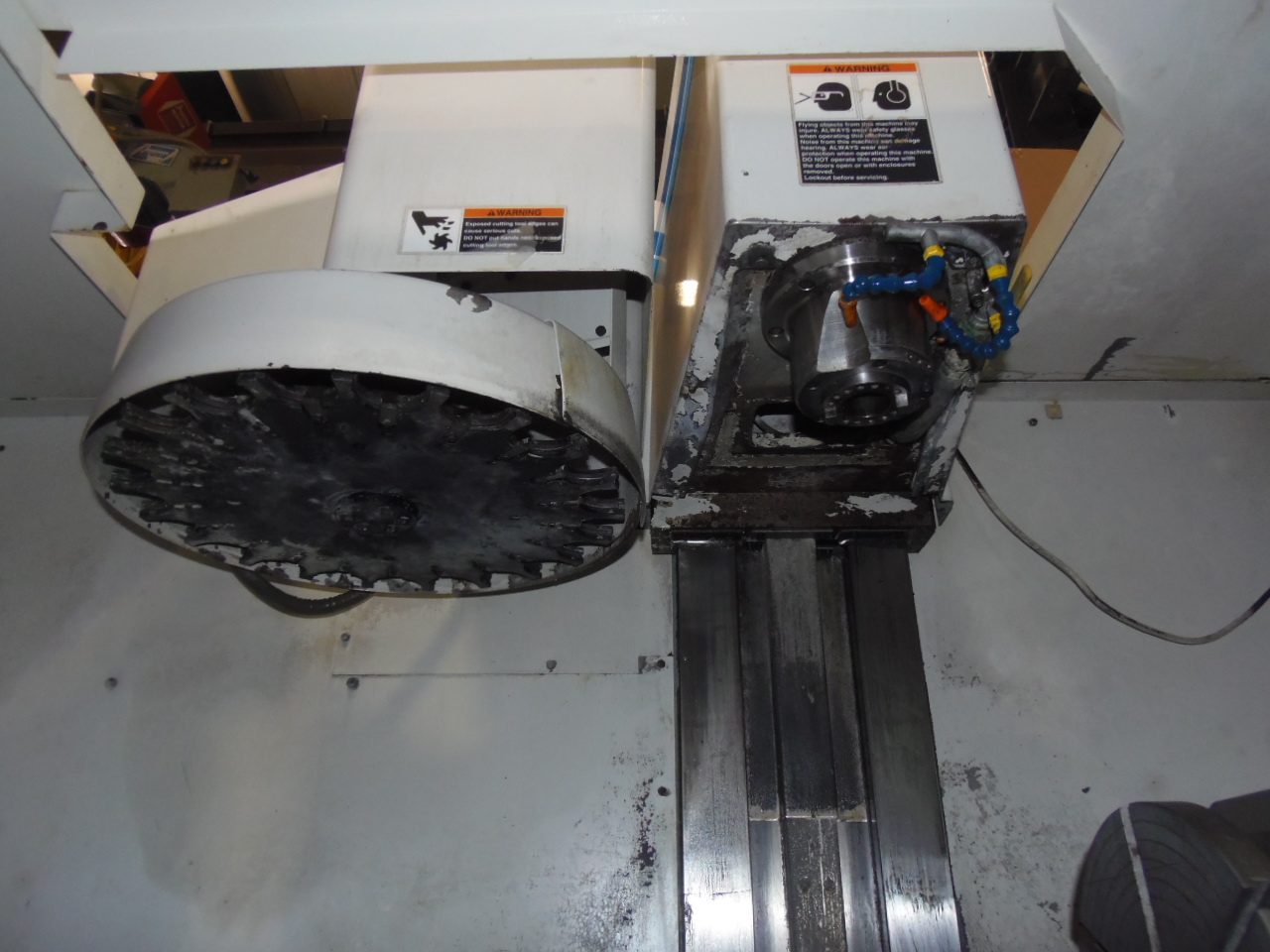

24 STATION SIDE MOUNT ATC
SPECIFICATIONS SUBJECT TO VERIFICATION
