Specifications
Equipped With
GENERAL SPECIFICATIONS:

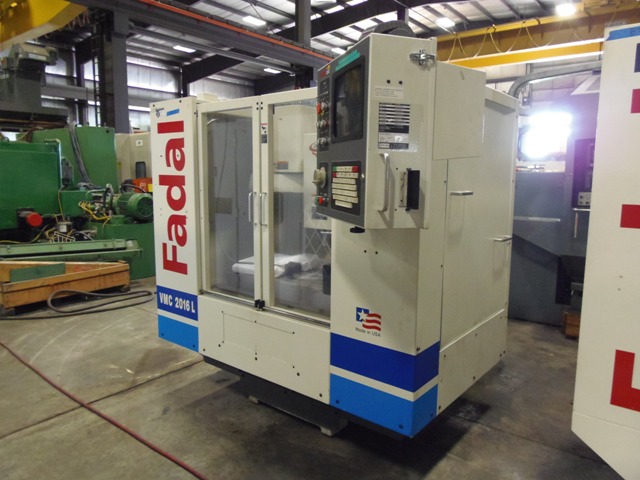

MANUFACTURER........................ FADAL
MODEL............................... 2016L
YEAR................................ 2003
HOURS (POWER ON).................... 7020
HOURS (RUN TIME).................... 1034
SERIAL#............................. 022003041657
TABLE SIZE.......................... 16" X 26.5"
TRAVELS (X)......................... 20
(Y)......................... 16
(Z)......................... 20

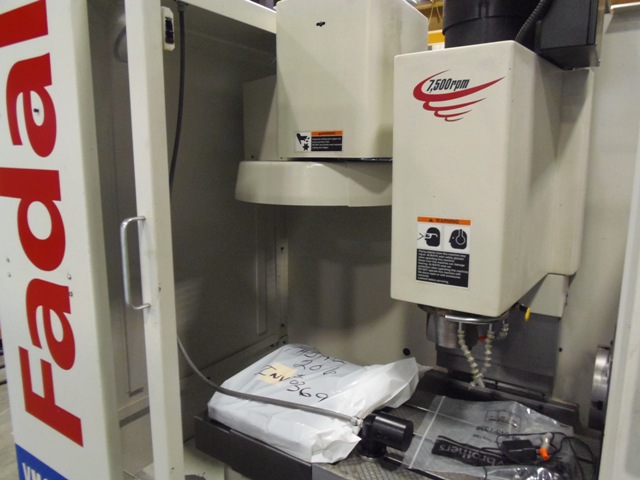

SPINDLE............................. CAT 40
SPINDLE SPEED MAX................... 7500 RPM
SPINDLE MOTOR....................... 15HP
NUMBER OF GEAR RANGES............... 2
NUMBER OF TOOLS..................... 21
RAPIDS (X,Y,Z)...................... 500 IPM
CUTTING FEED MAX (X,Y,Z)............ 375 IPM
THROAT DEPTH........................ 17"
WEIGHT APPROX....................... 6000 LBS.
FOOT PRINT.......................... 75" X 77"
ELECTRICS........................... 220V /3 PHS/ 60HZ
EQUIPPED WITH:

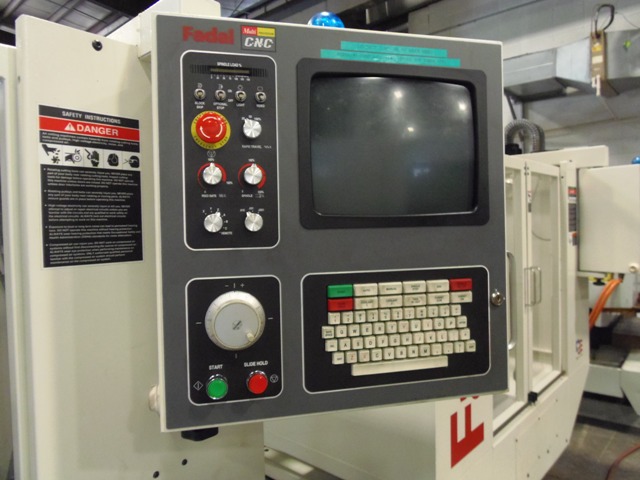

FADAL CONTROL W/HIGH SPEED CPU AND GRAPHICS
RS 232
RIGID TAP
TS 27 PROBE

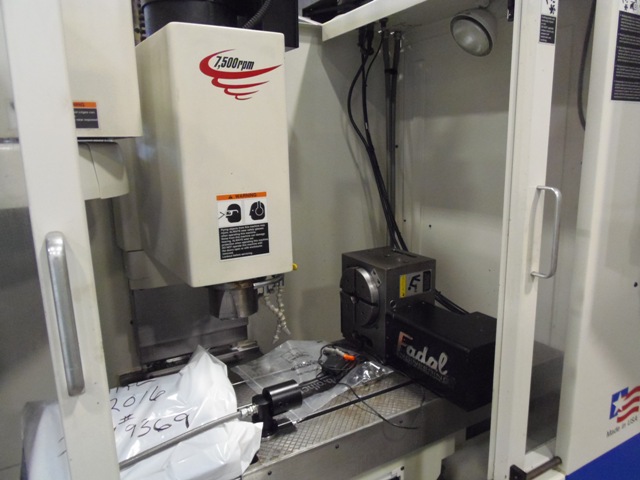

FULL 4TH AXIS
SPECIFICATIONS SUBJECT TO VERIFICATION
