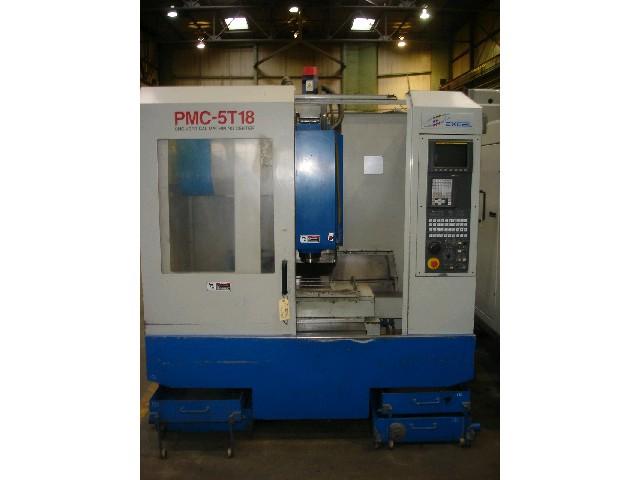

EXCEL PMC-5T18 VERTICAL MACHINING CENTER, Fanuc 21M CNC Control With Monitor. Handwheel Jog. Keyboard RS232 Port. 3.5" Floppy Drive. Rigid Tapping. 18-Position Automatic Tool Changer. Flood Coolant

SPECIFICATIONS:
Year 2000
Serial number ES5T1760
Working area on table 700 x 435 mm / 27.56" x 17.13"
X - AXIS Travel 510mm / 20.08"
Y - AXIS Travel 410mm / 16.14"
Spindle Head Travel(Z-Axis) 460mm / 18.11"
Distance between table
surface and spindle, Max. 595mm / 23.43"
Distance between table
surface and spindle, Min. 135mm / 5.31"
Distance between column
and spindle center 427mm/16.81"
Spindle Taper JIS NT#40
Spindle Speed Range 100 - 8000 RPM
ATC Number of Tools 18
Positioning Rapid Traverse 24,000mm/min 944.88 IPM
Positioning Rapid Traverse 20,000mm/min 787.40 IPM
Cutting Feed Rate 1-4,000mm/min 0.004-157 IPM
Net Weight 3,500 kg

EQUIPPED WITH:

Motor Driven With 7.5 HP, 3 Phase, 60 Cycle Spindle Drive. Fanuc Axis Drives. MD Coolant. MD Hydraulics. MD Lubrication.

Fanuc 21M CNC Control With Monitor. Handwheel Jog. Keyboard RS232 Port. 3.5" Floppy Drive. Rigid Tapping. 18-Position Automatic Tool Changer. Flood Coolant
