EXCEL 510, 16" x 28" TBL, 20"-X, 16"-Y, 18"-Z, 6000 RPM, CAT 40, 16 ATC, FANUC 0-M

Brand
EXCEL

Model
510-VMC

Type
Machining Centers, Vertical, (5-Axis or More)

Stock #
8213

Condition
Used

Year
1990

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER EXCEL
MODEL 510-VMC
SERIAL # ES78922
TABLE SIZE 16" x 28" (406 X 711)
X-AXIS TRAVEL 20" (508)
Y-AXIS TRAVEL 16" (406)
Z-AXIS TRAVEL 18" (457)
SPINDLE SPEED 6000 RPM
SPINDLE TAPER CAT 40
HORSEPOWER 3.7 KW/ 5 HP
EQUIPPED WITH:

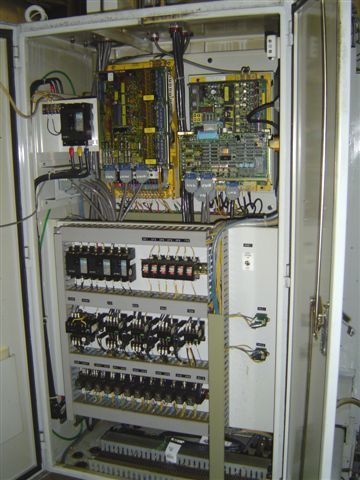

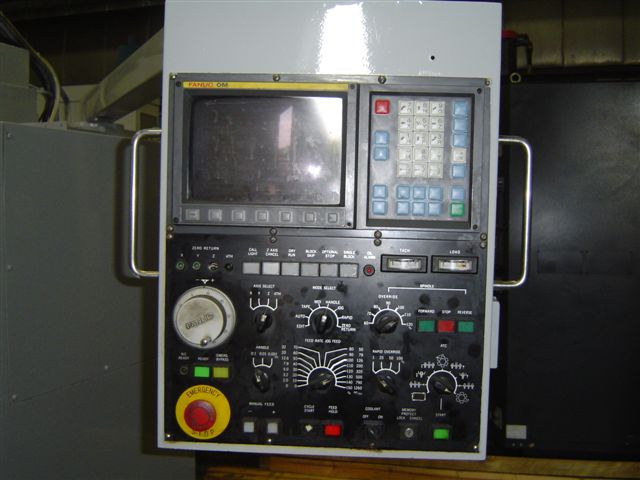

FANUC 0-M CNC CONTROL W/9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

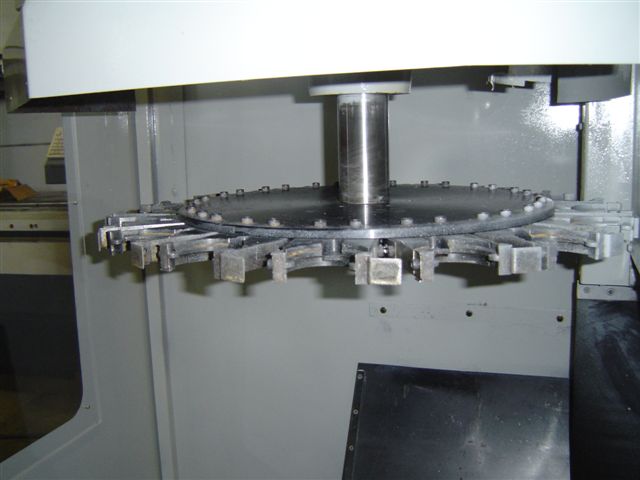

16 STATION SIDE MOUNT SWING ARM ATC
STANDARD COOLANT SYSTEM W/TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
ALL AVAILABLE MANUALS
