Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER ESAB
MODEL AVENGER 1-12V1SPC
SERIAL # 0560986392
NEW (APPROX.) 2001
WIDTH 153.5"
TRACK LENGTH 30'
THICKEST PIECE FORMER OWNER CUT 6"
NUMBER OF TORCHES 4
WATER TABLE SIZE 13' X 13'
SPEED RANGE (IPM) 2-400
RAPID TRAVERSE RATE (IPM) 750
MAX. NUMBER OF TOOL STATIONS 12
Standard Features:

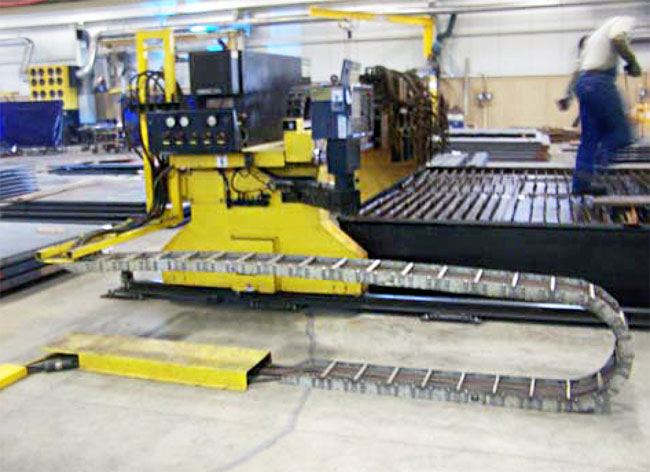

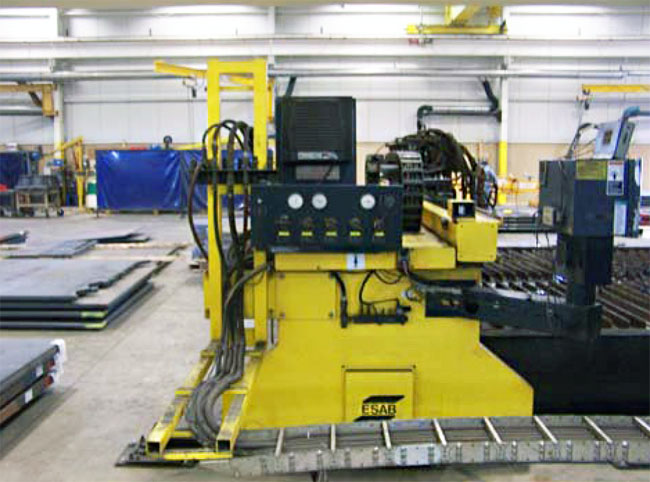

Avenger 1-12 Dual Rack and Pinion Drive Shape Cutting Machine
Avenger 1-12 Basic Gantry Assembly
Electronic Control and Cable Package
Dual Side Rail Axis Drive System
Cross Axis Powertrack System
AC Brushless Servo Drives
True Planetary Gearboxes.
30’ Rail System with Floor Mounted Power Track (Approximate)
Vision PC Based (Windows 98) Cutting Machine Controller Industrial CPU with AMD K6-2 333 processor. 32 MBytes Ram 10.4” Color LCD monitor, 4.3 GB Hard Drive, 120 MB 3.5 Floppy drive 8 Position Joystick, Hand Wheel, Speed Potentiometer, RS-232 Serial Port
Standard Software Features:
Automatic Accel/Decel to Optimize Corner Dynamics
Inch/Metric Programmable Graphic to Text Editor Kerf Override Mirror Imaging On-Screen Nesting Program rotation (.1 degree to 359.9 degrees) Program Scaling (.1% to 999.9%) Real-Time Graphics during program run with zoom Remnant Plate Storage Shape Library with variable Lead-in/Lead-out and Chain Cut Shapes Oxy Fuel Torches (4)
High volume Oxyfuel Gas Regulator System: Hi-Lo Gas regulator system
Ease On Pierce Control for Thick Plate
Automatic Torch Ignition System Pierce Timers to Automate the cutting process 4-Motorized Lift Stations with 9” of travel Ball Screw Lifting Gear Individual Torch Station Pre-Heat Solenoids
Water Table (1)
13’ x 16’ table with Plumbing and Removable Sludge Tubs for Easy Cleaning
