Specifications
Equipped With
GENERAL SPECIFICATIONS:

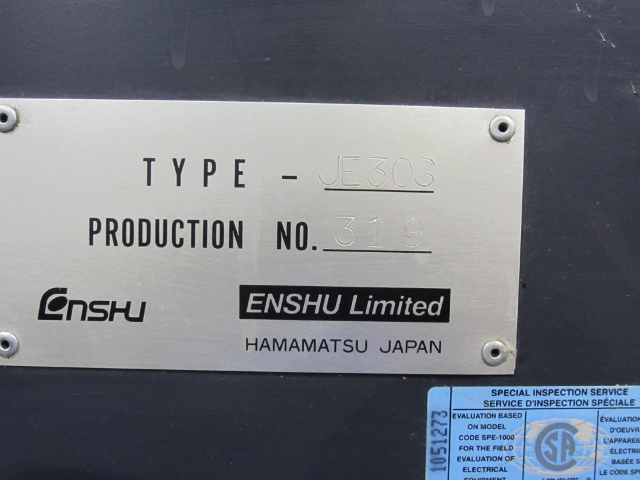

SERIAL NUMBER................. 319

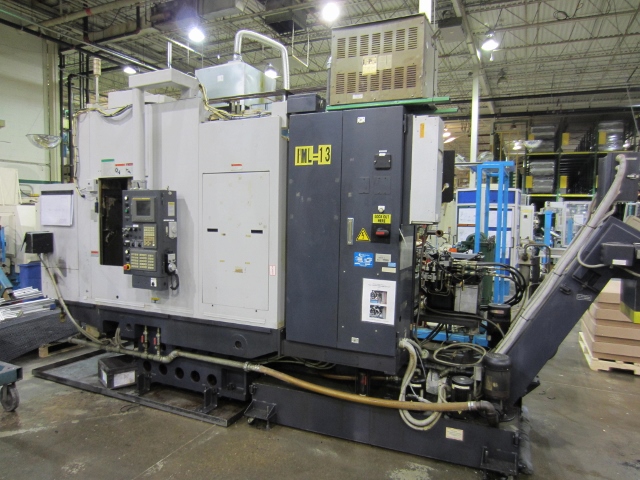

MODEL......................... JE30S
AGE........................... 2004

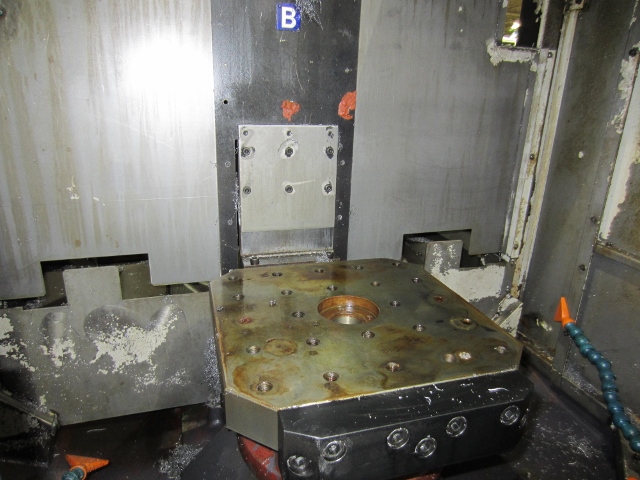

PALLET SIZE................... 12.5" X 12.5"
NUMBER OF PALLETS............. 2
TRAVEL-X...................... 19.7"
TRAVEL-Y...................... 13.8"
TRAVEL-Z...................... 11.8"
MINIMUM INDEX ANGLE........... 0.001 DEG
TABLE LOAD CAPACITY........... 990 LBS

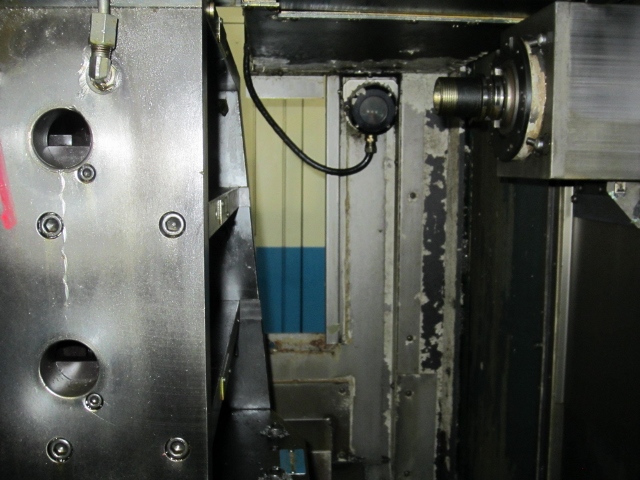

SPINDLE TAPER................. BT 30
SPINDLE SPEED................. 40-13,000 RPM
RAPID FEED RATE............... 2,362 IPM
CUTTING FEED RATE............. .04-590.55 IPM
ATC CAPACITY.................. 16 TOOLS
SPINDLE MOTOR................. 7.5HP (5.5KW)
ELECTRICS..................... 220/3/60
APPROXIMATE DIMENSIONS........ 48.5" X 125" X 95.5" H
APPROXIMATE WEIGHT............ 8,800 LBS
EQUIPPED WITH:

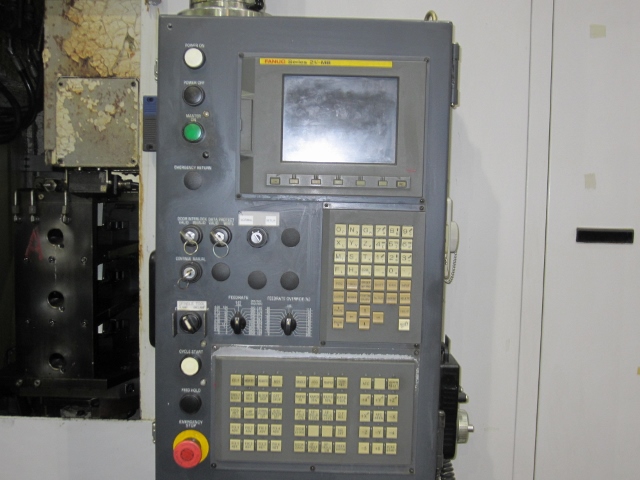

FANUC 21i-MB CONTROL
CHIP CONVEYOR
FLOOD COOLANT
FULL ENCLOSURE

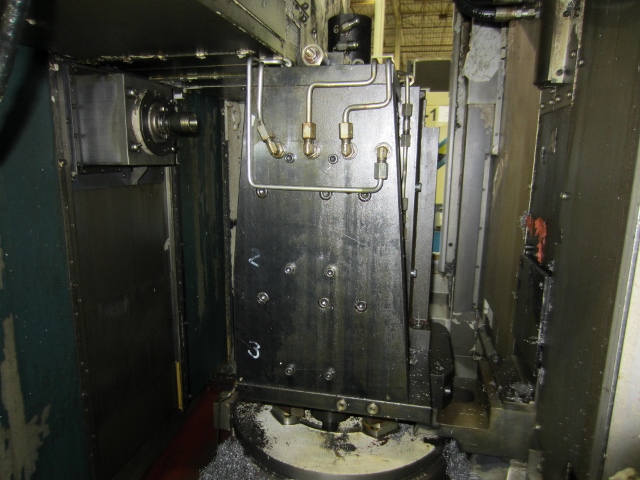

TOMBSTONE FIXTURE IS NOT WITH THE MACHINE
