Specifications
Equipped With
GENERAL SPECIFICATIONS:

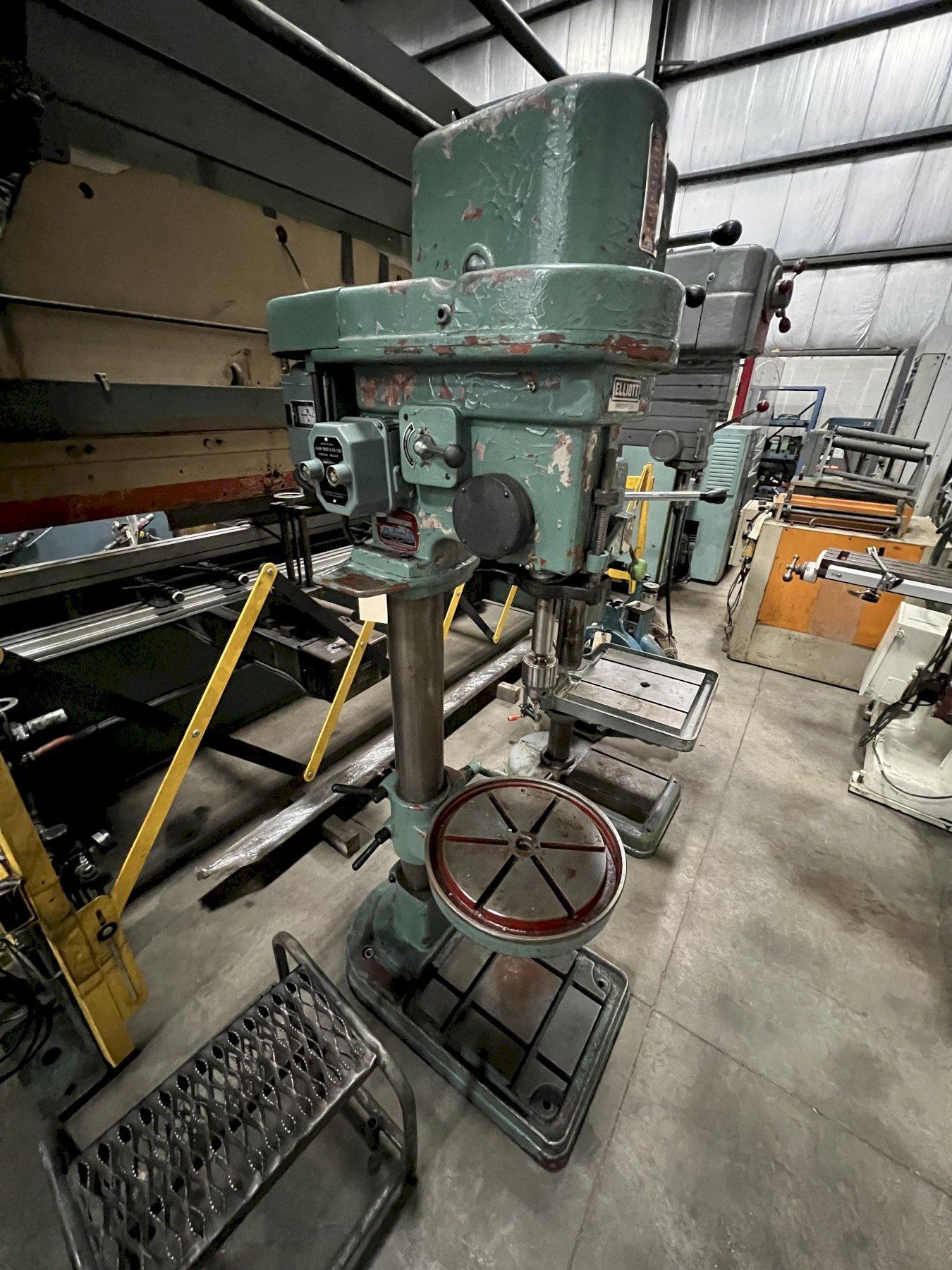

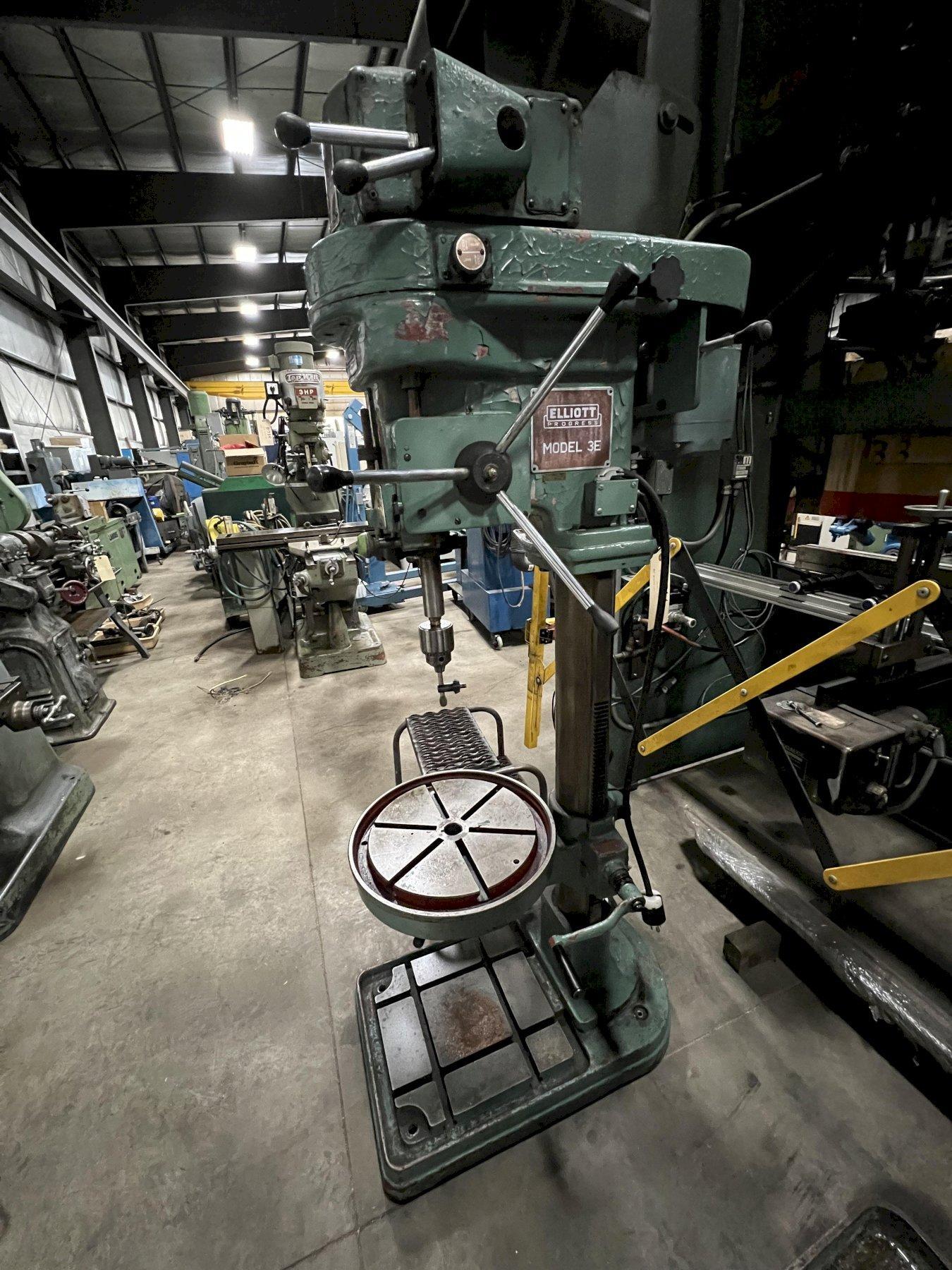

MAKE....................... ELLIOT

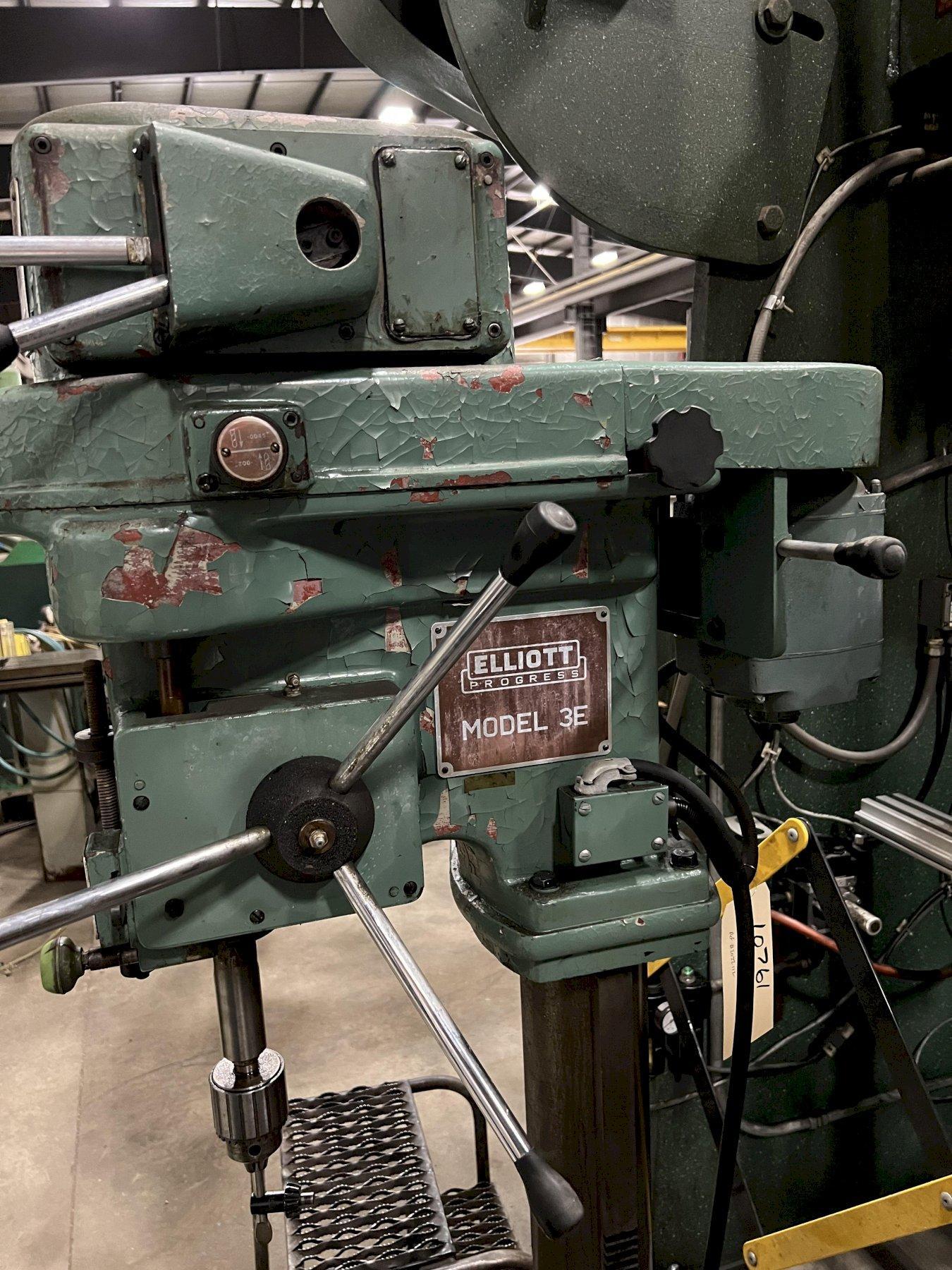

MODEL...................... 3E

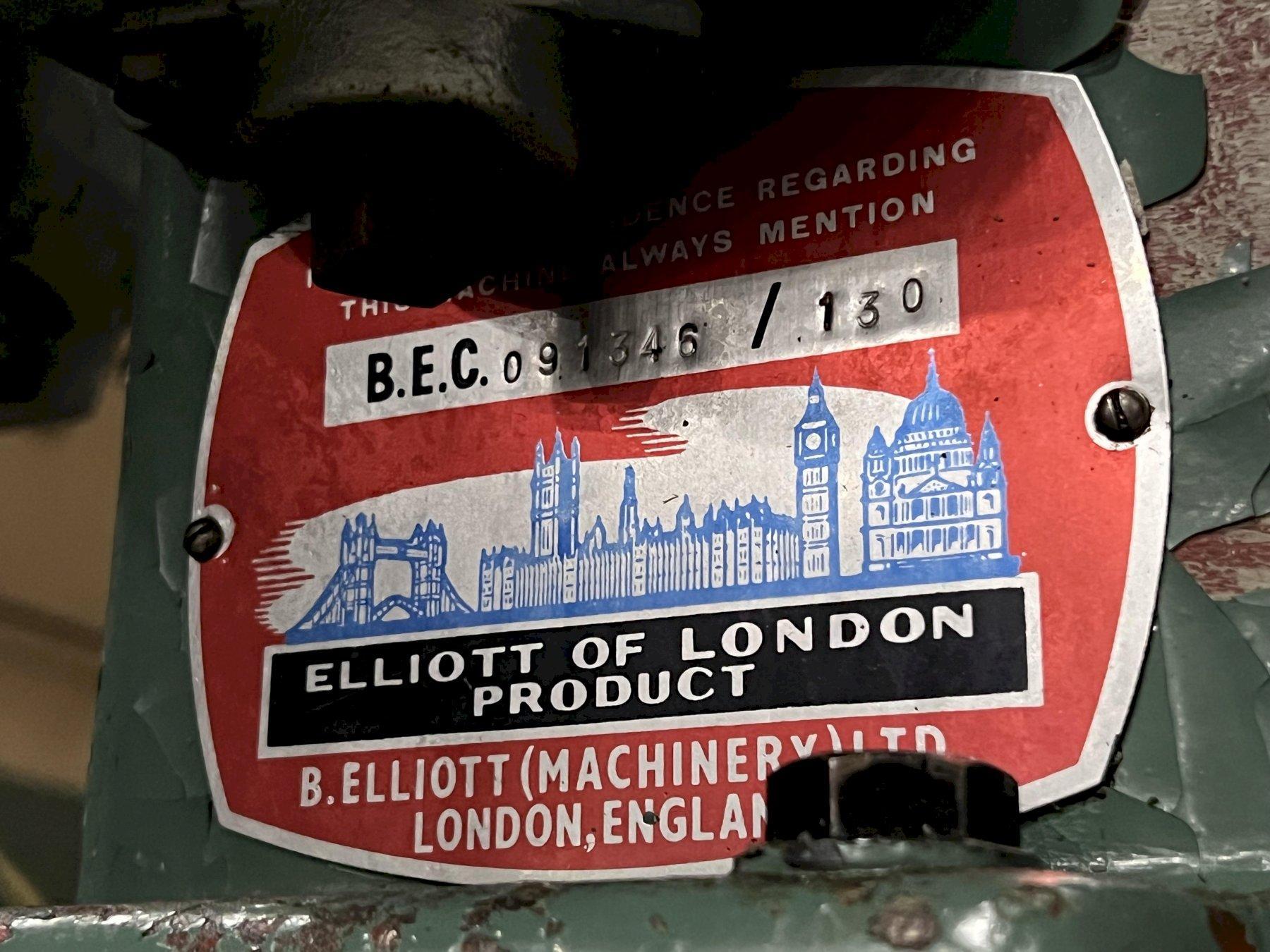

SERIAL NUMBER.............. BEC091346/130

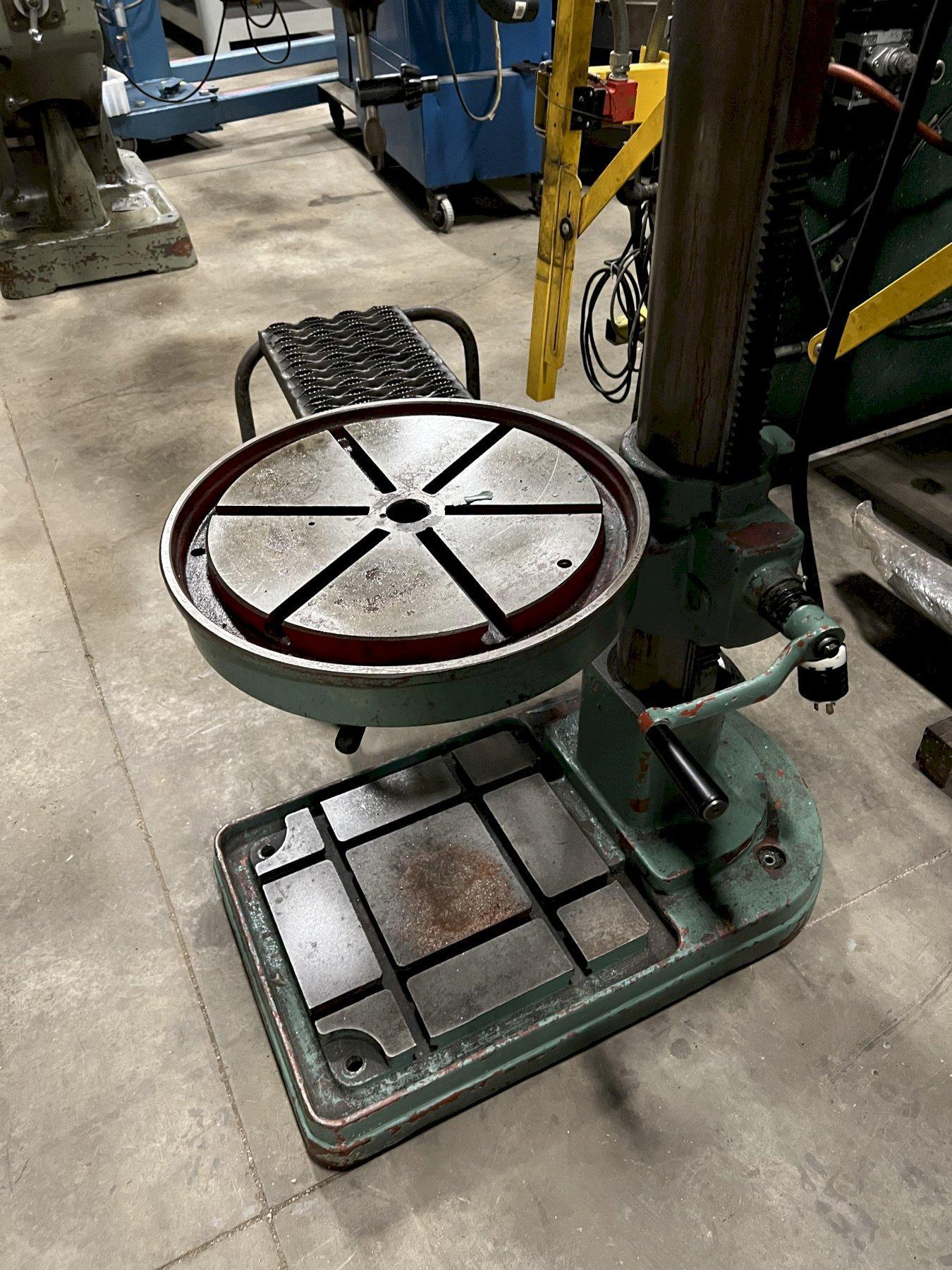

TABLE SIZE................. 17" DIAMETER
SPINDLE TRAVEL............. 6"
SPINDLE BORE............... 3 MT.
COLUMN DIAMETER............ 4.75"
MAX. SPINDLE TO TABLE...... 23.5"
MAX. SPINDLE TO BASE....... 41.5"
MAX COLUMN TO SPINDLE...... 10"
NO. FEEDS.................. 2
FEED RATES................. .002" & .0045" / REV.

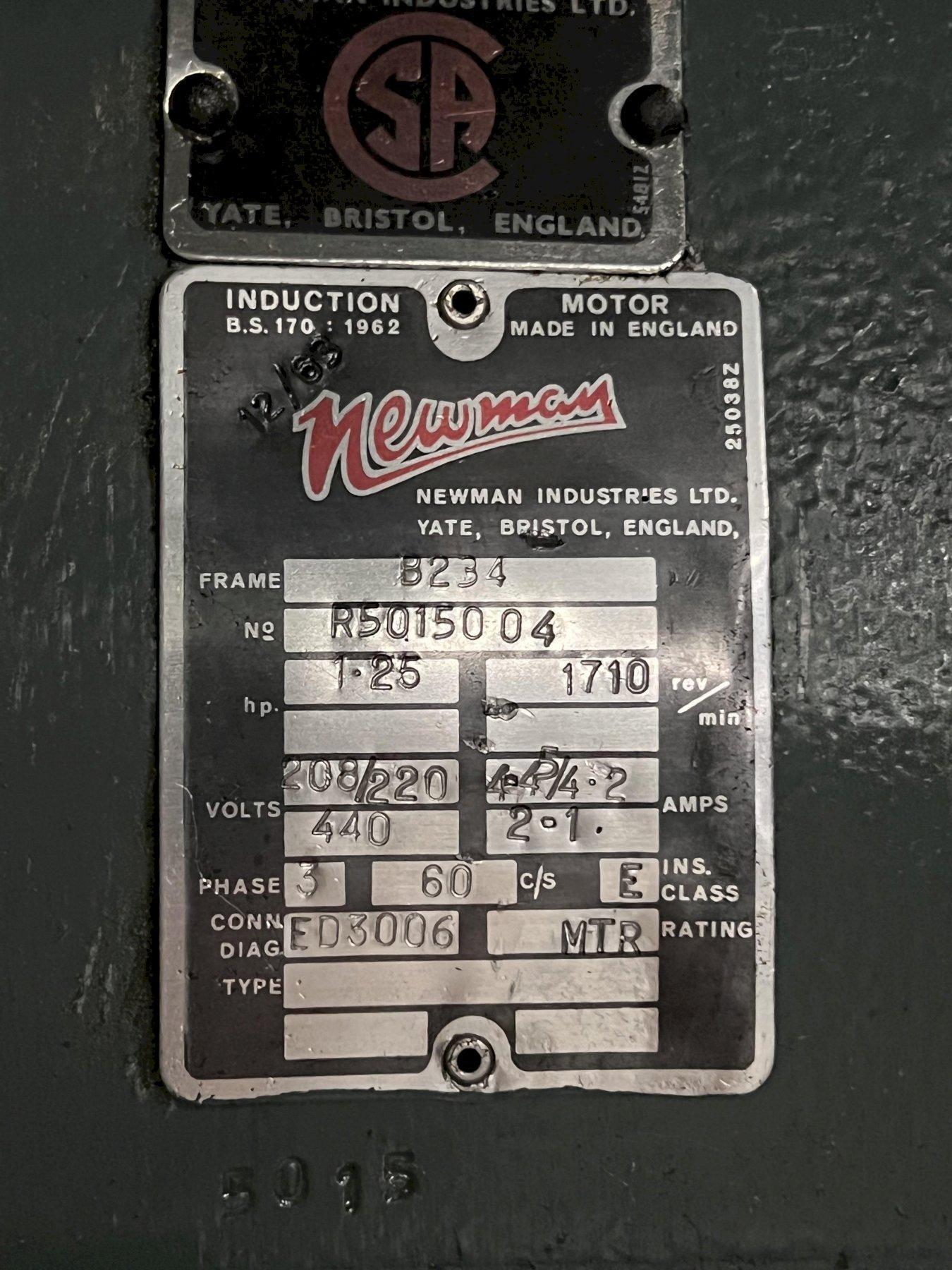

MOTOR...................... 1.25 HP

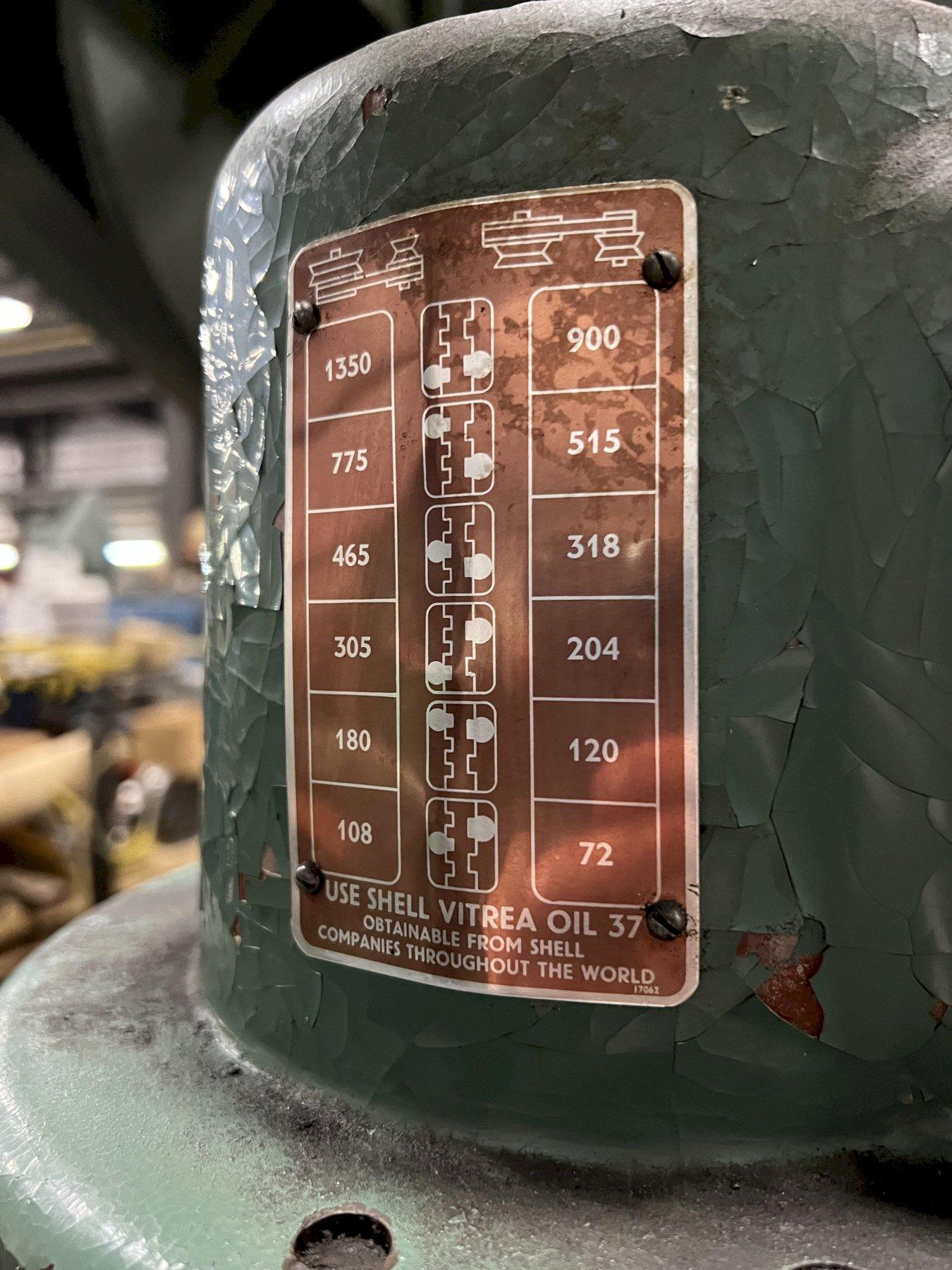

SPINDLE SPEEDS............. 72 - 1350

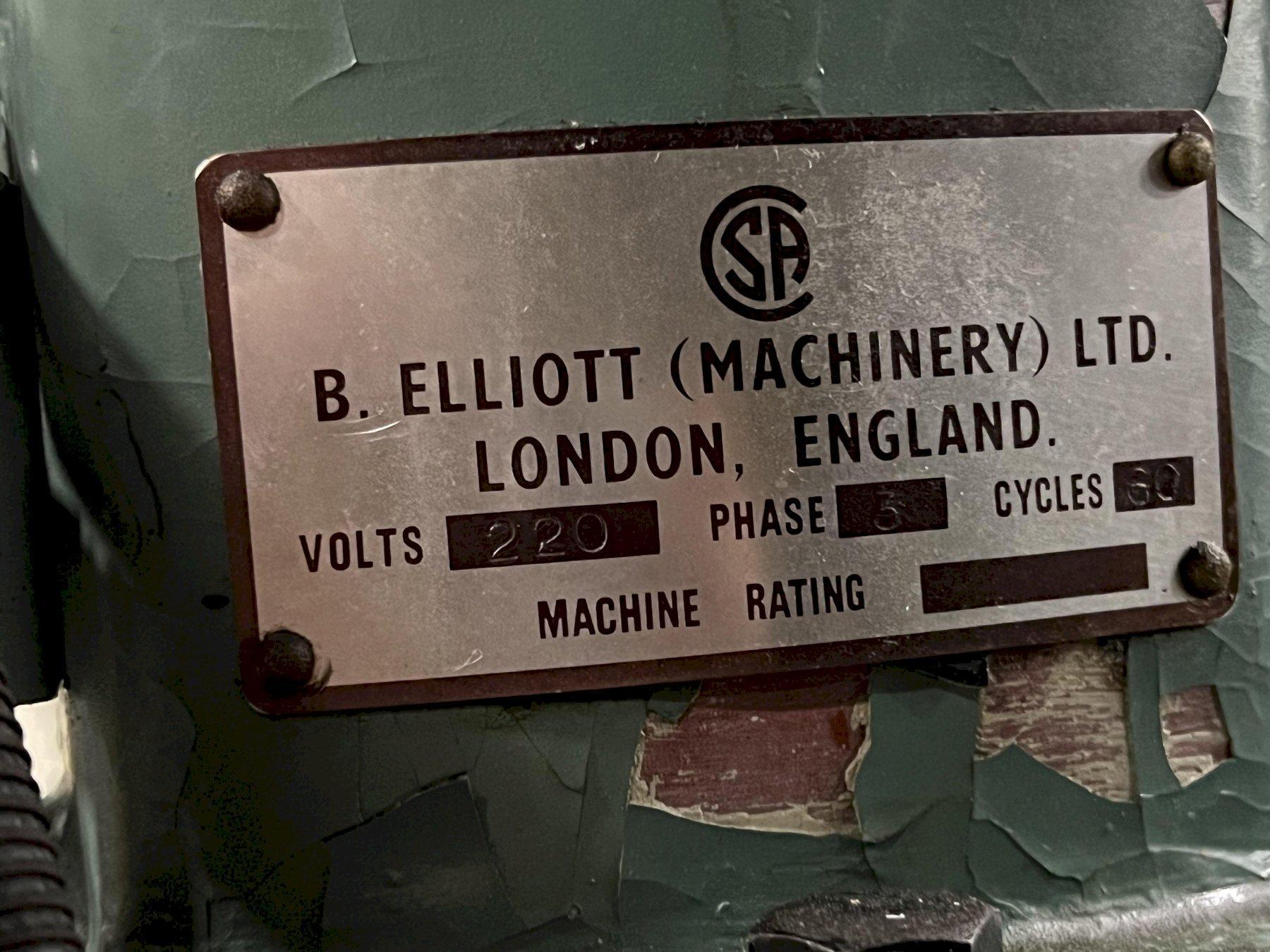

ELECTRICS.................. 220V/3PH
WEIGHT APPROX.............. 800 LBS.
EQUIPPED WITH:
GEARED HEAD
SPECIFICATIONS SUBJECT TO VERIFICATION
