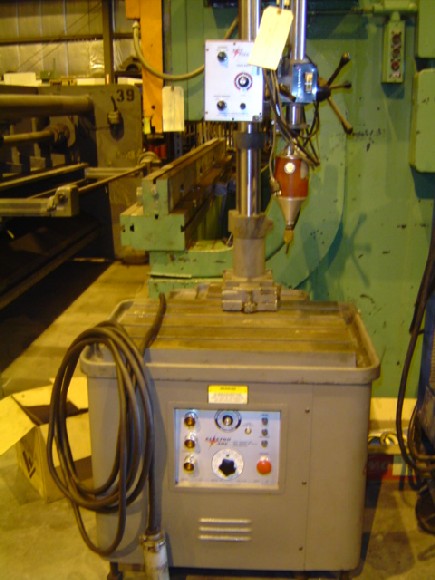

ELECTRO ARC #2-DBQT, 31" x 30" TBL, T-SLOTS, COOLANT SYSTEM, 10 KVA, SINGLE PHASE, 8 CUTTING HEATS

GENERAL SPECIFICATIONS:
MANUFACTURER ELECTRO ARC
MODEL 2-DBQT
NEW (APPROX.) 1991

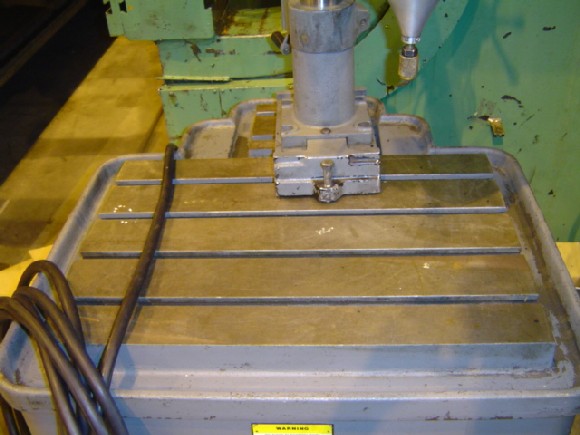

T-SLOTS (6) 5/8"
WORK SURFACE 31" x 30"
CUTTING HEATS 8
WEIGHT (APPROX.) 990 LBS

EQUIPPED WITH:
IN THE QUILL

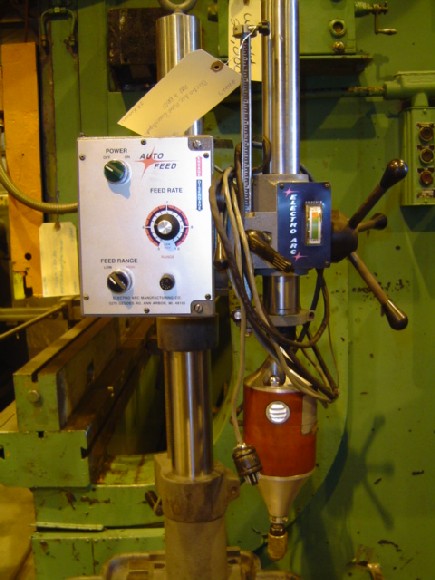

PRECISION DISINTEGRATOR HEAD WITH HARD CHROMED SURFACE
RACK & PINION MOVEMENT
COLLET CHUCK AND SIX COLLETS
TRANSISTORIZED POWER FEED WITH 9" OF VERTICAL TRAVEL
AUTOMATIC SHUT OFF SWITCH WITH ADJUSTABLE DEPTH STOP

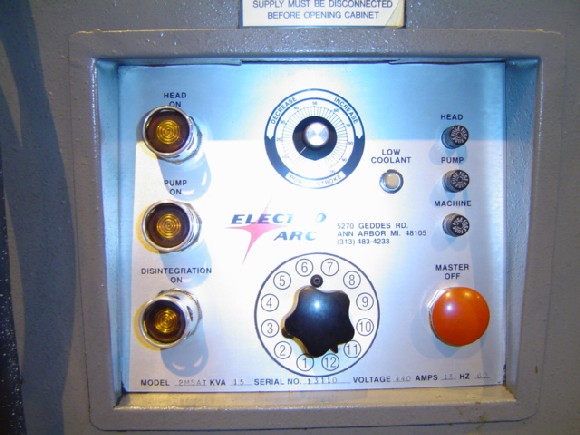

LIGHTED PUSH BUTTON CONTROL PANEL
AUTOMATIC LIGHTED INDICATOR FOR LOW-LEVEL COOLANT
REMOVABLE SUPERSTRUCTURE FOR OFF THE MACHINE MOUNTING
CROSS ARM LIFT RACK WITH 12" OF MOVEMENT
DOUBLE BARREL CROSS ARM WITH LINEAR BALL BEARINGS FOR FAST SET UP ROTATES 360 DEGS. IN 2 PLACES
COOLANT SYSTEM W/10 GAL. BAFFLED TANK, CARTRIDGE FILTER ON INTAKE OF PUMP
HEAVY DUTY TRANSFORMER, 10 KVA RATING, SINGLE PHASE
