Specifications
Equipped With
GENERAL SPECIFICATIONS:

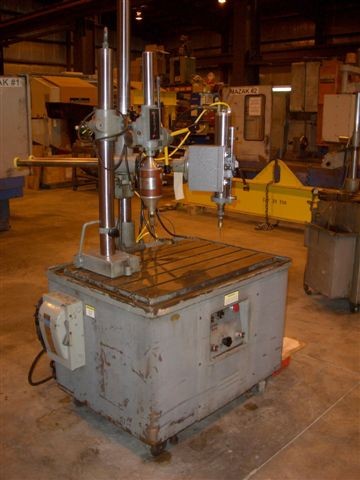

MANUFACTURER ELECTRO-ARC
MODEL 1-SQT
SERIAL # 7065
NEW (APPROX.) 1981/UPDATED 1997
TABLE SIZE 40" x 32"
KVA 15
VOLTAGE 480 SINGLE PHASE
CUTTING HEATS 12
QUILL STROKE 9"
CROSSARM HORIZ. TRAVEL 25"
CROSSARM VERTICAL TRAVEL 30"
MAX. TAP BURN WITH SINGLE CUT 1.5"
EQUIPPED WITH:

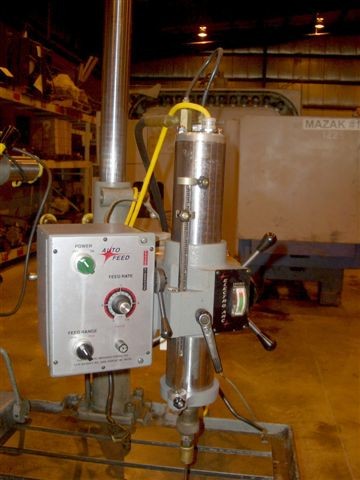

HEAD TYPE HIGH PRECISION Q HEAD ADDED IN 1997

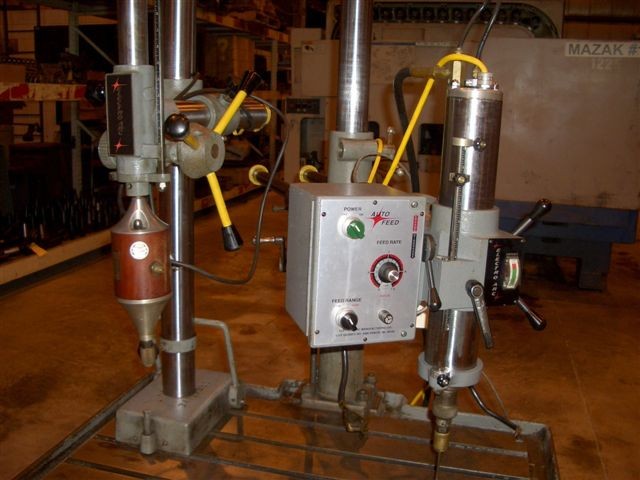

AUTO FEED UNIT W/2 SPEED VARIABLE MOTOR, AUTOMATIC DEPTH
CONTROL & POWER RETURN

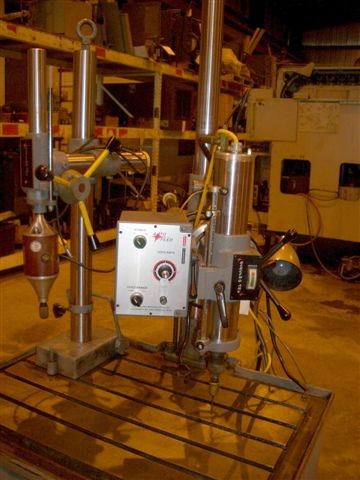

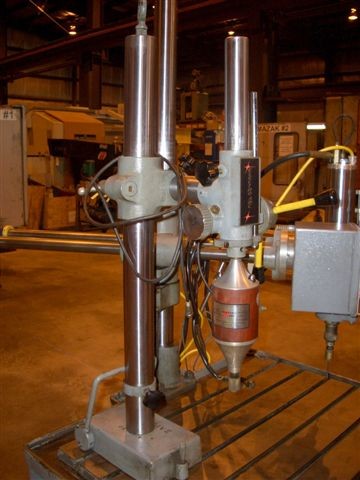

HEAVY DUTY DOUBLE BARREL 1.5" CROSSARMS W/LINEAR BALL BEARINGS W/LIFT RACK
HIGH PRECISION Q HEAD W/RECIRCULATING BALL BEARINGS TO KEEP THE POWERFUL VIBRATING ACTION UNDER CONTROL
THE HEAD IS 3.25" DIA., HARD CHROMED & PRECISION GROUND
HEAD HAS 9" OF VERT. TRVL W/RACK & PINION MOVEMENT
HEAD HAS AUTO STOP GAUGE & AMP METER FOR PRECISE CTRL OF THE CUTTING ARC CURRENT
INTERNAL COOLANT SYSTEM TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
