Specifications
Equipped With
GENERAL SPECIFICATIONS:

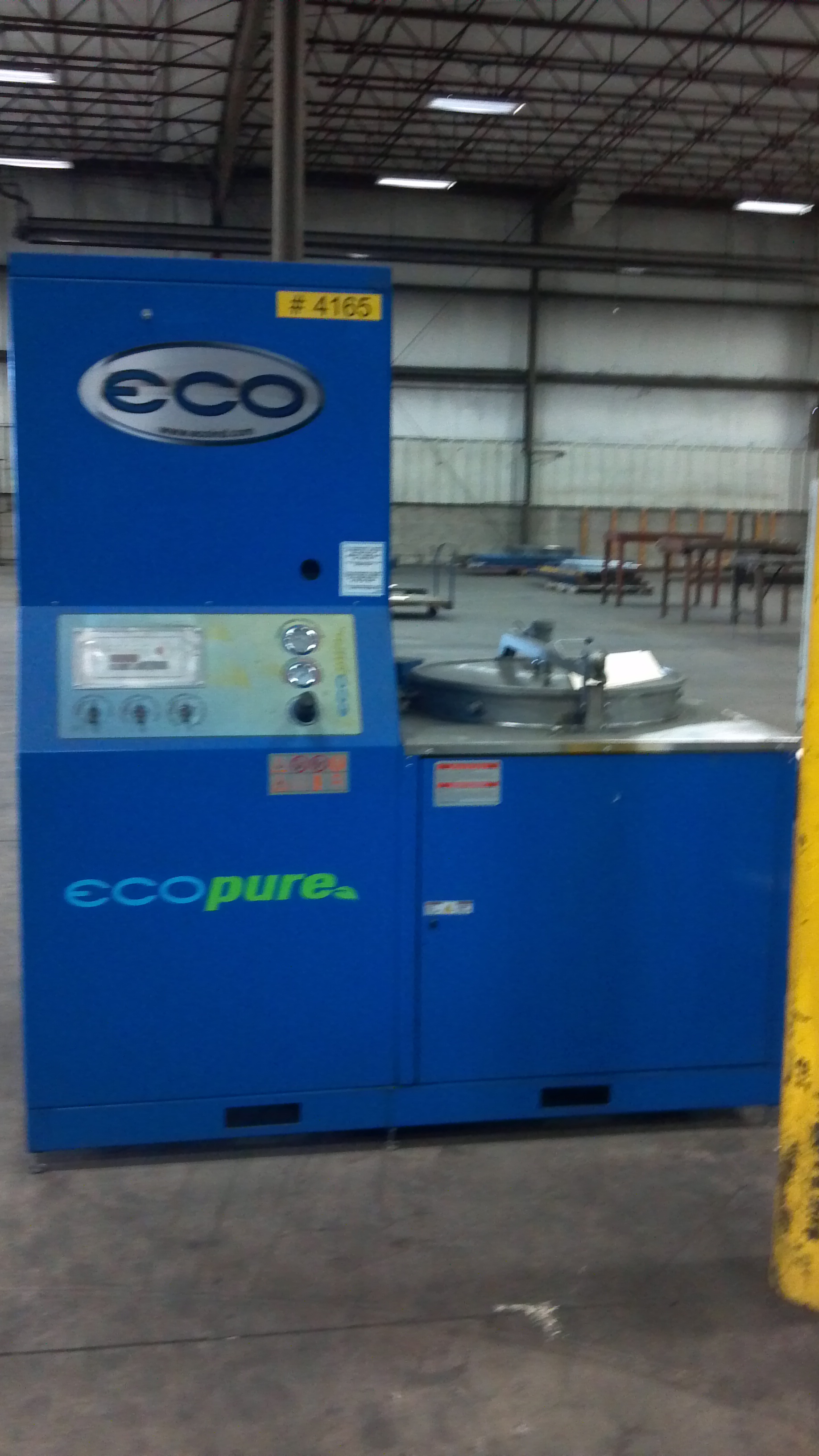

MAKE........................... ECOPURE MEK
MODEL.......................... 120V
AGE (YEAR)..................... 2012
GEOMETRICAL CAP. OF BOILER..... 40 GAL.
USEFUL CAP. OF BOILER.......... 30 GAL.
OPERATING TEMPERATURE.......... 104 - 360 DEG. F.
SOLVENT PROTECTION............. CLASS 1, DIV. 1, GROUP D
SOLVENT TEMPERATURE............ CLASS 310 DEG. C.
ABSOLUTE OPERATING PRESSURE.... 223 - 1,000 HPA
............................... 170 - 760 MMHG
............................... -0.223 - 1 BAR
RELATIVE OPERATING PRESSURE.... -776 - 0 HPA
............................... -590 - O MMHG
............................... -0.776 - 0 BAR
TIME PER CYCLE OF DISTILLATION.. 3.5 TO 4.5 HOURS EST.
YIELD........................... 85 - 97 %
COOLING SYSTEM FAN MOTOR........ 1 HP
BOILER MATERIAL................. STAINLESS STEEL AISI 304
COVER MATERIAL.................. STAINLESS STEEL AISI 304
CONDENSER MATERIAL.............. COPPER
VOLTAGE......................... 600V /480V - 3PH - 60HZ
POWER CONSUMPTION............... 10500 WATTS
AMPERAGE........................ 11.3
WEIGHT.......................... 1070 LBS
DIMENSIONS INCHES............... 43 X 72 X 79 H
SPECIFICATIONS SUBJECT TO VERIFICATION
