GENERAL SPECIFICATIONS:
MANUFACTURER............................ Dynapath (Hurco)
MODEL................................... 750
SERIAL # ............................... D75-05002040AA
TABLE SIZE.............................. 13" x 58"
TRAVEL (X).............................. 50"
TRAVEL (Y).............................. 22"
TRAVEL (KNEE)........................... 22"
TRAVEL (QUILL) ......................... 6"
SPINDLE MOTOR........................... 7.5 HP
SPINDLE TAPER .......................... 40 taper
SPINDLE SPEED RANGE..................... 20-3950 RPM
M41.................................. 20-260 RPM
M42.................................. 130-1530 RPM
M43.................................. 100-650 RPM
M44.................................. 500-3950 RPM
WEIGHT (APPROX.)........................ 6,000 LBS.
VOLTAGE................................. 220 VOLTS
EQUIPPED WITH:

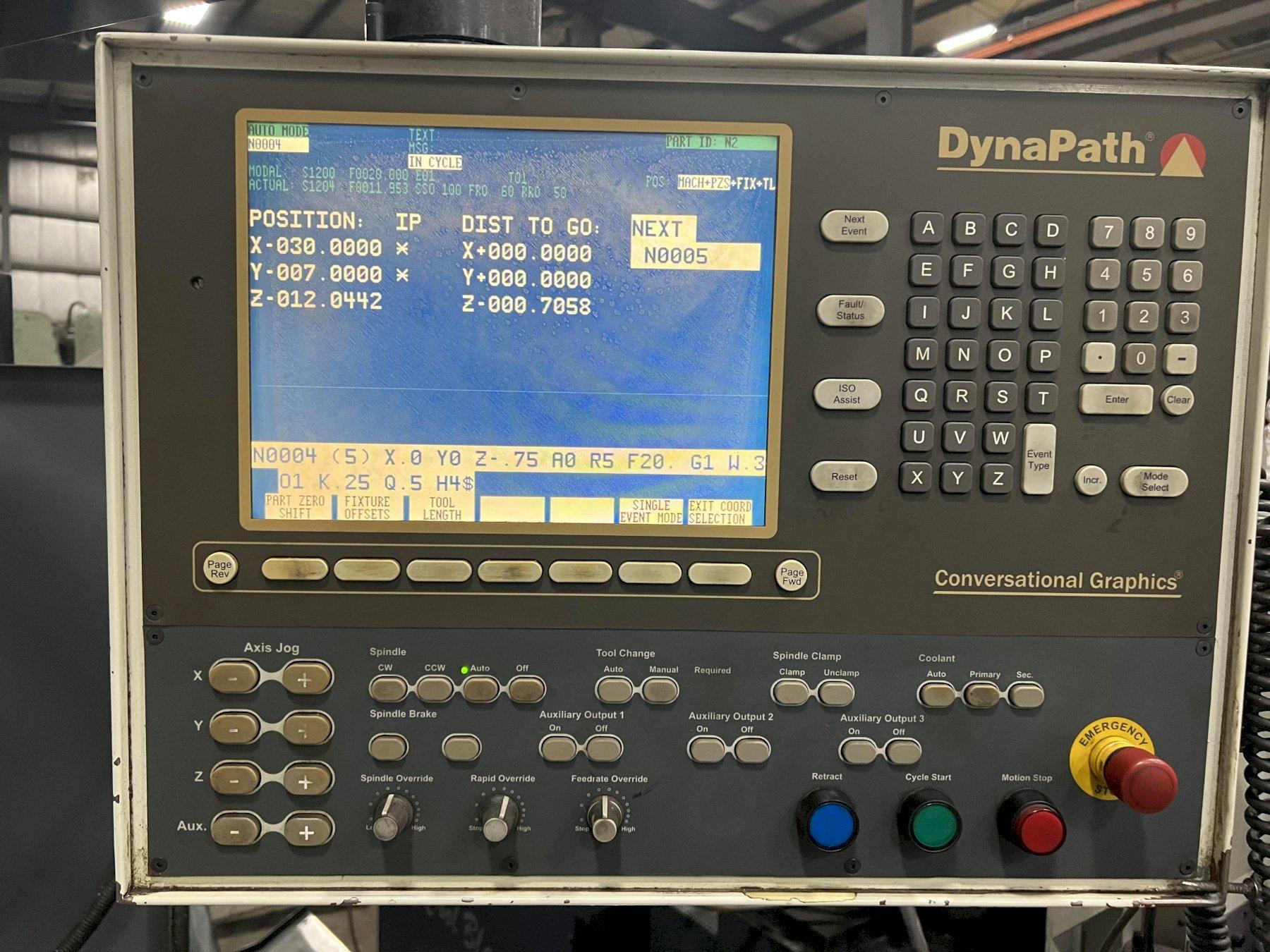

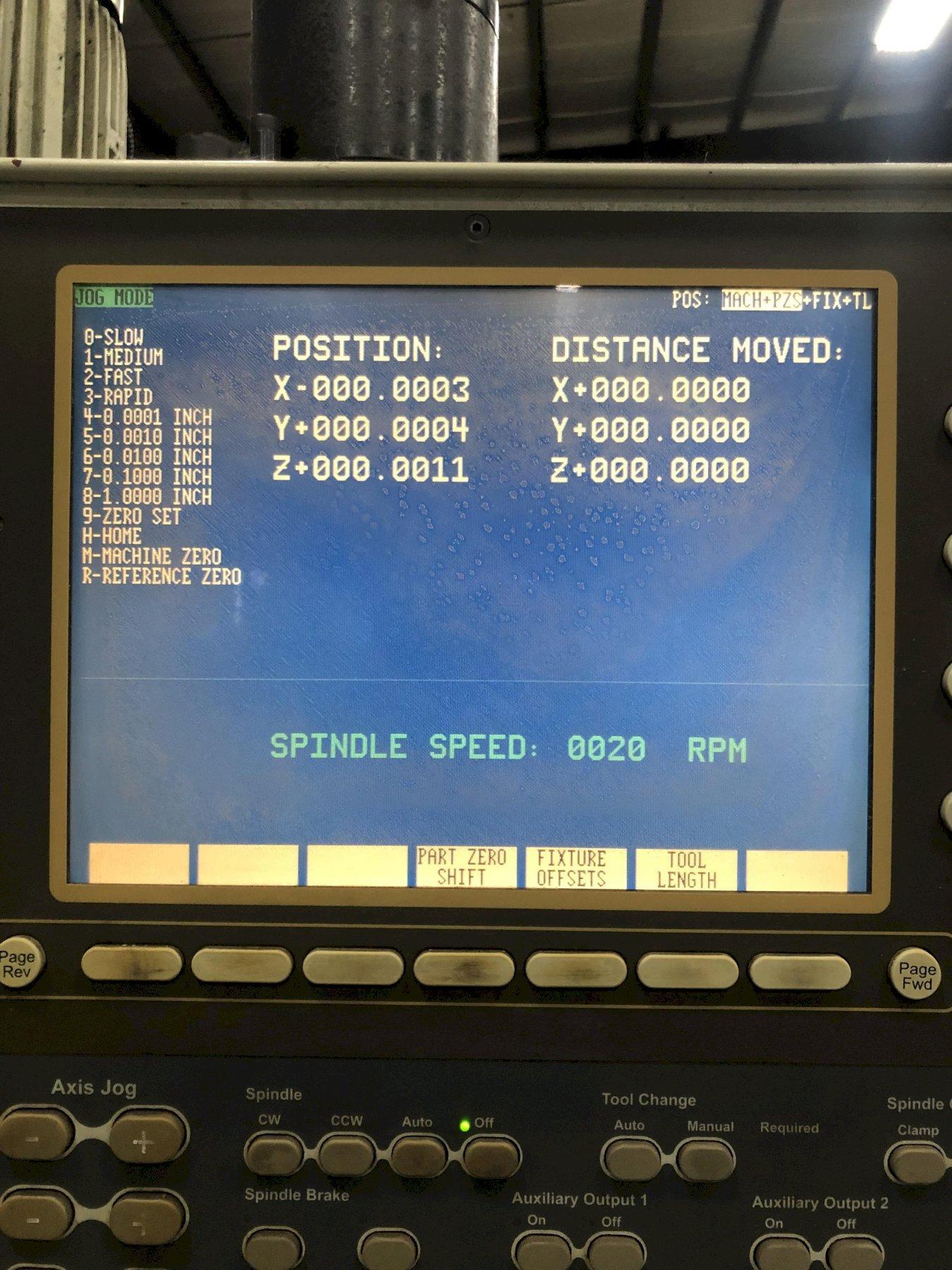

CONVERSATIONAL PROGRAMMING WITH GRAPHICS

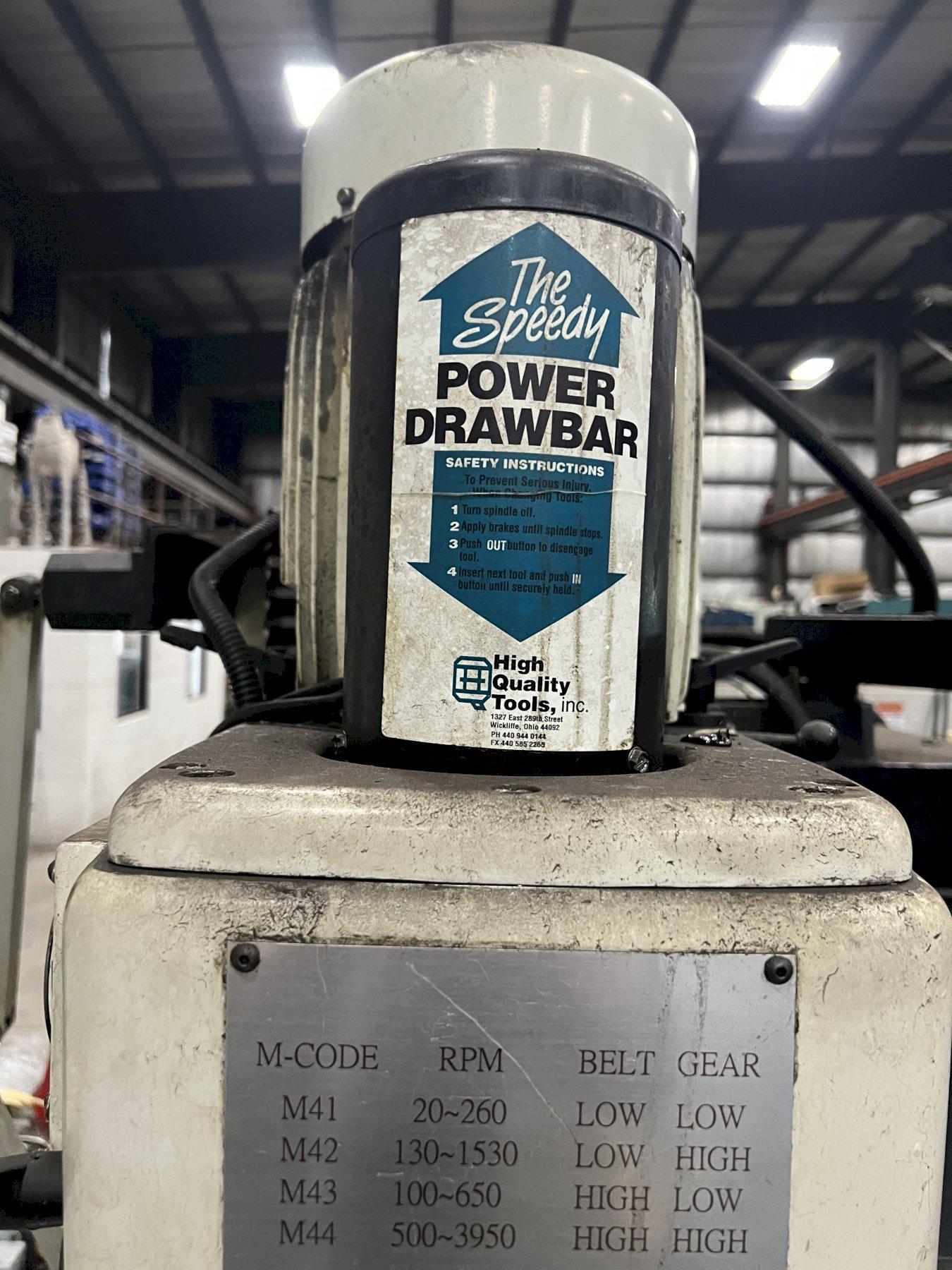

POWER DRAW BAR
AUTO LUBRICATION
MANUAL PULSE GENERATOR
MISC. MANUALS
WAY COVERS
WORK LIGHT
INSPECT UNDER POWER IN PERSON, BY VIDEO, OR ZOOM
