Specifications
Equipped With
GENERAL SPECIFICATIONS:

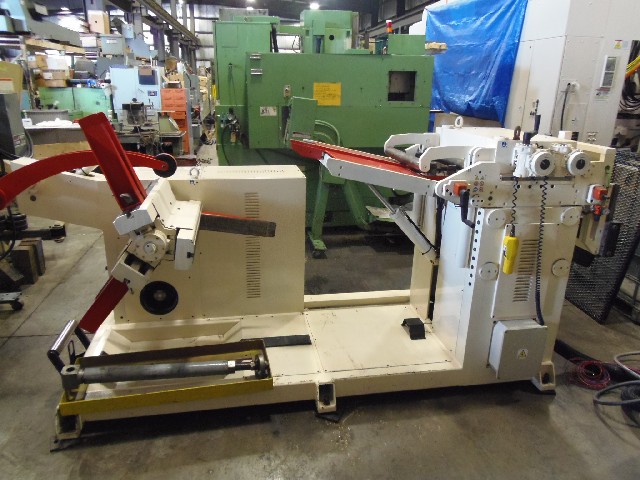

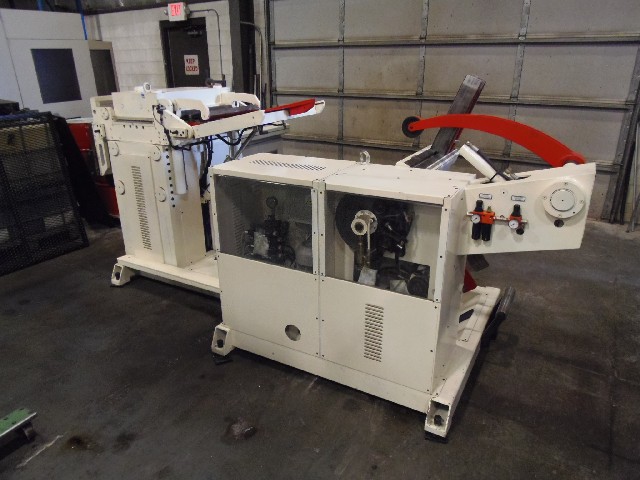

MAKE......................... DYNAMIC FEEDS
MODEL........................ SMTCL600AET3
SERIAL NUMBER................ 1206033
AGE (YEAR)................... 2006
MAX. COIL CAP. PER MANDREL... 6,000 LBS. (3,000 KG)
MAX. WIDTH................... 23.6" (600 MM)
MIN. / MAX. THICKNESS........ 0.007" / 0.078"
.............................(0.178 / 2.0MM)
MAX. OUTSIDE DIAMETER........ 55" (1400MM)
MIN. / MAX. INSIDE DIAMETER.. 15" / 21" (380 / 540MM)

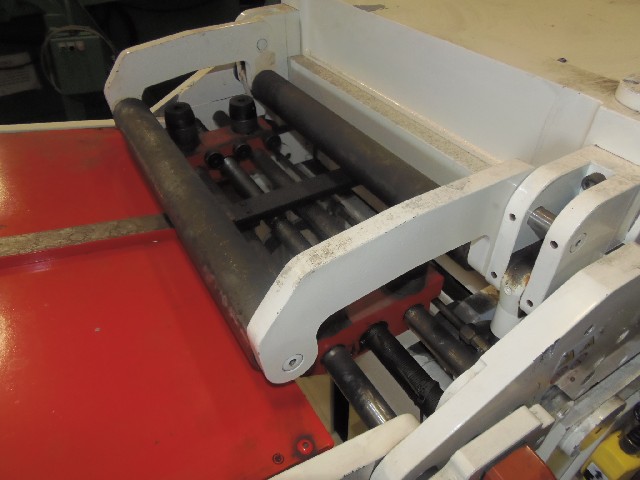

NUMBER OF ROLLS.............. 9 WORK, 2 ENTRY PINCH
ROLL DIAMETER................ 2.36" (60MM)
PASSLINE HEIGHT.............. STANDARD 47" (1200MM)
ELECTRICS.................... 480V / 3PH / 60HZ
EQUIPPED WITH:
PHOTO-OPTIC LOOP CONTROL

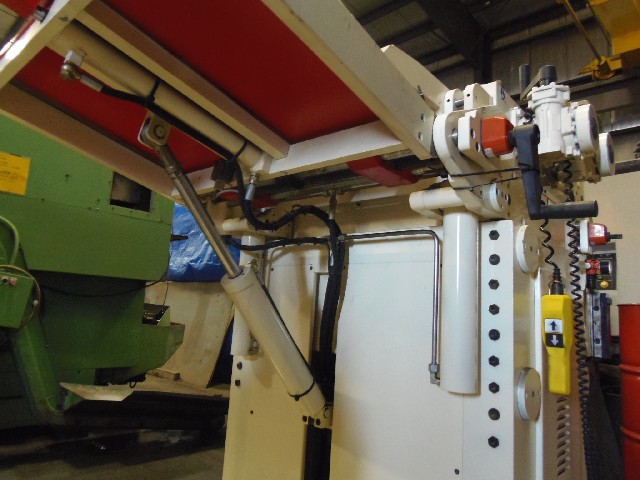

HYDRAULIC ADJUSTMENT OF PASSLINE HEIGHT (8")

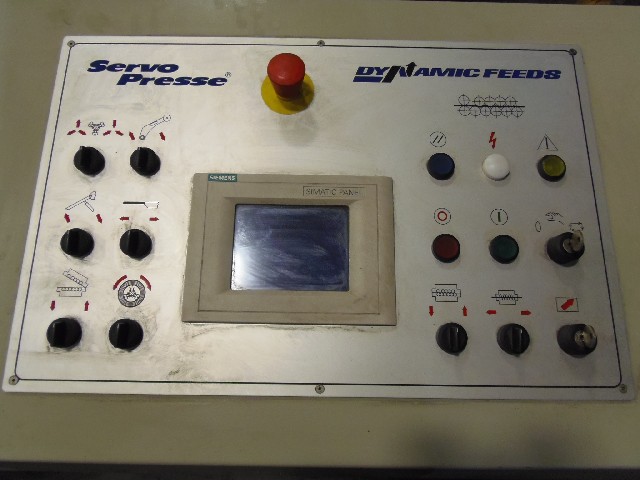

SEIMENS SERVO DRIVE CONTROL SYSTEM
PRESS MOUNTING PLATE
HYDRAULIC PILOT RELEASE

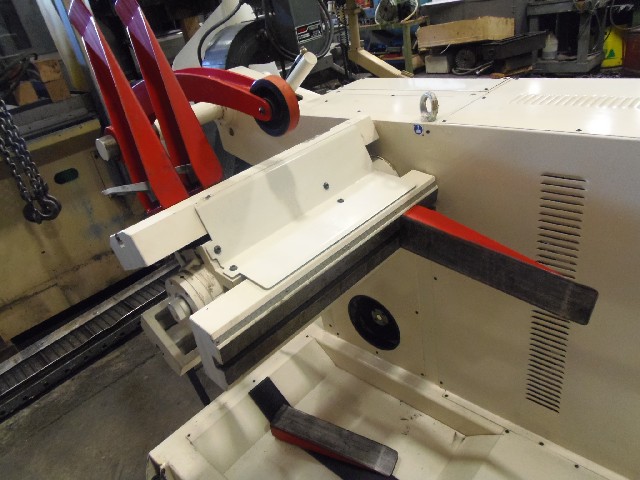

HYDRAULIC HOLD DOWN ARM
HYDRAULIC MANDREL EXPANSION

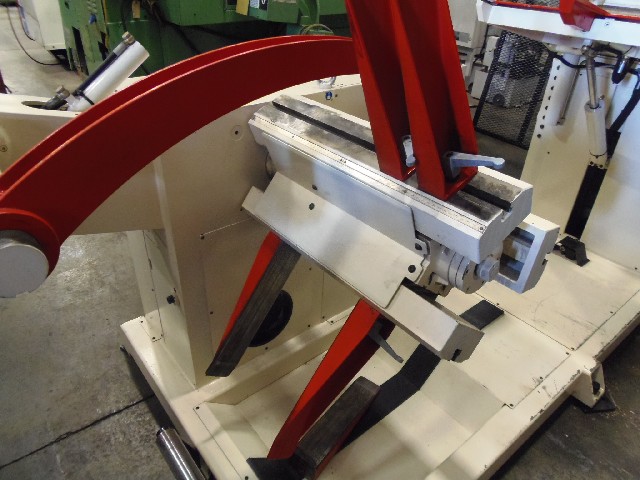

HYDRAULIC ROTATION OF SELF CENTERING MANDREL

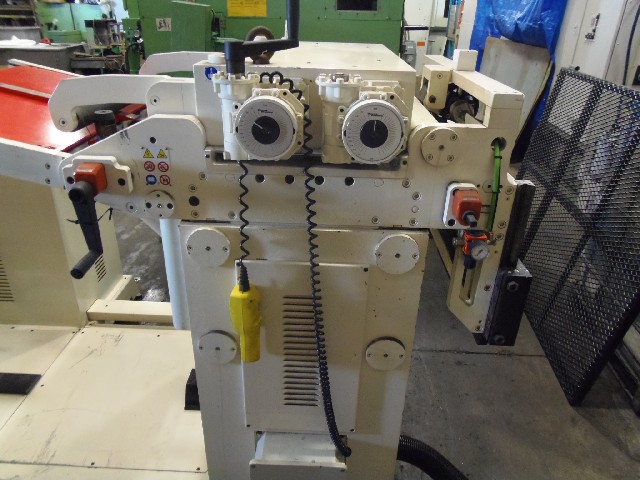

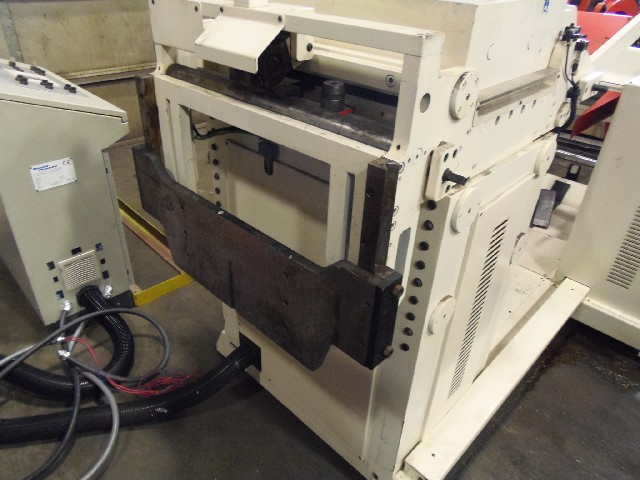

HYDRAULIC OPENING OF THE STRAIGHTENING HEAD
SPECIFICATIONS ARE SUBJECT TO VERIFICATION
